Question 1

Is the Gigabyte B650M GAMING X AX worth choosing over an A620 motherboard?

Accepted Answer

Choose the B650M GAMING X AX when you want a more flexible AM5 platform with processor and memory overclocking support, four DDR5 slots, two M.2 connectors, 2.5GbE LAN, and Wi-Fi 6E. Choose A620 when you are building a basic Ryzen system, do not need processor overclocking, and want to minimize motherboard cost.

Question 2

Is the Gigabyte B650M GAMING X AX better than the B650M DS3H?

Accepted Answer

Choose the B650M GAMING X AX when you need built-in Wi-Fi 6E, Bluetooth, and an integrated rear I/O shield. The B650M DS3H provides a similar core platform, including AM5 support, four DDR5 slots, two M.2 slots, and 2.5GbE LAN, so it is the more practical choice when wired networking is acceptable and its lower price matters more.

Question 3

Should I buy the Gigabyte B650M GAMING X AX or a full-size B650 GAMING X AX?

Accepted Answer

Choose the B650M GAMING X AX for a compact microATX build with built-in Wi-Fi 6E, two M.2 slots, and four DDR5 DIMM slots. Choose the full-size B650 GAMING X AX when your case supports ATX and you want more expansion room, three M.2 slots, additional internal connectivity, and easier access to full-size PCIe add-in cards.

Question 4

Should I choose the Gigabyte B650M GAMING X AX or stay with a B550 motherboard?

Accepted Answer

Choose the B650M GAMING X AX for a new build or a move to Ryzen 7000-, 8000-, or 9000-series processors because it uses the newer AM5 socket and DDR5 memory. Choose B550 when you already own a compatible Ryzen AM4 processor and DDR4 memory and want to reuse those components; the two platforms are not drop-in compatible.

Question 5

Is this motherboard suitable for a compact PC build?

Accepted Answer

Yes. Its Micro ATX form factor measures approximately 24.4 x 24.4 cm, making it suitable for compatible Micro ATX cases and some larger cases. Check the case specifications for motherboard support, graphics-card clearance, cooling clearance, and available expansion space.

Question 6

Which processors are compatible with this motherboard?

Accepted Answer

This motherboard uses the AMD AM5 socket and supports AMD Ryzen 7000 Series desktop processors. Buyers should verify the exact CPU against the motherboard’s official CPU Support List before purchasing.

Question 7

Does this motherboard have built-in Wi-Fi?

Accepted Answer

Yes. It includes integrated Wi-Fi 6E with support for the 2.4 GHz, 5 GHz, and 6 GHz bands, plus Bluetooth connectivity. Actual wireless performance depends on the router, signal environment, and network equipment.

Question 8

Does this motherboard support DDR4 memory?

Accepted Answer

No. This motherboard requires DDR5 memory. It has four DDR5 DIMM slots, supports dual-channel memory, and accepts AMD EXPO or Intel XMP memory profiles. Maximum supported capacity is 128 GB.

Question 9

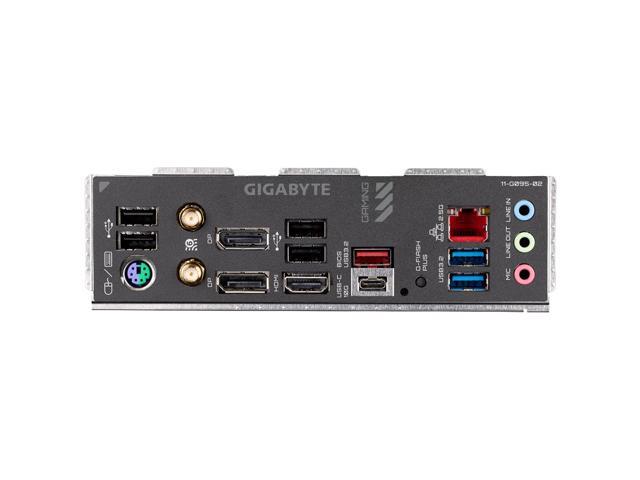

Can I connect monitors directly to this motherboard?

Accepted Answer

Yes, it provides two DisplayPort outputs and one HDMI output. The ports can support up to three displays, but video output depends on using a compatible Ryzen processor with integrated graphics; a processor without integrated graphics requires a separate graphics card.

Question 10

Can the Gigabyte B650M GAMING X AX run DDR5-6000 EXPO memory?

Accepted Answer

Yes. The board supports DDR5-6000 MT/s through AMD EXPO or equivalent memory overclocking profiles. Community reports include stable 6000 MT/s EXPO setups, but other users report memory-training or boot problems that may depend on the BIOS version, motherboard revision, or memory kit.
