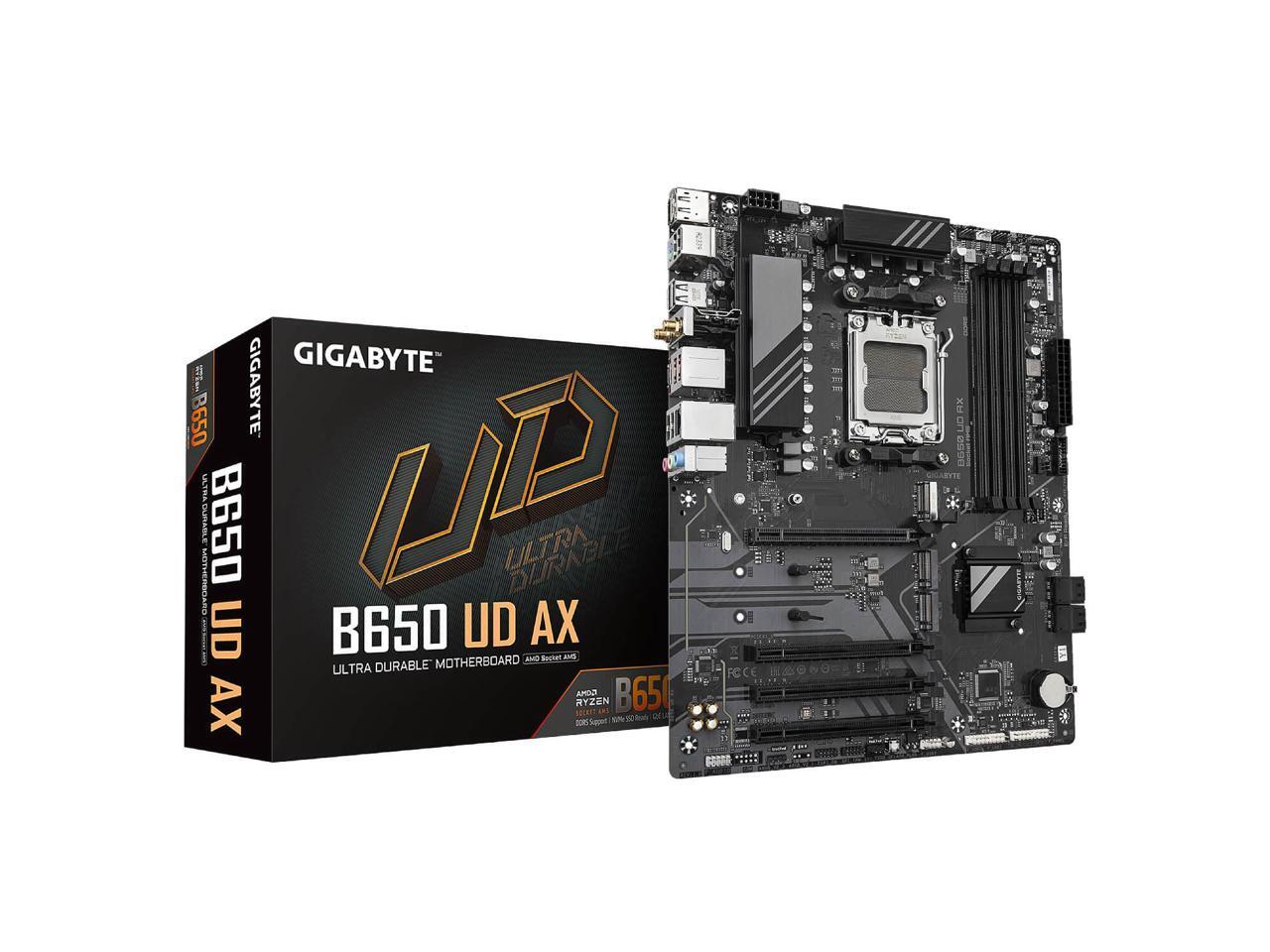

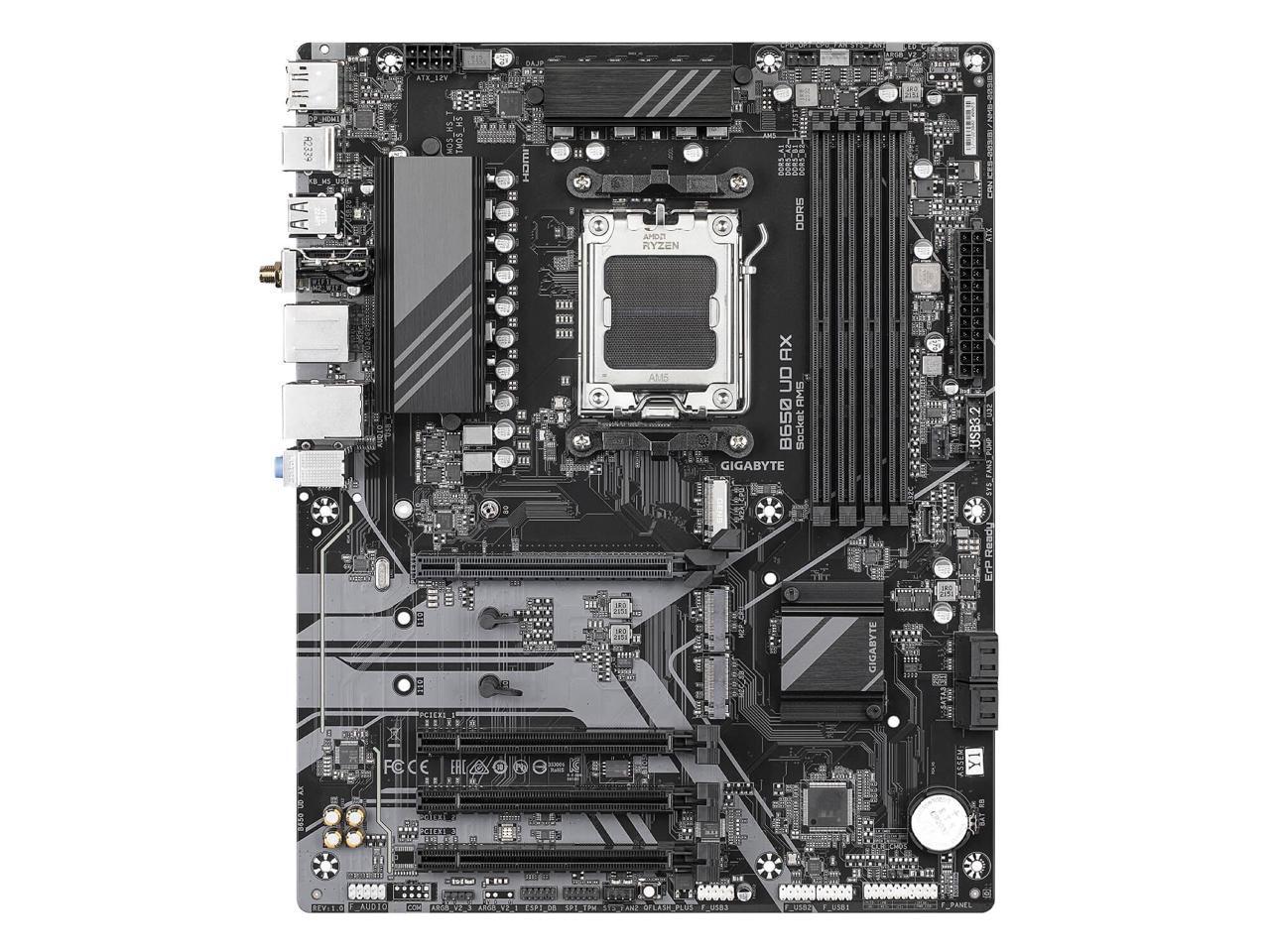

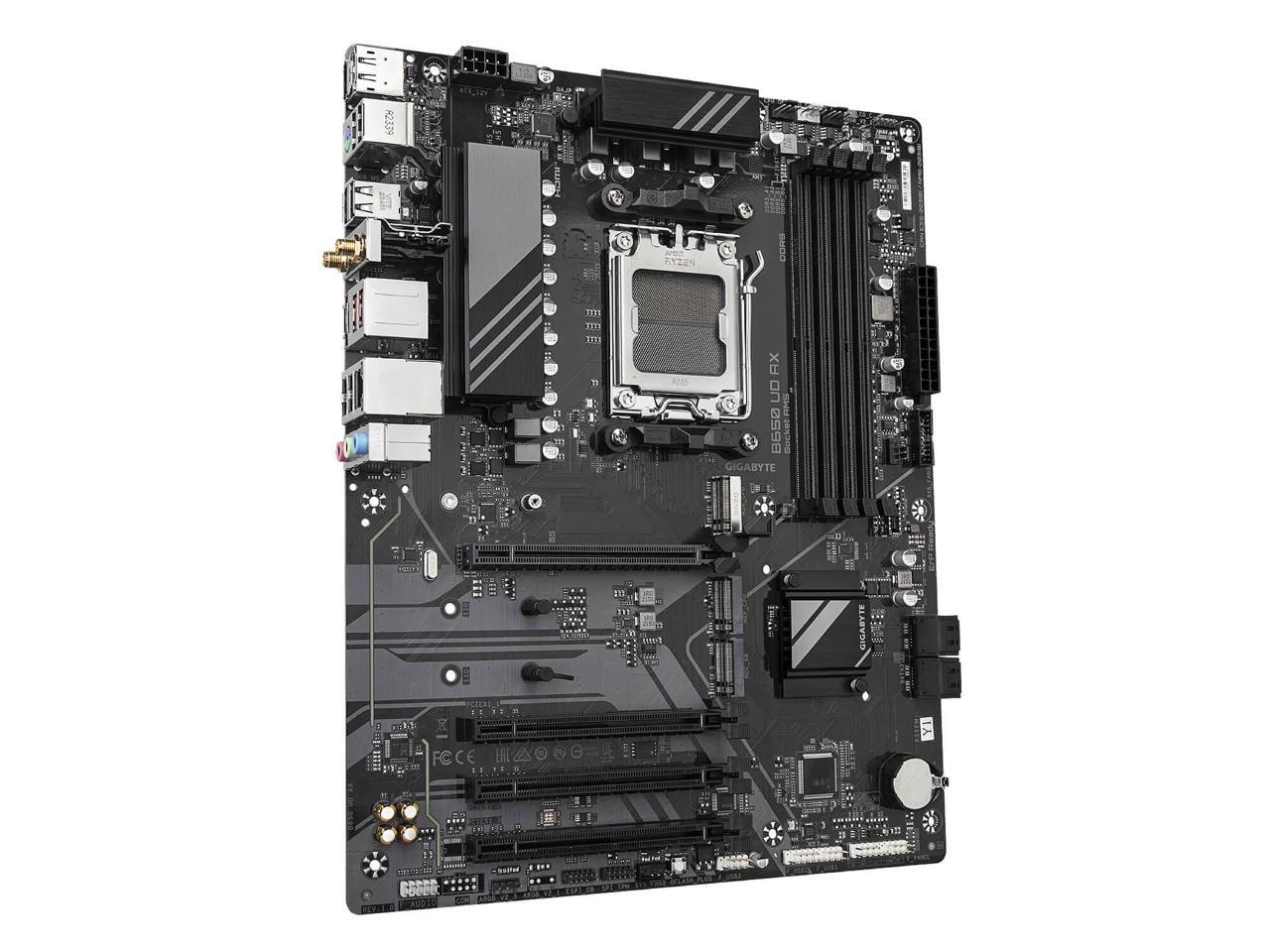

Gigabyte B650 UD AX Motherboard ATX DDR5 CPU Socket AM5 SATA 3 HDMI Wi-Fi 6/6E

CPU
AMD Socket AM5, support for:
AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
(Please refer "CPU Support List" for more information.)
Chipset
AMD B650 Chipset
Memory
Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

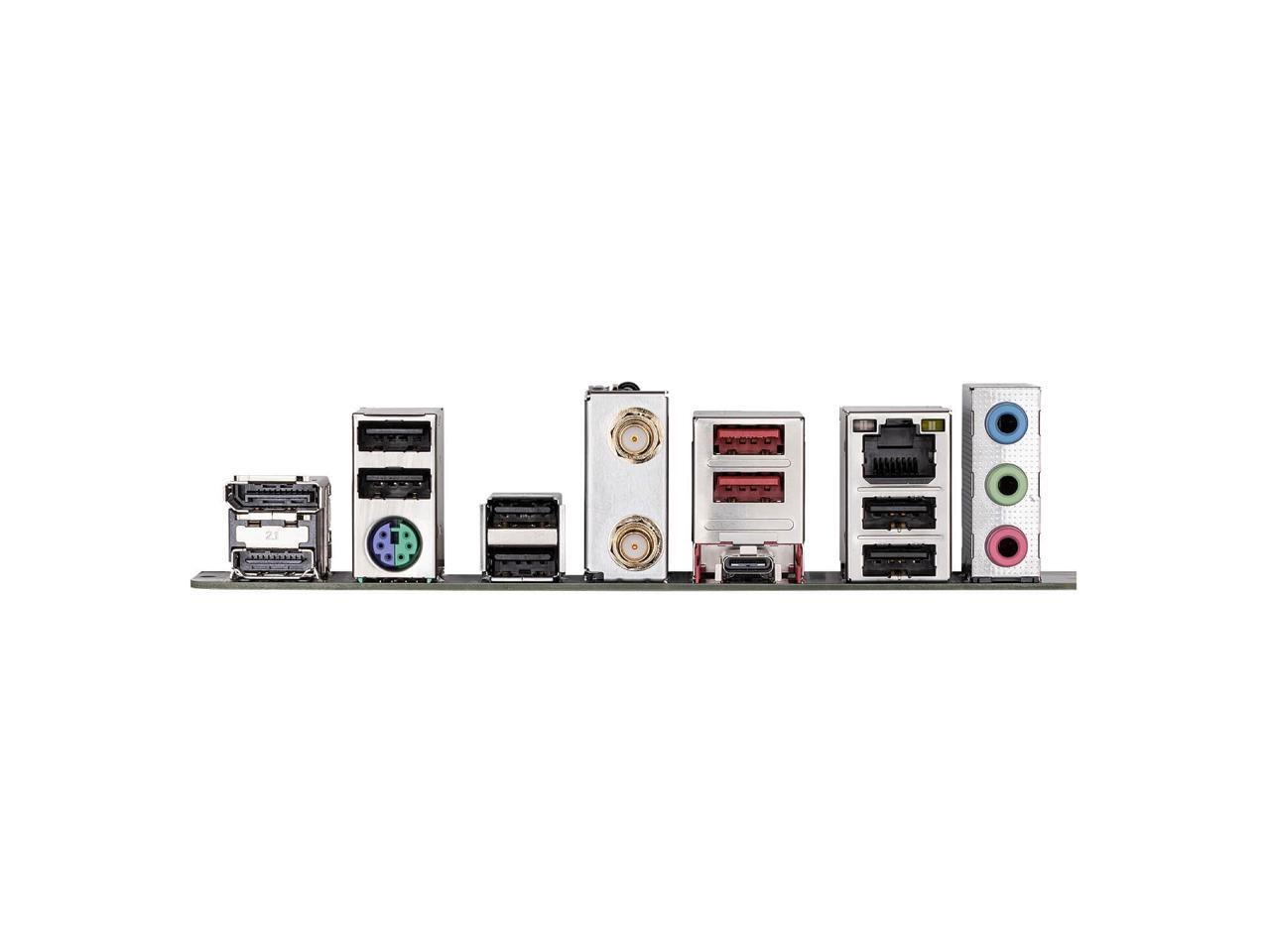

Onboard Graphics
Integrated Graphics Processor:
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
- 1 x HDMI
