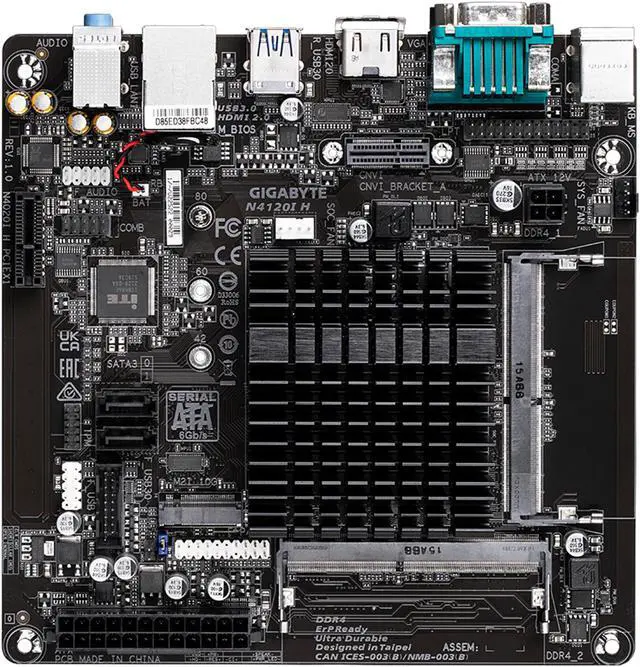

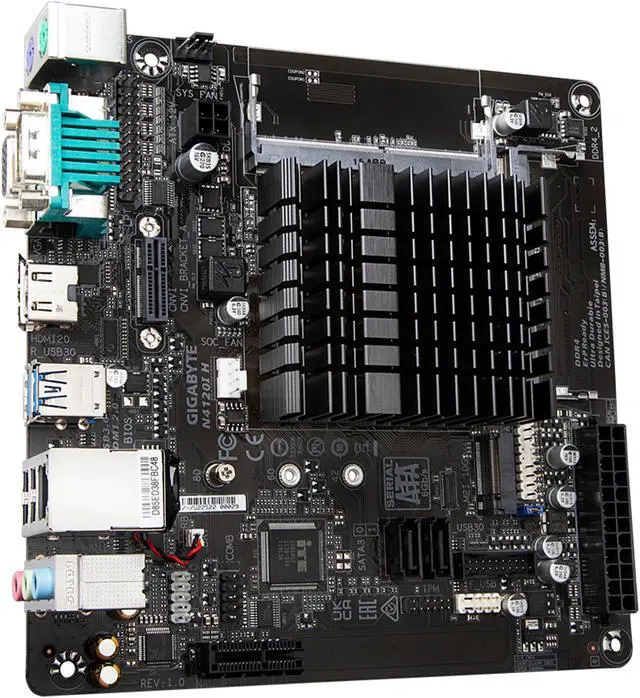

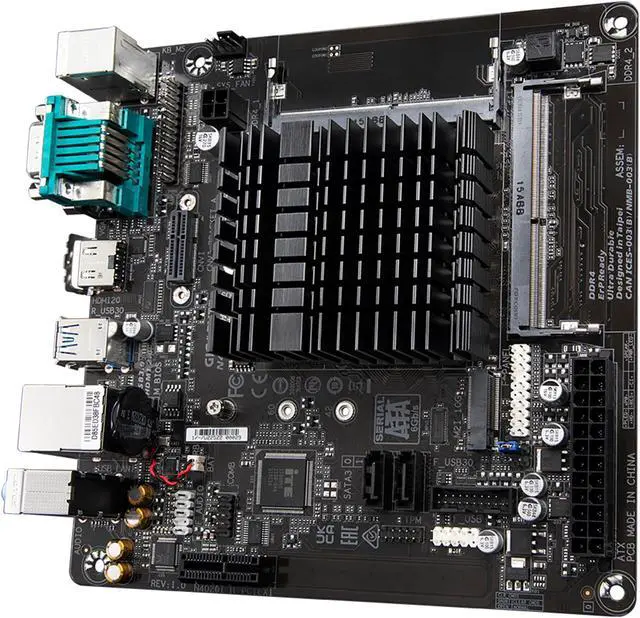

    GIGABYTE N4120I H SoC Intel N4120 Mini-ITX Motherboard with DDR4, Single M.2, PCIe 2.0, 2x USB 3.2 Gen1 Type-C, 2x USB 2.0, 1GbE LAN

    • Intel N4120 SoC
    • 2 x DDR4 UDIMM soeckets up to 16GB
    • Supports DDR4 2400/2133
    • HDMI port supports maximum resolution up to 4090x2160@60 Hz
    • D-Sub port supports maximum resolution up to 1920x1200@60 Hz
    • PCIe 2.0, USB 3.2 Gen1x4, USB 2.0x4 (2x on back panel, 2x internal header)
    • Realtek 1GbE LAN
    +
    +
    Specs
    Reviews (2)
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Learn more about the GIGABYTE N4120I H

    Model
    Brand GIGABYTE
    Model N4120I H
    Combo Type Motherboard / CPU Combo
    Bundle
    CPU Intel Celeron N4120 2.60 GHz
    Color Black
    Supported CPU
    CPU Type Celeron
    Memory
    Number of Memory Slots 2x288pin (DDR4)
    Memory Standard DDR4 2400
    Maximum Memory Supported 16GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express x1 1 x PCI Express x1 slot, running at x1
    (The PCIEX1 slot conforms to PCI Express 2.0 standard.)
    Other Slots 1 x M.2 Socket 1 connector for the wireless communication module
    1 x M.2 connector (Socket 3, M key, type 2280/2260/2242 SATA and PCIe 2.0 x2 SSD support)
    Storage Devices
    SATA 2 x SATA 6.0Gb/s
    Onboard LAN
    LAN Speed 10/100/1000Mbps
    Max LAN Speed 1Gbps

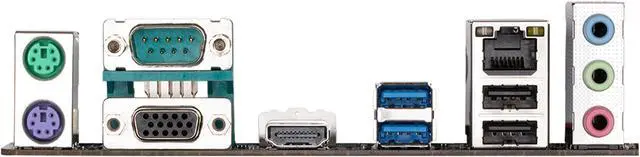

    Rear Panel Ports
    PS/2 1 x PS/2 keyboard port
    1 x PS/2 mouse port
    Video Ports 1 x D-Sub port
    HDMI 1 x HDMI
    RJ45 1 x RJ45
    USB 1.1/2.0 2 x USB 2.0/1.1 ports
    USB 3.0 2 x USB 3.2 Gen 1 ports
    Audio Ports 3 Ports
    Internal I/O Connectors
    Onboard USB 2 x USB 3.2 Gen 1 ports (2 ports available through the internal USB header)
    2 x USB 2.0/1.1 ports (2 ports available through the internal USB header)
    Other Connectors 1 x 24-pin ATX main power connector
    1 x 4-pin ATX 12V power connector
    2 x SATA 6Gb/s connectors
    1 x SoC fan header
    1 x system fan header
    1 x M.2 Socket 3 connector
    1 x front panel header
    1 x front panel audio header
    1 x parallel port header
    1 x serial port header
    1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    1 x Clear CMOS jumper
    Features
    Features Support for Xpress Install
    Support for @BIOS
    Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    Physical Spec
    Form Factor Mini ITX
    Dimensions (W x L) 6.7" x 6.7"
    Additional Information
    Date First Available June 09, 2025
