Out of stock

$2,796^.55

Price alert

Add to wish list

Sold by Newegg

Shipped by Newegg

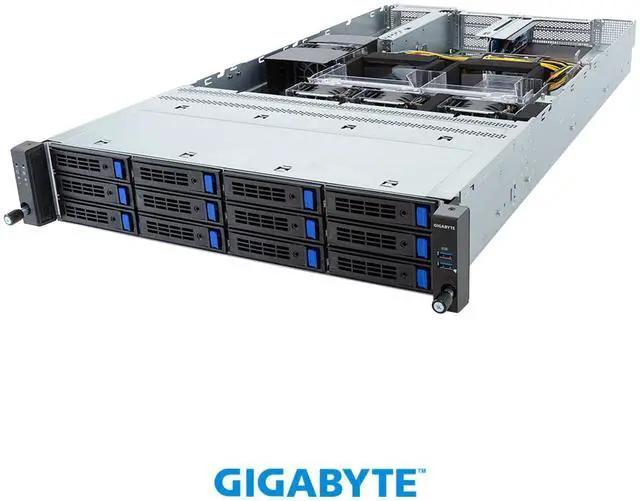

Main image of GIGABYTE R263-SG0-AAL1 Rack Server - 5th/4th Gen Intel® Xeon® Scalable - 2U UP 4 x PCIe Gen5 GPUs Titanium

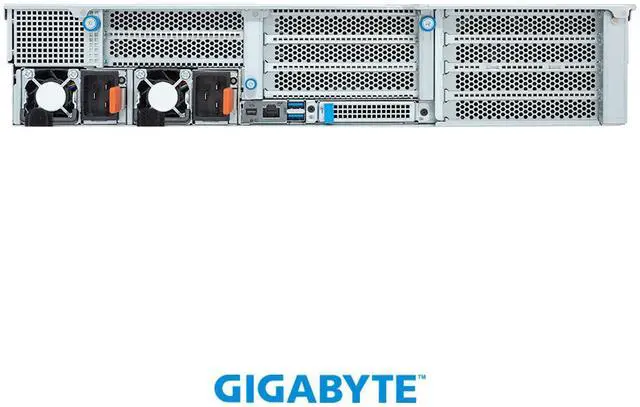

Alt view image 2 of 4 - GIGABYTE R263-SG0-AAL1 Rack Server - 5th/4th Gen Intel® Xeon® Scalable - 2U UP 4 x PCIe Gen5 GPUs Titanium

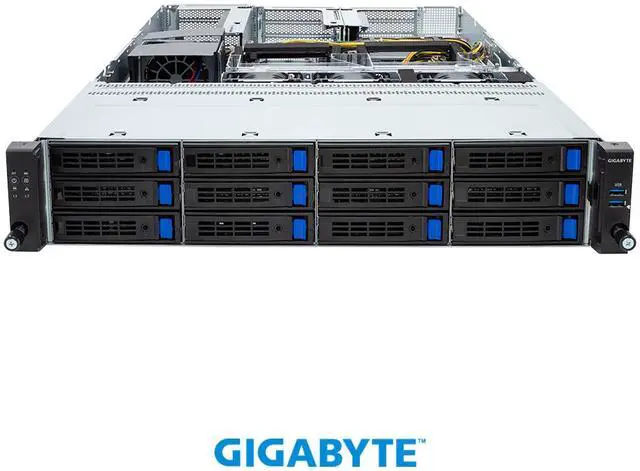

Alt view image 3 of 4 - GIGABYTE R263-SG0-AAL1 Rack Server - 5th/4th Gen Intel® Xeon® Scalable - 2U UP 4 x PCIe Gen5 GPUs Titanium

Alt view image 4 of 4 - GIGABYTE R263-SG0-AAL1 Rack Server - 5th/4th Gen Intel® Xeon® Scalable - 2U UP 4 x PCIe Gen5 GPUs Titanium

Shop All GIGABYTE Products

GIGABYTE R263-SG0-AAL1 Rack Server - 5th/4th Gen Intel® Xeon® Scalable - 2U UP 4 x PCIe Gen5 GPUs Titanium

Be the first to review this product...

Supports up to 4 x Dual slot Gen5 GPUs
Single 5th/4th Gen Intel® Xeon® Scalable Processors
Single Intel® Xeon® CPU Max Series
8-Channel DDR5 RDIMM, 16 x DIMMs
Dual ROM Architecture
12 x 3.5"/2.5" SATA/SAS-4 hot-swappable bays
1 x M.2 slot with PCIe Gen3 x4 interface
4 x FHFL PCIe Gen5 x16 slots for GPUs
1 x OCP 3.0 Gen5 x16 slot
Dual 2700W 80 PLUS Titanium redundant power supply

View User Manual Details

View QVL Support List

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

General
Brand	GIGABYTE
Model	R263-SG0-AAL1
Form Factor	2U Rackmount
Workload	General Purpose Server

CPU Supported
CPU Type	Support 4th/5th Gen Intel Xeon Scalable and Intel Xeon CPU Max Series Processor
CPU Socket	LGA 4677
Installed CPU	No CPU Installed
Max Processors	1
CPU Features	Single processor, TDP up to 350W

Chipset
North Bridge	Intel C741

Memory Supported
Memory Slots	16 x 288Pin
Installed Memory Size	No Memory Installed
Max Memory Supported	4TB
Memory Type Supported	5th Gen Intel Xeon: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) 4th Gen Intel Xeon: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) Intel Xeon Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) 5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.
Channel Supported	8 Channel
Registered	Yes

Storage Supported
Installed HDD	No Storage Installed
M.2	1 x M.2 slot: - M-key - PCIe Gen3 x4, from PCH - Supports 2280/22110 cards

Graphics
GPU/VPU	Aspeed AST2600

Expansion Slots
PCI Express	4 x FHFL PCIe Gen5 x16 slots for GPUs 1 x OCP 3.0 Gen5 x16 slot

Communications
Max. LAN Speed	1 Gigabit

Expansion Bays
Hot-Swap Bays	Front side: 12 x 3.5"/2.5" SATA/SAS-4 hot-swappable bays

Panel Ports
Buttons	1 x NMI button 1 x Reset button
LEDs	1 x Power button with LED 1 x ID button with LED 2 x LAN activity LEDs (disabled) 1 x Storage activity LED 1 x System status LED
Front USB	2 x USB 3.2 Gen 1
DisplayPort	1 x Mini DisplayPort
Rear USB	2 x USB 3.2 Gen 1
Other Ports	1 x MLAN

Power Supply
Max. Power	Dual 2700W 80 PLUS Titanium redundant power supply

Cooling
Fans	4 x 80x80x38mm (18,300rpm)

Environment
Temperature	Operating temperature: 10°C to 35°C Non-operating temperature: -40°C to 60°C
Humidity	Operating humidity: 8%-80% (non-condensing) Non-operating humidity: 20%-95% (non-condensing)

Dimensions & Weight
Dimensions	3.44" x 17.24" x 32.09"
Weight	61.29 lbs.

Packaging
Package Contents	1 x R263-SG0-AAL1 1 x CPU heatsink 1 x Mini-DP to D-Sub cable 2 x GPU power cables (12VHPWR, 450mm) 2 x GPU power cables (12VHPWR, 550mm) 3 x Carriers 1 x 2-Section Rail kit

Additional Information
First Listed on Newegg	February 10, 2025

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for replacement - Contact Manufacture for Assistance

This item is covered by Newegg.com's Manufacturer Only Return Policy.
Read full return policy for details.
