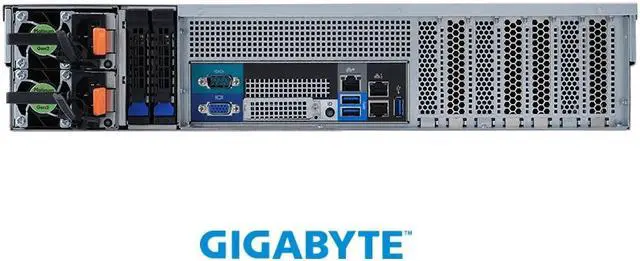

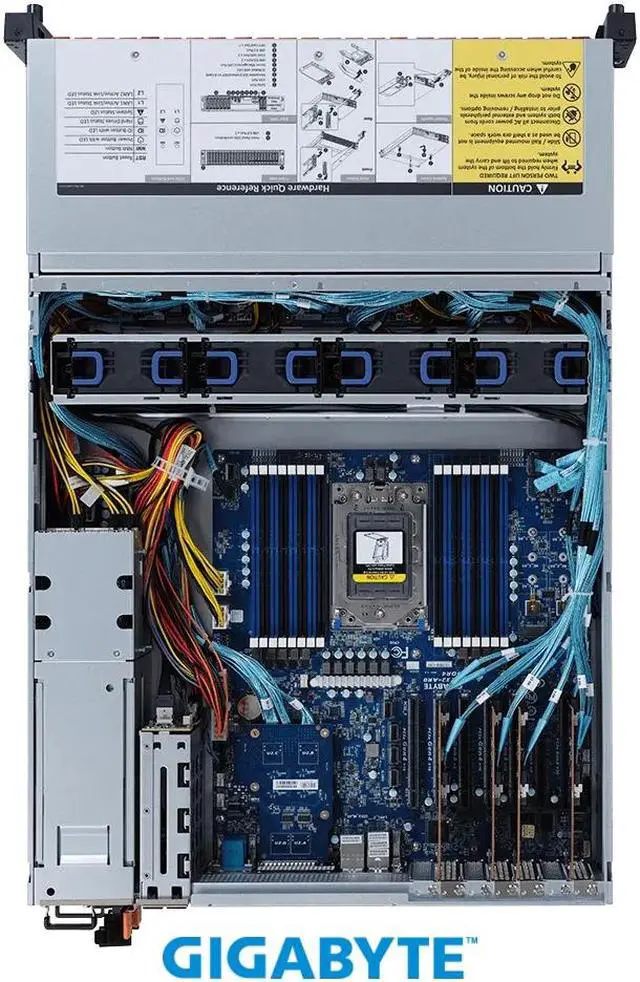

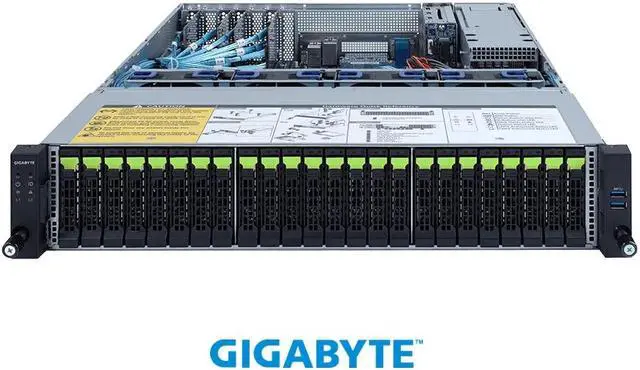

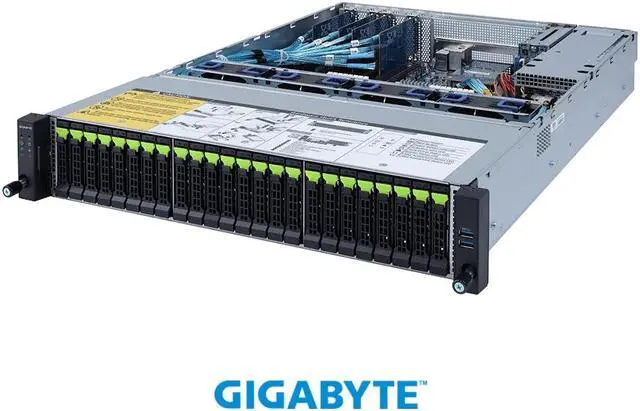

GIGABYTE R272-Z34 2U Rackmount Server Barebone Socket SP3 DDR4 3200
- Socket SP3
- Supports AMD EPYC 7003 series processor family
- Compatible with AMD EPYC 7002 series processor family
- 16 x 288Pin Memory Slots
- 2 x 1200W redundant PSUs
- 80 PLUS Platinum
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE R272-Z34
| Brand | GIGABYTE |
|---|---|
| Model | R272-Z34 |
| Form Factor | 2U Rackmount |
| CPU Type | Supports AMD EPYC 7003 series processor family Compatible with AMD EPYC 7002 series processor family |
|---|---|
| CPU Socket | Socket SP3 |
| Installed CPU | No CPU Installed |
| Max Processors | 1 |
| Memory Slots | 16 x 288Pin |
|---|---|
| Installed Memory Size | No Memory Installed |
| Memory Type Supported | DDR4 3200 |
| Channel Supported | 8 Channel |
| Installed HDD | No Storage Installed |
|---|---|
| Serial ATA | Front side_CBP20O5: 24 x NVMe ports Rear side_CBP2021: 2 x SATA/SAS ports Speed and bandwidth: PCIe Gen3 x4 per port |
| M.2 | 2 x M.2 slots: - M-key - PCIe Gen4 x4 - Supports NGFF-2242/2260/2280 cards |
| GPU/VPU | Aspeed AST2500 |
|---|
| PCI Express | Total 6 x low profile PCIe Gen4 / Gen3 expansion slots Slot_6: 1 x PCIe x16 (Gen4 x16 bus) slot; Occupied by CNV3134, 4 x NVMe HBA Slot_5: 1 x PCIe x16 (Gen4 x8 bus) slot Slot_4: 1 x PCIe x16 (Gen4 x16 bus) slot; Occupied by CNV3134, 4 x NVMe HBA Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot; Occupied by CNV3134, 4 x NVMe HBA Slot_2: 1 x PCIe x8 (Gen3 x0 or x8 bus) slot; no function Slot_1: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot; Occupied by CNV3134, 4 x NVMe HBA 1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16; Occupied by CNVP143, 4 x NVMe HBA |
|---|
| First LAN | Intel I350-AM2 |
|---|---|
| Max. LAN Speed | 1 Gigabit |
| Hot-Swap Bays | Total 26 x 2.5" hot-swappable HDD/SSD bays - Front side: 24 x 2.5" Gen4 U.2 hot-swappable SSD bays - Rear side: 2 x 2.5" SATA/SAS hot-swappable HDD/SSD bays |
|---|
| Front USB | 2 x USB 3.0 |
|---|---|
| COM | 1 |
| VGA | 1 |
| Rear USB | 3 x USB 3.0 |
| RJ45 | 2 x RJ45 1 x MLAN |
| Other Ports | Internal I/O 2 x M.2 slots 1 x USB 3.0 header 1 x USB 2.0 header 1 x COM_2 header 1 x TPM header 1 x Front panel header 1 x HDD back plane board header 1 x PMBus connector 1 x IPMB connector 1 x Clear CMOS jumper 1 x BIOS recovery jumper 1 x Buzzer |
| Max. Power | 2 x 1200W redundant PSUs 80 PLUS Platinum |
|---|
| System Compatibility | Windows Server 2016 ( X2APIC/256T not supported) Windows Server 2019 Red Hat Enterprise Linux 8.3 ( x64) or later SUSE Linux Enterprise Server 12 SP5 ( x64) or later SUSE Linux Enterprise Server 15 SP2 ( x64) or later Ubuntu 18.04.5 LTS (x64) or later Ubuntu 20.04 LTS (x64) or later VMware ESXi 6.7 Update3 P03 or later VMware ESXi 7.0 Update1 or later Citrix Hypervisor 8.2.0 or later |
|---|
| Temperature | Operating temperature: 10°C to 35°C Non-operating temperature: -40°C to 60°C |
|---|---|
| Humidity | Operating humidity: 8-80% (non-condensing) Non-operating humidity: 20%-95% (non-condensing) |
| Dimensions | 3.44" x 17.24" x 25.98" |
|---|---|
| Weight | 39.20 lbs. |
| Package Contents | 1 x R272-Z34 system 1 x CPU heatsink 1 x Rail kit |
|---|
| First Listed on Newegg | January 26, 2022 |
|---|
