GIGABYTE R282-NO0 2U Rackmount Server Barebone LGA 4189 Intel C621A DDR4 3200

Be the first to review this product...
  • Supports GRAID SupremeRAID SR-1000 NVMe/NVMe-oF RAID Card
  • 3rd Gen. Intel Xeon Scalable Processors
  • 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
  • Supports Intel Optane Persistent Memory 200 series
  • Dual ROM Architecture supported
  • Intel C621A Express Chipset
  • 2 x 1Gb/s LAN ports (Intel I350-AM2)
  • 1 x Dedicated management port
  • 24 x 2.5" Gen4 NVMe hot-swappable HDD/SSD bays
  • 2 x 2.5" SATA/SAS hot-swappable HDD/SSD bays in rear side
  • 2 x PCIe Gen4 x16 expansion slots
  • 1 x OCP 2.0 Gen3 x8 mezzanine slot
  • 1600W (240V) 80 PLUS Platinum redundant power supply
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the GIGABYTE R282-NO0

General
Brand GIGABYTE
Model R282-NO0
Form Factor 2U Rackmount
CPU Supported
CPU Type Supports 3rd Generation Intel Xeon Scalable Processors
CPU Socket LGA 4189
Installed CPU No CPU Installed
Max Processors 2
Chipset
North Bridge Intel C621A
Memory Supported
Memory Slots 32 x 288Pin
Installed Memory Size No Memory Installed
Max Memory Supported 256GB
Memory Type Supported DDR4 3200
Channel Supported 8 Channel
Storage Supported
Installed HDD No Storage Installed
Serial ATA Front side_CBP20O7: 24 x Gen4 NVMe ports
Rear side_CBP2022: 2 x SATA/SAS ports
SATA RAID RAID 0/1
Graphics
GPU/VPU Aspeed AST2600
Expansion Slots
PCI Express 2 x PCIe Gen4 x16 expansion slots
1 x OCP 2.0 Gen3 x8 mezzanine slot
Communications
First LAN Intel I350-AM2
Max. LAN Speed 1 Gigabit
Expansion Bays
Hot-Swap Bays 24 x 2.5" Gen4 NVMe hot-swappable HDD/SSD bays
2 x 2.5" SATA/SAS hot-swappable HDD/SSD bays in rear side
Panel Ports
Front USB 2 x USB 3.0
VGA 1
Rear USB 2 x USB 3.0
RJ45 2 x 1Gb/s LAN ports
1 x 10/100/1000 management LAN
Other Ports Internal I/O
2 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x HDD back plane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
Power Supply
Max. Power 2 x 1600W redundant PSUs, 80 PLUS Platinum
Dimensions & Weight

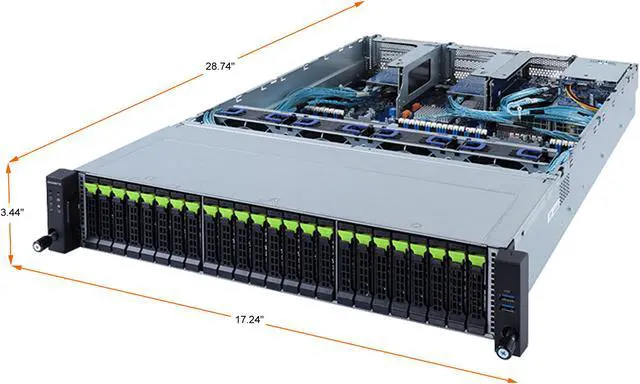

Dimensions 17.24" x 3.44" x 28.74"
Packaging
Package Contents 1 x R282-NO0
2 x CPU heatsinks
1 x Rail kit
Additional Information
First Listed on Newegg February 11, 2022
