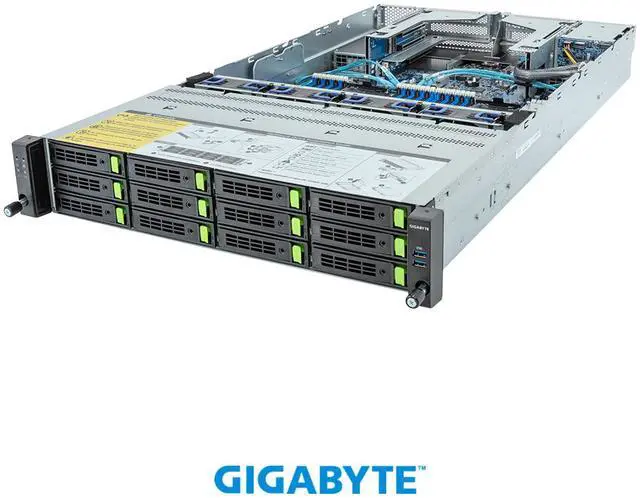

GIGABYTE R283-S90-AAE3 Rack Server - 5th/4th Gen Intel® Xeon® Scalable - 2U DP 12+2-Bay Gen4 NVMe/SATA/SAS (12 x NVMe) Platinum

Be the first to review this product...
  • Dual 5th/4th Gen Intel® Xeon® Scalable Processors
  • Dual Intel® Xeon® CPU Max Series
  • 8-Channel DDR5 RDIMM, 32 x DIMMs
  • Dual ROM Architecture
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2
  • 12 x 3.5"/2.5" Gen4 NVMe/SATA/SAS hot-swap bays
  • 2 x 2.5" SATA/SAS hot-swap bays on the rear side
  • 5 x FHHL PCIe Gen5 x16 slots
  • 2 x OCP NIC 3.0 PCIe Gen5 x16 slots
  • Compatible with SupremeRAID™ by Graid Technology
  • 1+1 2000W 80 PLUS Platinum redundant power supplies
View User Manual Details
This item is covered under the Manufacturer Only Return Policy.
+
+
Specs
Reviews

Learn more about the GIGABYTE R283-S90-AAE3

General
Brand GIGABYTE
Model R283-S90-AAE3
Form Factor 2U Rackmount
Workload General Purpose Server
CPU Supported
CPU Type Supports 4th/5th Generation Intel Xeon Scalable and Intel Xeon CPU Max Series Processor
CPU Socket LGA 4677
Installed CPU No CPU Installed
Max Processors 2
CPU Features Dual processor, TDP up to 350W
Chipset
North Bridge Intel C741
Memory Supported
Memory Slots 32 x 288Pin
Installed Memory Size No Memory Installed
Memory Type Supported 5th Gen Intel Xeon:
RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)

4th Gen Intel Xeon:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

Intel Xeon Max Series:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Channel Supported 8 Channel
Registered Yes
Storage Supported
Installed HDD No Storage Installed
Graphics
GPU/VPU Aspeed AST2600
Expansion Slots
PCI Express 5 x FHHL PCIe Gen5 x16 slots
2 x OCP NIC 3.0 PCIe Gen5 x16 slots
Communications
First LAN Intel I350-AM2
Max. LAN Speed 1 Gigabit
Expansion Bays
Hot-Swap Bays Front hot-swap:
12 x 3.5"/2.5" Gen4 NVMe/SATA/SAS
- (8 x NVMe from CPU_0, 4 x NVMe from CPU_1)

Rear hot-swap:
2 x 2.5" SATA/SAS
Panel Ports
Buttons 1 x NMI button
1 x Reset button
LEDs 1 x Power button with LED
1 x ID button with LED
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Front USB 2 x USB 3.2 Gen1 ports (Type-A)
DisplayPort 1 x Mini DisplayPort
Rear USB 2 x USB 3.2 Gen1 ports (Type-A)
RJ45 2
Other Ports 1 x MLAN
Power Supply
Max. Power 1+1 2000W 80 PLUS Platinum redundant power supplies
Cooling
Fans 4 x 80x80x38mm (18,300rpm)
Environment
Temperature Operating temperature: 10°C to 35°C
Non-operating temperature: -40°C to 60°C
Humidity Operating humidity: 8%-80% (non-condensing)
Non-operating humidity: 20%-95% (non-condensing)
Dimensions & Weight
Dimensions 3.44" x 17.24" x 32.09"
Weight 64.95 lbs.
Packaging
Package Contents 1 x R283-S90-AAE3
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
6 x Carriers
1 x 2-Section Rail kit
Additional Information
First Listed on Newegg February 10, 2025

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
