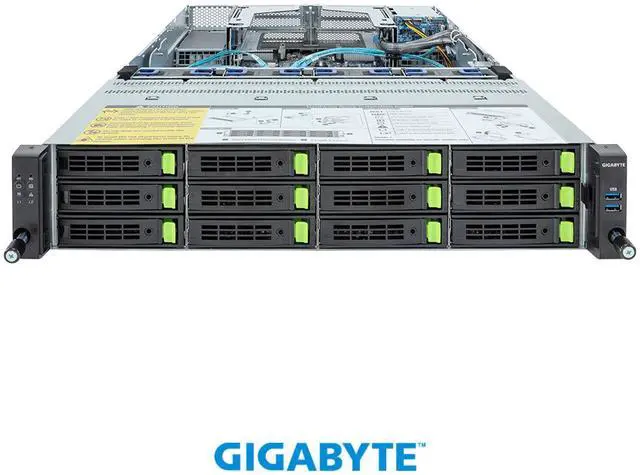

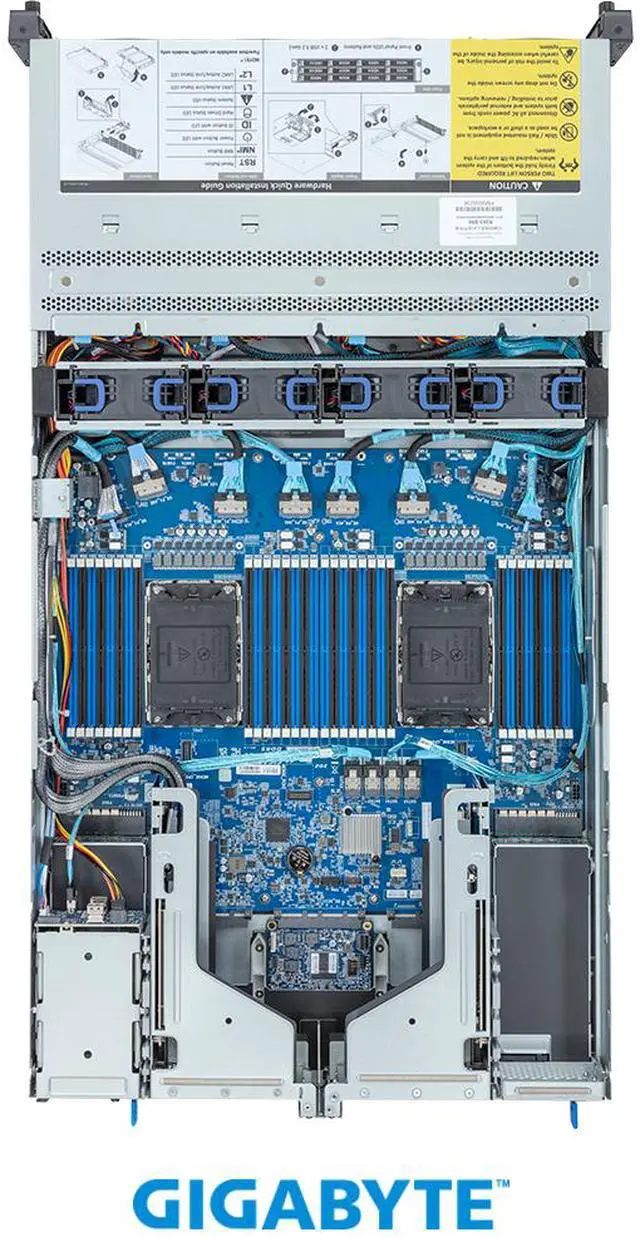

Learn more about the GIGABYTE R283-S96-AAJ1
General| Brand | GIGABYTE |
|---|
| Model | R283-S96-AAJ1 |
|---|
| Form Factor | 2U Rackmount |
|---|
| Workload | General Purpose Server |
|---|
CPU Supported| CPU Type | Supports 4th/5th Generation Intel Xeon Scalable and Intel Xeon CPU Max Series Processor |
|---|
| CPU Socket | LGA 4677 |
|---|
| Installed CPU | No CPU Installed |
|---|
| Max Processors | 2 |
|---|
| CPU Features | Dual processor, TDP up to 350W |
|---|
Chipset| North Bridge | Intel C741 |
|---|
Memory Supported| Memory Slots | 32 x 288Pin |
|---|
| Installed Memory Size | No Memory Installed |
|---|
| Memory Type Supported | 5th Gen Intel Xeon: RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)
4th Gen Intel Xeon: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Intel Xeon Max Series: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) |
|---|
| Channel Supported | 8 Channel |
|---|
| Registered | Yes |
|---|
Storage Supported| Installed HDD | No Storage Installed |
|---|
Graphics| GPU/VPU | Aspeed AST2600 |
|---|
Expansion Slots| PCI Express | 4 x FHHL PCIe Gen5 x16 slots 2 x OCP NIC 3.0 PCIe Gen5 x16 slots |
|---|
Communications| First LAN | Intel I350-AM2 |
|---|
| Max. LAN Speed | 1 Gigabit |
|---|
Expansion Bays| Hot-Swap Bays | Front hot-swap: 12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 - (6 x NVMe from CPU_0, 6 x NVMe from CPU_1)
Rear hot-swap: 2 x 2.5" SATA/SAS-4 |
|---|
Panel Ports| Buttons | 1 x NMI button 1 x Reset button |
|---|
| LEDs | 1 x Power button with LED 1 x ID button with LED 2 x LAN activity LEDs 1 x Storage activity LED 1 x System status LED |
|---|
| Front USB | 2 x USB 3.2 Gen1 ports (Type-A) |
|---|
| DisplayPort | 1 x Mini DisplayPort |
|---|
| Rear USB | 2 x USB 3.2 Gen1 ports (Type-A) |
|---|
| RJ45 | 2 |
|---|
| Other Ports | 1 x MLAN |
|---|
Power Supply| Max. Power | 1+1 2000W 80 PLUS Titanium redundant power supplies |
|---|
Cooling| Fans | 4 x 80x80x38mm (18,300rpm) |
|---|
Environment| Temperature | Operating temperature: 10°C to 35°C Non-operating temperature: -40°C to 60°C |
|---|
| Humidity | Operating humidity: 8%-80% (non-condensing) Non-operating humidity: 20%-95% (non-condensing) |
|---|
Dimensions & Weight| Dimensions | 3.44" x 17.24" x 32.09" |
|---|
| Weight | 64.99 lbs. |
|---|
Packaging| Package Contents | 1 x R283-S96-AAJ1 2 x CPU heatsinks 1 x Mini-DP to D-Sub cable 6 x Carriers 1 x 2-Section Rail kit |
|---|
Additional Information| First Listed on Newegg | February 10, 2025 |
|---|
