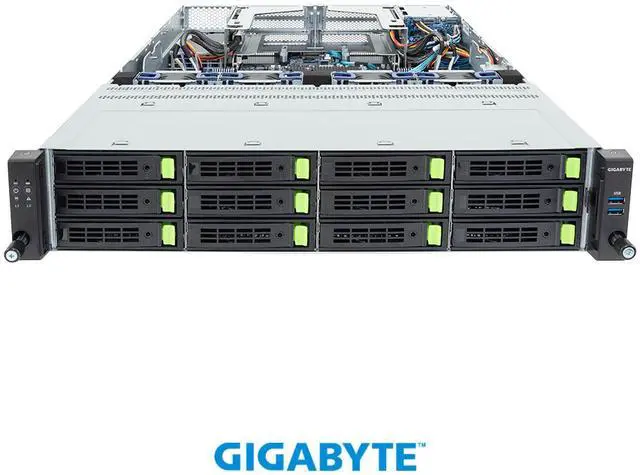

Alt view image 2 of 5 - GIGABYTE R284-S90-AAJ1 Rack Server - Intel® Xeon® 6 Processors - 2U DP 12+2-Bay Gen5 NVMe/SATA/SAS-4

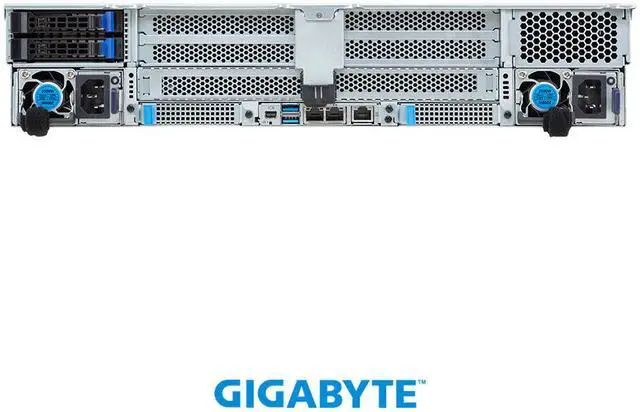

Alt view image 3 of 5 - GIGABYTE R284-S90-AAJ1 Rack Server - Intel® Xeon® 6 Processors - 2U DP 12+2-Bay Gen5 NVMe/SATA/SAS-4

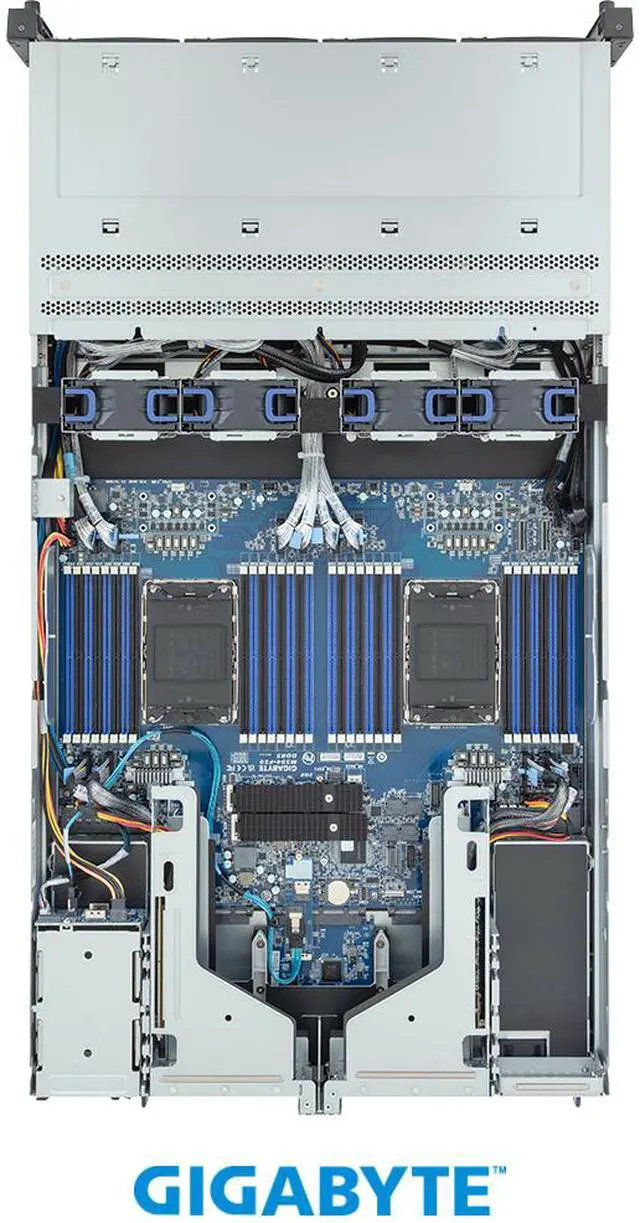

Alt view image 4 of 5 - GIGABYTE R284-S90-AAJ1 Rack Server - Intel® Xeon® 6 Processors - 2U DP 12+2-Bay Gen5 NVMe/SATA/SAS-4

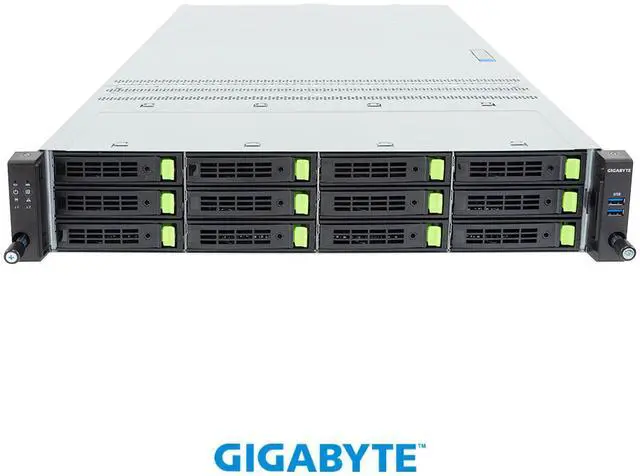

Alt view image 5 of 5 - GIGABYTE R284-S90-AAJ1 Rack Server - Intel® Xeon® 6 Processors - 2U DP 12+2-Bay Gen5 NVMe/SATA/SAS-4

Shop All GIGABYTE Products

GIGABYTE R284-S90-AAJ1 Rack Server - Intel® Xeon® 6 Processors - 2U DP 12+2-Bay Gen5 NVMe/SATA/SAS-4

Be the first to review this product...

Dual Intel® Xeon® 6 Processors, LGA 4710
8-Channel DDR5 RDIMM / MRDIMM, 32 x DIMMs
Dual ROM Architecture
2 x 1Gb/s LAN ports via Intel® I350-AM2
12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
2 x 2.5" SATA/SAS-4 hot-swap bays on the rear side
2 x M.2 slots with PCIe Gen5 x4 interface
2 x FHHL Dual-slot PCIe Gen5 x16 slots
2 x FHHL Single-slot PCIe Gen5 x16 slots
2 x OCP NIC 3.0 PCIe Gen5 x16 slots
1+1 2000W 80 PLUS Titanium redundant power supplies

View User Manual Details

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

General
Brand	GIGABYTE
Model	R284-S90-AAJ1
Form Factor	2U Rackmount
Workload	General Purpose Server

CPU Supported
CPU Type	Intel Xeon 6 Processors - Intel Xeon 6700-Series Processors - Intel Xeon 6500-Series Processors
CPU Socket	LGA 4710
Installed CPU	No CPU Installed
Max Processors	2
CPU Features	Dual processor, TDP up to 350W

Memory Supported
Memory Slots	32 x 288Pin
Installed Memory Size	No Memory Installed
Memory Type Supported	RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC) MRDIMM: Up to 8000 MT/s
Channel Supported	8 Channel
Registered	Yes

Storage Supported
Installed HDD	No Storage Installed
M.2	Internal M.2: 2 x M.2 (2280/22110), PCIe Gen5 x4, from CPU_1 Internal M.2 (I/O board - CDCR010): 1 x M.2 (2280), PCIe Gen5 x2, from CPU_0, occupied for SATA

Graphics
GPU/VPU	Aspeed AST2600

Expansion Slots
PCI Express	2 x FHHL Dual-slot PCIe Gen5 x16 slots 2 x FHHL Single-slot PCIe Gen5 x16 slots 2 x OCP NIC 3.0 PCIe Gen5 x16 slots

Communications
First LAN	Intel I350-AM2
Max. LAN Speed	1 Gigabit

Expansion Bays
Hot-Swap Bays	Front hot-swap: 12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 - (4 x NVMe from CPU_0, 8 x NVMe from CPU_1) Rear hot-swap: 2 x 2.5" SATA/SAS-4 - (SATA from CPU_0, through I/O board)

Panel Ports
Buttons	1 x NMI button 1 x Reset button
LEDs	1 x Power button with LED 1 x ID button with LED 2 x LAN activity LEDs (disabled) 1 x Storage activity LED 1 x System status LED
Front USB	2 x USB 3.2 Gen1 ports (Type-A)
DisplayPort	1 x Mini DisplayPort
Rear USB	2 x USB 3.2 Gen1 ports (Type-A)
RJ45	2
Other Ports	1 x MLAN

Power Supply
Max. Power	1+1 2000W 80 PLUS Titanium redundant power supplies

Cooling
Fans	4 x 80x80x38mm (16,000rpm)

Environment
Temperature	Operating temperature: 10°C to 35°C Non-operating temperature: -40°C to 60°C
Humidity	Operating humidity: 8%-80% (non-condensing) Non-operating humidity: 20%-95% (non-condensing)

Dimensions & Weight
Dimensions	3.44" x 17.24" x 32.09"

Packaging
Package Contents	1 x R284-S90-AAJ1 2 x CPU heatsinks 1 x Mini-DP to D-Sub cable 4 x Carriers 1 x 2-Section Rail kit

Additional Information
First Listed on Newegg	February 10, 2025

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
