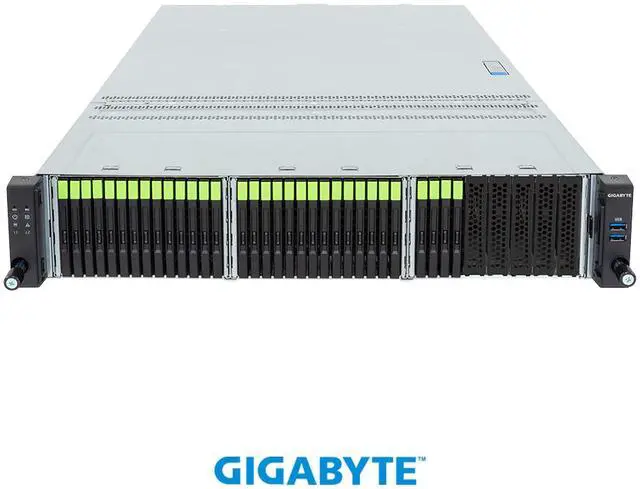

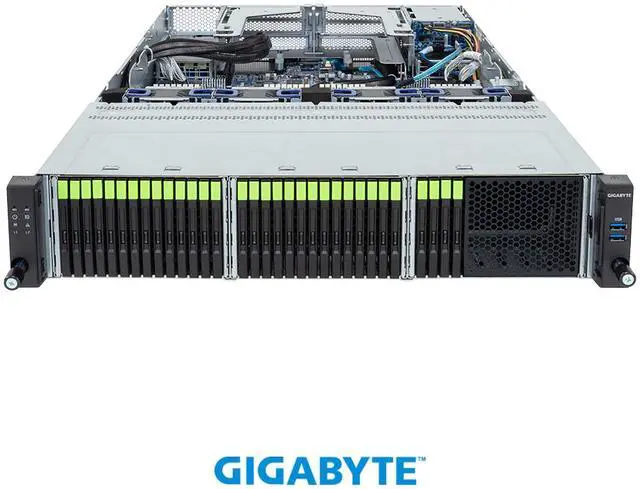

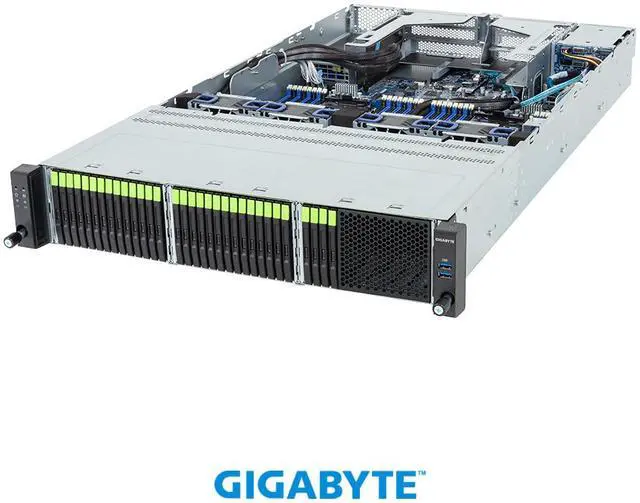

GIGABYTE R284-S91-AAJ1 Rack Server - Intel® Xeon® 6 Processors - 2U DP 32-Bay E3.S Gen5 NVMe + 2-Bay SATA/SAS-4

Be the first to review this product...

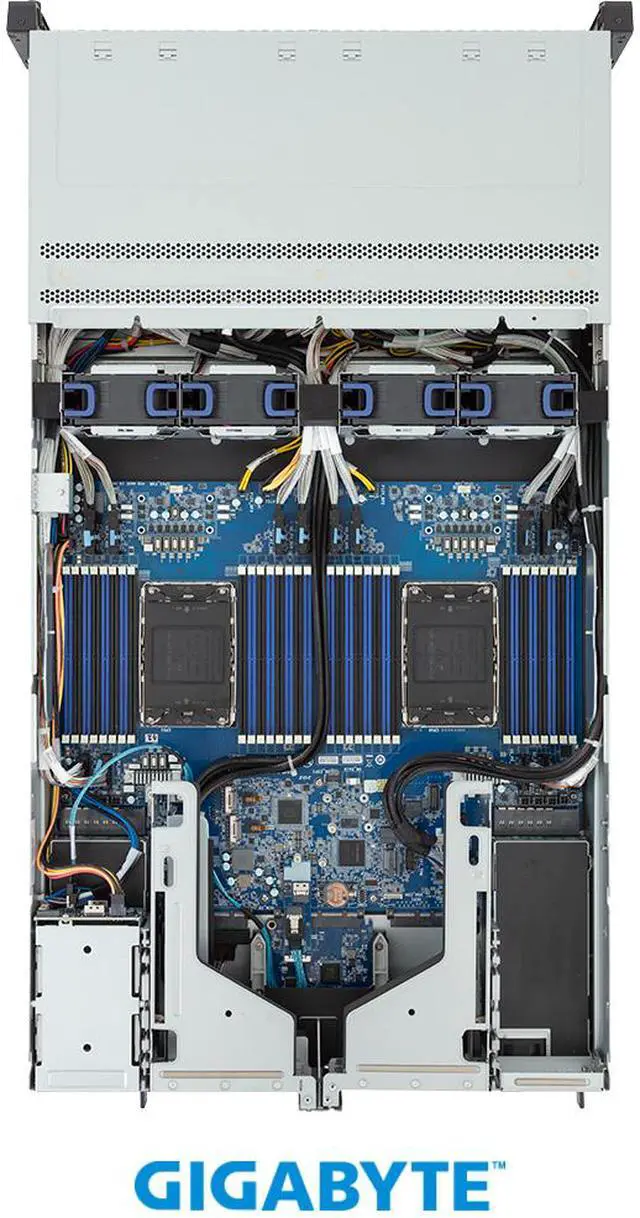

  • Dual Intel® Xeon® 6 Processors, LGA 4710
  • 8-Channel DDR5 RDIMM / MRDIMM, 32 x DIMMs
  • Dual ROM Architecture
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2
  • 32 x E3.S Gen5 NVMe hot-swap bays
  • 2 x 2.5" SATA/SAS-4 hot-swap bays on the rear side
  • 2 x M.2 slots with PCIe Gen5 x4 interface
  • 1 x FHHL PCIe Gen5 x16 slot
  • 1 x OCP NIC 3.0 PCIe Gen5 x16 slot
  • 1+1 2000W 80 PLUS Titanium redundant power supplies
View User Manual Details
This item is covered under the Manufacturer Only Return Policy.
+
+
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the GIGABYTE R284-S91-AAJ1

General
Brand GIGABYTE
Model R284-S91-AAJ1
Form Factor 2U Rackmount
Workload General Purpose Server
CPU Supported
CPU Type Intel Xeon 6 Processors
- Intel Xeon 6700-Series Processors
- Intel Xeon 6500-Series Processors
CPU Socket LGA 4710
Installed CPU No CPU Installed
Max Processors 2
CPU Features Dual processor, TDP up to 350W
Memory Supported
Memory Slots 32 x 288Pin
Installed Memory Size No Memory Installed
Memory Type Supported RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MRDIMM: Up to 8000 MT/s
Channel Supported 8 Channel
Registered Yes
Storage Supported
Installed HDD No Storage Installed
M.2 Internal M.2:
2 x M.2 (2280/22110), PCIe Gen5 x4, from CPU_1

Internal M.2 (I/O board - CDCR010):
1 x M.2 (2280), PCIe Gen5 x2, from CPU_0, occupied for SATA
Graphics
GPU/VPU Aspeed AST2600
Expansion Slots
PCI Express 1 x FHHL PCIe Gen5 x16 slot
1 x OCP NIC 3.0 PCIe Gen5 x16 slot
Communications
First LAN Intel I350-AM2
Max. LAN Speed 1 Gigabit
Expansion Bays
Hot-Swap Bays Front hot-swap:
32 x E3.S Gen5 NVMe
- (16 x NVMe from CPU_0, 16 x NVMe from CPU_1)

Rear hot-swap:
2 x 2.5" SATA/SAS-4
- (SATA from CPU_0, through I/O board)
Panel Ports
Buttons 1 x NMI button
1 x Reset button
LEDs 1 x Power button with LED
1 x ID button with LED
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Front USB 2 x USB 3.2 Gen 1 ports (Type-A)
DisplayPort 1 x Mini DisplayPort

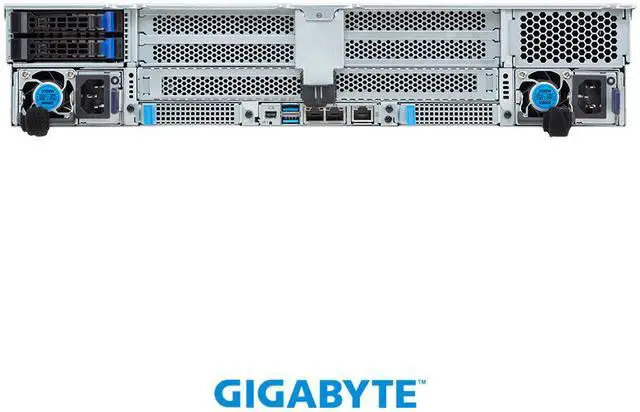

Rear USB 2 x USB 3.2 Gen1 ports (Type-A)
RJ45 2
Other Ports 1 x MLAN
Power Supply
Max. Power 1+1 2000W 80 PLUS Titanium redundant power supplies
Cooling
Fans 4 x 80x80x38mm (16,000rpm)
Environment
Temperature Operating temperature: 10°C to 35°C
Non-operating temperature: -40°C to 60°C
Humidity Operating humidity: 8%-80% (non-condensing)
Non-operating humidity: 20%-95% (non-condensing)
Dimensions & Weight
Dimensions 3.44" x 17.24" x 32.09"
Packaging
Package Contents 1 x R284-S91-AAJ1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
4 x Carriers
1 x 2-Section Rail kit
Additional Information
First Listed on Newegg February 10, 2025
