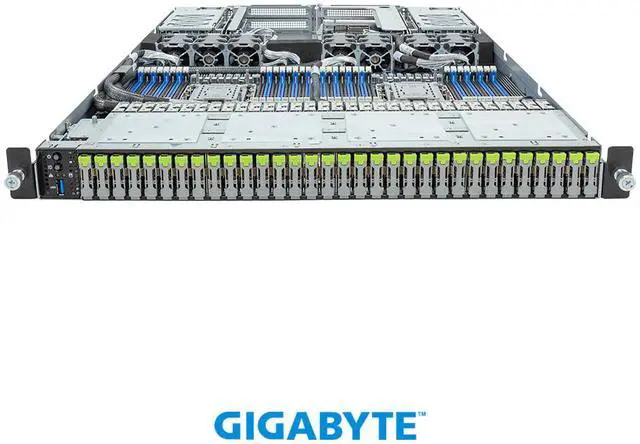

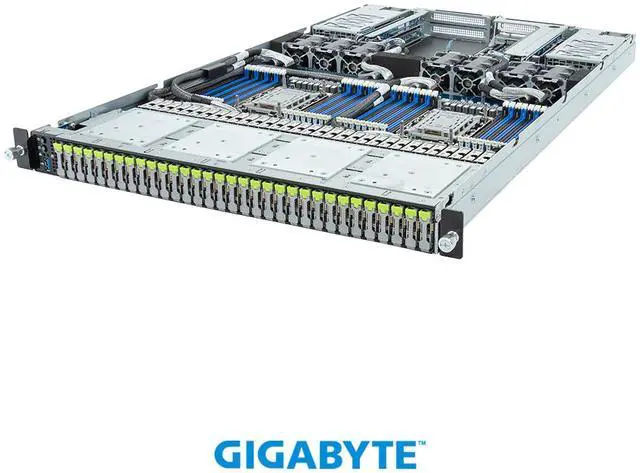

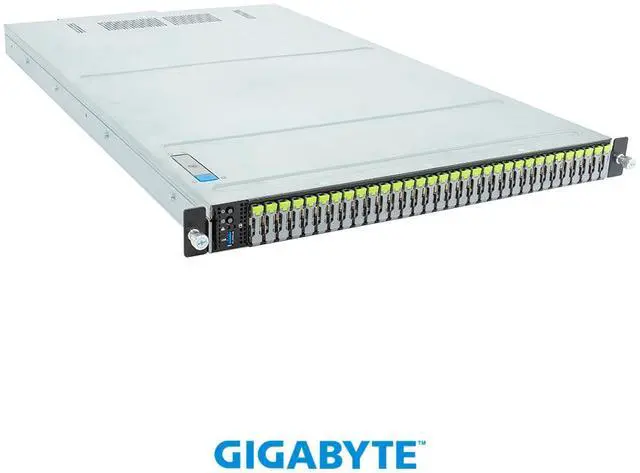

GIGABYTE S183-SH0-AAJ1 Storage Server - 5th/4th Gen Intel® Xeon® Scalable - 1U DP 32-Bay E1.S NVMe 2000W

Be the first to review this product...
  • Dual 5th/4th Gen Intel® Xeon® Scalable Processors
  • Dual Intel® Xeon® CPU Max Series
  • 8-Channel DDR5 RDIMM, 32 x DIMMs
  • Dual ROM Architecture
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2
  • 32 x E1.S NVMe hot-swap bays
  • 2 x M.2 slots with PCIe Gen3 x4 or SATA interface
  • 3 x FHHL PCIe Gen5 x16 and x8 slots
  • Compatible with SupremeRAID™ by Graid Technology
  • 1+1 2000W 80 PLUS Titanium redundant power supplies
View User Manual Details
This item is covered under the Manufacturer Only Return Policy.
+
+
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the GIGABYTE S183-SH0-AAJ1

General
Brand GIGABYTE
Model S183-SH0-AAJ1
Form Factor 1U Rackmount
Workload General Purpose Server
CPU Supported
CPU Type Supports 4th/5th Intel Xeon Scalable and Intel Xeon CPU Max Series Processors
CPU Socket LGA 4677
Installed CPU No CPU Installed
Max Processors 2
Chipset
North Bridge Intel C741
Memory Supported
Memory Slots 32 x 288Pin
Installed Memory Size No Memory Installed
Memory Type Supported 5th Gen Intel Xeon:
RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)

4th Gen Intel Xeon:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

Intel Xeon Max Series:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Channel Supported 8 Channel
Registered Yes
Storage Supported
Installed HDD No Storage Installed
SATA RAID RAID 0/1/5/6/10
M.2 Internal M.2 (CMTP0C0):
1 x M.2 (2280/22110), PCIe Gen3 x4 or SATA, from PCH

Internal M.2 (CMTP0C1):
1 x M.2 (2280/22110), PCIe Gen3 x4 or SATA, from PCH
Expansion Slots
PCI Express 3 x FHHL PCIe Gen5 x16 and x8 slots
Communications
First LAN Intel I350-AM2
Max. LAN Speed 1 Gigabit
Expansion Bays
Hot-Swap Bays Front hot-swap:
32 x 9.5mm E1.S NVMe
- (16 x NVMe from CPU_0, 16 x NVMe from CPU_1)
Panel Ports
LEDs 1 x Power button with LED
1 x ID button with LED
1 x Storage activity LED
1 x System status LED
Front USB 1 x USB 3.2 Gen1 port (Type-A)
DisplayPort 1 x Mini DisplayPort

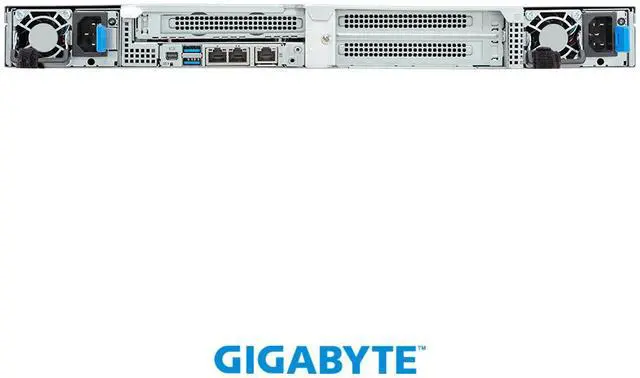

Rear USB 2 x USB 3.2 Gen1 ports (Type-A)
RJ45 2
Power Supply
Max. Power 1+1 2000W 80 PLUS Titanium redundant power supplies
Cooling
Fans 7 x 40x40x56mm (32,000rpm)
Environment
Temperature Operating temperature: 10°C to 35°C
Non-operating temperature: -40°C to 60°C
Humidity Operating humidity: 8%-80% (non-condensing)
Non-operating humidity: 20%-95% (non-condensing)
Dimensions & Weight
Dimensions 1.71" x 17.24" x 28.74
Packaging
Package Contents 1 x S183-SH0-AAJ1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
6 x Carriers
1 x 2-Section Rail kit
