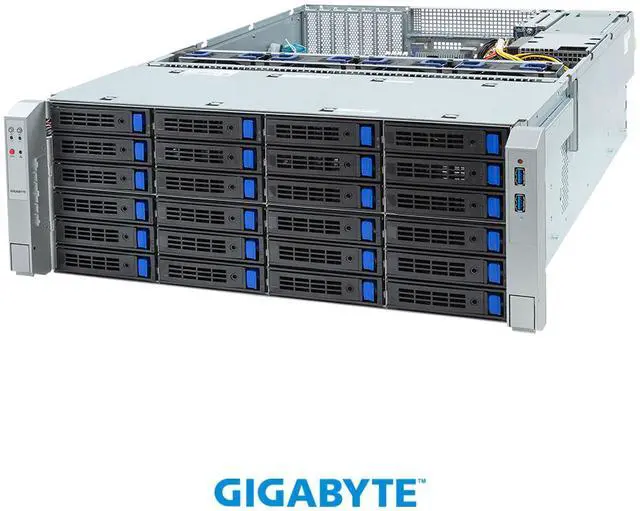

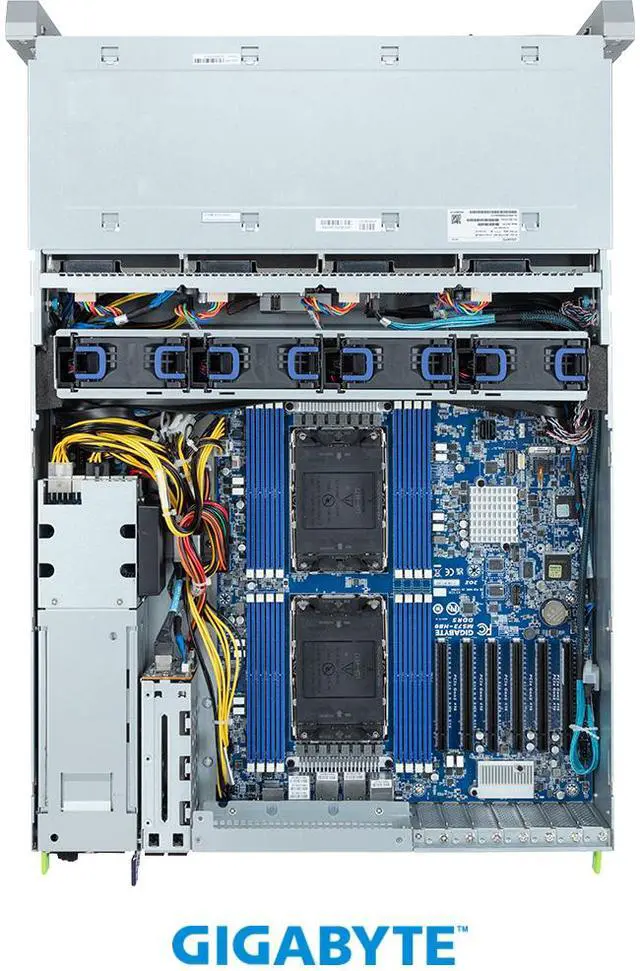

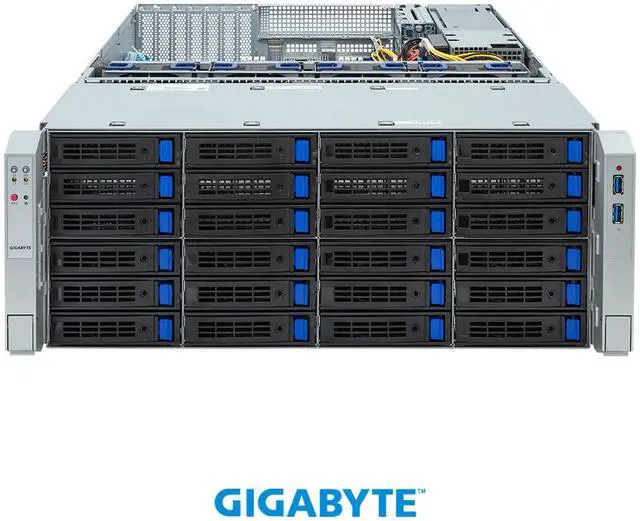

GIGABYTE S453-S70-AAV1 Storage Server - 5th/4th Gen Intel® Xeon® Scalable - 4U DP 36+2-Bay SATA/SAS

Be the first to review this product...
  • Dual 5th/4th Gen Intel® Xeon® Scalable Processors
  • 8-Channel DDR5 RDIMM, 16 x DIMMs
  • 2 x 10Gb/s LAN ports via Intel® X710-AT2
  • 2 x 1Gb/s LAN ports via Intel® I210-AT
  • 24 x 3.5"/2.5" SATA/SAS hot-swappable bays on the front side
  • 12 x 3.5"/2.5" SATA/SAS hot-swappable bays on the rear side
  • 2 x 2.5" SATA/SAS bays on rear side for boot drives
  • SAS expander with 12Gb/s transfer speed
  • 2 x M.2 slots with PCIe Gen4 x4 interface
  • 6 x LP PCIe Gen5 x16 slots
  • Dual 1600W 80 PLUS Titanium redundant power supply
View User Manual Details
This item is covered under the Manufacturer Only Return Policy.
+
+
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the GIGABYTE S453-S70-AAV1

General
Brand GIGABYTE
Model S453-S70-AAV1
Form Factor 4U Rackmount
Workload General Purpose Server
CPU Supported
CPU Type Supports 4th/5th Intel Xeon Scalable Processors
CPU Socket LGA 4677
Installed CPU No CPU Installed
Max Processors 2
CPU Features Dual processor, TDP up to 270W
Chipset
North Bridge Intel C741
Memory Supported
Memory Slots 16 x 288Pin
Installed Memory Size No Memory Installed
Max Memory Supported 1.5TB
Memory Type Supported 5th Gen Intel Xeon: Up to 5600 MT/s
4th Gen Intel Xeon: Up to 4800 MT/s
Channel Supported 8 Channel
Registered Yes
Storage Supported
Installed HDD No Storage Installed
M.2 2 x M.2 slots:
- M-key
- PCIe Gen4 x4, from CPU_0
- Support 2280/22100 cards
Expansion Slots
PCI Express 6 x LP PCIe Gen5 x16 slots
Communications
First LAN Intel X710-AT2
Second LAN Intel I210-AT
Max. LAN Speed 10 Gigabit + 1 Gigabit
Expansion Bays
Hot-Swap Bays Front side:
24 x 3.5"/2.5" SATA/SAS hot-swappable bays, connected to expander

Rear side:
12 x 3.5"/2.5" SATA/SAS hot-swappable bays, connected to expander
2 x 2.5" SATA/SAS bays for boot drives, from onboard connector
Panel Ports
LEDs 1 x Power button with LED
1 x ID button with LED
2 x LAN activity LEDs
1 x System status LED
Front USB 2 x USB 3.2 Gen1
COM 1
VGA 1
Rear USB 2 x USB 3.2 Gen1
RJ45 4
Power Supply
Max. Power Dual 1600W 80 PLUS Titanium redundant power supply
Cooling
Fans 4 x 80x80x38mm (16,300rpm)
Environment
Temperature Operating temperature: 10°C to 35°C
Non-operating temperature: -40°C to 60°C
Humidity Operating humidity: 8%-80% (non-condensing)
Non-operating humidity: 20%-95% (non-condensing)
Dimensions & Weight
Dimensions 6.97" x 19" x 24.61"
Packaging
Package Contents 1 x S453-S70-AAV1
2 x CPU heatsinks
6 x Carriers
1 x 3-Section Rail kit
