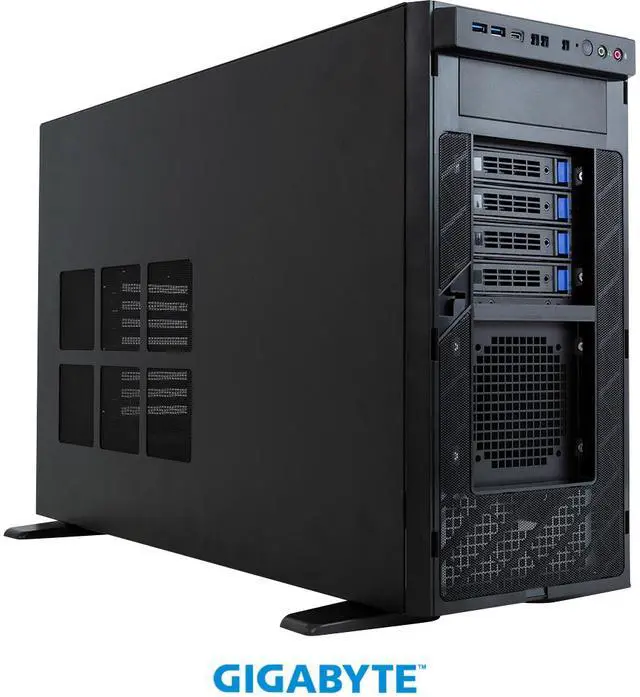

GIGABYTE W773-H5D-AA01 GPU Workstation - AMD Ryzen™ Threadripper™ PRO 7000 WX
- Supports up to 4 x Dual slot Gen5 GPUs
- Single AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors
- 8-Channel DDR5 ECC RDIMM, 8 x DIMMs
- AMD WRX90 Chipset
- 2 x 10Gb/s LAN ports via Broadcom® BCM57416
- 4 x M.2 slots with PCIe Gen5 x4 interface
- Up to 8 x 3.5"/2.5" SATA bays
- 6 x PCIe Gen5 x16 slots
- Single 2000W ATX 80 PLUS Gold power supply
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE W773-H5D-AA01
| Brand | GIGABYTE |
|---|---|
| Model | W773-H5D-AA01 |
| Form Factor | Pedestal |
| Workload | Workstation |
| CPU Type | Support AMD Ryzen Threadripper PRO 7000 WX-Series Processors |
|---|---|
| CPU Socket | Socket sTR5 |
| Installed CPU | No CPU Installed |
| Max Processors | 1 |
| CPU Features | Up to 96 cores, 192 threads Single processor, TDP up to 350W |
| North Bridge | AMD WRX90 |
|---|
| Memory Slots | 8 x 288Pin |
|---|---|
| Installed Memory Size | No Memory Installed |
| Memory Type Supported | DDR5 5200 |
| Channel Supported | 8 Channel |
| ECC Supported | Yes |
| Registered | Yes |
| Installed HDD | No Storage Installed |
|---|---|
| SATA RAID | RAID 0/1/10/5 |
| M.2 | 4 x M.2 slots for storage: - M-key - PCIe Gen5 x4, from CPU - Support 2280/22110 cards 1 x M.2 slot for Wi-Fi: - E-key - PCIe Gen3 x1, from FCH - Supports 2230 cards |
| PCI Express | Slot_7: PCIe x16 (Gen5 x16) slot Slot_6: PCIe x16 (Gen5 x16) slot Slot_5: PCIe x16 (Gen5 x16) slot Slot_3: PCIe x16 (Gen5 x16) slot Slot_2: PCIe x16 (Gen5 x16) slot Slot_1: PCIe x16 (Gen5 x16) slot |
|---|
| Onboard Audio | Realtek ALC897 HD Audio Codec Supports 2/4/5.1/7.1 channel configurations |
|---|
| First LAN | Broadcom BCM57416 |
|---|---|
| Max. LAN Speed | Dual 10 Gigabit |
| Hot-Swap Bays | 4 x 3.5"/2.5" SATA hot-swappable bays |
|---|
| Buttons | 1 x Power button with LED 1 x Reset button 1 x ID button with LED |
|---|---|
| LEDs | 1 x Power LED 1 x Storage activity LED 1 x System status LED |
| Front USB | 1 x USB 3.2 Gen1 (Type-C) 2 x USB 3.2 Gen1 (Type-A) |
| Front Audio Ports | 2 x Audio jacks (Audio out/Mic) |
| COM | 1 |
| VGA | 1 |
| Rear USB | 1 x USB 3.2 Gen2x2 (Type-C) (from FCH) 3 x USB 3.2 Gen2 (Type-A) (from CPU) |
| RJ45 | 2 |
| Rear Audio Ports | 3 x Audio jacks (Audio in/Audio out/Mic) |
| Max. Power | Single 2000W ATX 80 PLUS Gold power supply |
|---|
| System Compatibility | Red Hat Enterprise Linux (x86_64) Ubuntu (x86_64) Windows 11 (x64) |
|---|
| Fans | Middle fan: 3 x 120x120x38mm (6,400rpm) Rear fan: 1 x 120x120x25mm (2,800rpm) |
|---|
| Temperature | Operating temperature: 10°C to 30°C Non-operating temperature: -40°C to 60°C |
|---|---|
| Humidity | Operating humidity: 8%-80% (non-condensing) Non-operating humidity: 20%-95% (non-condensing) |
| Dimensions | 218 x 455 x 726.3mm |
|---|
| Package Contents | 1 x W773-H5D-AA01 1 x CPU fansink |
|---|
| First Listed on Newegg | March 25, 2025 |
|---|
