Can you install a 2tb NVMe 4.0 Gen4 PCIe M.2 internal SSd with HEATSINK? Will the heatsink fit? And Still be able to use the other available slots? Thank you

Yes, you can install a 2TB NVMe 4.0 Gen4 PCIe M.2 internal SSD. The motherboard supports multiple M.2 slots with PCIe 4.0 x4 support. However, the fit and clearance of the heatsink would depend on the specific dimensions of the heatsink and the layout of the motherboard. There are four M.2 connectors, and while using one with a heatsink, other slots should still be available for use.

Does this board support DD4?

No. DDR5 is a whole new standard and is not backwards compatible with DDR4.

GIGABYTE Gaming Radeon RX 9070 XT 16GB GDDR6 PCI Express 5.0 x16 ATX Graphics Card GV-R9070XTGAMING OC-16GD

(231)

$739^.99 –

$330^.78

$414.99

Free 30-day Returns

Limit 99999 per customer.

Ships from Hong Kong.

Sold by Yongrui electronic Commerce Co., Limited

Top Rated

4.2 (72 seller ratings)

Shipped by Yongrui electronic Commerce Co., Limited

Price alert

Add to Wish List

Meet Your Seller

Yongrui electronic Commerce Co., Limited

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

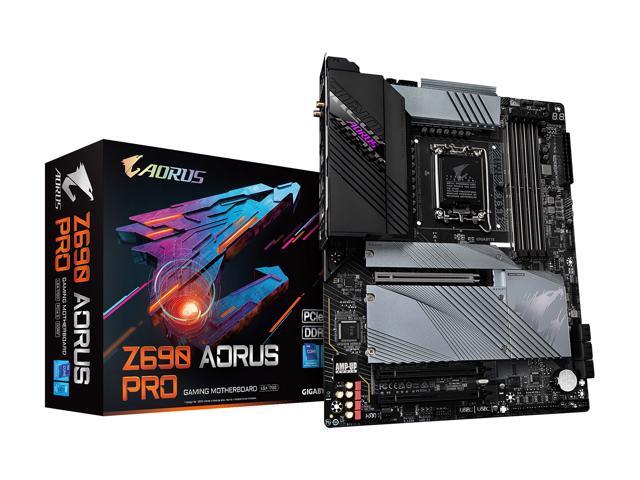

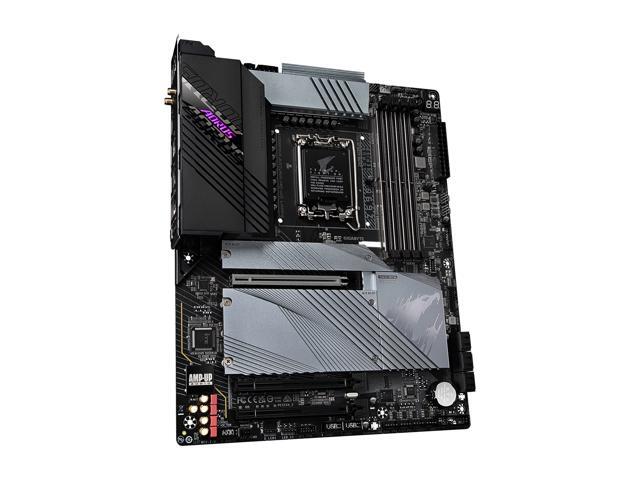

GIGABYTE Z690 AORUS PRO LGA 1700 Intel Z690 ATX Motherboard with DDR5, Quad M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, WiFi 6, 2.5GbE LAN

(424)(45) Write a Review

Option: Z690 AORUS PRO

Z690 AERO G
Z690 AERO G DDR4
Z690 AORUS ELITE AX
Z690 AORUS ELITE AX DDR4
Z690 AORUS MASTER
Z690 AORUS PRO
Z690 AORUS TACHYON
Z690 AORUS ULTRA
Z690 AORUS XTREME
Z690 GAMING X
Z690 GAMING X DDR4
Z690 UD DDR4
Z690 UD AX DDR4
Z690I AORUS ULTRA LITE
Z690I AORUS ULTRA LITE DDR4
Z690I AORUS ULTRA PLUS
Z690I AORUS ULTRA PLUS DDR4

Intel LGA 1700 Socket: Supports 12th Gen Intel Core Series Processors
DDR5 Compatible: Dual Channel Non-ECC Unbuffered DDR5
Commanding Power Design: 16+1+2 Twin Hybrid Digital VRM Design with 90A DrMOS with Tantalum Polymer Capacitors
Cutting-Edge Thermal Design: Fully Covered Thermal Design and High Coverage MOSFET Heatsinks, Enlarged Thermal Guards
Next Gen Connectivity: PCIe 5.0, Quad NVMe PCIe 4.0 x4 M.2, SuperSpeed USB 3.2 Gen 2x2 Type-C
Fast Networking: Intel 2.5 GbE LAN, WiFi 6 802.11ax, BT5
Dynamic Audio: Hi-Fi Audio with ALC4080 and WIMA Audio Capacitors
Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing CPU, Memory, and GPU
Dedicated LGA1700 mounting bracket is required

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (424)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	GIGABYTE
Series	AORUS
Model	Z690 AORUS PRO

Supported CPU
CPU Socket Type	LGA 1700 * Dedicated LGA1700 mounting bracket is required.
CPU Type	Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors

Chipsets
Chipset	Intel Z690

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 4800 / 4000
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 5.0 x16	1 x PCI Express 5.0 x16
PCI Express 3.0 x16	2 x PCI Express 3.0 x16, running at x4 (PCIEX4_1, PCIEX4_2)

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SB) 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB/M2Q_SB)
Intel Optane Ready	Yes * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC4080
Audio Channels	2-channel analog output 7.1-channel digital signals * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.

Onboard LAN
LAN Chipset	Intel 2.5 GbE LAN
Max LAN Speed	2.5Gbps
Wireless LAN	WiFi 6 AX200 WIFI a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2

Rear Panel Ports

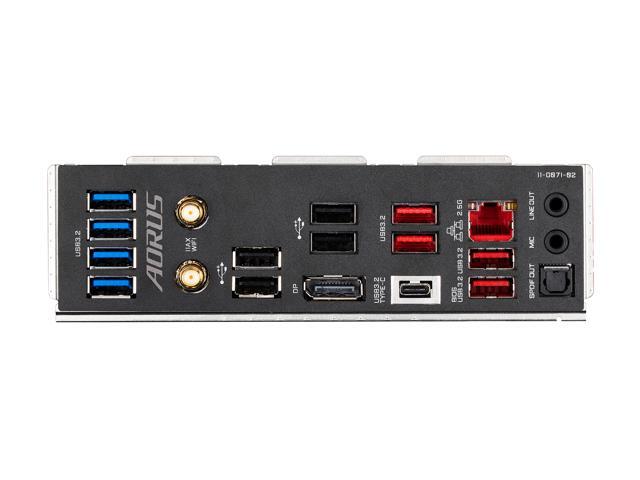

Back I/O Ports	1 x USB Type-C port, with USB 3.2 Gen 2x2 support 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks

Internal I/O Connectors
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 1 x noise detection header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x power button 1 x reset button 1 x Q-Flash Plus button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper * All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector

Features
Features	Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Bundled Software: Norton Internet Security (OEM version) cFosSpeed Operating System: Support for Windows 10 64-bit
