    GIGAIPC QBiX-Lite-AMDA1605H-A1 Black Embedded Industry Systems W/ AMD Ryzen V1605B Embedded Processor, 4 HDMI 2.0, 2 LAN PORTS

    Be the first to review this product...
    • AMD Ryzen Embedded V1605B
    • Dual Channel 2 x 260Pin SO-DIMM DDR4 2400 up to 32GB
    • Fan Design
    • 4 x HDMI
    • 2 X GbE LAN Ports
    • Onboard TPM 2.0 security chip INFINEON SLB9665TT2.0
    • Operating temperature: OCC to 500 C
    • Operating humidity: 0-90% (non-condensing)
    • Non-operating temperature: -200C to 700C
    • Non-operat'ng humidity: 0%-95% (non-condensing)
    • Use wide temperature range memory and storage
    • Vibration During operation:
    • Operation: It-c 60068-2-64, 1 Grms, random, 5 - 500
    • Hz, I hr / Per Axis, With SSD/M.2 2242
    • Non-operat on. IEC 60068-2-6, 2 G, Sine, 10 500 Hz, 1 Oct/min, 1 hr / Per Axis
    • Shock During Operation : Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
    This item is covered under the Manufacturer Only Return Policy.
    +
    +
    Specs
    Reviews
    See all Q & A
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the GigaIPC QBiX-Lite-AMDA1605H-A1

    General
    Brand GIGAIPC
    Model QBiX-Lite-AMDA1605H-A1
    Color Black
    CPU Supported
    CPU Type AMD Ryzen V1605B Embedded Processor
    14nm, 4 cores, 8 threads, up to 3 6GHz,
    TDP 25W
    2MB of shared L 2 plus 4MB of shared L3 total
    Memory Supported
    Memory installed No Memory
    Memory slot 2 x 260Pin SO-DIMM
    Memory Type Supported DDR4 2400
    Max Memory Supported 32GB
    Dual Channel Memory Supported Yes
    Expansion Slots
    Other 1 x 2230 M.2 E-Key (WiFi/BT)
    1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G module
    Storage
    Hard Drive Installed No Hard Drive
    M.2 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
    Graphics
    Integrated Graphics *Suppport EDID emulation with AMD graphic driver/utility
    Audio
    Onboard Audio Realtek Audio Codec
    Communications
    LAN Realtek RTL8111HS
    Max LAN Speed Dual 10/100/1000Mbps
    Extension Bays
    2.5" Internal Bays 1 x 2.5" HDD/SSD (SATA 6Gb/s)

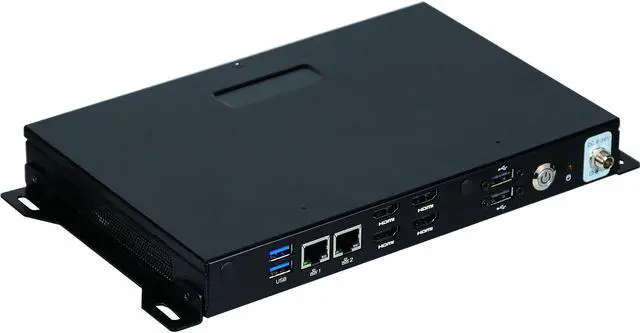

    Front Panel Ports
    Front USB 2 x USB 3.2 Gen 1
    2 x USB 2.0
    Other Front Ports 2 x RJ45 LAN Ports
    4 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz *Support EDID emulation with AMD Graphic driver/utility (4 independent display outputs)
    1 x Power button with LED
    1 x HDD LED
    1 x Screw type DC Jack
    Back Panel Ports
    Rear USB 2 x USB 2.0
    Rear Audio Ports 1 x Line out phone jack
    Other Rear Ports 1 x COM Port (RS-232/422/485 & RI/5V/12V)
    1 x Line out phone Jack
    Power Supply
    Power Supply +9V~36VDC (Adapter 19V/65W)
    Physical SPEC
    Dimensions 9.21" x 6.1" x 1.18"
    Packaging
    Packaging Bracket for Wall Mount x 2 : 25HB1-SD4000-R0R
    PSU ADP 19V 65W 100-240VAC x 1 : 25EP1-100650-A3S
