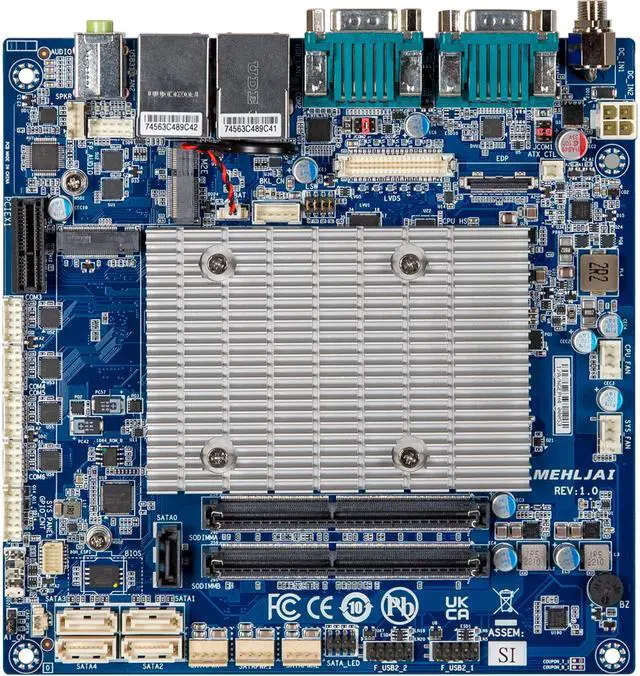

GIGAIPC mITX-6412A Mini-ITX Embedded Motherboard with Intel J6412 Processor, Dual Channel DDR4 memory, PCIe, 6 x COM, 5 x SATA 6Gb/s, 8 x USB - OEM
- Mini-ITX form factor
- Intel Celeron J6412 Processor
- Dual Channel DDR4, 2 x SO-DIMMs
- 2 x GbE LAN Ports
- 5 x SATA 6Gb/s Ports with one SATA DOM supported
- HDMI 2.0, VGA, eDP, LVDS ports for multiple display
- 1 x PCIe x1 (Gen 3x1) expansion slot
- 2 x COM Ports (RS-232/422/485 & RI/5V/12V)
- 4 x COM Ports (RS-232)
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE mITX-6412A
| Brand | GIGAIPC |
|---|---|
| Model | mITX-6412A |
| CPU Type | Intel Celeron J6412 |
|---|---|
| Number of Processor Support | 1 |
| CPU Features | 10nm, 4 cores, 4 threads, up to 2.60 GHz TDP 10W |
| Number of DDR4 Slots | 4 x 260-pin |
|---|---|
| DDR4 Standard | DDR4 3200 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| Other Slots | 1 x 2230 M.2 E-Key |
|---|
| SATA | 5 x SATA 6Gb/s Ports (4 x Asmedia ASM1064) (1 x supports SATA DOM) |
|---|---|
| M.2 | 1 x 2280 M.2 M-Key (SATA 6Gb/s) |
| Audio Chipset | Realtek ALC897 |
|---|
| LAN Chipset | Realtek RTL8111H |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |

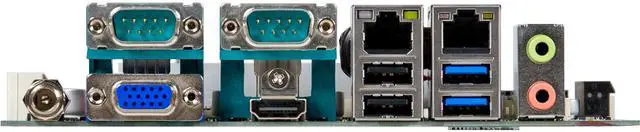

| Back I/O Ports | 2 x Audio Jacks (Line out, Mic in) 2 x COM Ports (RS-232/422/485 & RI/5V/12V) 1 x HDMI 1 x VGA 2 x RJ45 LAN Ports 2 x USB 2.0 2 x USB 3.2 Gen 1 1 x DC Jack (+12V/+19V~+24VDC) |
|---|
| Onboard USB | 4 x USB 2.0 headers |
|---|---|
| Other Connectors | 1 x 4-pin ATX main power connector 3 x SATA power connectors 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x 2W Speaker out header 4 x COM headers (RS-232) 1 x GPIO (8 bits) & SMBus header 1 x Case open header 1 x AT/ATX mode select jumper 1 x Backlight Control header 1 x Buzzer 4 x SATA LED header 1 x ATX Control header |
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| First Listed on Newegg | September 03, 2025 |
|---|
