Will this work with this SSD: Intel 660p Series M.2 2280 512GB PCI-Express 3.0 x4 3D2 QLC Internal Solid State Drive (SSD) SSDPEKNW512G8XT?

This will not work with this adapter for a few reasons. 1. The keys do not fit, look at the notch in the picture. 2. The reason it is keyed (M Key) like that is because the Intel 660p is an NVMe drive that runs off of the PCIe bus without compatibility to run on a SATA interface. 3. Even if the above were not true, it would slow down the drive to SSD speeds instead of the rated speeds because SATA 3.0 can only run at around 500 to 600MBps. The form factor of the Intel 660p of the M.2 2280 IS the correct form factor for this though, so if you have an M.2 2280 SATA SSD (either B Key, or B+M Key), it will fit into this. And don't feel bad about being confused about this, It causes even enthusiasts to get tripped up every now and then.

49^.14Dh

VAT-Inclusive Price

Limit 99999 per customer.

Ships from China.

Most customers receive within 10-17 days.

Add to wish list(Found on 1 wish list)

Sold by EN Labs Marketplace

Top Rated

4.3 (2,652 seller ratings)

Shipped by EN Labs Marketplace

Meet Your Seller

EN Labs Marketplace

See Seller Store

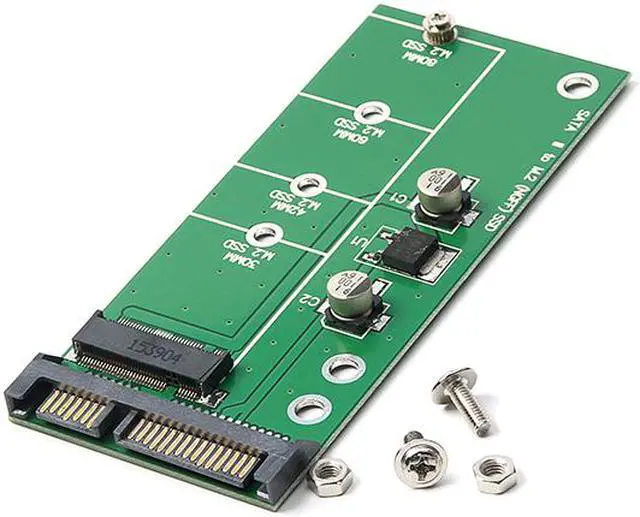

Main image of EnLabs NGFF ( M2 ) B Key & B+M Key SATA Based SSD to 2.5" SATA Adapter,SATA-Bus M.2 NGFF SSD to SATAIII 6Gbps Convert Card For 2230/2242/2260/2280mm

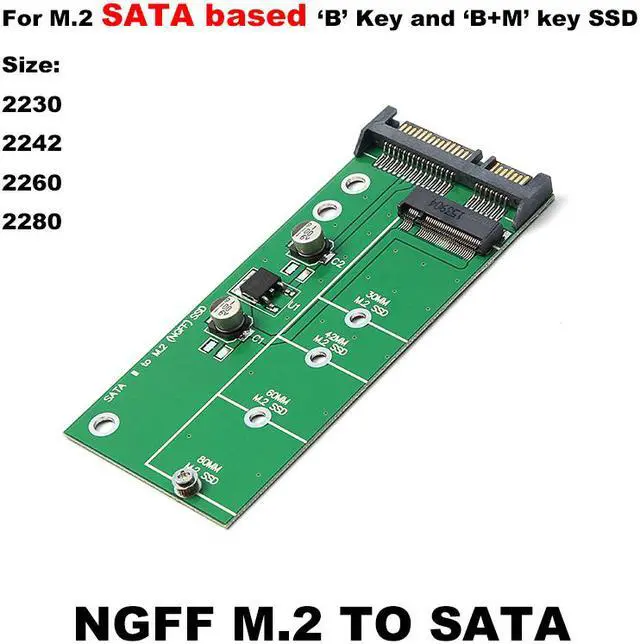

Alt view image 2 of 5 - EnLabs NGFF ( M2 ) B Key & B+M Key SATA Based SSD to 2.5" SATA Adapter,SATA-Bus M.2 NGFF SSD to SATAIII 6Gbps Convert Card For 2230/2242/2260/2280mm

Alt view image 3 of 5 - EnLabs NGFF ( M2 ) B Key & B+M Key SATA Based SSD to 2.5" SATA Adapter,SATA-Bus M.2 NGFF SSD to SATAIII 6Gbps Convert Card For 2230/2242/2260/2280mm

Alt view image 4 of 5 - EnLabs NGFF ( M2 ) B Key & B+M Key SATA Based SSD to 2.5" SATA Adapter,SATA-Bus M.2 NGFF SSD to SATAIII 6Gbps Convert Card For 2230/2242/2260/2280mm

Alt view image 5 of 5 - EnLabs NGFF ( M2 ) B Key & B+M Key SATA Based SSD to 2.5" SATA Adapter,SATA-Bus M.2 NGFF SSD to SATAIII 6Gbps Convert Card For 2230/2242/2260/2280mm

Shop All EN-Labs Products | Visit EN Labs Marketplace Store

EnLabs NGFF ( M2 ) B Key & B+M Key SATA Based SSD to 2.5" SATA Adapter,SATA-Bus M.2 NGFF SSD to SATAIII 6Gbps Convert Card For 2230/2242/2260/2280mm

(4) Write a Review

Convert SATA-Bus M.2 NGFF SSD into 2.5in SATA (6Gbps) interface
Supports SATA based B key and B+M Key M.2 SSDs
Does NOT support PCI-e Based "M key" or "M+B key" (NVME AHCI) SSD

Overview

Specs

Reviews (4)

Features:
Convert an M. 2 NGFF SSD into 2.5 in SATA (6Gbps) interface
M. 2 NGFF SSD to 2.5 in SATA Adapter Converter supports SATA based B key and B+M Key M. 2 SSDs
Maximize system speed by adding M. 2 SSD performance
Reduce overall power consumption, with a high efficiency M. 2 SSD
Support for SATA revision I/II/III ( 1.5 / 3.0 / 6.0 Gbps)
Supports full length M. 2 NGFF (Next Generation Form Factor) SSD Solid State Drives (2230, 2242, 2260, 2280)
Note:
It does NOT support PCI-e Based "M key" or "M+B key" (NVME AHCI) SSD (eg. Samsung 950PRO / Samsung 960EVO / Samsung 961)

Model
Brand	EN-Labs
Model	M2NGFF25SATA

Details
Changer Type	M.2 SATA

Features
Features	Features: Convert an M.2 NGFF SSD into 2.5in SATA (6Gbps) interface M.2 NGFF SSD to 2.5in SATA Adapter Converter supports SATA based B key and B+M Key M.2 SSDs Maximize system speed by adding M.2 SSD performance Reduce overall power consumption, with a high efficiency M.2 SSD Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps) Supports full length M.2 NGFF (Next Generation Form Factor) SSD Solid State Drives (2230, 2242, 2260, 2280) Note: It does NOT support PCI-e Based "M key" or "M+B key" (NVME AHCI) SSD (eg. Samsung 950PRO / Samsung 960EVO / Samsung 961)

Group
Model	For 2.5in SATA drives

Additional Information
Date First Available	November 07, 2018
