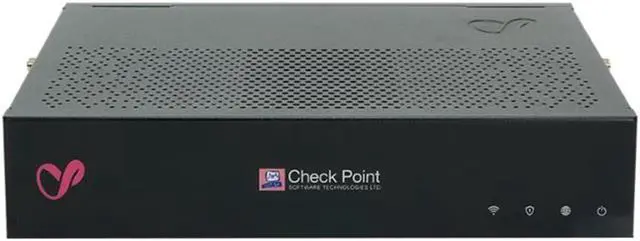

CHECK POINT SG1570 SECURITY switch + 1 YEAR SNBT subscription Premium support CPAP-SG1570-SNBT-SS-PREM-1Y

Enterprise Testing Conditions

Threat Prevention (Mbps) 1 500

Next Generation Firewall2 970

IPS Throughput (Mbps) 1, 050

Firewall Throughput (Mbps) 2, 800

RFC 3511, 2544, 2647, 1242 Performance (LAB)

Firewall 1518 Byte UDP Packets (Mbps) 6, 400

VPN AES-128 Throughput (Mbps) 1, 950

Connections per Second 15, 750

Concurennt Connections 500, 000

Software

Security Firewall, VPN, User Awareness, QoS, Application Control, URL Filtering, IPS, Anti-Bot, Antivirus, Anti-Spam and SandBlast Threat Emulation (sandboxing)

Unicast, Multicast Routing OSPFv2, BGPv4 and 4++, RIP, PIM (SM, DM, SSM), IGMP

Mobile Access License (Users) 200 remote SNX or Mobile VPN client users

Hardware

WAN Port 1x 10/100/1000Base-T RJ-45 port

DMZ Port 1x 10/100/1000Base-T RJ-45 / 1x 1000BaseF SFP port (transceiver not included)

LAN Port 8x 10/100/1000Base-T RJ-45 ports

Radio Band (association rate) Two radio bands concurrent: 2.4GH z (max 450 Mbps) and 5GHz (max 1, 700 Mbps)

3/4G/LTE (optional) 3/4G/LTE Embedded modem, CAT6 with Main and Auxiliary antennas

SIM (optional) Dual SIM (Nano and Micro)

Console Port 1x USB-C

USB Port 1x USB 3.0

SD Card Slot Micro-SD slot

Dimensions

Enclosure Desktop

Dimensions (W x D x H) 210 x 170 x 42 mm, 8.3 x 6.7 x 1.7 in.

Weight 0.87 kg ( 1.9 lbs. )

Environment

Operating / Storage 0ºC ~ 40ºC / -45ºC ~ 60ºC (5~95%, non-condensing)

Power Requirements

AC Input 110 240VAC, 50 60 Hz

Certifications

Safety/Emissions/Environment UL/c-UL, CB IEC, CE LVD 62368-1, CE | VCCI, AS/NZS, FCC, IC Class B, FCC, IC, AS/NZS, CE RED ETSI | RoHS, REACH, WEEE
