Gateway Max
UXG-Max
Security and Routing Features
- Intrusion Detection & Prevention: Using a real-time database of known threats, UniFi's IDS/IPS can detect and block suspicious activities.
- Content filtering: With just a few clicks, stop traffic from specific sites.
- Site Magic: This UniFi license facilitates Site-to-Site VPN and SD-WAN setup.
Seamless Deployment

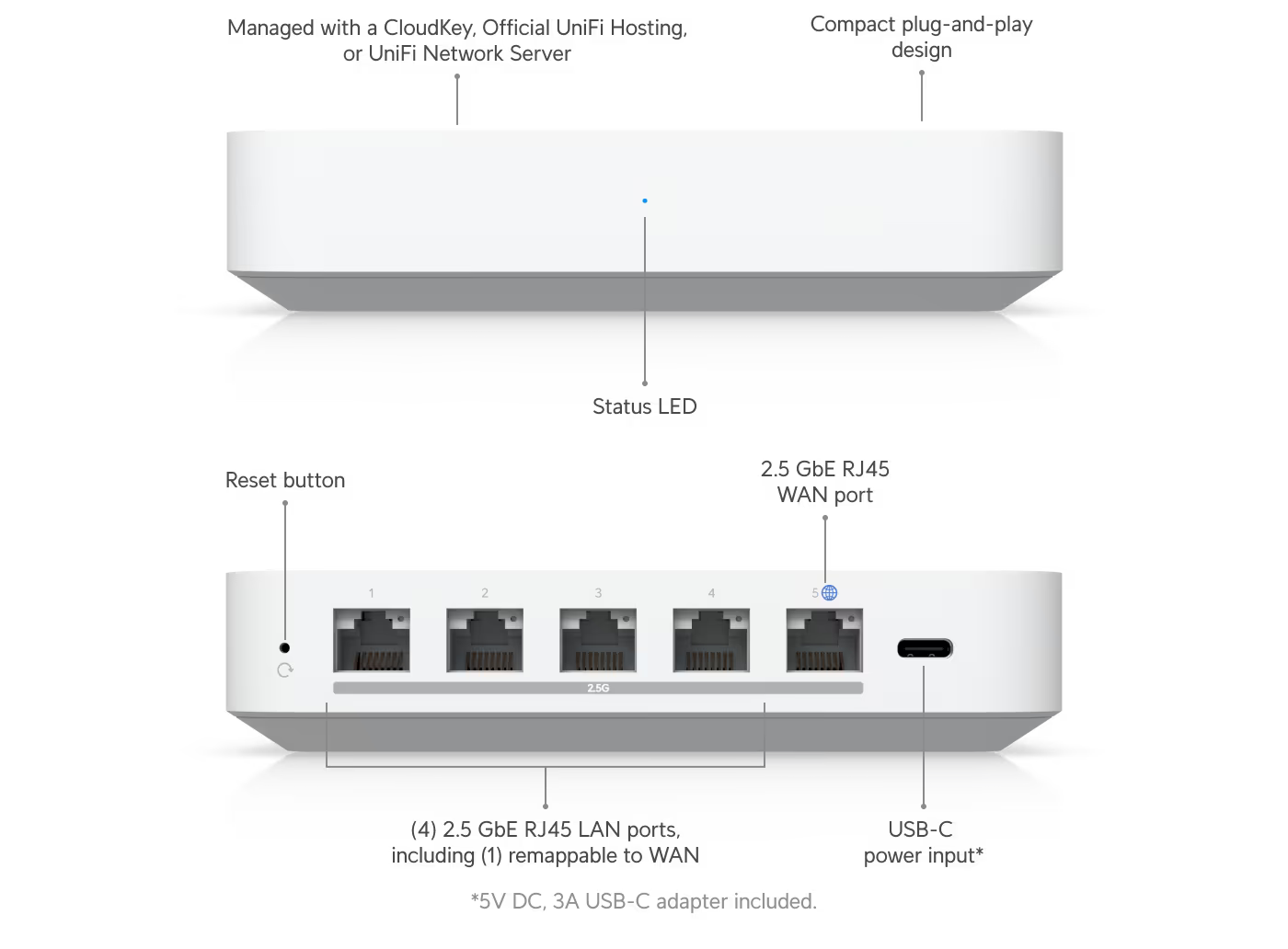

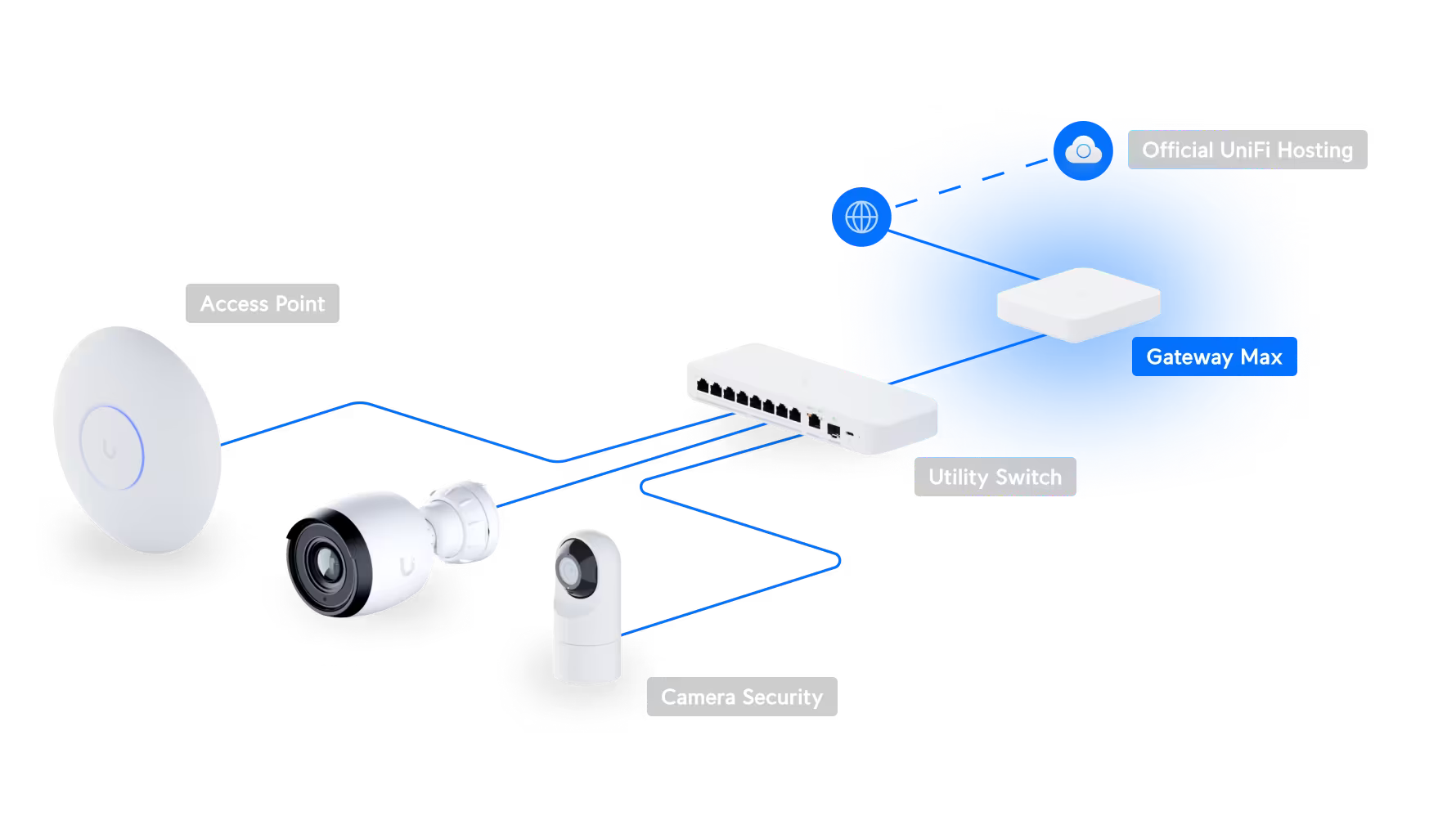

Compact plug and play design. The Gateway Max is managed either with a Cloud Key, Official UniFi hosting or UniFi Network Server.

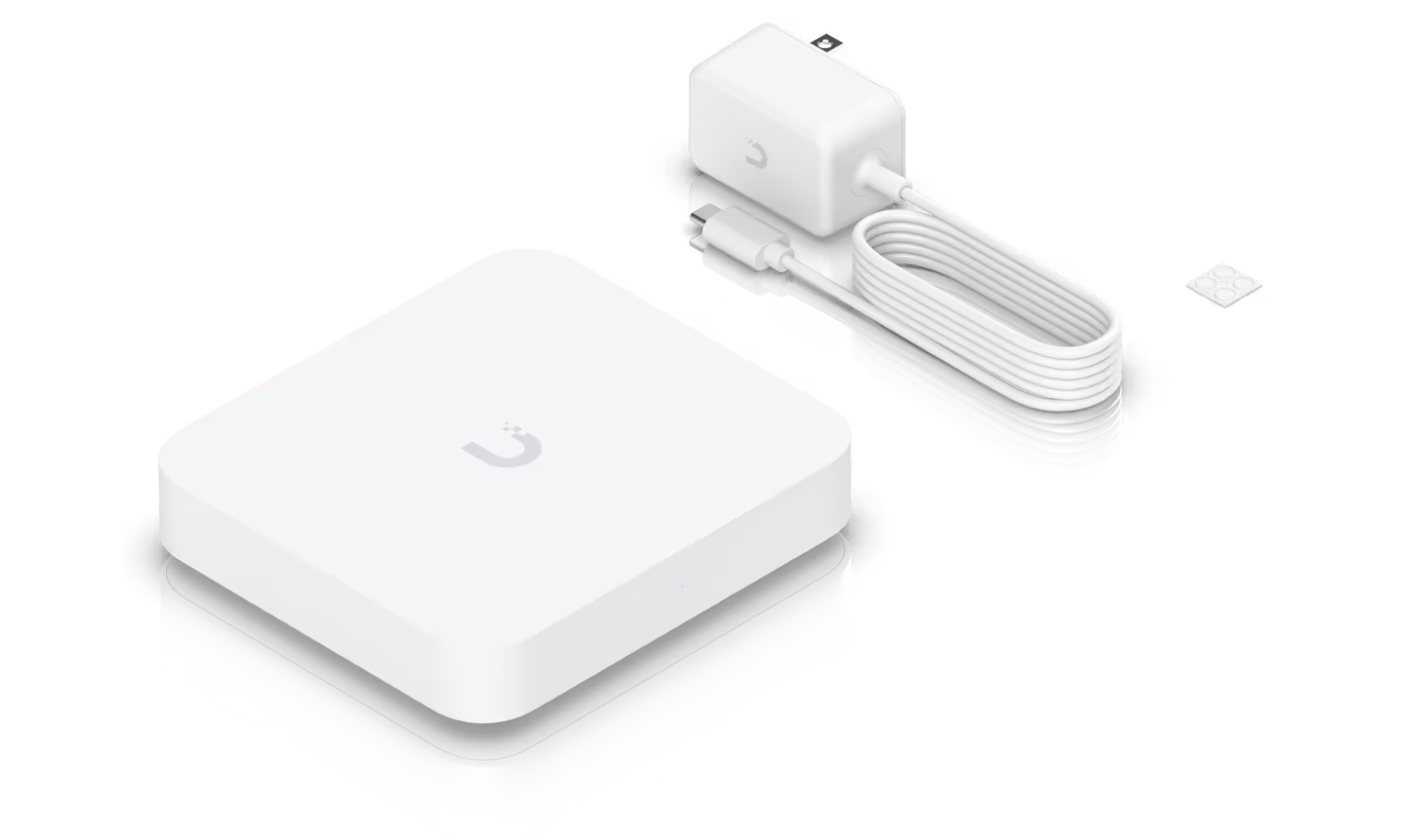

Package Content
Included:
(1) Gateway
(1) Power Adapter & Cable
Product Comparison
|
Gateway Fiber Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch. |
Gateway Max Compact, multi-WAN gateway for high-speed networking at small-to-medium sites |
Gateway Lite Compact and powerful gateway ideal for smaller networks |
|
Dimensions |
212.8 x 127.6 x 30 mm (8.4 x 5 x 1.2") |
141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2") |
98 x 98 x 30 mm (3.9 x 3.9 x 1.2") |
Throughput |
10 Gbps | 2.5 Gbps | 1 Gbps |
IDS/IPS Throughput |
5 Gbps | 1.5 Gbps | 1 Gbps |
WAN Ports |
(1) 10G SFP+ (1) 10 GbE RJ45 |
(1) 2.5 GbE RJ45 | (1) GbE RJ45 |
LAN Ports |
(1) 10G SFP+ (4) 2.5 GbE RJ45 |
(4) 2.5 GbE RJ45 including (1) remappable to WAN |
(1) GbE RJ45 |
Power Redundancy |
- | - | - |
Form Factor |
Desktop | Desktop | Desktop |
All networking interfaces are LAN/WAN remappable.
