Additional Features: Echo Cancellation
Tail time: 60 ms x 3
Noise Cancellation
Dynamic noise cancellation
Keypad
Alphanumeric standard keypad
Loudspeaker
Volume: 90dBspl A weighted @ 1 ft
Bandwidth: 200 Hz–3.3 kHz
Record Output
Connector: 2.5 mm mono audio jack
Impedance: <1000 ohms
Bandwidth: 200 Hz–3.3 kHz
Dynamic range: 60 dB
THD <.01%
Certifications
FCC part 15 Class A
FCC part 68
UL Certified
Environmental
Operating temperature: 32–118° F (0–48° C)
Storage temperature: 41–158° F (5–70° C)
Operating humidity: 15 to 80%
Storage humidity: 10 to 90%
Speakerphone: Yes
Power: Base unit:
Auto-adjusting power module;
100-240 VAC; 50/60 Hz
Connections: Analog PBX or PSTN line
RJ-11C, -12 dBm nominal
Additional Features: With a single USB connection, Logitech Swytch links a laptop to the room’s display, camera, and audio devices. Now, people can use meeting rooms with any video conferencing software, webinar platform, or streaming service.
Specification: SYSTEM REQUIREMENTS
- Meeting Room Equipment
Display: HDMI input
Conference Camera: USB conference camera with speakerphone
- Laptop Computers
USB 3.0 Port: Type A or Type C
USB Power Delivery: Up to 60 watts for compatible laptops that charge via USB Type C
Operating Systems with DisplayLink Plug and Display Drivers: Windows 10, macOS 10.15 and later, and Chrome OS 75 or later.
INSIDE THE BOX
Swytch Hub
Swytch Extender
Swytch Connector with 1.5m / 4.9ft USB Cable
100-240v Swytch Hub Power Supply
100-240v Swytch Extender Power Supply
5m / 16.4ft USB 3.0 Cabl...
Additional Features: Invertible camera bracket
The camera bracket provides flexibility to mount the camera on a wall directly above or below the display for a natural line of sight and eye contact with remote participants. For larger meeting spaces, the bracket can be inverted to position the camera near the ceiling for a
Camera: Type: Digital video camera
Form Factor: Desktop
Camera Mechanical Design: Pan / tilt / zoom
Color Support: Color
Optical Zoom: 15
Digital Video Capture Resolution: 3840 x 2160
Video Modes: 1080p, 1440p, 4K, 720p, 900p
Interface Type: SuperSpeed USB 3.0
Features:
+50° / -90° tilt, 180° pan, 30 fps, 52.2° field of view (vertical), 82.1° field of view (horizontal), 90° diagonal field of view, Auto Focus, Motorized pan, Motorized tilt, Motorized zoom, Security lock slot (cable lock sold separately)
Specification: OS Required: Apple MacOS X 10.10 or later, Google Chrome OS, Microsoft Windows 7 / 8.1 / 10
Microphone: Type: Microphone
Microphone Operation Mode: Omni-directional
Form Factor: External
Frequency Response: 90 - 16000 hertz
Speakerphone: Type: Speaker(s)
Frequency Response: 300 - 10000 hertz
Total Harmonic Distortion (THD): 2.5...

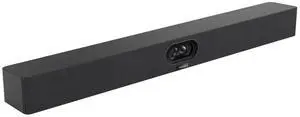

Camera: Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
Pan: Motorized ±25°
Tilt: Motorized ±15°
Zoom: 4X HD digital zoom
Diagonal Field of View: 120°
Horizontal Field of View: 113°
Vertical Field of View: 80.7°
Total Room Coverage (field of view + pan and tilt): 163° horizontal x 110° vertical
