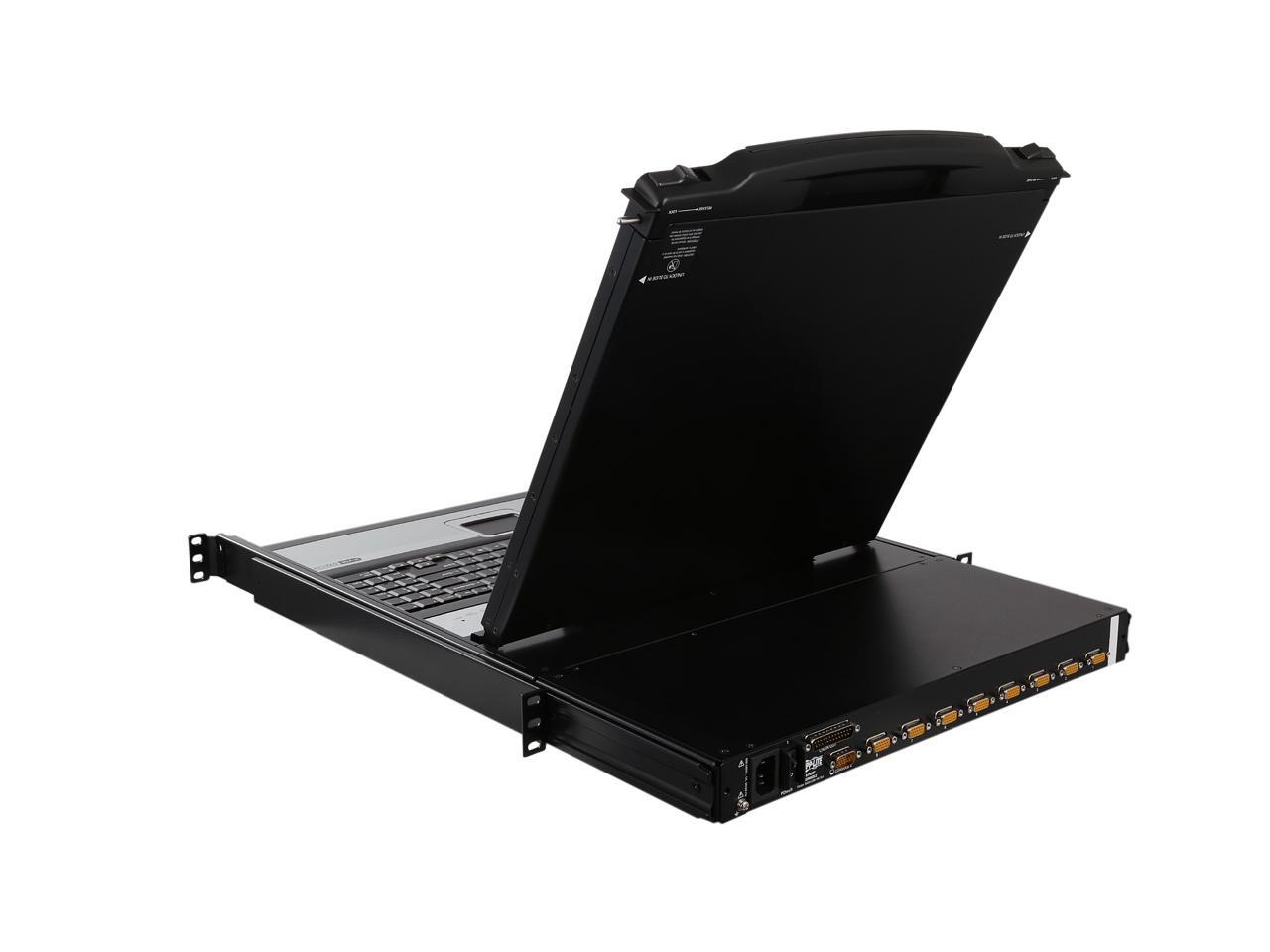

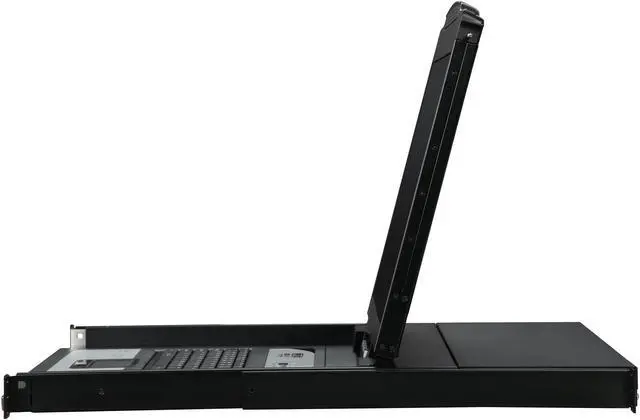

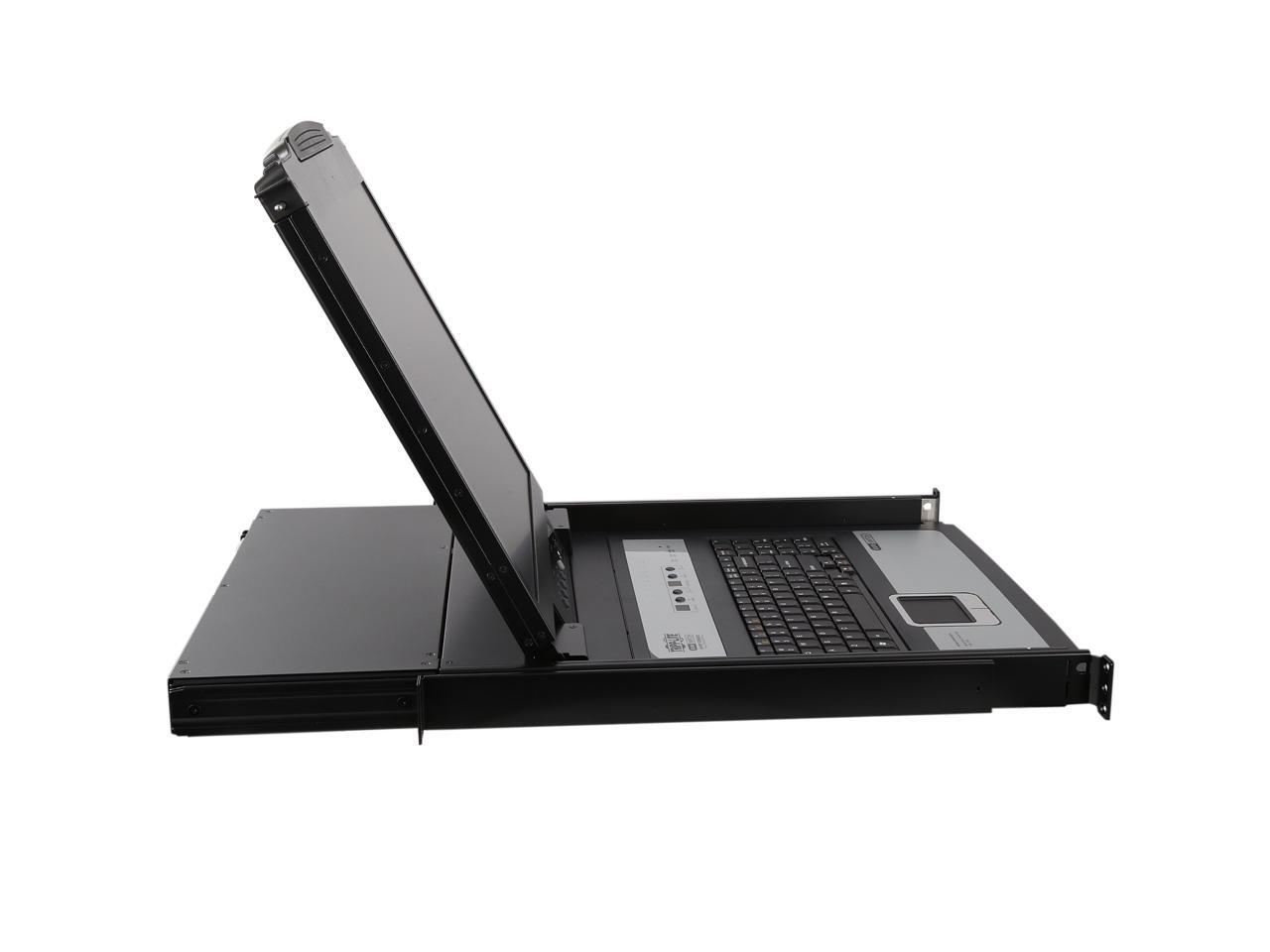

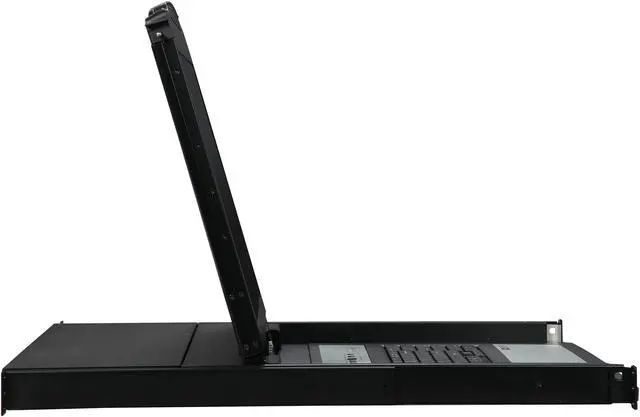

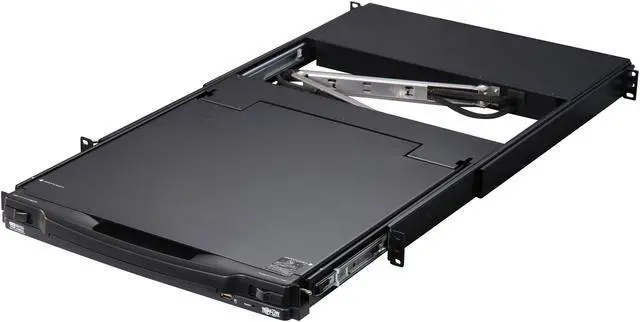

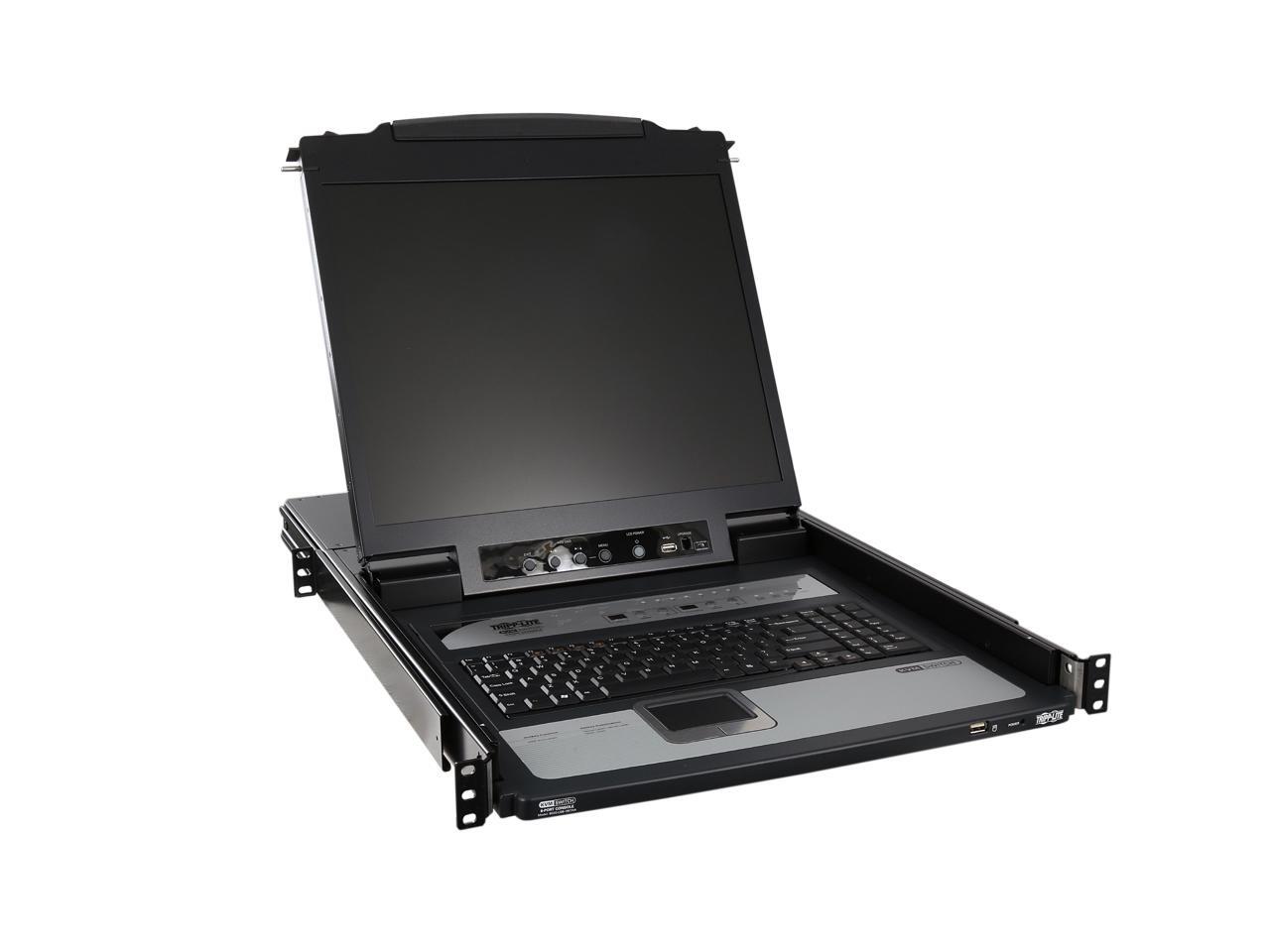

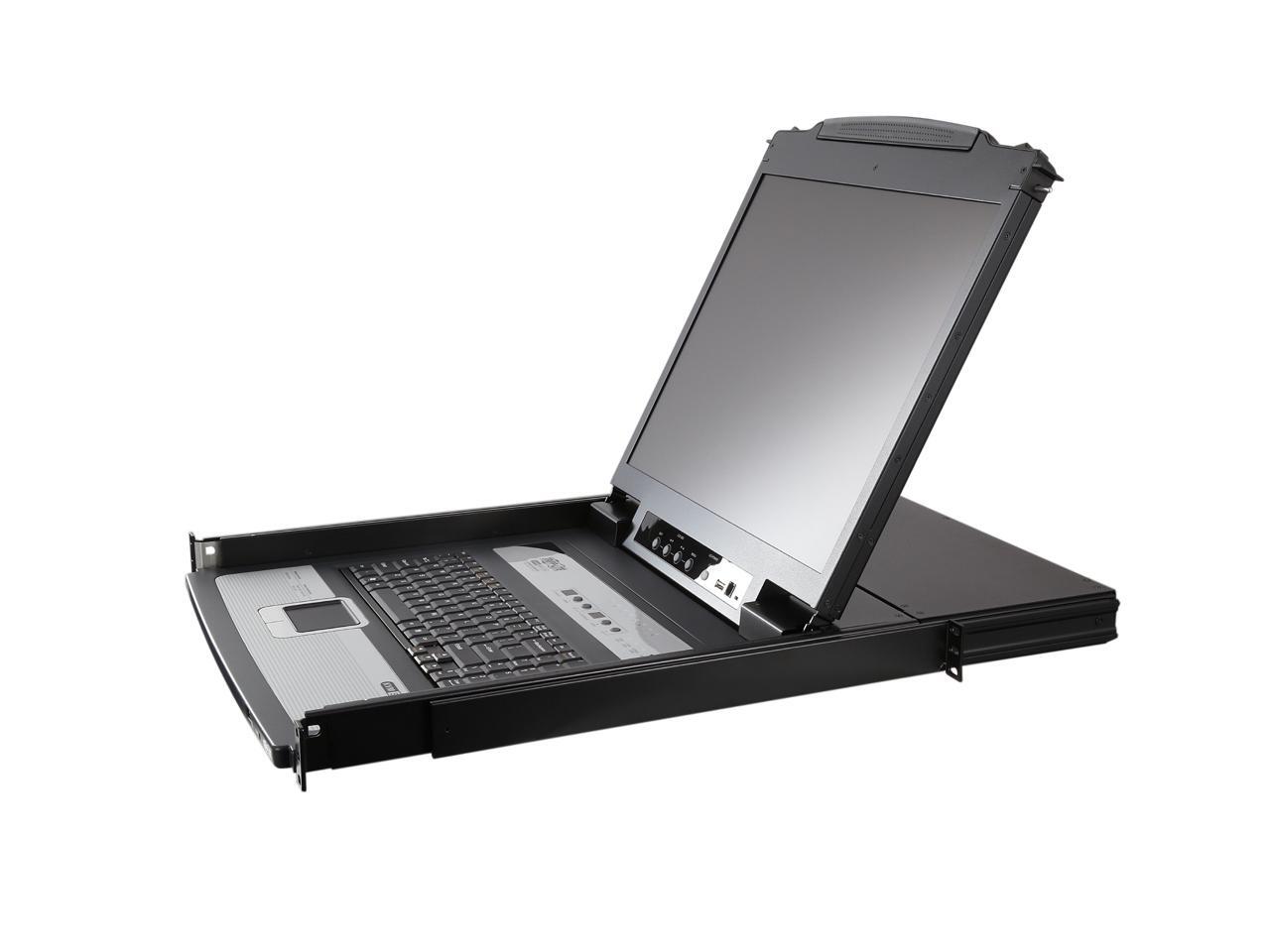

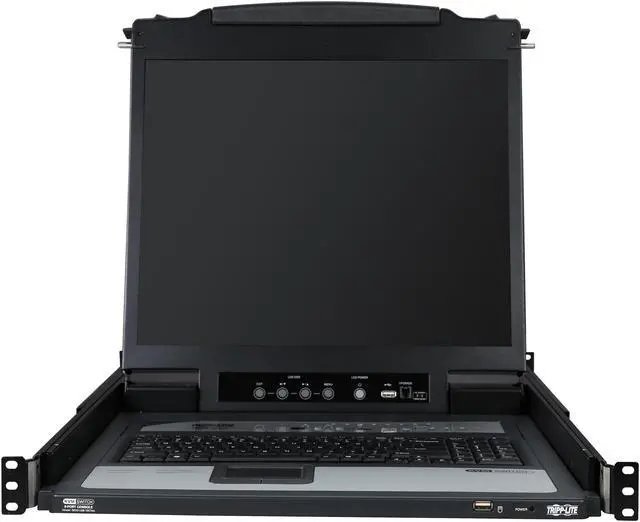

Main image of Tripp Lite 8-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD + 8 PS2/USB Combo Cables; TAA Compliant (B020-U08-19KTAA)

100%

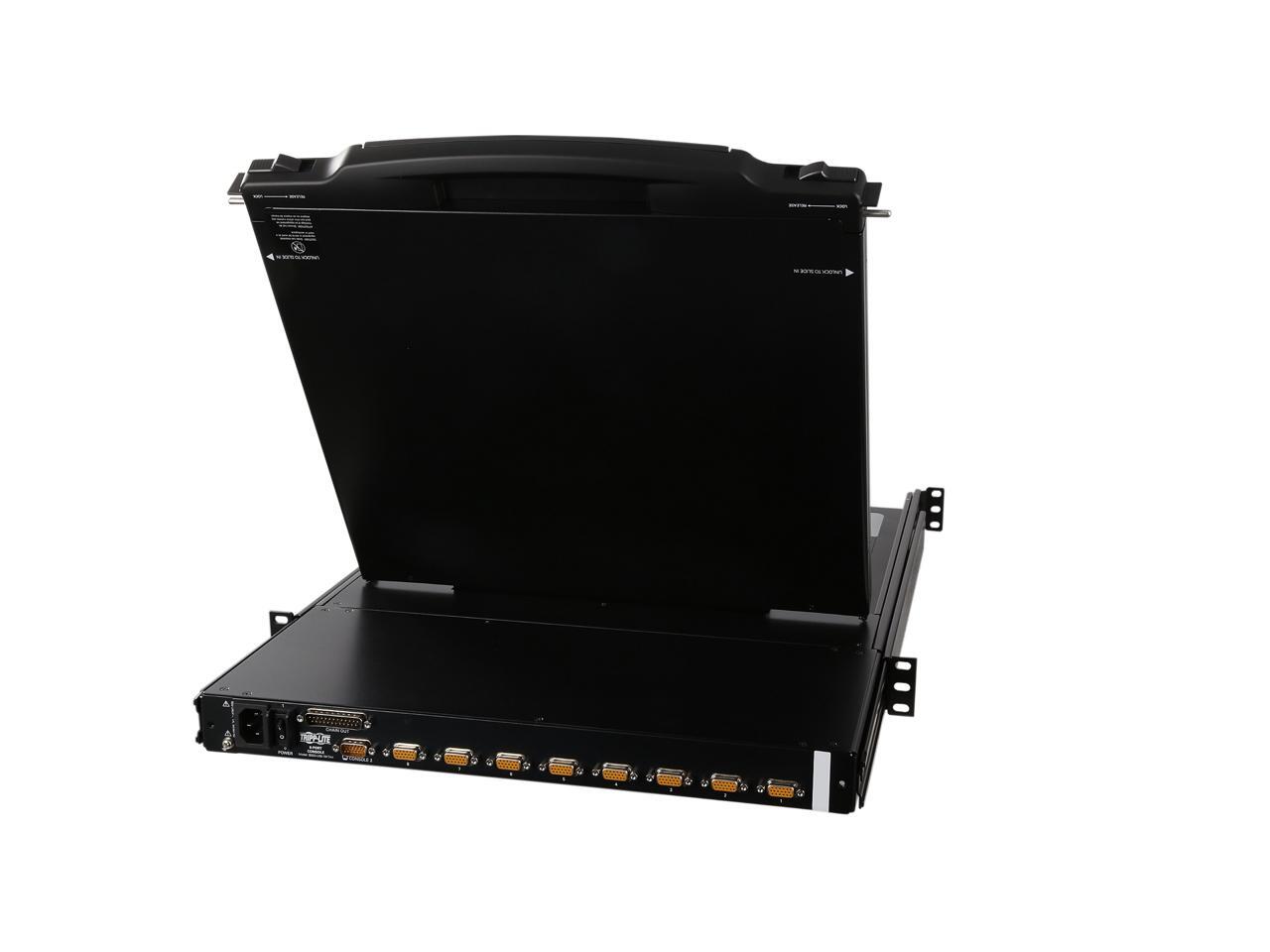

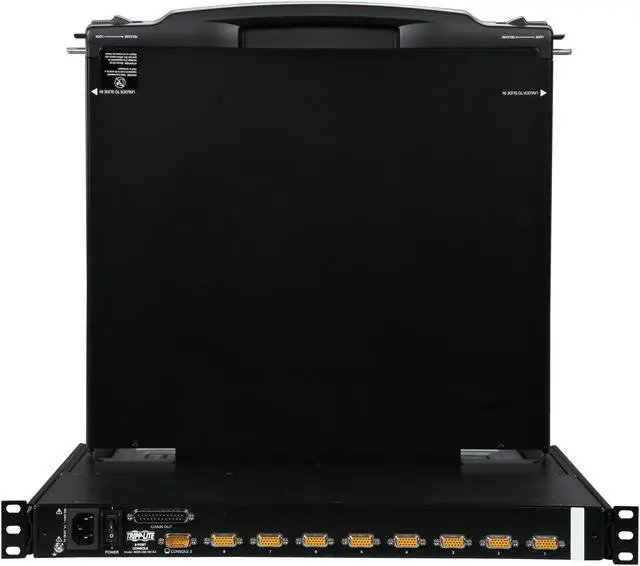

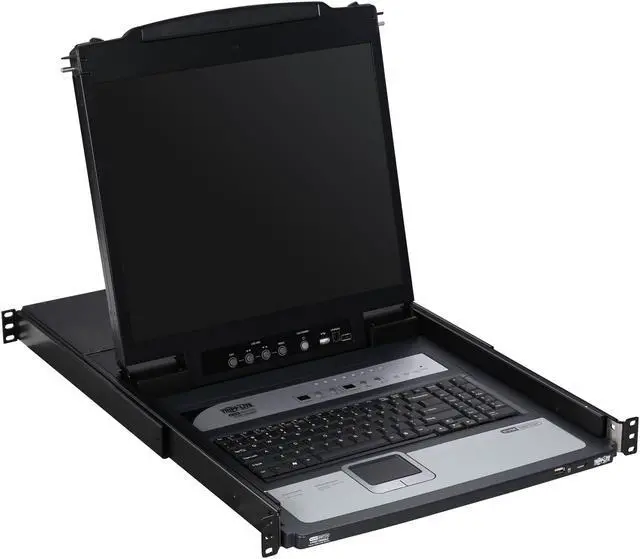

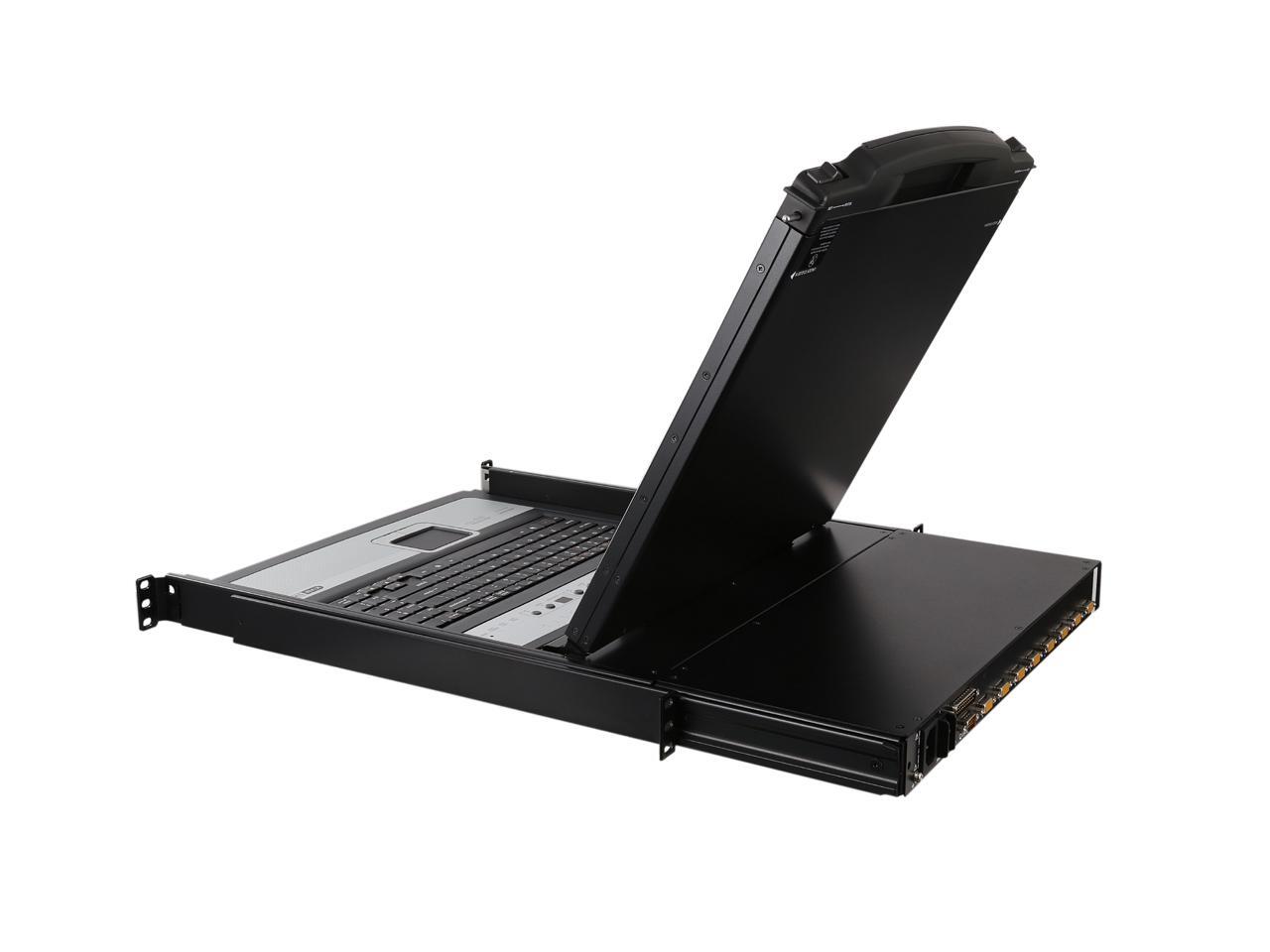

Alt view image 2 of 8 - Tripp Lite 8-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD + 8 PS2/USB Combo Cables; TAA Compliant (B020-U08-19KTAA)

Alt view image 3 of 8 - Tripp Lite 8-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD + 8 PS2/USB Combo Cables; TAA Compliant (B020-U08-19KTAA)

Alt view image 4 of 8 - Tripp Lite 8-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD + 8 PS2/USB Combo Cables; TAA Compliant (B020-U08-19KTAA)

Alt view image 5 of 8 - Tripp Lite 8-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD + 8 PS2/USB Combo Cables; TAA Compliant (B020-U08-19KTAA)

Alt view image 6 of 8 - Tripp Lite 8-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD + 8 PS2/USB Combo Cables; TAA Compliant (B020-U08-19KTAA)

Alt view image 7 of 8 - Tripp Lite 8-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD + 8 PS2/USB Combo Cables; TAA Compliant (B020-U08-19KTAA)

Alt view image 8 of 8 - Tripp Lite 8-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD + 8 PS2/USB Combo Cables; TAA Compliant (B020-U08-19KTAA)

360^°

Shop All Tripp Lite Products

Tripp Lite 8-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD + 8 PS2/USB Combo Cables; TAA Compliant (B020-U08-19KTAA)

Be the first to review this product...

(x8) HD18 (Female) Computer Connections
Video Resolution 1280 x 1024

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

8-Port Rack Console KVM Switch 19" LCD 8 PS2/USB Cables 1URM TAA GSA

Model
Brand	TRIPP LITE
Series	NETDIRECTOR
Model	B020-U08-19KTAA

Details
Type	USB, PS/2
Computer Connections	(x8) HD18 (Female)
Video Resolution	1280 x 1024
PC Selection	Push Buttons/Hot Keys/OSD

Environmental
Temperature	Operating Temperature: 32 Degrees F to 120 Degrees F (0 to 50 C) Storage Temperature: -4 Degrees F to 140 degrees F (-20 to +60 C)
Humidity	0 to 80% RH, Non-condensing

Features
Features	Connections: Included Cable (Side A) - Connector 1: HD18 Male Included Cable (Side B) - Connector 1: HD15 Male Included Cable (Side B) - Connector 2: PS/2 Male Included Cable (Side B) - Connector 3: PS/2 Male Included Cable (Side B) - Connector 4: USB A Male Other Ports - Port 1: USB A for Optional USB Keyboard/Mouse connection Other Ports - Port 2: USB A for USB peripheral connection (e.g. Flash drive) Remote Console Port: PS2/USB Combo Console Cable Kit w/VGA, (x2) PS2 & (x2) USB Female connectors 1U rackmount console with built-in 8-Port KVM switch, 19" LCD screen, keyboard, and touchpad Includes (x8) P778-Series USB/PS2 combo KVM cable kits Additional ports are provided for the connection of an external console or IP remote access unit Features a USB 1.1 port on the LCD panel for the sharing of USB peripherals such as Flash Drives and Card Readers amongst the connected computers Features a USB 1.1 port on the keyboard panel for the convenient connection of an external mouse Control up to 504 computers by daisychaining up to 31 additional B022-U16 KVM switches Daisychain station position is automatically sensed; no need for manual DIP switch settings Switch ports via on-console pushbuttons, hotkey keyboard commands, or the OSD Auto scan feature allows for continuous scanning of connected computers Two level password security Firmware upgradeable Compatible with all major operating systems

Dimensions & Weight
Dimensions	27" x 17" x 1.75"
Weight	30.6 lbs.

Package Contents

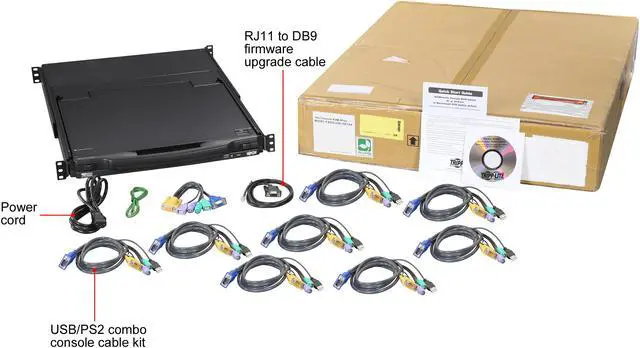

Package Contents	- B020-U08-19KTAA 1U rackmount console with built-in 8-Port KVM switch, 19" LCD, keyboard, and touchpad - (x8) P778-006 6 ft. USB/PS2 combo KVM cable kits - USB/PS2 combo console cable kit - RJ11 to DB9 firmware upgrade cable - C13 to 5-15P power cord - CD with owner's manual - Quick start guide - Grounding wire - Rackmount hardware
