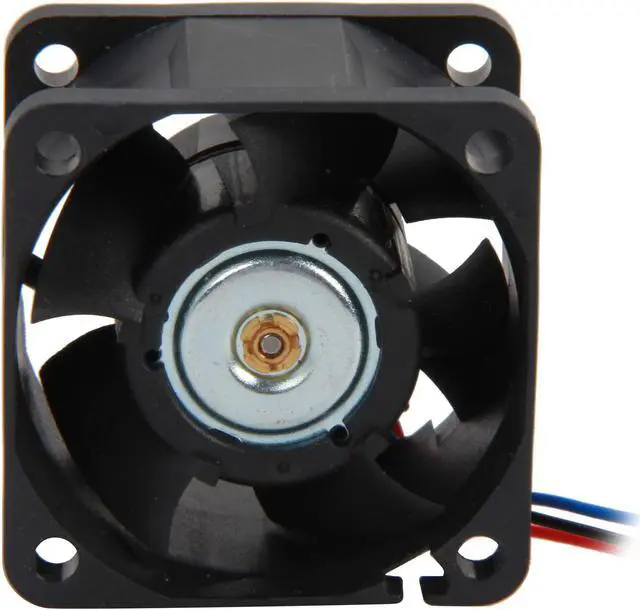

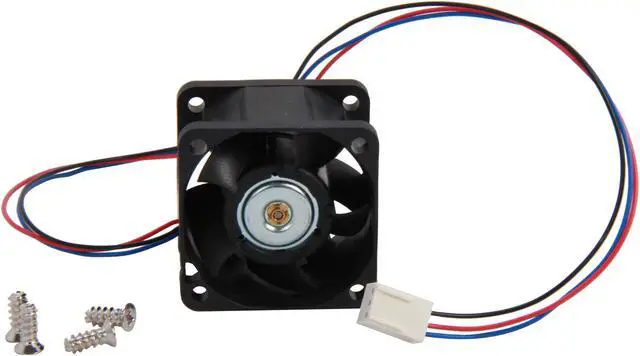

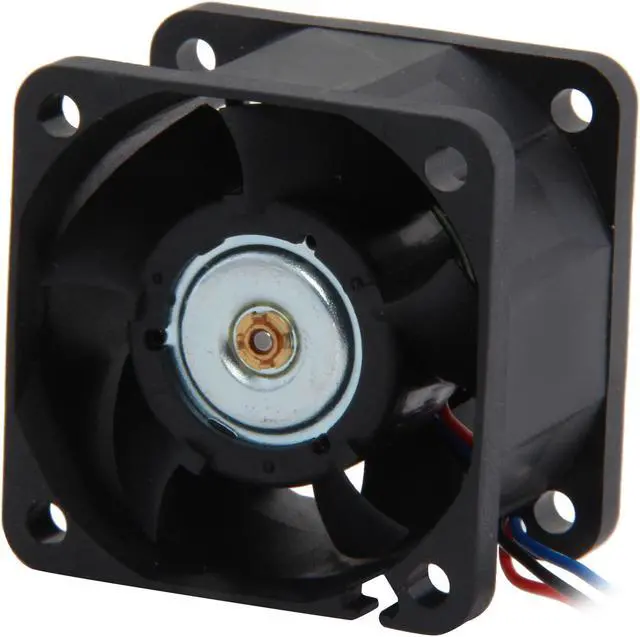

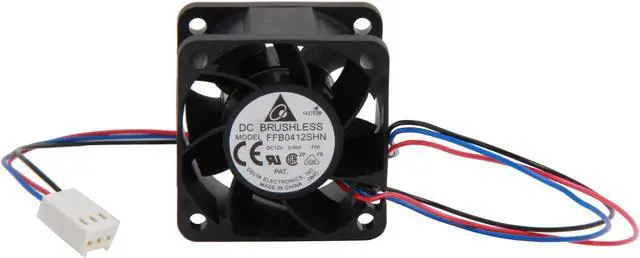

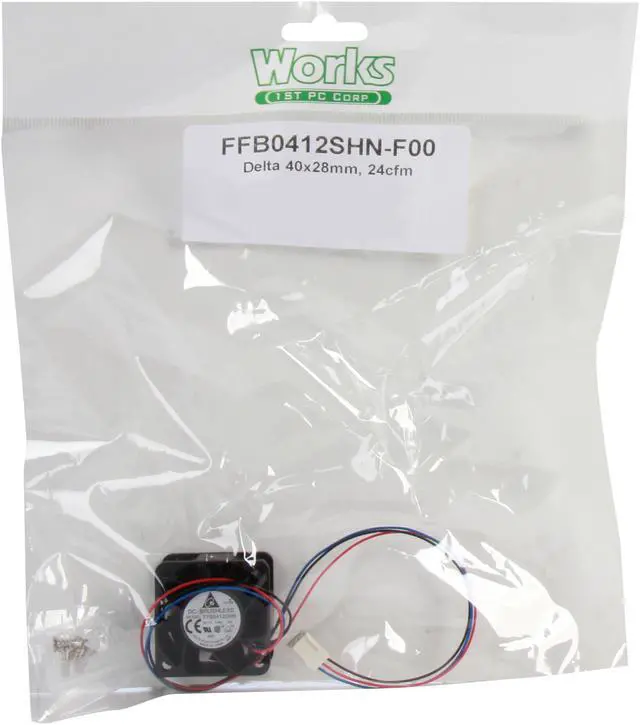

Delta Electronics FFB0412SHN-F00 40mm Case Fan
- 40mm
- 13000 RPM 24 CFM
- Dual Ball
- 54.5 dBA
+
+
Specs
Reviews (3)
Learn more about the 1ST PC CORP. FFB0412SHN-F00
| Brand | Delta Electronics |
|---|---|
| Model | FFB0412SHN-F00 |
| Type | Case Fan |
|---|---|
| Compatibility | Case |
| Fan Size | 40mm |
| Bearing Type | Dual Ball |
| RPM | 13000 RPM |
| Air Flow | 24 CFM |
| Noise Level | 54.5 dBA |
| Power Connector | 3 Pin |
| Color | Black |
| Features | Rated Voltage: 12 VDC Operating Voltage Range: 4.5 - 13.8 VDC Input Current: 0.6 Amp Input Power: 7.2W Maximum Air Pressure: 27.30 mmH2O or 1.075 inchH2O The Delta FFB0412SHN-F00 is an ultra-high speed cooling fan at 40 x 40 x 28mm. This is the fan you want when you have low profile systems that require as much air cooling capacity as you can get. Air flow is 24 CFM, or 0.68 cubic meter per minute at 13000 RPM and 54.5 dBA. Life expectance is 70,000 hours (or almost 8 years if you operate the fan 24 hours a day) at 40 Degree C with 15 - 65% RH, all thanks for industrial grade materials plus top notched, high quality dual ball bearing. Suitable applications include but are not limited to low profile industrial rack mount systems. Safety protections include Over Current Shut Down where the current will shut down when locking rotor occurs and Locked Rotor Protection where impedance of motor winding protects the motor from fire in 96 hours of locked motor condition at the rated voltage. It's also equipped with Polarity Protection that is capable of withstanding reverse connection of positive and negative leads. Operating temperature is -10 to +70 Degree C with 5 - 90% RH. This fan does not contain ozone depleting substances such as PBBs, PBBOs, CFCs, PBBEs, PBDPEs, or HCFCs. This fan has 3 wires lead with fan speed sensor output and a standard 3 pin fan connector so you can plug it to a 3 pin fan header on most computer motherboards. Or you can power it by a common computer power supply with a 3 pin to Molex 4 pin cable adapter (sold separately) but you will lose the fan failure monitoring functionality. Wire lead is approximately 13 inches long. |
|---|
| Dimensions | 40.00 x 40.00 x 28.00mm |
|---|
| Date First Available | October 10, 2023 |
|---|
