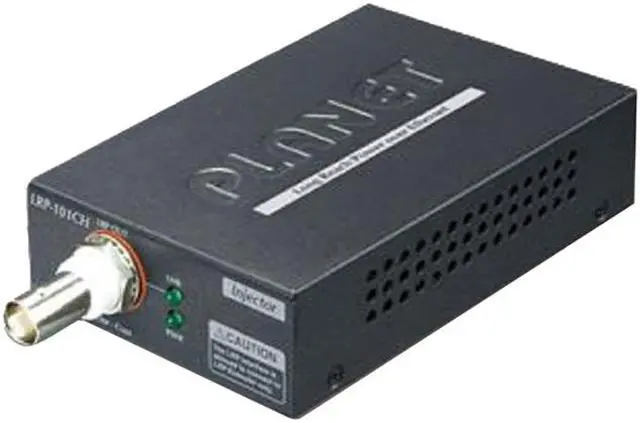

PLANET LRP-101CH 1-Port 10/100 TX PoE PD + 1-Port Coax Long Reach PoE Injector

Be the first to review this product...
  • 10/100BASE-TX RJ45, Auto-negotiation / auto-MDI / MDI-X
  • Data Rate: 100/100 Mbps
  • IEEE 802.3at/af PoE PD
  • Mid-span and End-span PSE
+
+
Specs
Reviews

Learn more about the PLANET LRP-101CH

Model
Brand PLANET
Model LRP-101CH
Details
Type PoE Injector
Specifications Ethernet Interface:
Copper: 10/100BASE-TX RJ45, auto-negotiation / auto-MDI / MDI-X
Power over Ethernet Standard: IEEE 802.3at/af PoE PD (Powered Device)
PoE Input: Supports both Mid-span and End-span PSE
Input Range: 48~56V DC
Data Rate: 100/100 Mbps
Cabling: Cat5e or above
Maximum Distance: 100 meters
Maximum Frame Size: 1522 bytes

LED Indicators:
4 x LEDs
PWR
LRP LNK
PoE IN
LNK / ACTESD Protection: 4 KV DC

EFT Protection: 2 KV

Enclosure Metal: case

Installation: Wall mount or DIN rail with optional kit

Power Requirements:
RJ45 PoE Input: 802.3at/af 48~56V DC
DC Input: 48~56V DCStandards Compliance:

Standards Compliance:
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3af Power over Ethernet (802.3at Type 1)
IEEE 802.3at Power over Ethernet (802.3at Type 2)
Features
Features Planet's LRP-101CH Long Reach PoE Injector is designed to extend IP Ethernet transmission and inject power simultaneously into a remote 802.3af/at PoE compliant powered device (PD) beyond the 100 meters distance limit of Ethernet.
