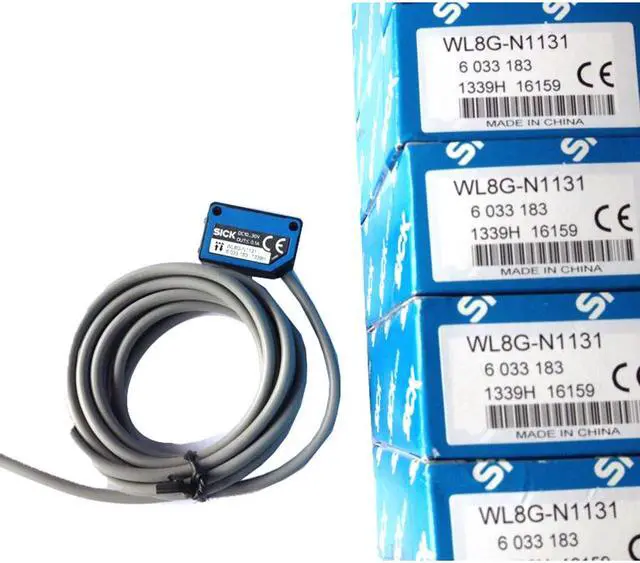

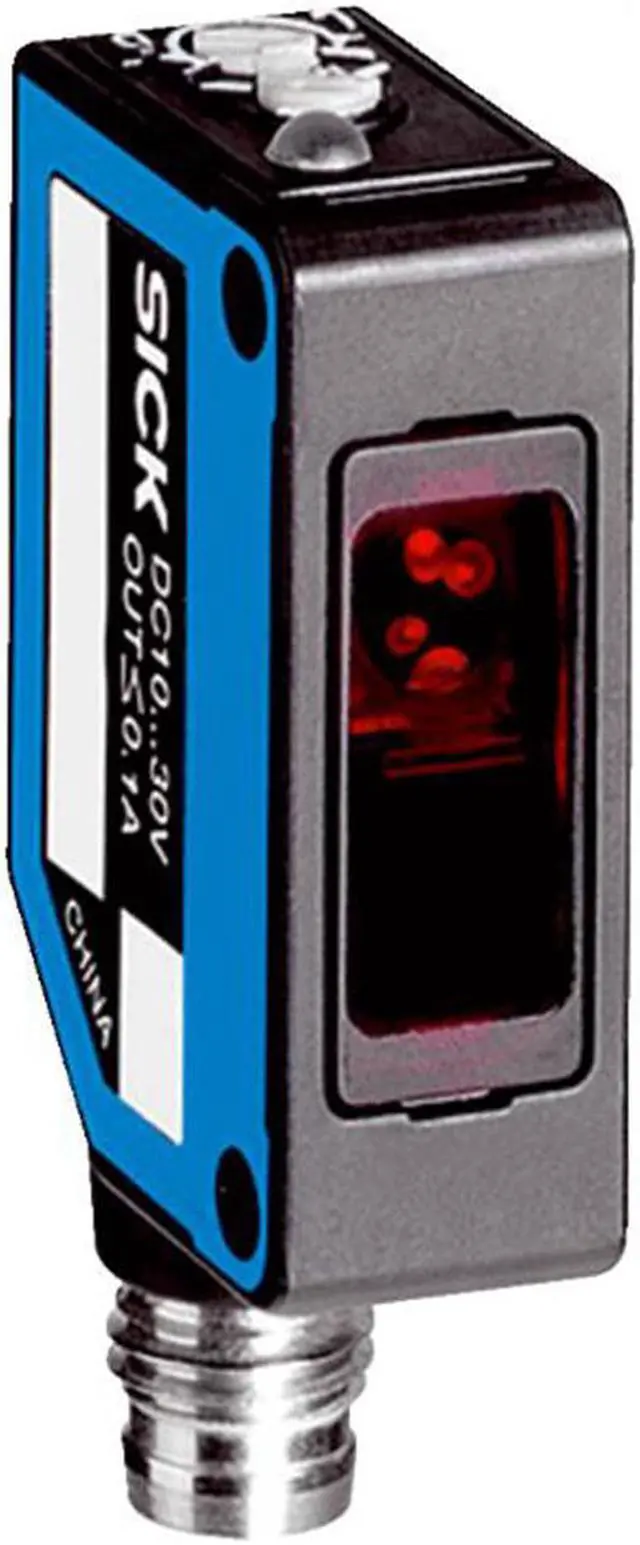

SICK WL8G-N1131 Photoelectric Retro-Reflective Sensor,NPN New
- SICK WL8G-N1131 Photoelectric Retro-Reflective Sensor,NPN New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric retro-reflective sensor, autocollimation
Dimensions (W x H x D) 11 mm x 31 mm x 20 mm
Housing design (light emission) Rectangular
Sensing range max. 0 m ... 3 m 1)
Sensing range 0 m ... 1.7 m 1)
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 70 mm (2 m)
Wave length 650 nm
Adjustment Potentiometer, 270°
Special applications Detecting transparent objects
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple ± 10 % 2)
Power consumption 30 mA 3)
Switching output NPN
Switching mode Light/dark switching
Switching mode selector Selectable via light/dark rotary switch
Signal voltage NPN HIGH/LOW Approx. VS / < 1.8 V
Output current Imax. = 100 mA
Response time = 0.5 ms 4)
Switching frequency 1,000 Hz 5)
Attenuation along light beam = 15 %
Connection type Cable, 3-wire, 2 m 6)
Cable material PVC
Circuit protection
A 7)
B 8)
D 9)
Weight 50 g
Polarisation filter ?
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating IP67
Items supplied Stainless steel mounting bracket (1.4301/304) BEF-W100-A, Reflector P250F
Special feature Detecting transparent objects
Ambient operating temperature –25 °C ... +55 °C
Ambient storage temperature –40 °C ... +70 °C
Sensor/ detection principle Photoelectric retro-reflective sensor, autocollimation
Dimensions (W x H x D) 11 mm x 31 mm x 20 mm
Housing design (light emission) Rectangular
Sensing range max. 0 m ... 3 m 1)
Sensing range 0 m ... 1.7 m 1)
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 70 mm (2 m)
Wave length 650 nm
Adjustment Potentiometer, 270°
Special applications Detecting transparent objects
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple ± 10 % 2)
Power consumption 30 mA 3)
Switching output NPN
Switching mode Light/dark switching
Switching mode selector Selectable via light/dark rotary switch
Signal voltage NPN HIGH/LOW Approx. VS / < 1.8 V
Output current Imax. = 100 mA
Response time = 0.5 ms 4)
Switching frequency 1,000 Hz 5)
Attenuation along light beam = 15 %
Connection type Cable, 3-wire, 2 m 6)
Cable material PVC
Circuit protection
A 7)
B 8)
D 9)
Weight 50 g
Polarisation filter ?
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating IP67
Items supplied Stainless steel mounting bracket (1.4301/304) BEF-W100-A, Reflector P250F
Special feature Detecting transparent objects
Ambient operating temperature –25 °C ... +55 °C
Ambient storage temperature –40 °C ... +70 °C
