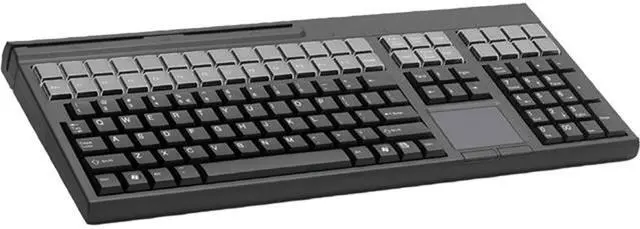

Cherry G86-71411EUADAA G86-71411 LPOS QWERTY Keyboard
- 127 US Position Key Layout
- Touchpad
- Integrated 3-Track MSR
- USB Interface
- Black
+
+
Overview
Specs
Reviews (1)
Cherry (59 programmable/41 relegendable keys), v2
(59 programmable/41 relegendable keys), v2
Manufacturer : Cherry
(59 programmable/41 relegendable keys), v2
Manufacturer : Cherry
LPOS Large Point of Sale Keyboard
Full-sized Multifunctional Keyboard with Enhanced 131/127 Position Key Layout and Optional Magnetic Card Reader and Touchpad
Black QWERTY USB keyboard with touchpad and 3-track magnetic stripe reader. US Int’l 127 position key layout with 42 additional keys. 127 Programmable and 42 Relegendable keys. Includes ‘CHERRY Tools’ configuration software and UPOS drivers.
Features
- Full size keyboard with QWERTY layout
- Enhanced US 131/127 Position key Layout
- Robust Product Design with IP 54 Spill and Dust Resistant Key Field for Harsh Environments
- Plug & Play Configuration for all Common POS Features
- Unique Function Enhancement with ‘CHERRY Tools” Virtual Programming
- Fully Programmable Keyboard with 42 Relegendable Keys for Easy Layout Configuration and Quick Function Calls
- Option for Unlimited Programmability of all Keys up to 3 Layers Provides Convenient Data Access
- ‘Moving of Key’ Allows for Easy Key Position Exchange Including Modifier Functions
- Pop-up Window for Comfortable Display of Programmed Keys
- High Performance 3-Track Magnetic Stripe Reader with Freely Programmable Headers and Terminators for Each Track
- Dual Insertion for Bi-directional Swipe of Magnetic Stripe Card
- 127/131 Programmable Keys
- Audible and Visual Indication of MSR Good Reads
- Flexible Parsing and Configuration of Magnetic Stripe Data Including Start/Stop Sentinels
- Powerful ‘CHERRY Tools’ Configuration Software Allows for Quick Product Set Up and Configuration
- Easy Configuration File Transfer with Window Explorer
- Comprehensive UPOS Support for Windows and Linux Client-Server Architectures
- Remote Network Installation with CHERRY Tools Activator and Runtime Version
- Touchpad Version Reducing Desktop Footprint while Ensure Easy Cursor Navigation
- Yellow Status LED’s
- Accessory Kit Available to Reconfigure Key Layout
Main Applications
Point of Sale:
Retail
Hospitality
Airlines
Postal Services
Car Rentals
Point of Transactions/Service:
Banking
Government
Healthcare
Education
Transportation
Technical Data
Interface: USB 2.0
Current Input: typ. 35 mA
Magnetic Stripe Reader
Standards:
ISO 7811/-12, AAMVA, JIS
PCI DSS 3.0 Compliant
Others on request
Durability:
1 million card swipes
Reading speed:
3 – 125 inch/s at 75 Bit/inch
3 – 50 inch/s at 210 Bit/inch
Data is decoded to keyboard scancodes.
Touchpad:
Resolution: 1000 dpi
2 switch-activated mouse buttons
Cable Length: approx. 1.85 m
Key Layout:
Compact size 131/127 position US Int’l key layout including Windows keys
Weight (without packaging): 1.5 kg/1.7 kg
Dimensions:
Keyboard: 442 x 183 x 36 mm
Keyboard: 17.4 x 7.2 x 1.4 in. (keyboard w/ MSR)
Keyboard: 442 x 183 x 33 mm
Keyboard: 17.4 x 7.2 x 1.3 in. (keyboard w/o MSR)
Packaging: 496 x 248 x 45 mm
Packaging: 19.4 x 9.8 x 1.8 in.
Packaging Units:
22 keyboards per master carton
8 master cartons per pallet
Keyswitch Lifetime: 25 million operations
Storage Temperature: -20°C to 60°C
Operating Temperature: 0°C to 50°C
Available Software:
CHERRY Tools:
MS Windows™ 98, ME, 2000, XP, Windows 7
CHERRY Tools Runtime:
MS Windows™ 98, ME, 2000, XP, XP Embedded, Windows 7
OPOS Local Edition:
MS Windows™ 2000, XP, XP Embedded, Windows 7
OPOS Client/Server Edition:
MS Windows™ 2000, XP, XP Embedded, Windows 7
JPOS Local Edition:
MS Windows™ 2000, XP, XP Embedded, Windows 7
Suse Linux V8.1-9.0 / Kernel 2.4
Suse Linux V9.1 / Kernel 2.6
JPOS Client/Server Edition:
MS Windows™ 2000, XP, XP Embedded, Windows 7
Suse Linux V8.1-9.0 / Kernel 2.4
Suse Linux V9.1 / Kernel 2.6
Agency Approvals:
cURus, FCC, CE, BSMI, VCCI,
C-TicK, GOST-R WHQL
Delivery Volume: Keyboard, Quick Guide, CDROM
Warranty: 3 Years
