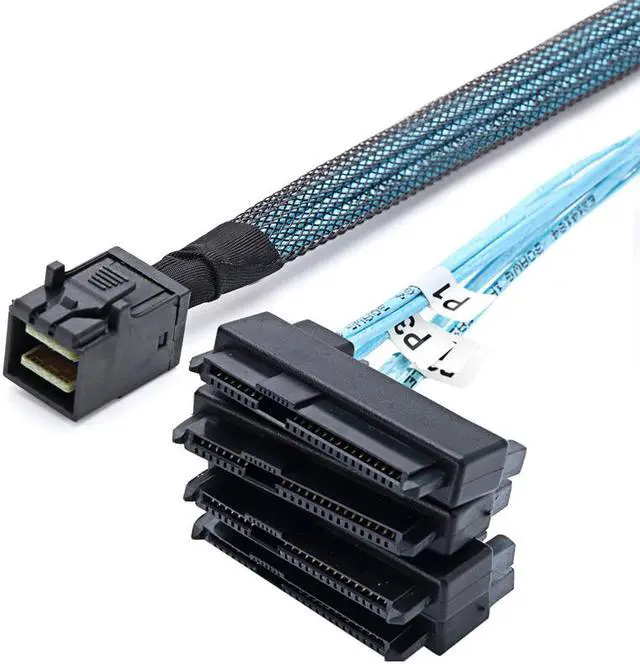

SFF-8643 to SFF-8482 Cable, Internal HD Mini SAS SFF8643 Host to 4 X 29 Pin SFF8482 Target Adapter Cord with SATA 15 Pin Power Port,1.6FT

Feature

Internal HD Mini SAS cable is specifically designed to connect a 12 Gbps host or RAID controller with SFF-8643 to 4 discrete SFF-8482 SAS drives;
Mini SAS HD to SAS 29pin adapter cable provides reliable internal connectivity between a high density RAID controller card and direct attached storage devices with a SFF-8482 29pin plug
Hybrid versions of HD MiniSAS cable with a 36 pin SFF 8643 connector and 4 x 29 pin SAS connectors provides both 3 Gbps and 6 Gbps compatibility while migrating to a to 12 Gbps storage area network system
Forward HD Mini SAS cable has an internal SFF-8643 (HOST) HD Mini-SAS 36 pin connector and 4 x SFF-8482 29 pin (TARGET) drive connectors;
SFF 8643 compatible with the Adaptec RAID 71605 / 7895 Storage Controllers
HD MiniSAS breakout cable includes acetate cloth tape over slim ribbon cables for strain relief to protect cables without rigidity;
Woven mesh sheath covers half of the cable for easy routing;
P1 to P4 markers provide easy ID after installation;

Specification

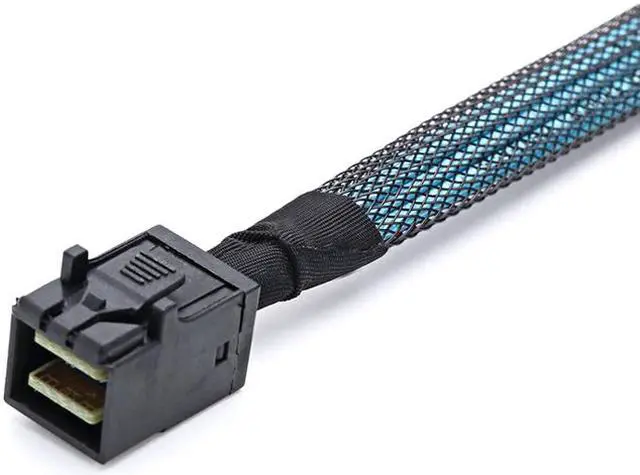

Side 1: HD Mini SAS 36Pin (SFF-8643) Male

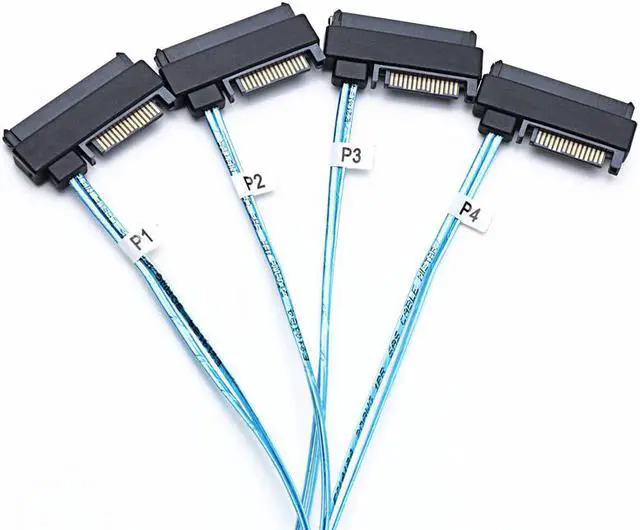

Side 2:4 x SFF-8482 SAS 29Pin female
Cable Length: 1.64 ft / 0.5M
Cable Color: Black+Blue

Note
please note that Mini SAS (SFF-8643) is host, 4 SAS 29 (SFF-8482) is target
