Specification: Package Contents:
Studio Video Conference Equipment
Remote control with 2 AAA batteries
AC power adapter
Wall mount kit
Setup sheet
Table stand
USB Type-C to USB Type-A cable
Additional Features: Hear Every Voice Clearly
With RightSound technology and multiple beamforming elements in every individual mic pod, the audio focus is always automatically on the active speaker. A single mic pod provides coverage for up to ten people. Larger meeting spaces can be provisioned with up to seven mic pods working in concert to receive and transmit remarkably clear audio for every individual at the table.
Simplified Cabling
Up to 7 Rally Mic Pods can be daisy-chained together with a single cable connection to the Rally table hub. For U-shaped tables or single-wire cabling through grommets, the Rally Mic Pod Hub accessory provides three connections for optimal positioning and to bring mute control within easy reach.
Premium, Low-Profile Design
Rally Mic Pods are elegant and deceptively small for their remarkable ra...
Camera: Ultra-HD imaging system supports:
4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
1080p, 720p at 30fps and 60 fps
Additional Features: Studio-Quality Video
With an Ultra-HD imaging system, Rally delivers brilliantly sharp video, outstanding color, and exceptional optical accuracy at resolutions up to 4K. Logitech RightLight technology optimizes light balance to emphasize faces and render natural-looking skin tones, even in dim or backlit conditions.
Advanced Modular Audio
Crystal-clear audio is essential for world-class video conferencing, and Rally excels in delivering sound that's natural, crisp, and highly intelligible. Logitech RightSound® enhances voice clarity by suppressing background noise, auto-leveling voices, and focusing on active speakers. Exquisitely sensitive mic pods ensure that everyone in the meeting can be clearly heard while stand-alon...
Camera: Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
Pan: Motorized ±25°
Tilt: Motorized ±15°
Zoom: 4X HD digital zoom
Diagonal Field of View: 120°
Horizontal Field of View: 113°
Vertical Field of View: 80.7°
Total Room Coverage (field of view + pan and tilt): 163° horizontal x 110° vertical
Specification: Tap IP
Touch Screen: 10.12 in (257 mm) diagonal screen with 14° display angle
Resolution: 1280 x 800
Cabling: Power over Ethernet (PoE) cable (not included), IEEE 802.3af Type 1, Class 3 device
Cable Management: Internal cable retention and strain relief system
Ethernet: 10/100 Mbps
WiFi: 802.11a/b/g/n/ac
Device Management: Logitech Sync
Color: Graphite
Mounting: 3.94 x 3.94in (100 x 100 mm) VESA FDMI
Rally Bar Huddle
Built-in Components: 6 DMIC microphone array, digital PTZ camera, 1 full range ported speaker, cable management & retention system, multi functional mount, integrated motorized privacy shutter, Logitech CollabOS platform
Enclosure: All-in-one enclosure with field replaceable front cover
Device Management: Logitech Sync
Displa...
Camera: Digital Pan: ±48° at 4x zoom
Digital Tilt: ±32° at 4x zoom
Zoom: 4X HD digital zoom
Diagonal Field of View: 120°
Horizontal Field of View: 113°
Vertical Field of View: 80°
Resolution: 4k
Specification: Ports
2 USB Type-A 5Gbps signaling rate; 1 HDMI-in 2.0; 1 line in; 1 line out; 2 HDMI-out 2.0 (video); 1 PoE+ 802.3at-class 4 LAN RJ-45; 1 LLN RJ-45; 1 USB Type-C® 5Gbps signaling rate (with DisplayPort™ Alt Mode for video input)
Security management
802.1x support
Special features
Speaker framing; People framing; Group framing; Presenter tracking; DirectorAI perimeter supported
Camera: Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
Pan: Motorized ±25°
Tilt: Motorized ±15°
Zoom: 15X HD zoom (5X optical, 3X digital available with upcoming software update)
Diagonal Field of View: 90°
Horizontal Field of View: 82.1°
Vertical Field of View: 52.2°
Total Room Coverage: 132.1° Horizontal x 82.2° Vertical

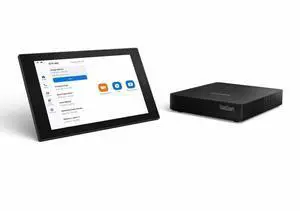

Additional Features: Make video collaboration easier for employees and IT admins by adding Logitech Tap IP touch controller and Logitech RoomMate appliance to any meeting space with an existing Logitech conference camera in Zoom Rooms and RingCentral rooms.
Specification: Package Contents:
Logitech Tap IP touch controller
Logitech RoomMate appliance
