BONAEVER Connector DB9 RS232 D-SUB Male Serial Adapter 9-pin Port Adapter to Terminal Connector Signal Module with case(Male Connector DB9 5+5 with case A)

Features:

Product name : DB9 adapter; terminal wire range : 12-24AWG

Design : Screw Type;Total Size : 58 x 35 x 21mm/2.3" x 1.4" x 0.83"(L*W*H)

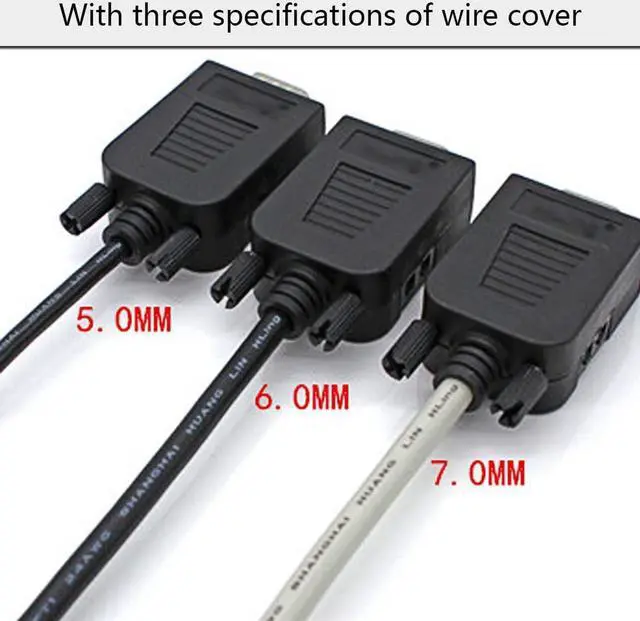

Cable Hole Dia. : 5mm/0.2'' 6mm/0.23'' 7mm/0.27'' 10mm / 0.4";Material : Metal,Electric Part

Color : Black, Green;Weight : 30g

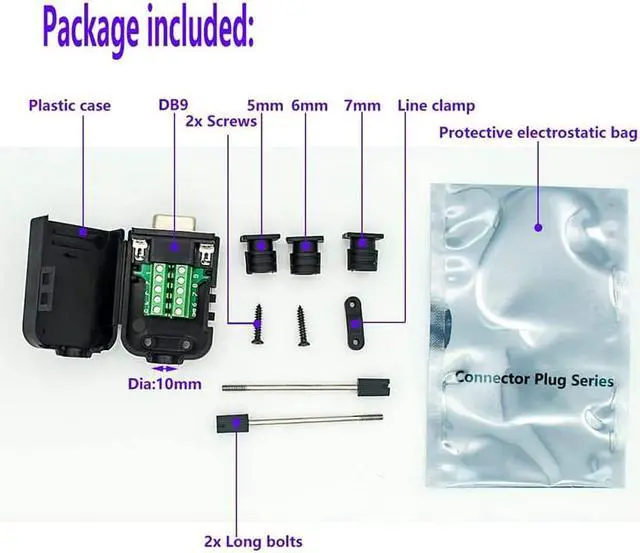

Package Content :
1 x DB9 Adapter With case
3 x Protective cover

DB9 weld-free male/female adapter.
The shell of the product is made of insulating material

and has anti-slip function. All copper base design, pure copper plated joint, fine solder joint, anti plug

and pull. Suitable for all kinds of communication, network, electronic equipment port.

Product Information:

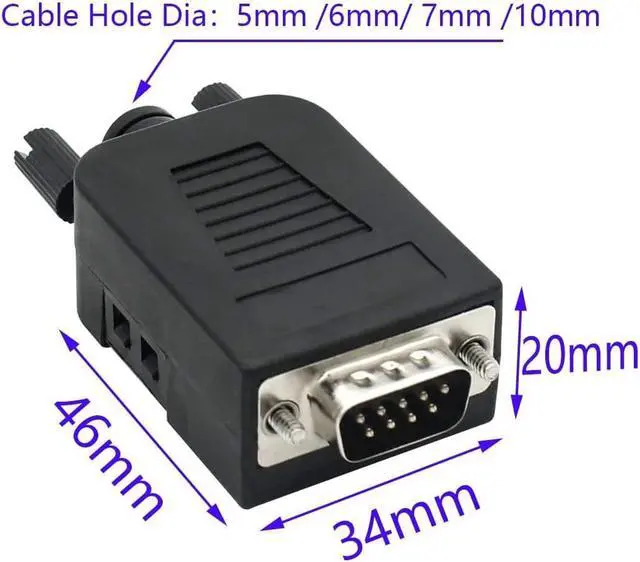

Total Size : 46 x 34 x 20mm/1. 8" x 1. 2" x 0. 71"(L*w*h) Fixing Hole diameter : 3mm; fixing Hole center distance : 6mm/0. 24 inch Material : metal Nickel plated copper needle, electric part; color : black, Green Weight : 27G DB9 male / female connector to screw terminals. High quality RoHS compliant assembly. Wire range: 26-16AWG Connect type: male with Case Material: Base: copper base and plastic part Torque: 0.2Nm (1.7Lb-In.) Pin header and cage: Brass Case: ABS + PC

All copper terminal
Gold plating technology design,

strong electrical conductivity

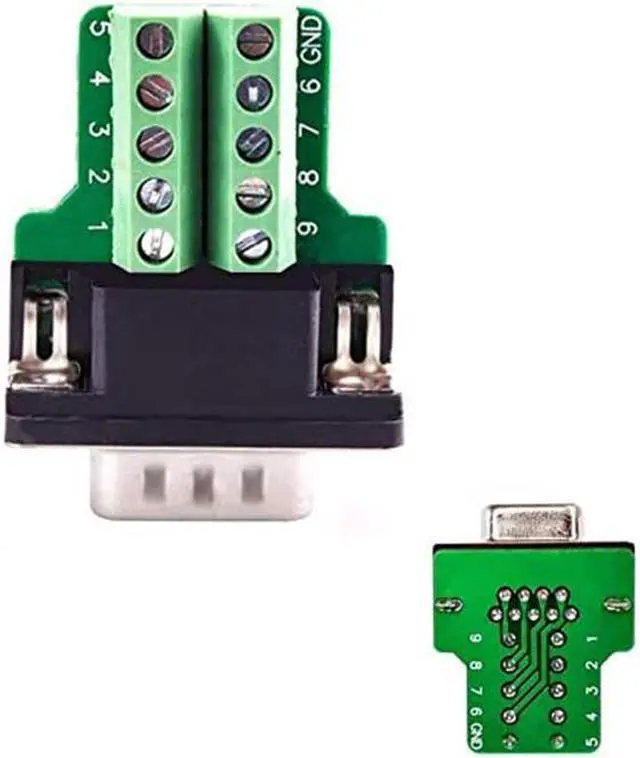

PCB circuit boards
Clear wiring serial number design

can reduce wiring error rate.

No welding
Screwdriver connection can be used repeatedly

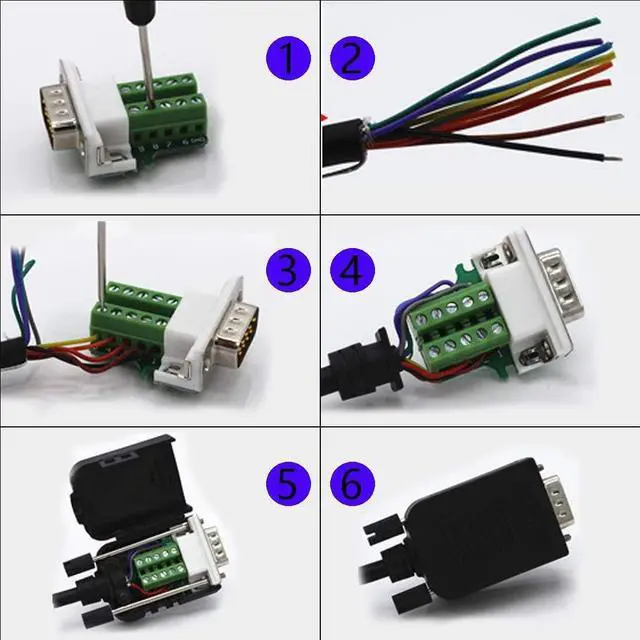

Easy to use ,No welding required:
Step 1:
Prepare materials and tools.

Step 2:
Turn the switch on from the

side with your hand

Step 3:
Install the cable according to

the number on the PCB and

screw it down

Step 4:
Cover the case .Finished

Applications
Industrial control equipment, radios, computers, tax control

machines,automation control equipment, industrial

instruments, etc.
