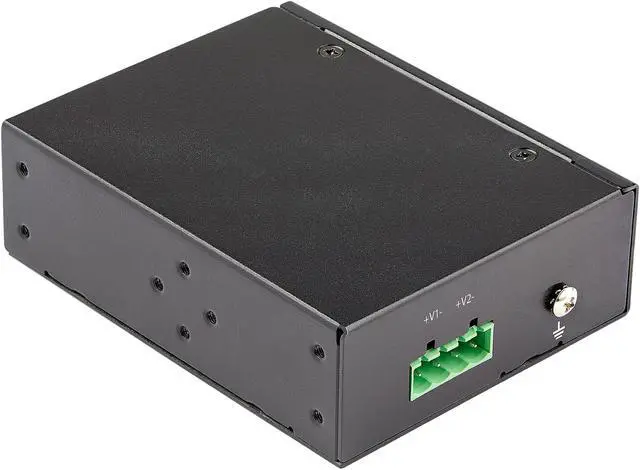

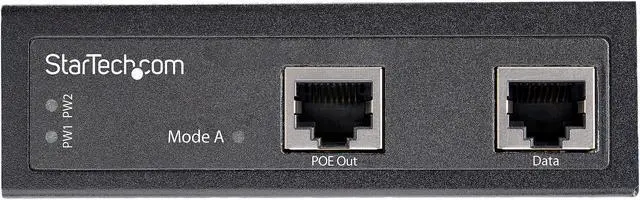

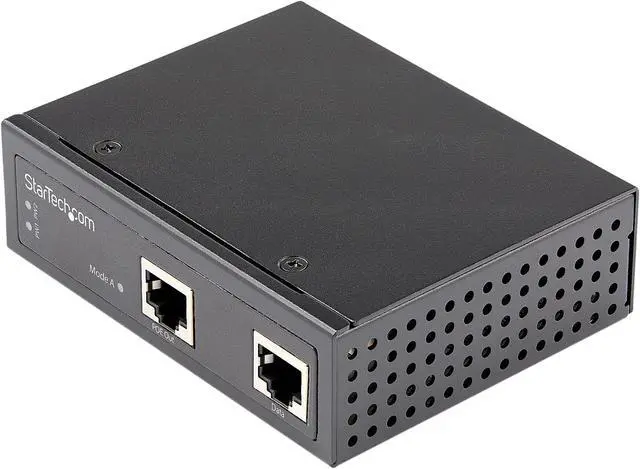

StarTech.com POEINJ30W Industrial Gigabit Ethernet PoE Injector - 30W 802.3at PoE+ Midspan 48V-56VDC DIN Rail Power Over Ethernet Injector Adapter - -40 to +75C Cameras/Sensors/WiFi Access (POEINJ30W)
- 30 WATT GIGABIT ETHERNET PoE INJECTOR: Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like cameras, sensors, and wi-fi access points
- TECH SPECS: 1 Gbps | 48V-56VDC input | IEEE 802.3af / IEEE 802.3at (30W) | 10/100/1000 Mbps auto negotiation | Link fault passthrough (LFP) | 16K Jumbo frames | IP-30 housing | DIN rail/wall mountable
- DUAL POWER INPUTS: Includes a barrel plug adapter for terminal block power, allowing the product to be hardwired or power powered using a standard AC/DC wall adapter
- ROBUST DESIGN: Industrial Power over Ethernet Injector w/MTBF of 600,000+ hrs @ 50C | Vibration, shock & free fall rated | Rugged IP-30 aluminum housing | Hardened operating temp of -40C to 75C
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.
30 Watt Power BudgetProvides up to 30W of power (midspan) to IEEE 802.3 af (PoE / Type 1) and IEEE 802.3 at (PoE+ / Type 2) powered devices (PD) like:
- Cameras
- Sensors
- Wi-fi access points
Uses Cat 5e (or higher rated) Ethernet cabling.
Designed for Harsh EnvironmentsIndustrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
- Vibration: EN 60068-2-6
- Shock: EN 60068-2-27
- Free-fall: EN 60068-2-32
600, 000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.

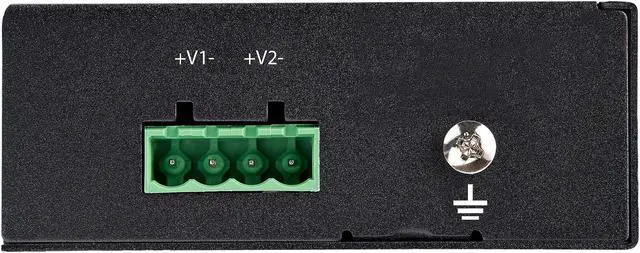

Dual Power InputsDual power inputs provide redundancy. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.
The POEINJ30W is backed by a StarTech. com 2-year warranty and free lifetime technical support.
