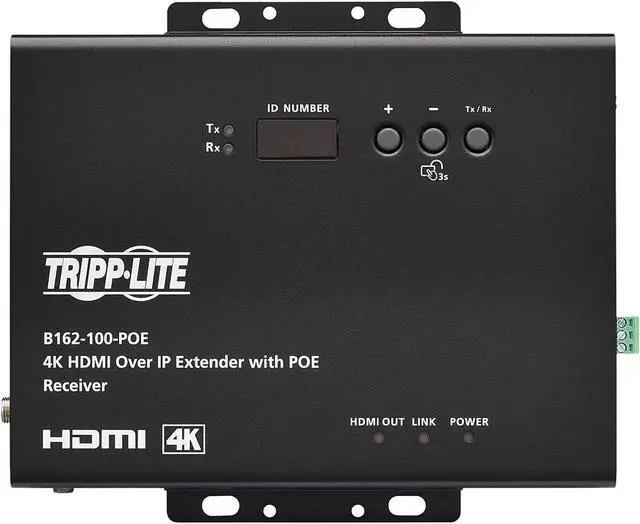

HDMI Over IP Receiver Transmitter 4K 4:4:4 PoE 328ft 100M
- Receives IP-based audio/video signal transmitted 328 feet (100 m) away via Cat6 cable or a dedicated Ethernet network switch. Requires Tripp Lite B162-001-POE or other compatible transmitter
- Supports 4K @ 30 Hz video resolutions (4:4:4) as specified in HDMI 2.0
- Extends multipoint-to-multipoint setup via LAN with no distance limitation. Web GUI-based management needs no software or additional server computers
- PoE feature gives you the flexibility to install the unit away from AC outlets
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Tripp Lite B162-100-POE
| Brand | Tripp Lite |
|---|---|
| Model | B162-100-POE |
| Type | HDMI over IP Extender Receiver |
|---|---|
| Max Extend Distance | 328 feet |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Specifications | Video: Max Supported Video Resolution 4096 x 2160 (4K) / 3840 x 2160 (4K) @ 60Hz Max. Distance (Between any 2 Units): 100m Transmitter Video Input: HDMI Transmitter - Number of Video Outputs: 1 Transmitter - Local Display Output HDMI Signal Range (ft): 3 Signal Range (m): 0.91 Max Supported Color Depth: 36-bit Deep Color Input: Voltage Compatibility (VAC): 100; 110; 120; 125; 127; 200; 208; 220; 230; 240 External Power Supply Plug(s): NEMA 1-15P North America Power: Power Over Cable (PoC) Support: Yes External Power Supply Input Specs (V / Hz / A): 100-240V, 50/60Hz, 0.5A External Power Supply Output Specs (V / A): 5V 3A External Power Supply Cord Length (ft.): 4.9 External Power Supply Cord Length (m.): 1.5 External Power Supply DC Barrel Connector Specs: OD: 5.5 x 2.1 x 7.5mm, Positive Pin, Negative Sleeve External Power Supply Certifications: CE; FCC; PSE; RoHS; UL; WEEE Port Selection: Pushbutton HDCP Specification: 1.4 Driver Required: No Recommended Category Cable: Cat5e / Cat6 10/100 Ethernet Extension Support: Yes DIN Mountable: No Integrated/Removable Cable: No MST Support: No Mounting Accessory Included: No Multi-Resolution Support: No |

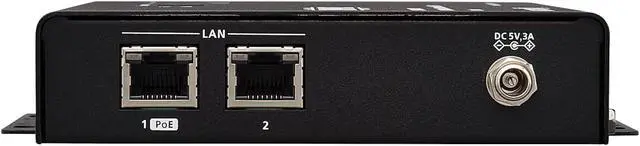

| Connector A | Side A - Connector 1: (2) RJ45 (FEMALE) |
|---|---|

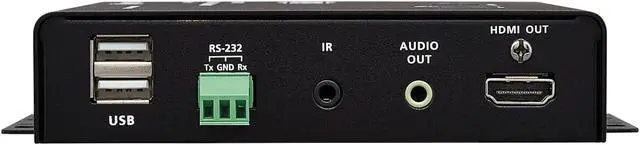

| Connector B | Side B - Connector 1: HDMI (FEMALE) Side B - Connector 2: (2) 3.5MM (FEMALE) Side B - Connector 3: (2) USB A (FEMALE) |
| Features | An Effective Digital Signage Solution Designed for Easy Setup and Operation. Lightweight Compression with Ultra-Low Latency. Supports Power over Ethernet to Save You Money and Give You More Installation Choices. Limitless Scalability and Flexibility. Collaboration with Control System. Spontaneous Scheduling Management. No Complicated IP Setup. Web GUI-Based Management. Daisy-Chain Up to 30 Units. Create a Video Wall. De-Embedded Audio Support. Multiple Control Channels. |
|---|

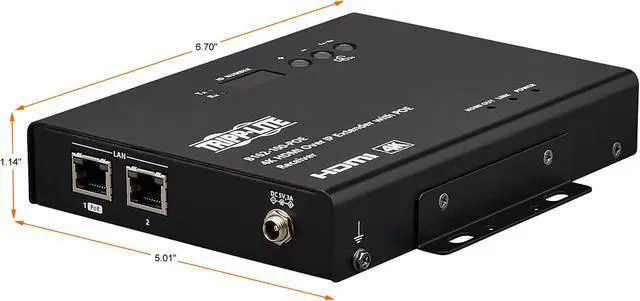

| Dimensions | 6.70" x 5.01" x 1.14" |
|---|---|
| Weight | 1.48 lbs. |

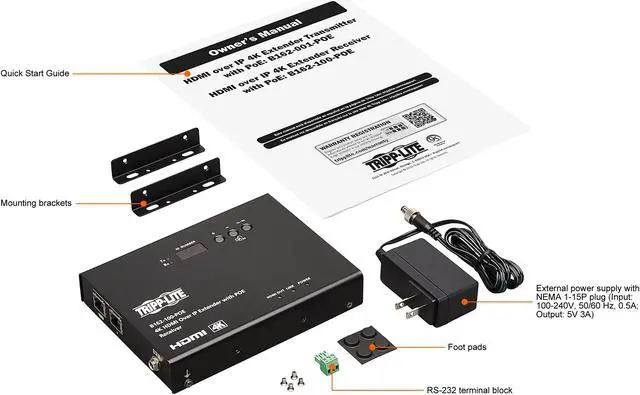

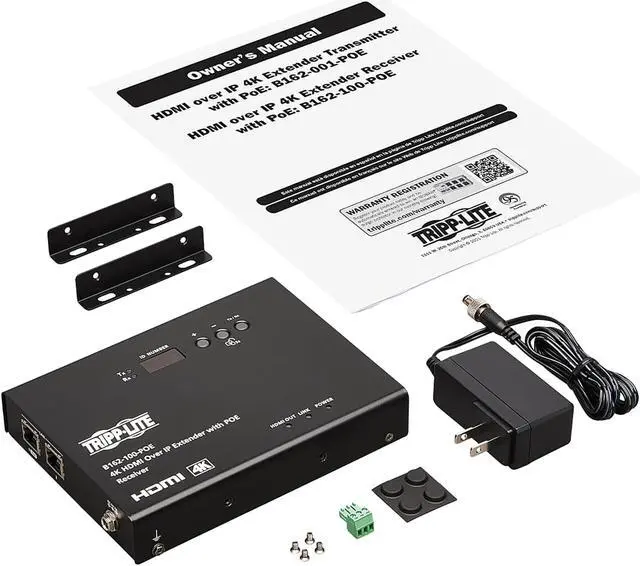

| Package Contents | HDMI over IP Extender Receiver RS-232 terminal block External power supply with NEMA 1-15P plug (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V 3A) (4) Foot pads Mounting brackets Quick Start Guide |
|---|
| First Listed on Newegg | June 06, 2025 |
|---|
