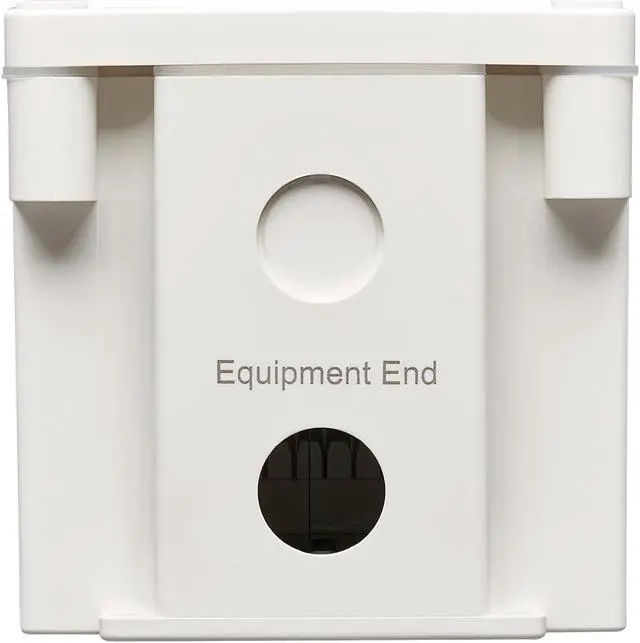

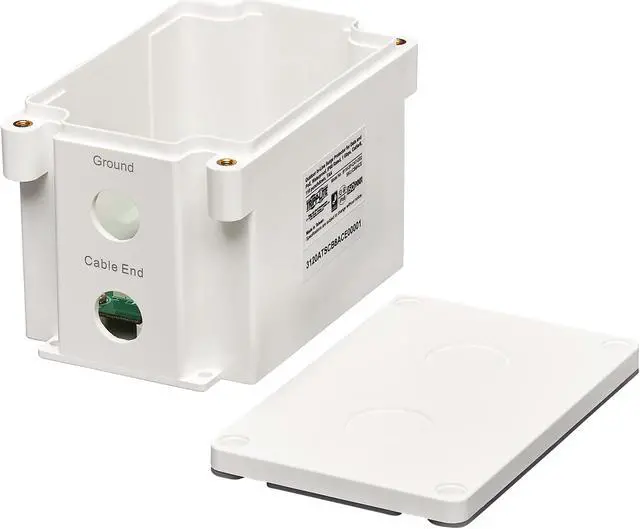

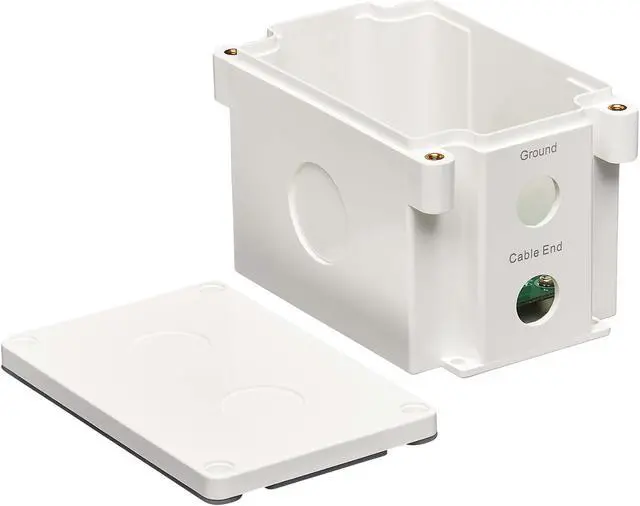

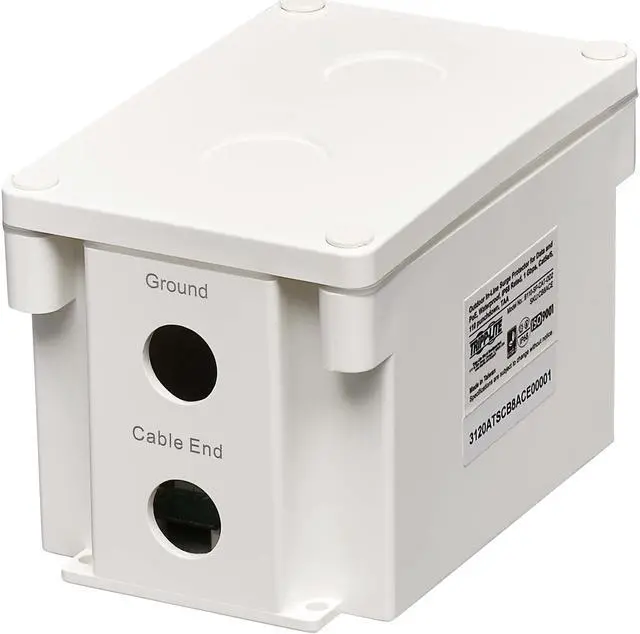

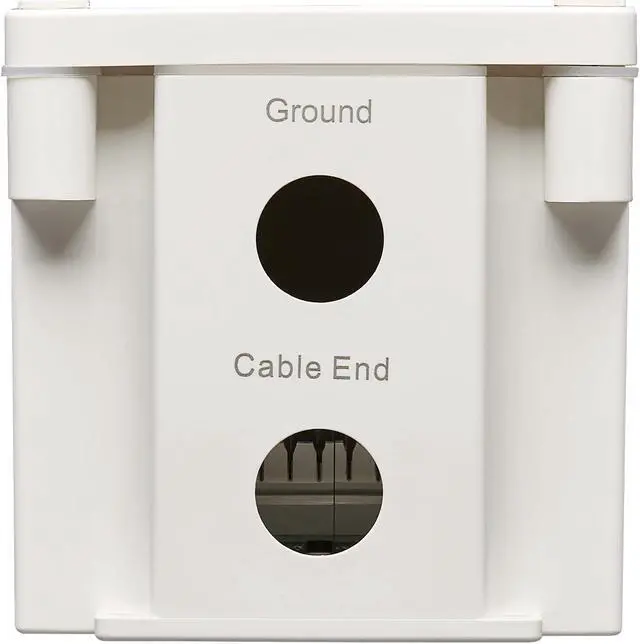

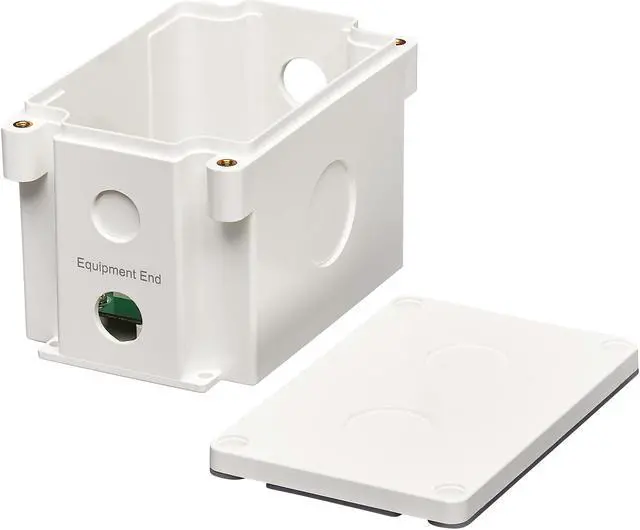

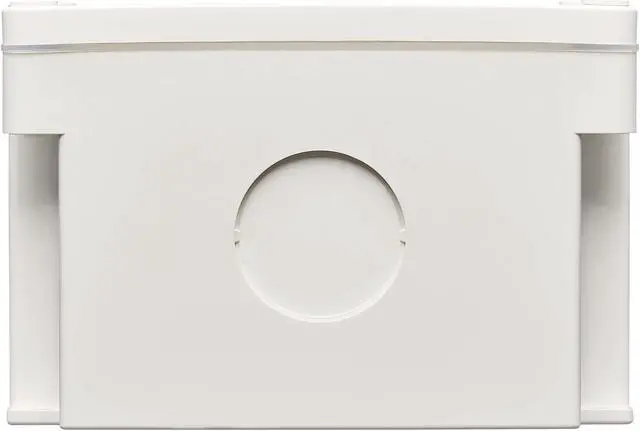

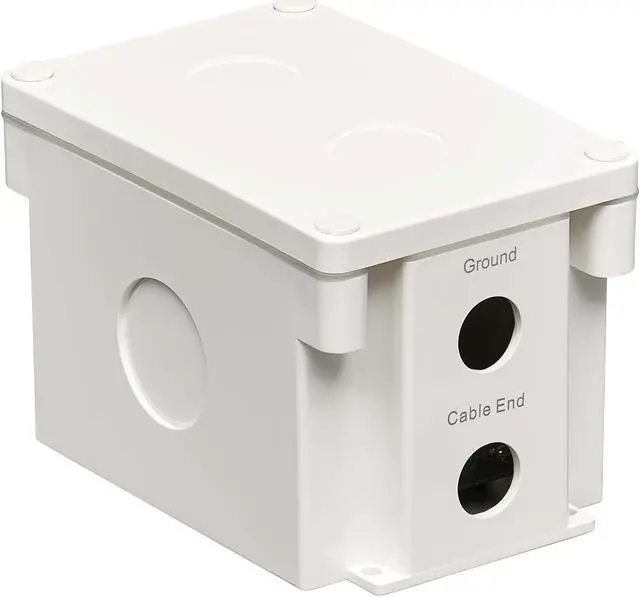

    TRIPP LITE B110-SP-CAT-OD2 Outdoor In-Line PoE Surge Protector Cat5e/6 110 Punch Down IP68

    Be the first to review this product...
    • Easy to connect between mid- or end-span PoE source and device using Cat5e/6/6a cabling
    • Dustproof, shockproof and IP68-rated to resist dust and endure immersion in water
    • Supports 802.3af/at/bt IEEE standards and Ethernet data speeds up to 1 Gbps
    • Plug-and-play operation with no external power required for immediate installation
    • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
    +
    +
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the Tripp Lite B110-SP-CAT-OD2

    Model
    Brand TRIPP LITE
    Model B110-SP-CAT-OD2
    Details
    Color White
    Specification Product Type: In-Line Surge Protector
    Technology: Cat5/5e; Cat6; Cat6a; Cat8
    Input Plug Type: Bare Wire
    Input Cord Length (ft.): 0
    Right-Angle Plug: No
    Output Receptacles: Network
    Material of Construction: PC (Plastic)
    Mounting Holes or Slots: Yes
    Rackmountable: No
    Network Compatibility: 1 Gbps (Gigabit)
    IEEE Standards Supported: 802.3af; 802.3at; 802.3bt
    Ports: 2
    PoE Capability: 100W (802.3bt)
    Side A - Connector 1: 110 IDC
    Side B - Connector 1: 110 IDC
    PoE Type: Type 1 PoE (15.4W, IEEE 802.3af); Type 2 PoE+ (30W, IEEE 802.3at); Type 3 PoE++/UPoE (60W, IEEE 802.3bt)
    Power Available at PD: 71W
    Max. Power Delivered by PSE: 90W
    Driver Required: No
    Recommended Category Cable: Cat5e, Cat6, Cat6a, Cat8 Cables
    DIN Mountable: No
    Integrated/Removable Cable: No
    IP68 Rated: Yes
    Ingress Protection (IP) Rating: IP68
    Features
    Features Outdoor In-Line Surge Protector Keeps Your 1G PoE Edge Network Equipment Safe.

    Your Last Defense Against Intruding Voltage Spikes That Can Cause Costly Downtime.

    IP68 Rating Denotes Resistance to Dust and Water.

    Ready to Use Right from the Package, So You Can Plug and Play Immediately.

    TAA-Compliant for GSA Schedule Purchases.
    Dimensions & Weight
    Unit Dimensions 3.16" x 4.72" x 3.15"
    Unit Weight 0.88 lb.
    Package Contents
    Package Contents B110-SP-CAT-OD2 Outdoor PoE Surge Protector
    Grounding wire, 18 AWG, 1 ft. (0.3 m)
    (3) Metric cable glands, 8.4 mm diameter
    (4) Surface mounting screws
    (4) Surface screw anchors
    (4) Unit cover screws
    Owner's manual
