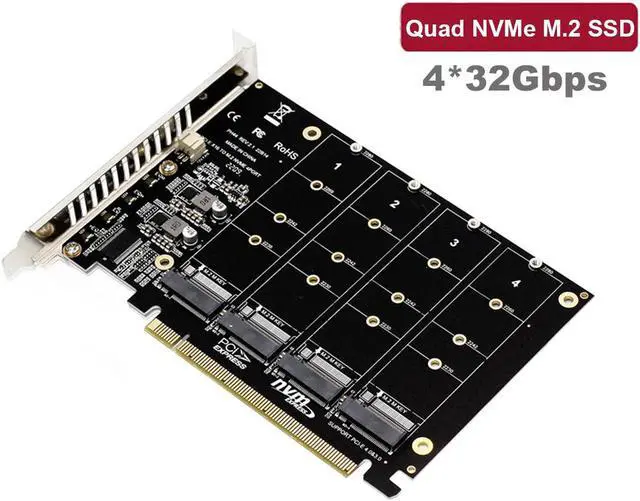

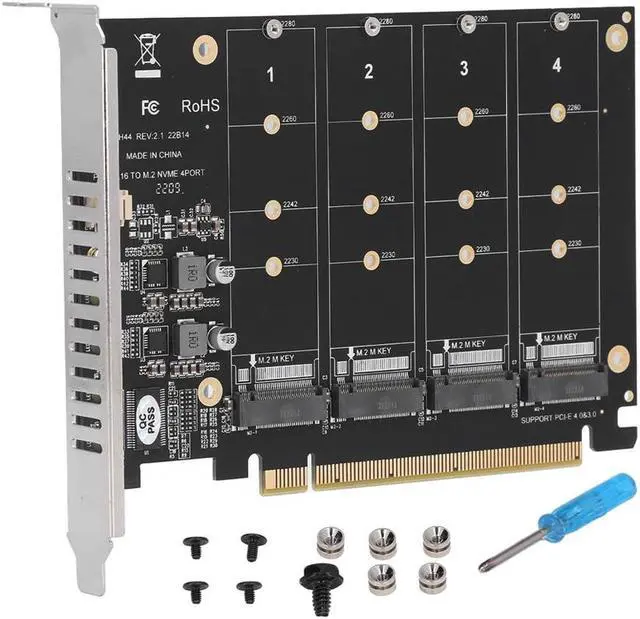

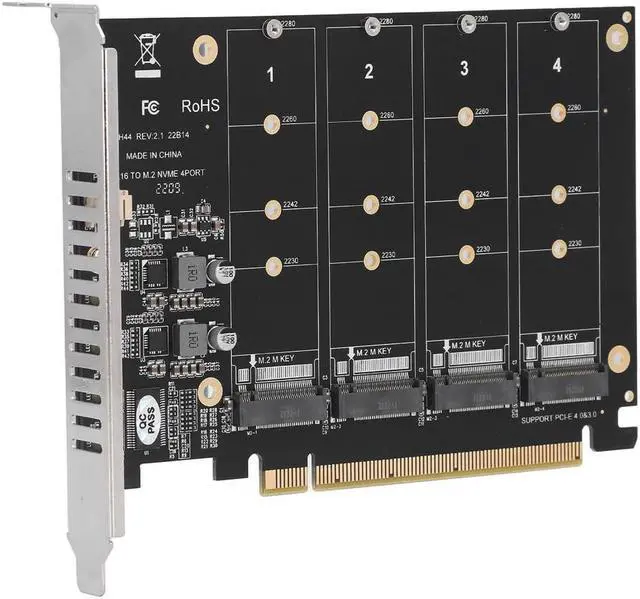

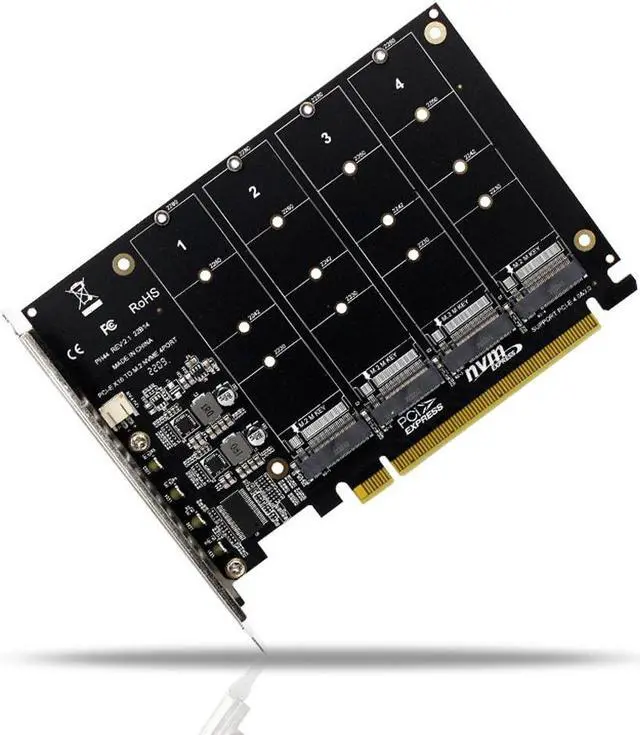

Quad M.2 NVME SSD to PCIe 4.0/3.0 x16 Expansion Card,4-Drive M-Key SSD 4x32Gbps Soft Raid Card with LED Indicator for 2280/2260/2242/2230 PCIe-Base M2 SSD
- Quad M.2 NVME SSD to PCIe 4.0/3.0 x16 Expansion Card
- PCI-e 4.0/3.0 x16 4-Drive expansion card
- Add 4x NVMe SSDs simultaneously via PCI-e 4.0/3.0 x16 slot on the MOBO which is required PCIe x16 Bifurcation supporting
- 4x32Gbps full speed signal
- Supports NVME or AHCI protocol M.2 SSD of 2230/2242/2260/2280
- Supports the formation of soft raid in Win10 , or build raid via Third-party Software
- Does not support NGFF M.2 (SATA-Based B key and B+M Key) SSD
- Does not Support Hardware Raid
- Motherboard must support "PCIEX16 Bifurcation",otherwise, only one M.2 SSD can be recognized.
+
+
Overview
Specs
Reviews
Features
This adapter allows you to add 4x NVMe SSDs simultaneously via PCI-e 4.0/3.0 x16 slot on the motherboard which is required to support PCIe x16 Bifurcation.
Full-speed transmission up to 4x 32Gbps.
The PCI-e 4.0/3.0 x16 Slot on motherboard is required to support PCIe x16 Bifurcation itself and could be set as"PCI-e x4x4x4x4" in BIOS.
All of the SSDs are M.2 (M Key) NVMe SSD.
The individual LED Indicator will show each SSD's Working Status.4 disks correspond to 4 LED indicators, the SSD access LED will light up, and the SSD read, write LED will flash

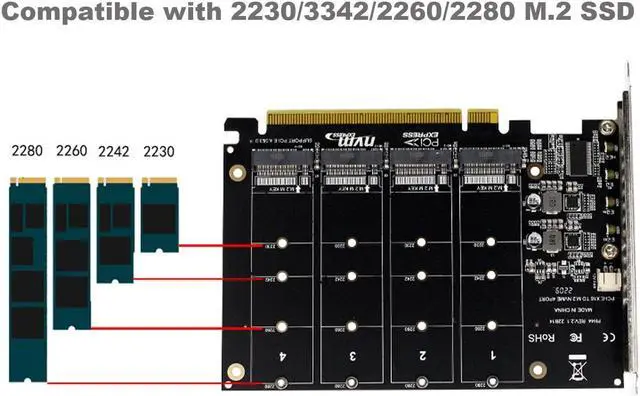

Supports NVME or AHCI protocol M.2 SSD of 2230/2242/2260/2280

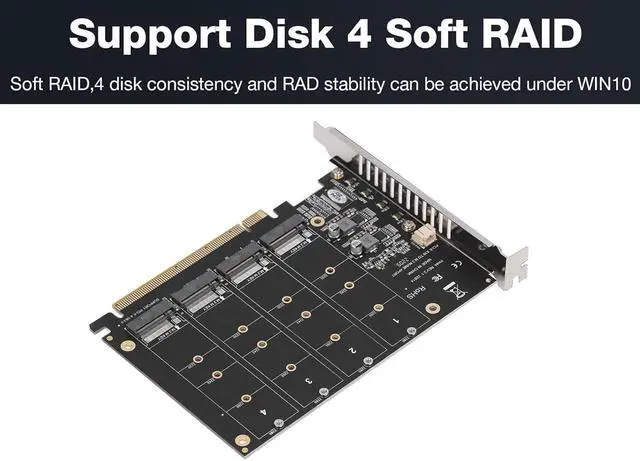

Support the formation of soft raid in Win10 , or you may build raid via Third-party Software, and the 4 SSDs should be same model.
Hardware requirement
1. There is available PCI-e 4.0 or 3.0 x16 Slot on Mobo
2. The motherboard can support PCIe x16 Bifurcation itself, and can be set as"PCI-e x4x4x4x4" in BIOS
3. All of the SSDs are M.2 (M Key) NVMe SSD
4. CPU has enough channels to support
Note
Does not support NGFF M.2 (SATA-Based B key and B+M Key) SSD
Does not Support Hardware Raid
Motherboard must support "PCIEX16 Bifurcation",otherwise, only one M.2 SSD can be recognized.
This adapter allows you to add 4x NVMe SSDs simultaneously via PCI-e 4.0/3.0 x16 slot on the motherboard which is required to support PCIe x16 Bifurcation.
Full-speed transmission up to 4x 32Gbps.
The PCI-e 4.0/3.0 x16 Slot on motherboard is required to support PCIe x16 Bifurcation itself and could be set as"PCI-e x4x4x4x4" in BIOS.
All of the SSDs are M.2 (M Key) NVMe SSD.
The individual LED Indicator will show each SSD's Working Status.4 disks correspond to 4 LED indicators, the SSD access LED will light up, and the SSD read, write LED will flash
Supports NVME or AHCI protocol M.2 SSD of 2230/2242/2260/2280
Support the formation of soft raid in Win10 , or you may build raid via Third-party Software, and the 4 SSDs should be same model.
Hardware requirement
1. There is available PCI-e 4.0 or 3.0 x16 Slot on Mobo
2. The motherboard can support PCIe x16 Bifurcation itself, and can be set as"PCI-e x4x4x4x4" in BIOS
3. All of the SSDs are M.2 (M Key) NVMe SSD
4. CPU has enough channels to support
Note
Does not support NGFF M.2 (SATA-Based B key and B+M Key) SSD
Does not Support Hardware Raid
Motherboard must support "PCIEX16 Bifurcation",otherwise, only one M.2 SSD can be recognized.
