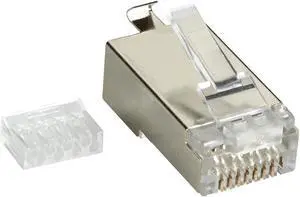

Specifications: Once crimped, the strain-relief boot becomes an integral part of the connector and will not pull off.
Achieve peak performance. Once crimped, the primary strain relief relaxes slightly to decrease cable pair compression.
Snag-proof design makes plugging/unplugging much easier.
Maximum cable jacket outer diameter is 0.235".
UL listed and RoHS compliant.
Video Resolution: Video
Output Cable Length: Up to 20 ft.
Input Cable Length: Up to 20 ft.
Resolution (Maximum): 4K 3840x2160 @ 30Hz
Input Equalization: Automatic
DDC: 5 volts p-p (TTL)
Console Connectors: Keyboard/mouse: USB Type A female
Switched USB: USB 2.0 Type A female
Audio: 3.5-mm stereo jack
Other: Modular 10p10c for flash upgrade and channel switching commands

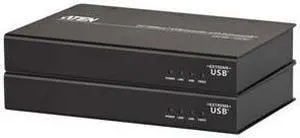

Console Connectors: CE610L:
1 x DVI-D Female (White) Video In
1 x DC Jack Power
1 x mini-USB Firmware Upgrade
1 x RJ-45 Female (Black)
1 x USB Type B Female (White)
CE610R
1 x DVI-D Female (White) Video Output
1 x DC Jack Power
1 x mini-USB Firmware Upgrade
1 x RJ-45 Female (Black)
3 x USB Type A Female (White)
Specifications: Connector on First End:1 x 9-pin DB-9 Male RS-422/485 Serial
Connector on Second End:1 x Type B Male USB 2.0 USB
Package Contents: Ultra 1 Port RS422/485 USB to Serial Adapter
0.5m USB Cable
Installation CD Including Manual
Microsoft Signed Drivers & Utilities
Quick Start Guide
Console Connectors: Transmitter:
1 x DVI-D female input (won't accept DVI-I cable)
1 x USB Type B female input
1 x 3.5mm Audio
1 x RJ45 interconnect
1 x 2.5mm barrel connector
Receiver:
1 x DVI-D female output (won't accept DVI-I cable)
4 x USB Type A female
1 x 3.5mm Audio
1 x RJ45 interconnect
1 x 2.5mm barrel connector
