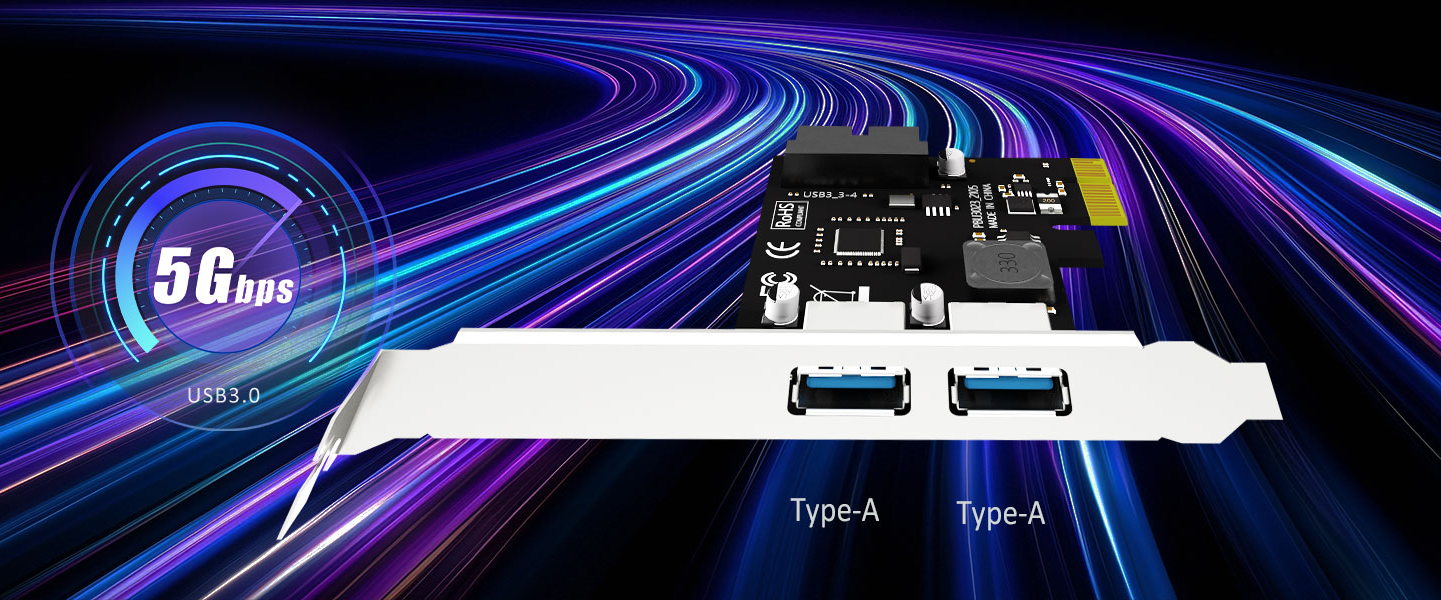

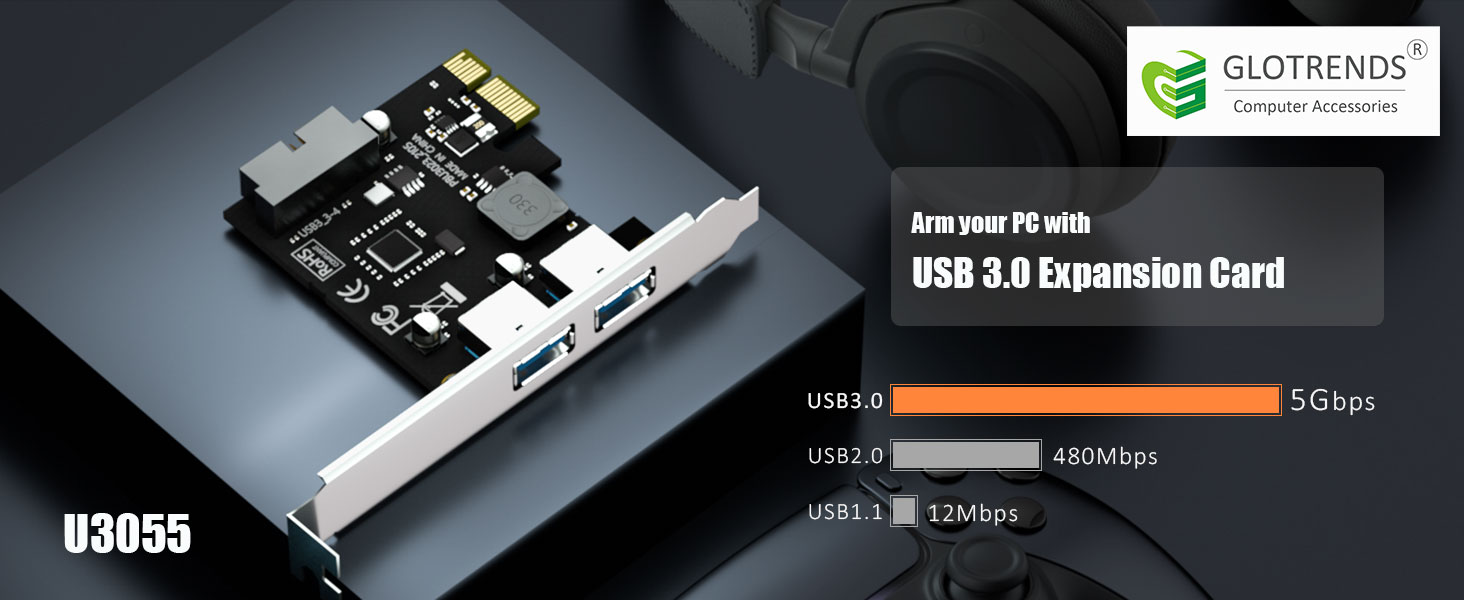

    GLOTRENDS U3055-N 2-Port USB 3.0 and USB Header 5Gbps PCIe Expansion Card for Intel, AMD, and ARM Platform, Compatible with Windows and Linux (Not Support Mac OS)

    Be the first to review this product...

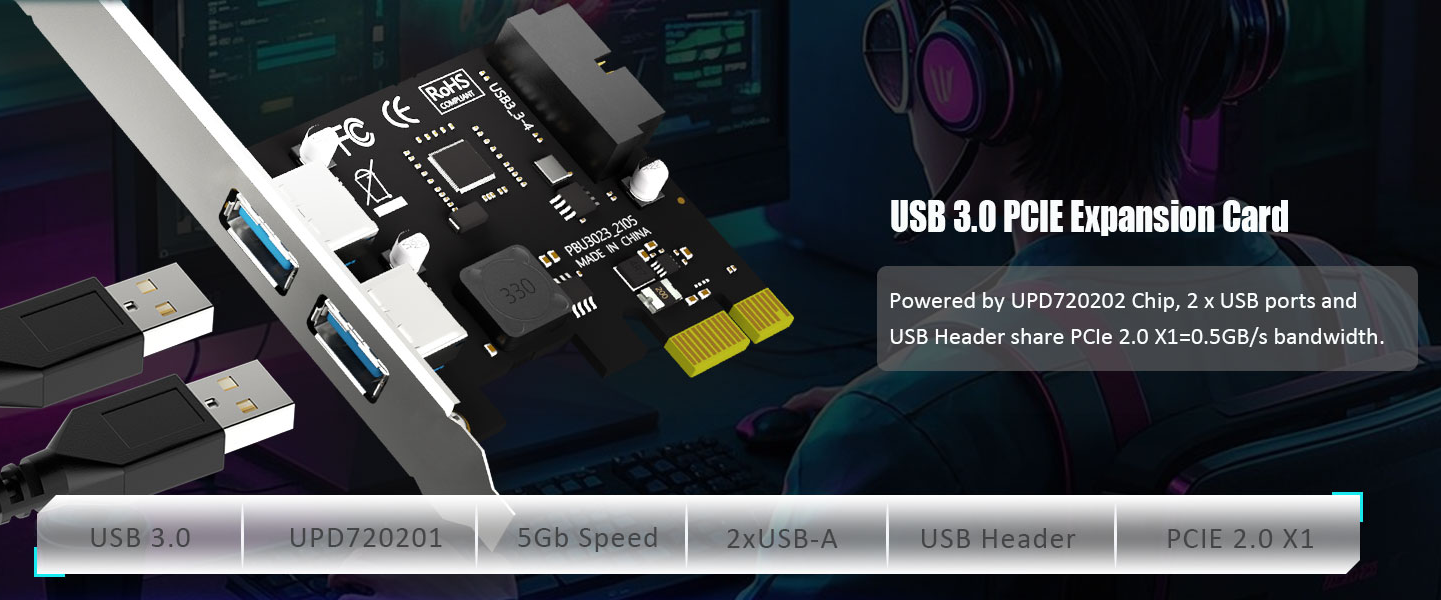

    • This USB 3.0 expansion card adds 2 x Type-A ports and 1 x USB header to desktop PC, server or NAS via a PCI-Express x1 slot. Powered by NEC720201, it is compatible with Intel, AMD and ARM platform, these USB ports share 5Gbps PCIe 2.0 X1 bandwidth.

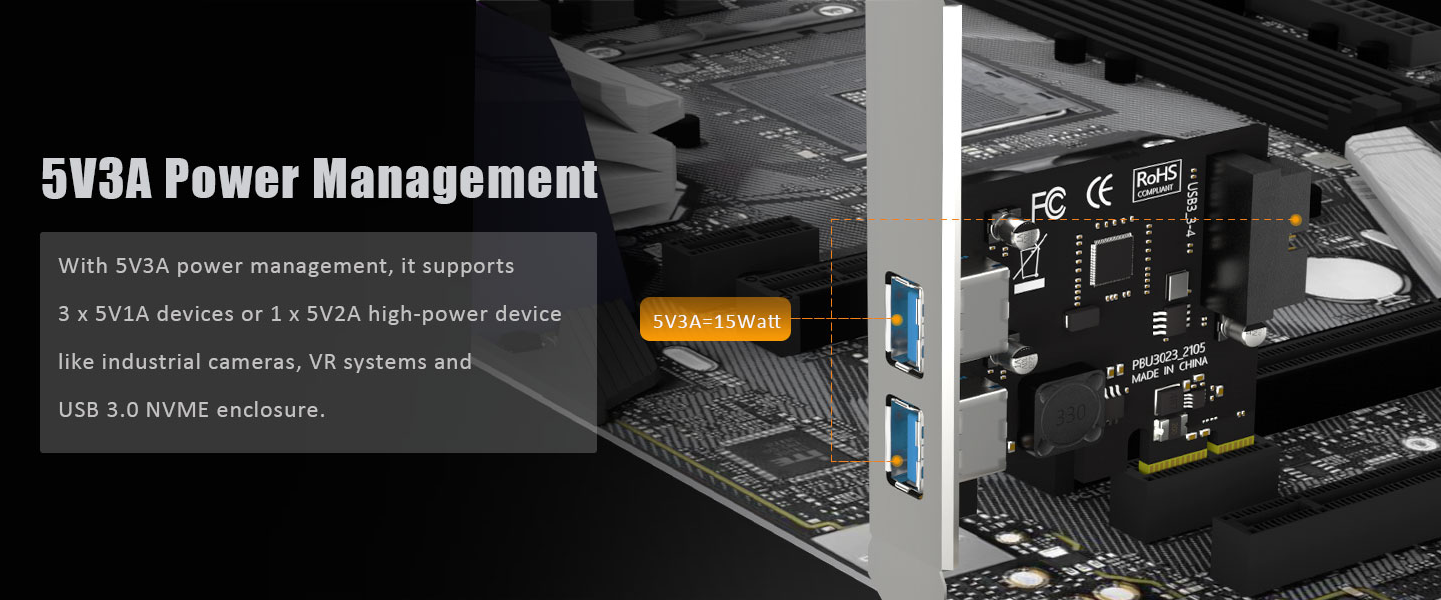

    • With 5V3A power management, it supports 3 x 5V1A devices or 1 x 5V2A high-power device like industrial cameras, VR systems and USB 3.0 NVME enclosure. The USB header extends 2 x USB 3.0 ports to the PC front panel via a USB extension cable (not included).
    • Features a dual-layer protection design. Each USB channel has an independent power manager, inductor, fuse, and capacitor. Plus, there's a separate fuse for the entire PCB board.
    • Plug and play on Windows 11,10,8 and Server 2012,2012R2,2016,2019,2022 and most Linux kernels. Driver is required for Windows XP,Vista,7 and Server 2003,2008,2008R2. (Note: Mac OS not supported)
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    Model: U3055-N

    Internal Interface

    		 PCI-Express 3.0 x1

    External Interface

    2xUSB-A + USB Header (5Gbps USB 3.0)

    Controller

    		 NEC720201

    Support Devices

    3 x 5V1A devices or 1 x 5V2A high-power device

    Bandwidth

    PCIe 2.0 X1=0.5GB/s

    OS Compatibility

    Pluy and Play in Windows/Linux(Note: Mac OS not supported). Driver is required for Windows XP,Vista,7 and Server 2003,2008,2008R2.

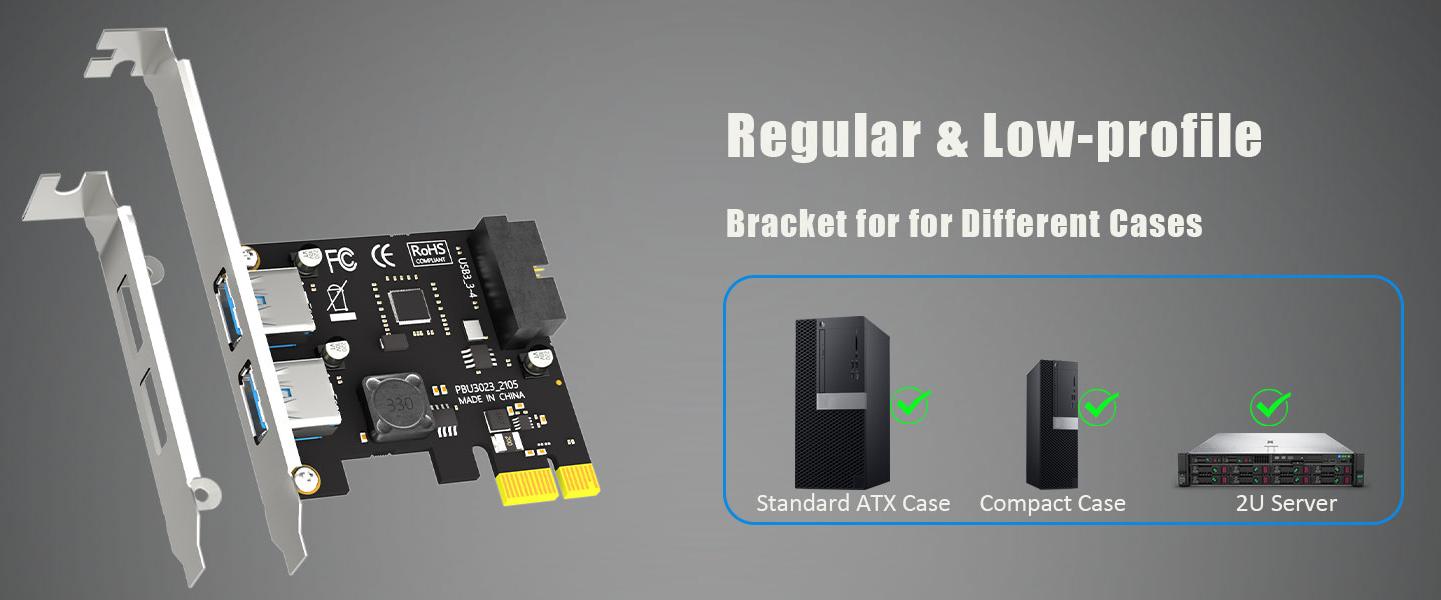

    Mounting Bracket

    8cm Low-profile Bracket + 12cm Regular-profile Bracket
    PCI-Express 3.0 x1
    PCIe USB-A Expansion Card
    PCIe USB-A Expansion Card
    PCIe USB-A Expansion Card
    PCIe USB-A Expansion Card
    PCIe USB-A Expansion Card
    PCIe USB-A Expansion Card
    Products
    PCI-Express 3.0 X1 U3023
    PCI-Express 3.0 X1 U3044
    PCI-Express 3.0 X1 U3055-N
    PCI-Express 3.0 X1 U3057
    PCI-Express 3.0 X1 U6A2C
    Internal Interface PCI-Express 3.0 X1 PCI-Express 3.0 X1 PCI-Express 3.0 X1 PCI-Express 3.0 X1 PCI-Express 3.0 X1
    External Interface 2 x USB 3.0 Type-A 4 x USB 3.0 Type-A 2 x USB 3.0 Type-A + 19PIN USB 7 x USB 3.0 Type-A 6 x USB 3.0 Type-A + 2 x USB 3.0 Type-C
