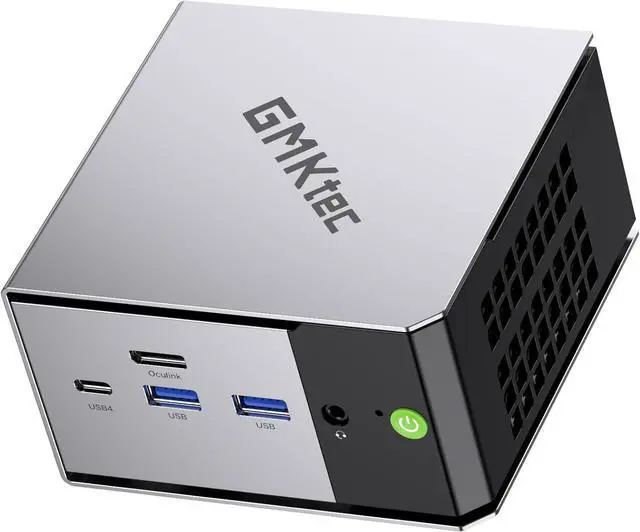

    GMKtec Mini PC AMD Ryzen 5 PRO 6650H (Turbo 4.50GHz) 16GB DDR5 1TB NVME SSD Dual NIC LAN 2.5GbE Oculink, USB4, HDMI, USB-C Desktop Computer M8

    Be the first to review this product...
    • Pre-Installed Windows 11 Pro System,Powerful AMD Ryzen 5 PRO 6650H Performance Powered by an AMD Ryzen 5 PRO 6650H (6C/12T, up to 4.5GHz) and integrated Radeon 660M 12-core GPU, this mini PC delivers smooth, lag-free performance for mid-range gaming, 4K video editing, and heavy multitasking.
    • Blazing-Fast Memory & Expandable Storage Equipped with 16GB LPDDR5 RAM (6400MT/s) and a 1TB NVMe SSD, with dual M.2 2280 slots supporting up to 4TB per slot (max 8TB total) for massive game libraries, projects, and media files.
    • Pro-Grade Connectivity & Dual 2.5G LAN Features OCuLink for eGPU upgrades, USB4 (40Gbps, PD charging, video output), USB 3.2 Gen2 (10Gbps), and WiFi 6E; dual 2.5GbE LAN supports link aggregation or server hosting for high-speed networking.
    • Triple Display & Enhanced Cooling Supports triple 4K displays via HDMI 2.0, DisplayPort 1.4, and USB4/DP; upgraded dual-fan cooling with 360° airflow and copper pipes keeps the system cool and quiet under heavy load.
    • Customizable Performance & Reliable Warranty Three BIOS performance modes (Quiet 28W / Balance 35W / Performance 40W) and adjustable VRAM allocation; backed by a 1-year GMKtec warranty and professional after-sales support.
    Sponsored

    You’re seeing this ad based on the product’s relevance to your search query. If you are a seller and want to participate in this program click here to learn more.

    MINISFORUM Venus Series UM773 Lite Mini PC Barebone Version Without RAM/SSD/OS AMD Ryzen 7 7735HS up to 4.75GHz AMD Radeon 680M Mini Computer, 2 x HDMI,1x USB4,5X USB Ports,WiFi 6,BT5. 2
    MINISFORUM Venus Series UM773 Lite Mini PC Barebone Version Without RAM/SSD/OS AMD Ryzen 7 7735HS up to 4.75GHz AMD Radeon 680M Mini Computer, 2 x HDMI,1x USB4,5X USB Ports,WiFi 6,BT5. 2
    (4)
    •
    • $287.00 –
    • Save: 42%
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

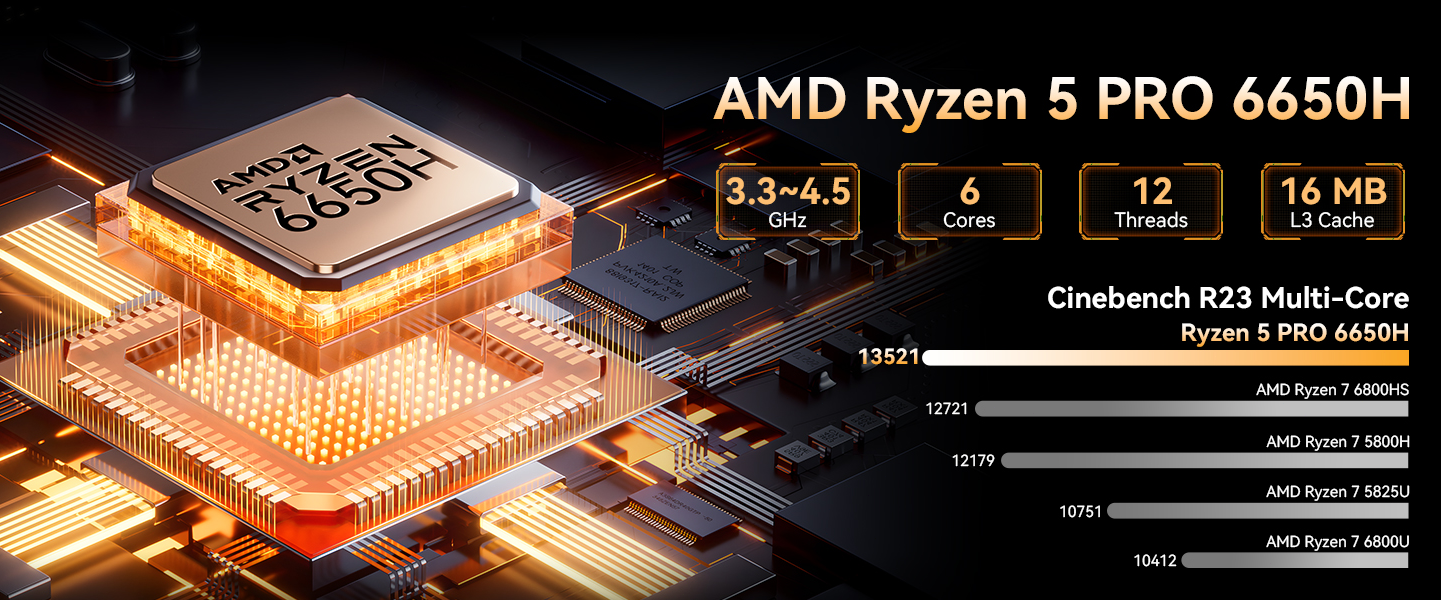

    AMD Ryzen 5 PRO 6650H

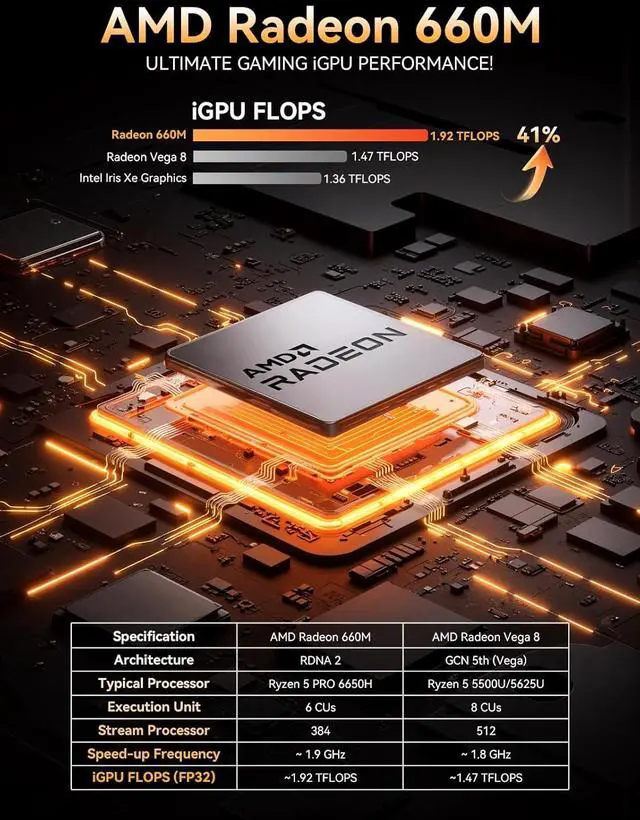

    AMD Radeon 660M GPU

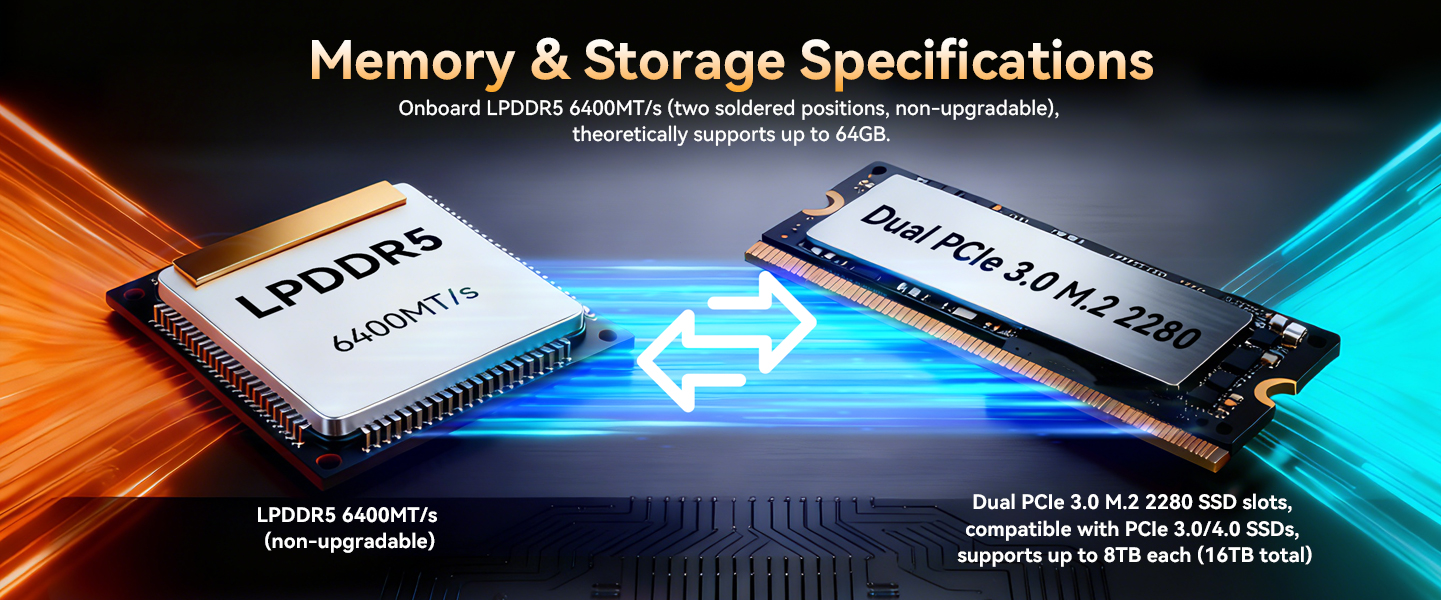

    RAM Storage

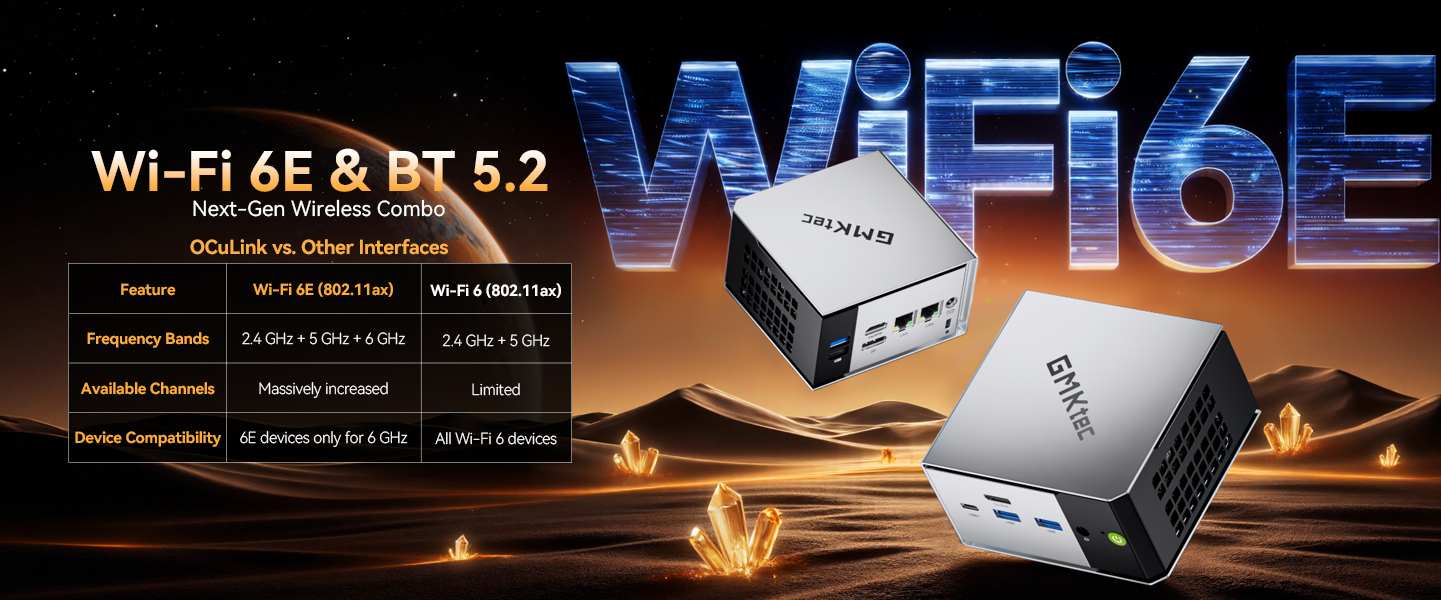

    WIFI6E & BT5.2
    Oculink Port

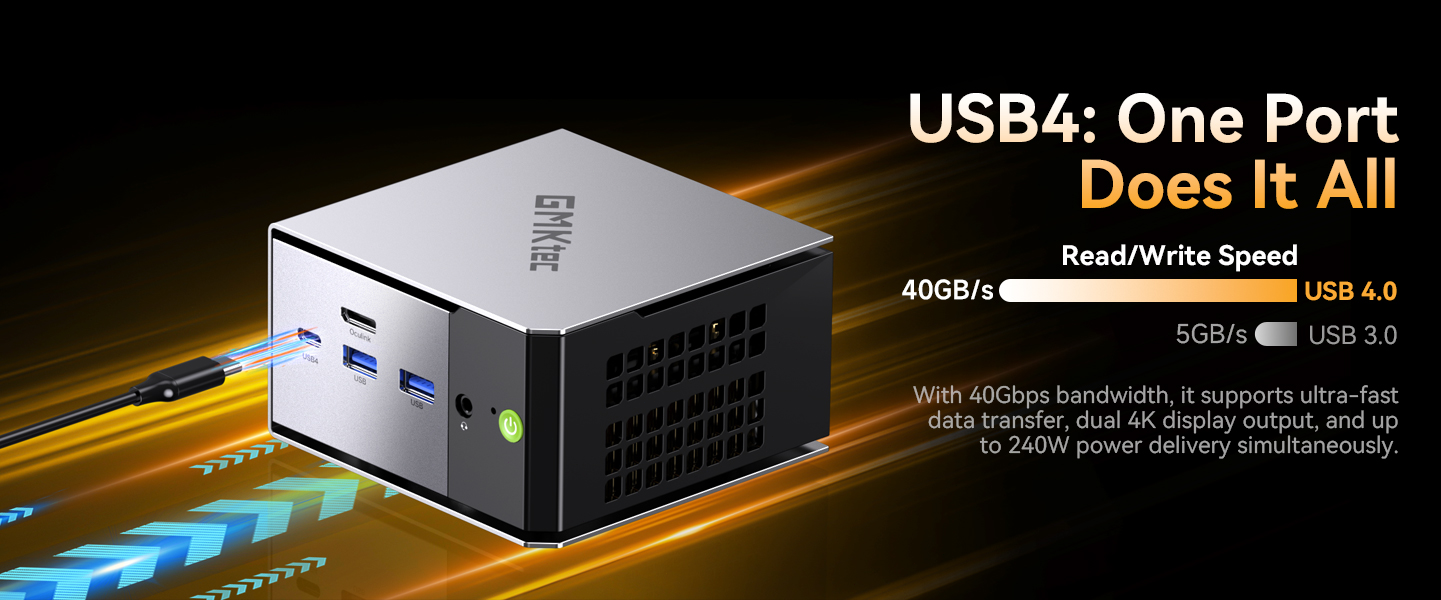

    Full Function USB4 Port

    CPU

    AMD Ryzen 5 PRO 6650H (6C/12T, Up to 4.5GHz, L2 3MB L3 16MB Cache)

    Graphics GPU

    AMD Radeon 660M 6 Cores 1900MHz

    RAM

    16GB Quad Channel (8GB*2) LPDDR5 6400MT/s (on Board )

    Storage

    1TB PCIe 3.0 M.2 2280 SSD NVME (Dual M.2 SSD 2280 PCIE3.0*4 Slots. Max.8TB*2=16TB)

    Wireless LAN

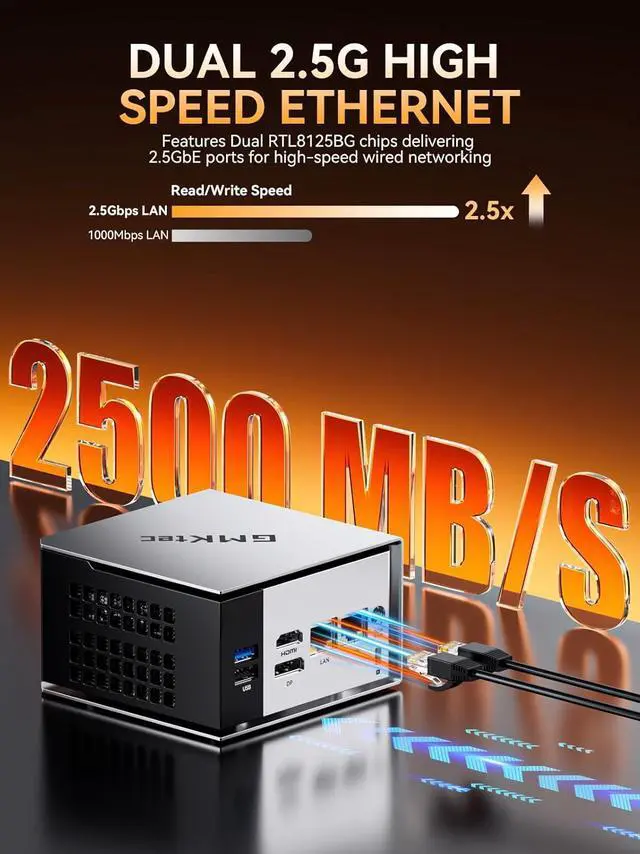

    DUAL LAN 2.5G*2 RJ45 RTL8125BG, WiFi 6E (2.4GHz/5.0GHz/6.0GHz), Bluetooth 5.2

    Video output

    Triple Display Output, HDMI 2.1 (8K@60Hz), DP2.1 (8K@60Hz), USB4 (40GB/S)*1

    Other Functions

    VRAM Adjustment in BIOS, Fan/Power Speed, Wake ON Lan, Auto Power ON, Performance Settings, Built-in Mic Support (For AI Applications or Video Calling)

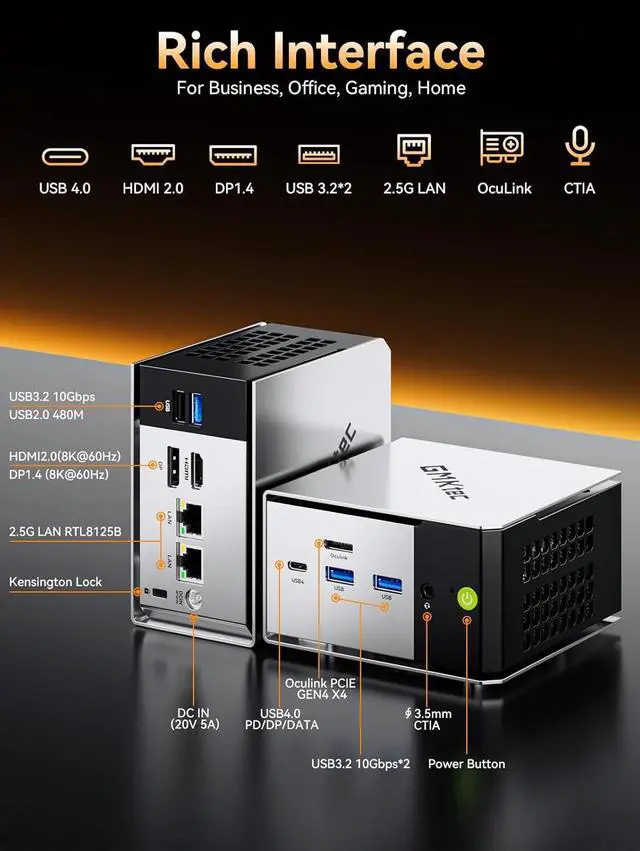

    lnterface

    1* DC Jack Port; 1*Oculink Port; 1* USB 4.0 (PD/DP/DATA) Port; 1* HDMI 2.1 Port; 1* DP2.1 Port; 4* USB 3.2 Gen2 (10Gbps) Port; 2* RJ45 (2500Mbps LAN) Port; 1* 3.5mm Audio Jack (HP&MIC) Port

    Power Adapter


    DC IN: 19V-6.32A 120W Certification Input: 100-240V AC, 50/60Hz , Output: 19V/6.32A

    Operating Environment

    -10°C to 45°C, 30% to 85% Humidity

    Cooling Method

    DUAL AIR COOLING FANS

    Package Contents

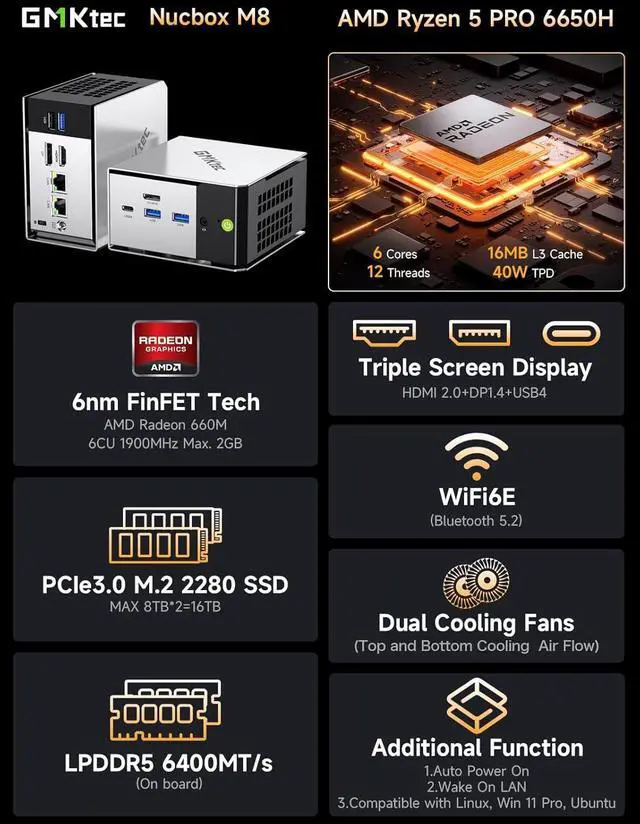

    1 x GMKtec Nucbox M8 AMD Ryzen 5 PRO 6650H Mini PC, 1 x Power Adapter, 1 x HDMI Cable, 1 x User Manual
    1. PREMIUM OFFICE GAMING PC MINI COMPUTER - The Nucbox M8 Mini PC is a small form factor Desktop Micro Mini Computer with an AMD Ryzen 5 PRO 6650H (6C/12T 3.30Ghz Base speed with Turbo speed up to 4.5Ghz) processor. The GPU is integrated with a powerful AMD Radeon 660M 12 Cores Graphics Card; Experience smooth, lag-free performance that handles everything from mid-range gaming sessions to 4K video editing with ease.
    2. BLAZING-FAST MEMORY SPEED & STORAGE EXPANSION - Fly through tasks with ultra-fast 16GB LPDDR5 6400MT/S RAM and a 1TB NVMe SSD. With dual M.2 2280 slots supporting up to 4TB per slot, 8TB total storage, you have immense room for your entire game library, projects, and media files.
    3. ULTIMATE CONNECTIVITY FOR GAMERS & PROS - Unlock desktop-level graphics with the exclusive Oculink port for a direct, high-speed eGPU connection. Plus, a versatile USB4 port (40Gbps, PD Charging, Video) offers incredible flexibility for the ultimate gaming or workstation setup.
    4. HYPER-SPEED TRANSFERS & DUAL LAN POWER - Transfer large files in seconds with USB 3.2 Gen2 ports (10Gbps) and WiFi 6E. The dual 2.5GbE LAN ports enable advanced networking, link aggregation for double the speed, or hosting a powerful server, all from a device that fits in your hand.

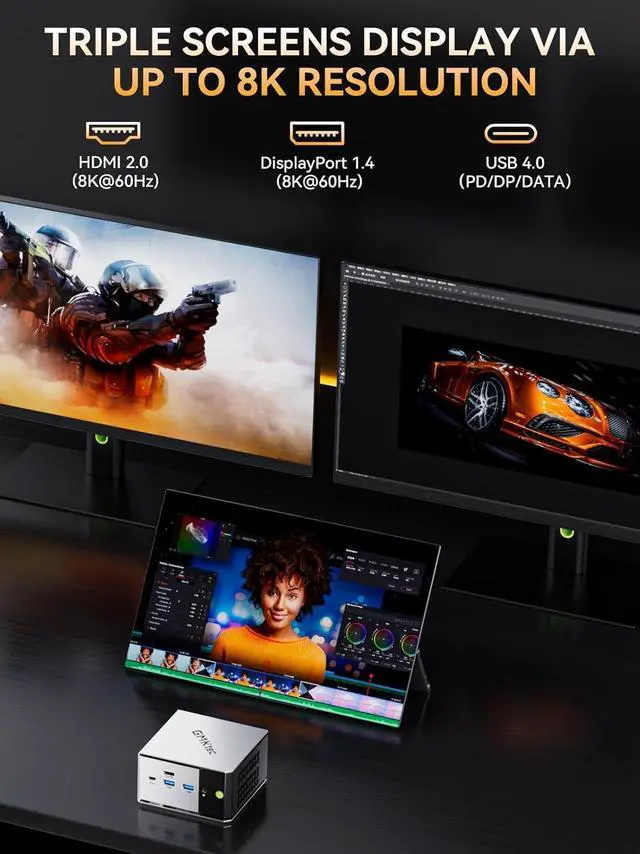

    5. COMMAND A TRIPLE DISPLAY WORKSTATION - Create an immersive and highly productive multi-display setup. Connect up to three displays simultaneously using the combination of HDMI 2.0, DisplayPort 1.4, and USB4/DP ports for a seamless workflow or an epic, multi-screen gaming work environment.
    6. UPGRADED DUAL COOLING FANS - Our improved and new cooling fan design uses larger top and bottom cooling fans with 360 degrees in and out air flow. The copper pipes keeps the system running cool and quiet.
    7. THREE PERFORMANCE MODES & UPDATED UEFI (BIOS) - The M8 Mini PC features an all new BIOS update with three performance modes (Quiet 28W, Balance 35W, or Performance 40W). VRAM Allocation is also possible with Auto Power On, Wake-on-LAN options available
    8. GMKtec Warranty- GMKtec offers a 1-year limited warranty for each mini PC, starting from the date of the purchase. All defects due to design and workmanship are covered. With a professional after sales team always ready to attend to your needs, you can simply relax and enjoy your mini PC
