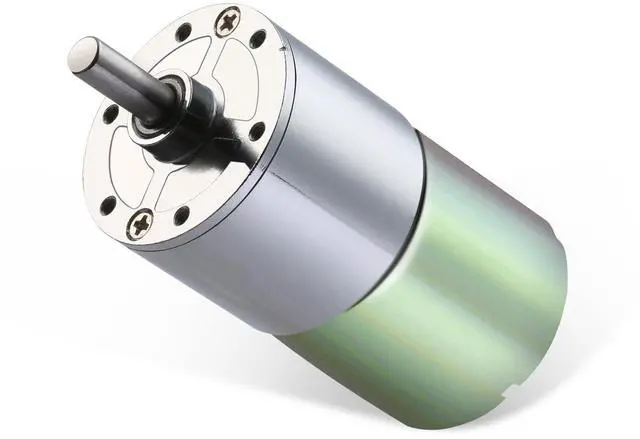

DC 12V 100RPM Gear Motor High Torque Electric Micro Speed Reduction Geared Motor Centric Output Shaft 37mm Diameter Gearbox
- ALL-METAL GEARS: High-temperature resistance, high abrasion resistance, strong load capacity, sturdy and durable, effectively protect the gear box motor body.

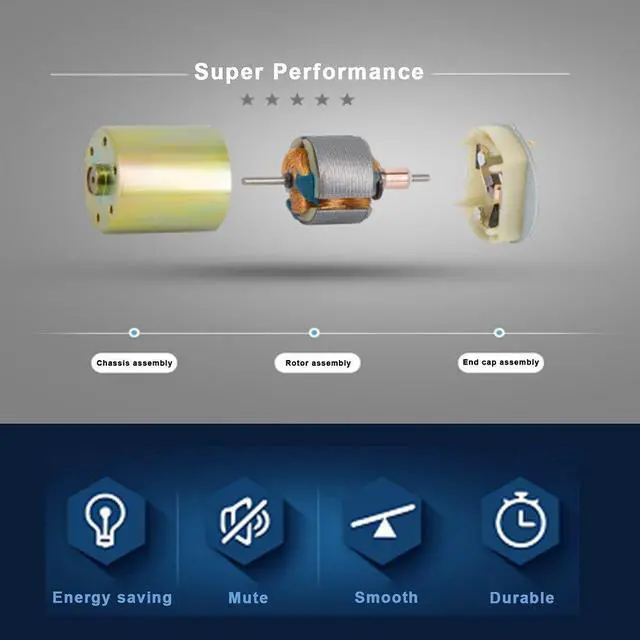

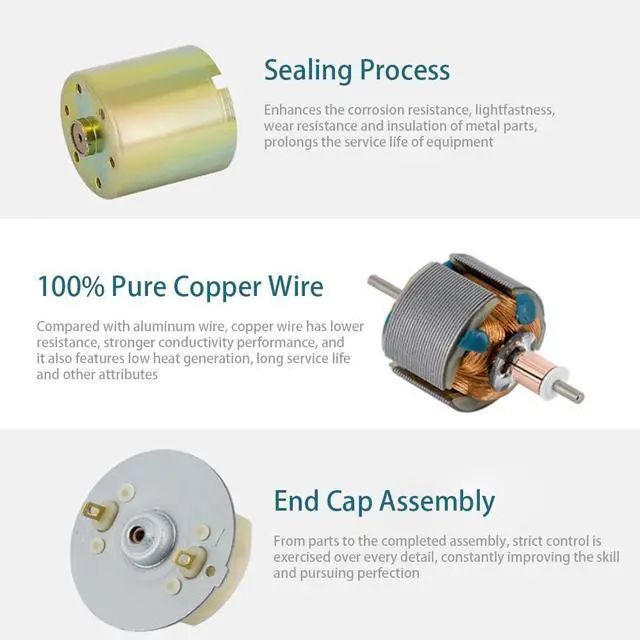

- PURE COPPER WIRE CORE ROTOR: With precision winding technology, the geared motor power instant increased by 30%.

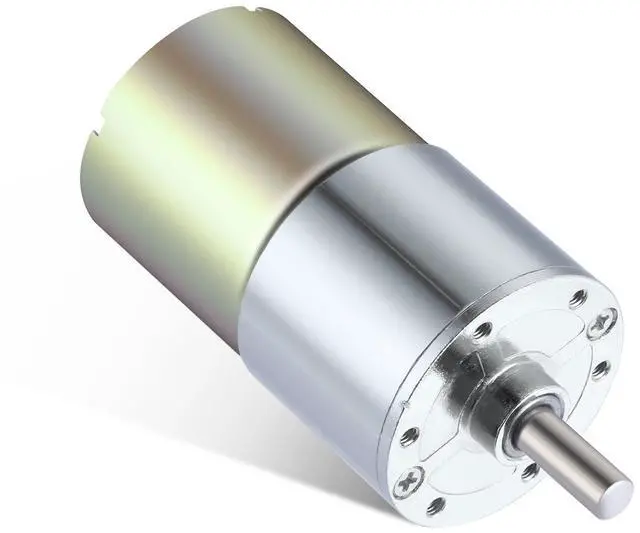

- D SHAPED OUTPUT SHAFT: Using high hardness steel, good toughness, impact resistance, the quality of the bearing and the service life of the gear motor are improved, extremely durable.
- POSITIVE-NEGATIVE ROTATION: You also can adjust the speed, but the motor speed can only be reduced, can not be raised. Low noise and high torque, such as 10rpm can drive 15 kilograms.
- RELIABLE GURANTEE: Any quality issues, we promise 100% unconditional return service. If you need other voltage and rpm, please feel free to contact us!
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications:
Rated Voltage: DC 12V
Reduction Ratio: 1: 31.6
No-Load Speed: 100RPM
Rated Torque: 4.5Kg.cm
Rated Current: 1.1Amp

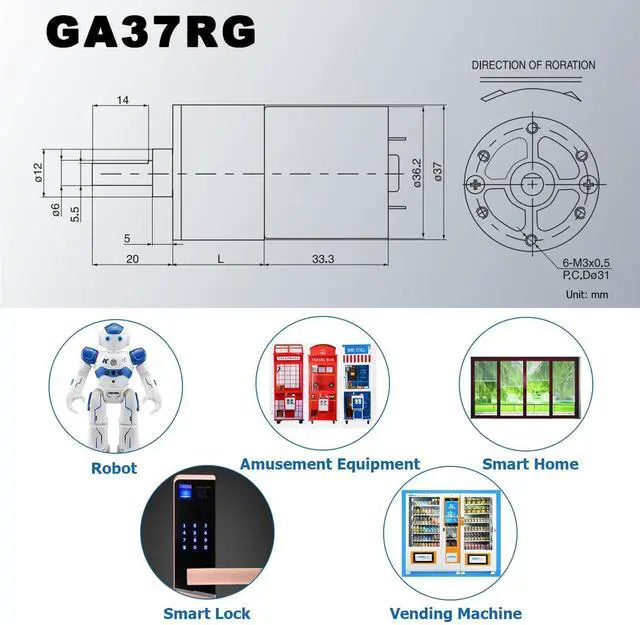

D Shaped Output Shaft Size: 6*14mm (0.24" x 0.55") (D*L)
Gearbox Size: 37 x 24.5mm (1.46" x 0.96") (D*L)
Motor Size: 36.2 x 33.3mm (1.43" x 1.31") (D*L)
Mounting Hole Size: M3 (not included)
Application:
Vending equipments, pan camera, slot machine, money detector, coin refund devices, automatic doors, peritoneal machine, toys motor etc.
Packages:
- 1 x DC Geared Motor
PLEASE NOTE:
1.Use tolerance: Pay attention to the use of voltage and current range, otherwise the motor performance and motor life will decline.
2.Handling motors: Gently, as far as possible the use of motor shell part.

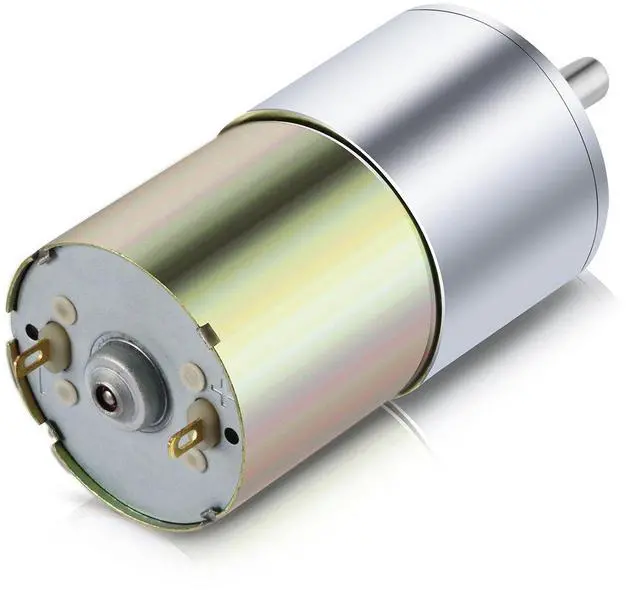

3.Motor wiring: Red lead to the positive electrode, black lead to the negative pole, if reversed, the motor rotation in the opposite direction.
4.Overload: As far as possible within the specified load range, prohibit motor blocking or close to the stall state for too long time to runs. Otherwise, the motor will burn out.
5.Motor storage:
-- Storage temperature: 0 - 40;
-- Storage humidity: 15% -90% RH;
-- Avoid placing in high temperature, high humidity and corrosive gases.
6.Motor use temperature: 0 - 70
