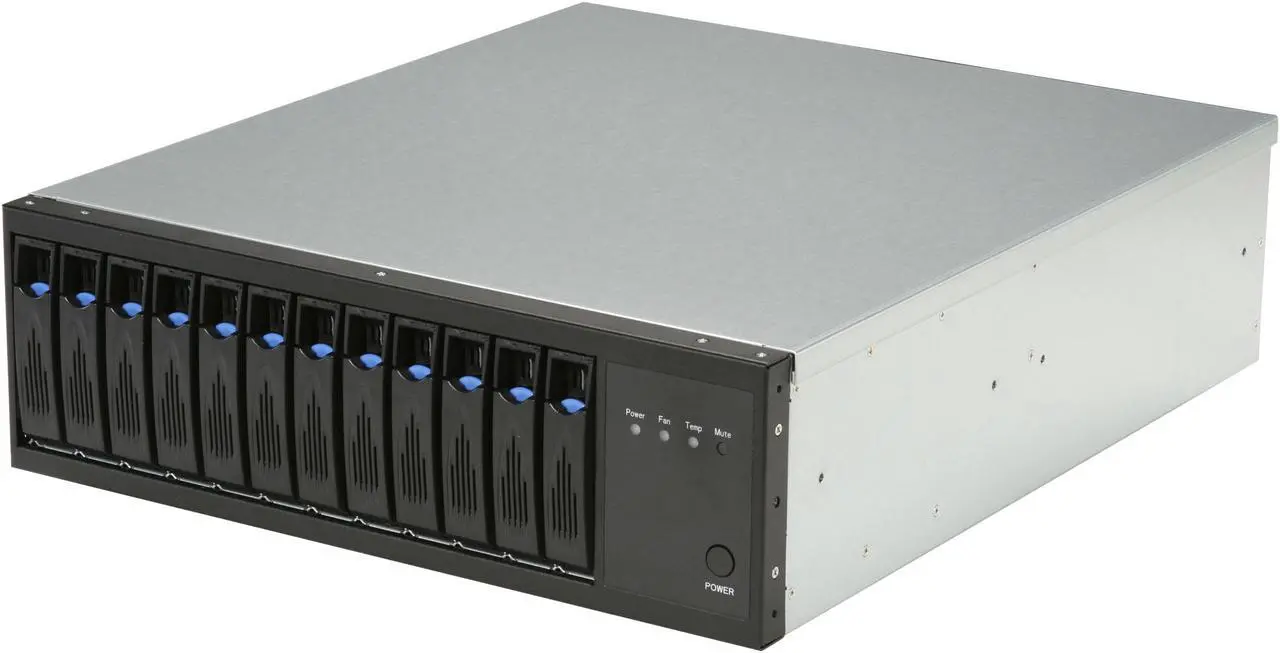

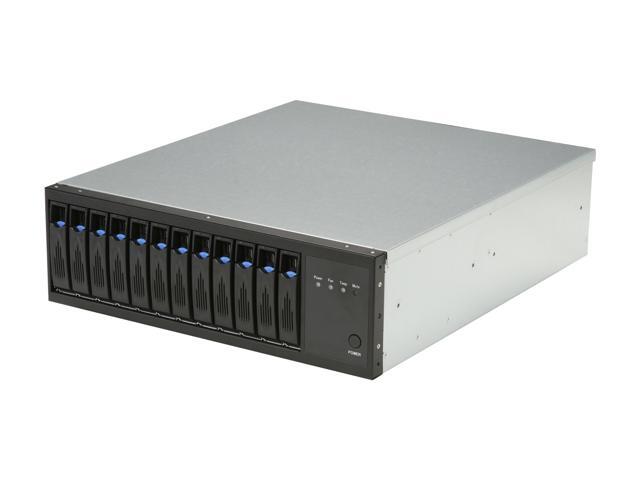

Habey DS-1280 12 3.5" Drive Bays One 12.0 Gbps Mini SAS (SFF 8088) connector 3U 12-bay SAS Expander Direct Attached SAS/SATA JBOD Storage Array

  • SAS & SATA
  • 12 3.5" Drive Bays
Specs
Reviews (6)
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the Habey DS-1280

Model
Brand Habey
Model DS-1280
Details
Drive SAS & SATA
External I/O One 12.0 Gbps Mini SAS (SFF 8088) connector
Expansion
3.5" Drive Bays 12
Mechanical Spec
Power Supply Standard ATX power, 400W default, support mini redundant power suppliers
Environmental
Temperature 0°C (32°F)~45°C (113°F)
Humidity 5%~95%(non condensing)
Features
Features Standard: 3U 19" Rackmount EIA RS-310D

Materials: Heavy duty 1.2mm cold-rolled steel, texture power coated

Drive Bay: 12 x 3.5" hot-swap SAS/SATA how-swappable drive bays

Cooling: Middle 3 x 90mm cooling fans with temperature and fan alarm control

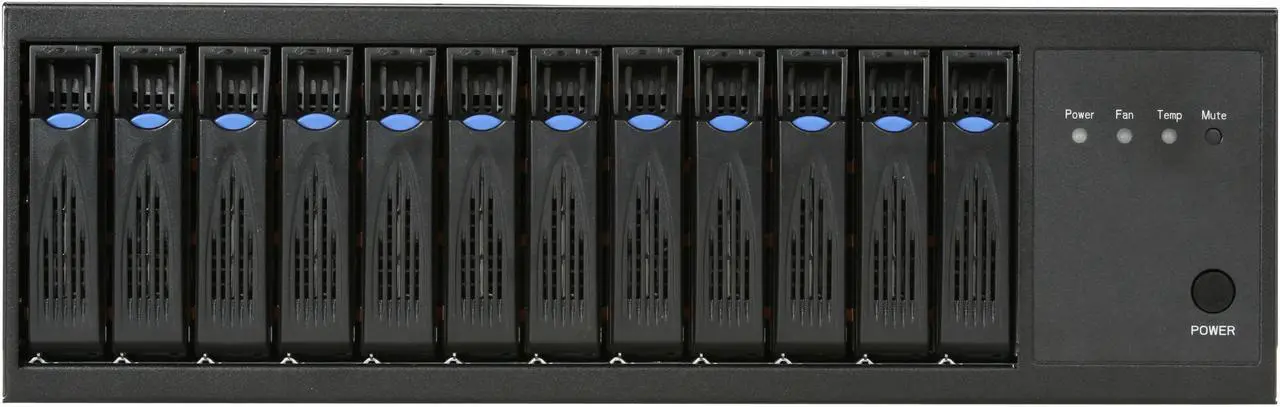

Front Control: HDD activity, alarm reset, fan alarm LED, temperature alarm LED, power switch

HDD tray Indicators: HDD LEDs for power, activity

Backplane: 12 SAS/SATA channels with 12-PHY Serial Attached SCSI (SAS) LSI LSISASx12A 3Gb/s SAS Expander

Capacity: 24TB + (using 2TB drives), expandable with internal raid card + mainboard setup

HBA Validation: HighPoint RR4311, RR4322, Areca ARC-1680x, LSISAS3801X, LSISAS3801E, LSI MegaRAID 8888ELP

3U short-depth enclosure design with built-in SAS Expander.

Backplane with built-in SAS expander for less cabling and higher speed data integrity.

Accept a mixed of high reliability SAS drives or high capacity SATA drives.

One 12.0 Gbps Mini SAS (SFF 8088) connector for connection to the host.

Support mini-ITX motherboard and RAID controller for NAS or iSCSI applications.

Intelligent temperature and fan control for reducing fan noise.

Excellent cooling system with temperature and fan alarm control.
Dimensions & Weight
Dimensions 19.5" x 19.0" x 6.89"
Weight 40.0 lbs.
