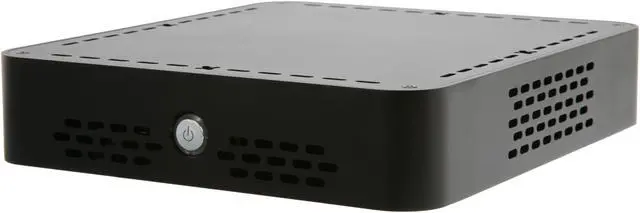

Habey EPC-6568S Nvidia ION2 Dual Core Atom D525 Embedded Computer Media Player - OEM
- FCBGA559
- 4GB Max Memory Supported
- DC +12V, Average Power Consumption <30W
- 2 x SODIMM Memory Slots
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Habey EPC-6568S
| Brand | Habey |
|---|---|
| Model | EPC-6568S |
| Material | Aluminum + Steel |
| CPU Type | Intel Atom D525 1.80GHz Dual-core |
|---|---|
| CPU Socket | FCBGA559 |
| North Bridge | Intel NM10 Express Chipset |
|---|
| Memory Slots | 2 x SODIMM |
|---|---|
| Max Memory Supported | 4GB |
| Memory Type Supported | DDR3 |
| Serial ATA | 2 x 2.5" SATA II 3Gb/s |
|---|
| GPU/VPU | NVIDIA next generation ION (ION2) GPU |
|---|---|
| Video Memory | Dedicated 512MB DDR3 Memory |
| PCI Express | 2 x Mini-PCIE slots (support both half and full mini-PCIe) |
|---|
| First LAN | Realtek RTL8111C |
|---|---|
| Max. LAN Speed | 1 Gigabit |
| COM | 1 |
|---|---|
| VGA | 1 |
| Rear USB | 2 |
| RJ45 | 1 |
| Rear Audio Ports | Yes |

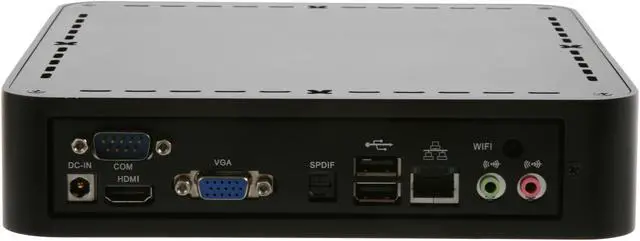

| Other Ports | 4 x Internal USB2.0 1 x RS-232 1 x HDMI®, Display up to 2560x1600 Audio: HD Audio 5.1 Channel, Digital Audio HDMI® or SPDIF (Optical), 1 x Mic-in, 1 x Line-out interface. |
| Max. Power | DC +12V, Average Power Consumption <30W |
|---|
| Features | Mainboard: MITX-6564-DDR3 GPU Decoder/Encoder: GPU-accelerated video decoding/encoding up to 1080p Display Interface: VGA+HDMI®, Dual Independent Display HDD: 2 x 2.5" internal HDD/SSD bays, support SATA II 3Gb/s OS Support: Windows Embedded, Windows XP, Windows 7, Vista & Linux Cooling System: Ultra Thin Fan Based Design Coating Processes: Aluminum Oxidation Mounting: 100x100 VESA holes on case Quiet Low Noise, Low power solution. |
|---|
| Dimensions | 7.87" x 8.86" x 1.77" |
|---|---|
| Weight | 3.04 lbs. |
| Date First Available | August 03, 2011 |
|---|
