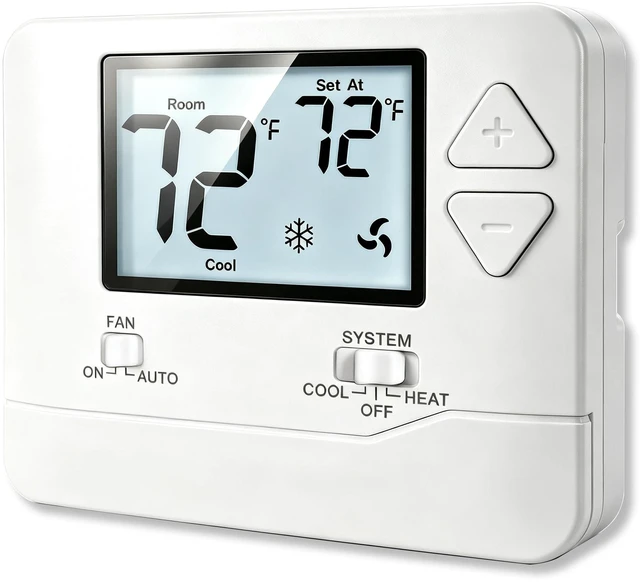

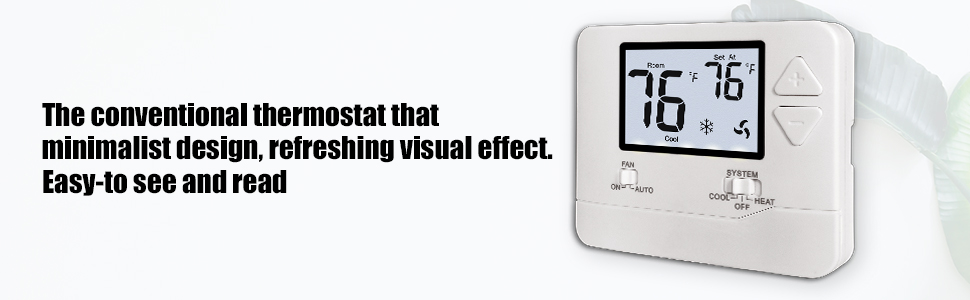

NonProgrammable Thermostat for Home up to 1 Heat/ 1 Cool

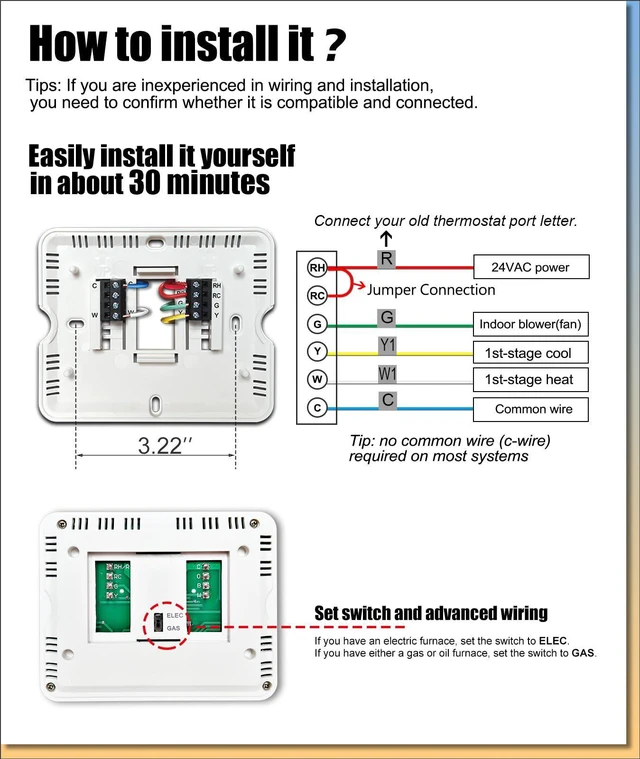

Installation Notice: Review the wiring diagram prior to purchase. Those without installation experience should purchase cautiously to prevent device faults or compatibility issues caused by incorrect selection. (This base is only compatible with 2 to 5 wire systems, supporting standard R, RH&RC, W, Y, G, C terminals.)
System Compatibility: Compatible with Conventional 1H/1C Single-Stage System Forced-Air (Gas, Oil, Electric), Ventilation, Air Conditioning, Gas Fireplace (24 Volts), 750mV, Hot Water Heating. (Please check the type of HVAC system your home has prior to selecting this product to insure it is compatible)
Incompatible Systems: Does not work multi-stage systems and heat pumps systems(2H/1C, 2H/2C, 3H/2C, 4H/2C), PTAC units, 3-wire hydronic (hot water) heating systems, dual fuel/hybrid heating systems; Does not work 120-240V line voltage systems, mini-split heat pump air conditioners, RV air conditioners (Mach/Roughneck series)
Flexible Power Options: C-wire-free design supports dual power: 24VAC hardwiring or 2 AAA batteries (not included). With standard RH, RC, W, Y, G, C terminals, it allows easy DIY installation without professionals, (It does not support W2, Y2, O/B, E, L, AUX, ACC+, ACC-, S, X, X2 terminals)

Model Name	H701W Digital Non-Programmable Thermostat
Systems	Conventional 1 Heat / 1 Cool Single-Stage Systems
Power	Required Common C-wire or 2 AAA Batteries

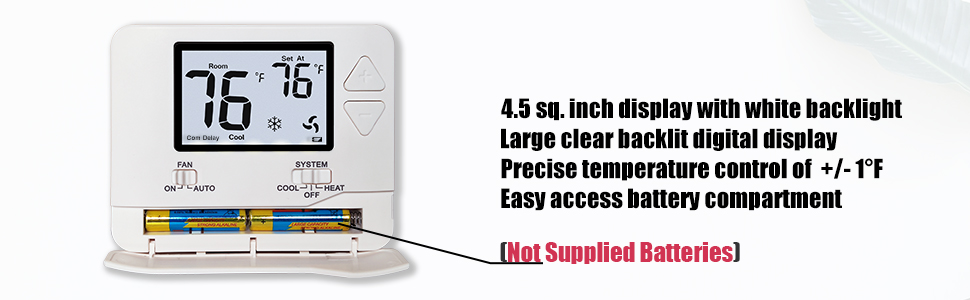

LCD Display	4.5 sq inch display
Room Temperature Range	41°F to 95°F
Temperature Control Range	44°F to 90°F
Temperature Correction	Support for ambient temperature correction (range-4°F to 4°F)

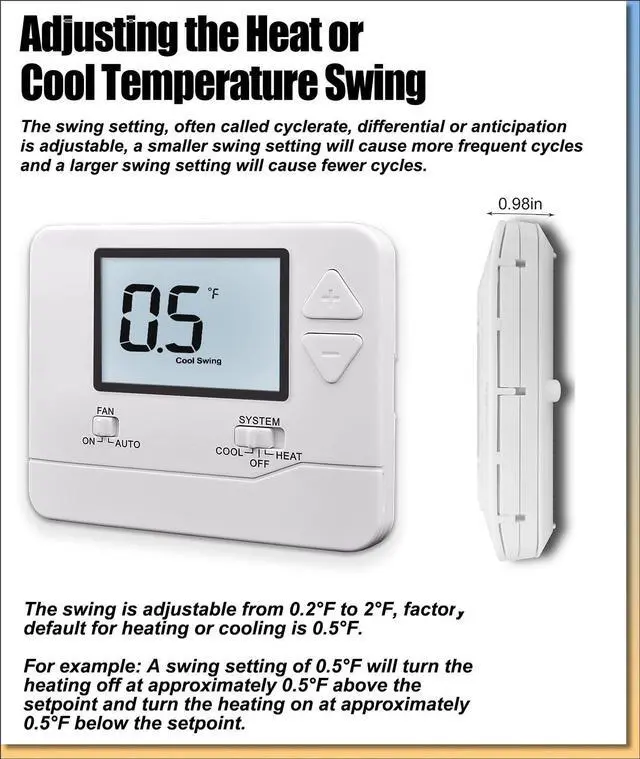

Swing	Separate heating and cooling swing (Cycle Rate), default 0.5°F (0.2°F to 2°F)

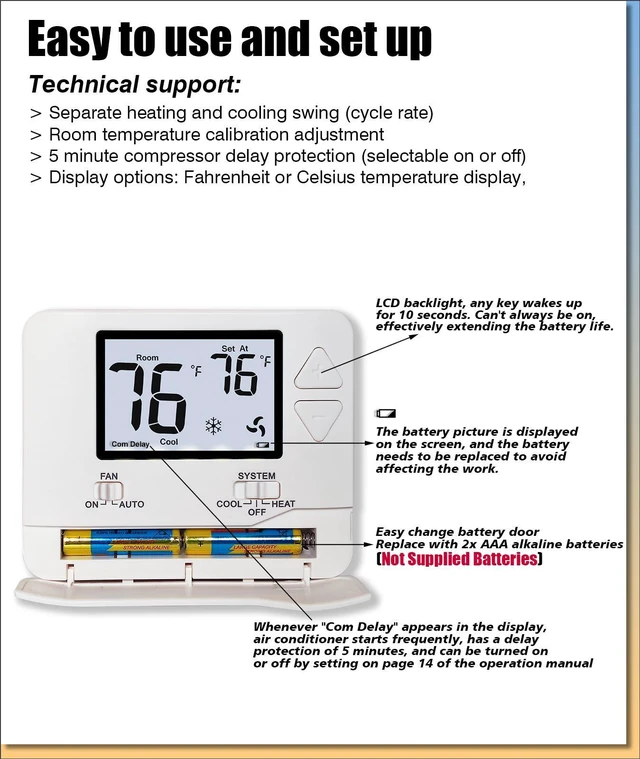

Low Battery Reminder	The battery symbol on the screen flashes, indicating a low battery replacement reminder.
Delay Protection	5 minute compressor delay protection (Selectable ON or OFF)
Terminal	Terminal Designations RH, RC, G, Y, C, O, B, W

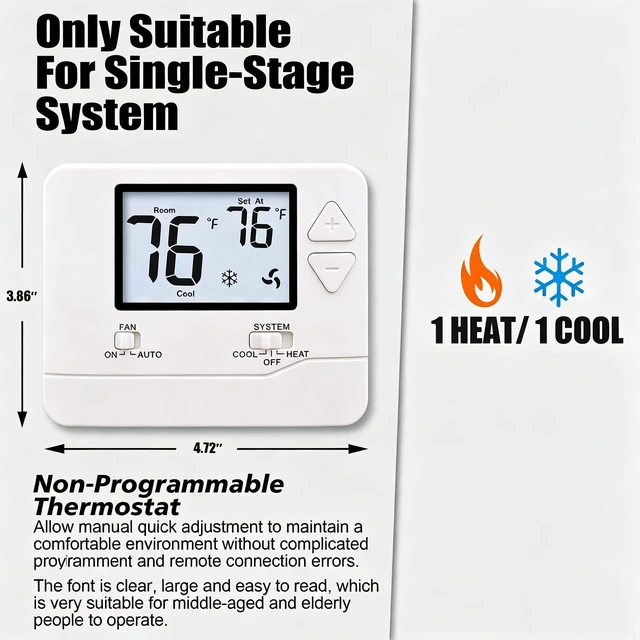

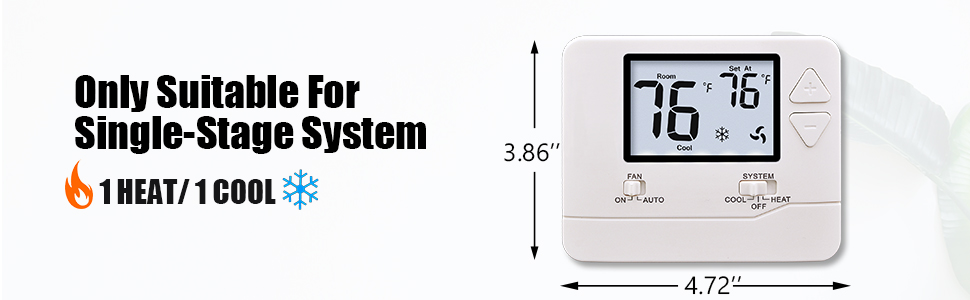

Product Dimensions	0.98"D x 4.72"W x 3.86"H

Model Name	H701W Digital Non-Programmable Thermostat
Systems	Conventional 1 Heat / 1 Cool Single-Stage Systems
Power	Required Common C-wire or 2 AAA Batteries
LCD Display	4.5 sq inch display
Room Temperature Range	41°F to 95°F
Temperature Control Range	44°F to 90°F
Temperature Correction	Support for ambient temperature correction (range-4°F to 4°F)
Swing	Separate heating and cooling swing (Cycle Rate), default 0.5°F (0.2°F to 2°F)
Low Battery Reminder	The battery symbol on the screen flashes, indicating a low battery replacement reminder.
Delay Protection	5 minute compressor delay protection (Selectable ON or OFF)
Terminal	Terminal Designations RH, RC, G, Y, C, O, B, W
Product Dimensions	0.98"D x 4.72"W x 3.86"H

Size/Dimensions	0.98 in x 4.72 in x 3.86 in
Color	White
Voltage	24 volts_of_alternating_current

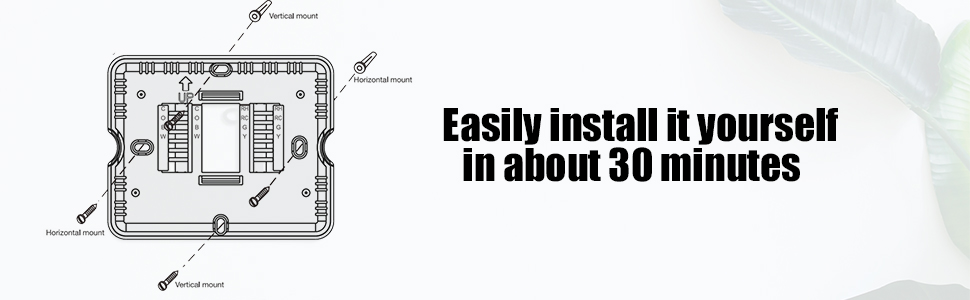

Mount Type	Wall Mount
Relay Contact	Simple Digital Thermostat, 24 volts_of_alternating_current
Standards/Certifications	not_capable_emitting_rf_energy
Item Count	12 pack

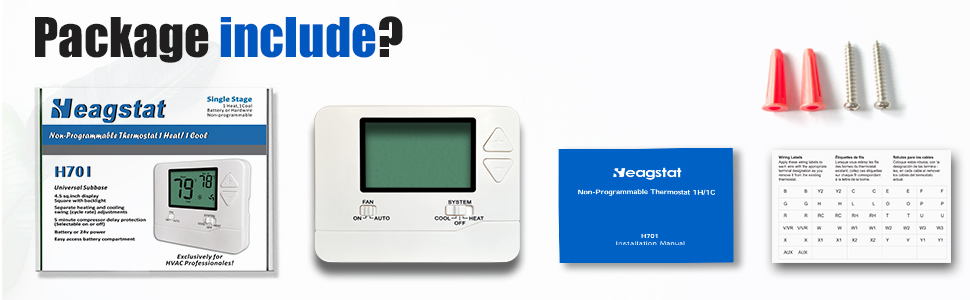

Selling Unit	1, thermostat, Two screws and anchors, Installation manual, Cable label
Features	for use with central gas, oil, electric furnaces conventional single stage systems, Backlit Display, Temperature Calibration, Compressor Delay Protection, Low Battery Reminder, Adjustable Swing, Heagstat

Meet Your Seller

Type	thermostat, Two screws and anchors, Installation manual, Cable label, Manual, Non-Programmable
Brand	Heagstat
Model	H701W
