Where do you get rails?

I was also unable to find rails for this chassis, but I had a spare set of Supermicro MCP-290-00053-0N rails which fit acceptably well. I had to buy new screws to mount the rails on the case, though. They appear to be item 38041-A from Midwest fasteners, but any brand of 4mm x 6mm .70 12 machine screw should work.

Do the expansion slots line up with a riser for the first or second motherboard slot?

It lines up with the first slot on the motherboard.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list(Found on 3 wish lists)

Sold by Newegg

Shipped by Newegg

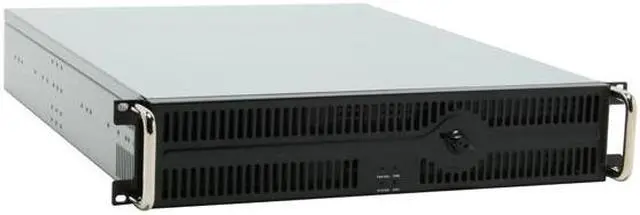

Main image of hec RA251C00F 1.2 mm Thickness 2U Rackmount Server Case 2 External 5.25" Drive Bays

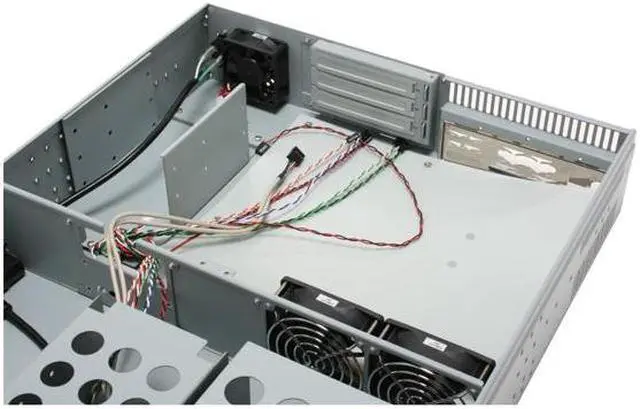

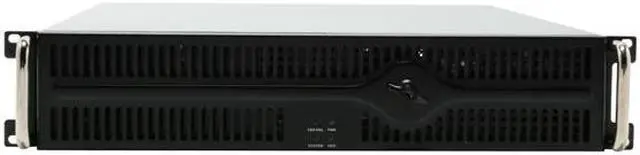

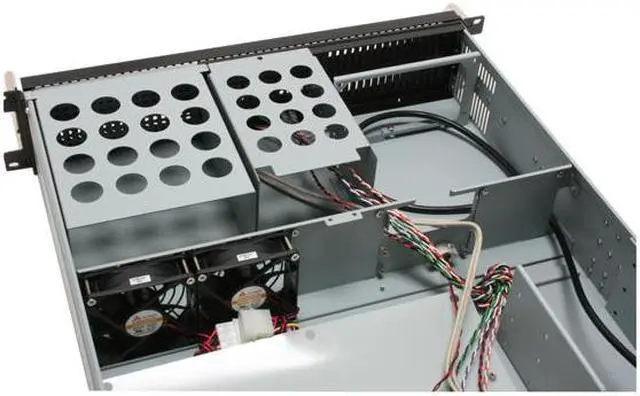

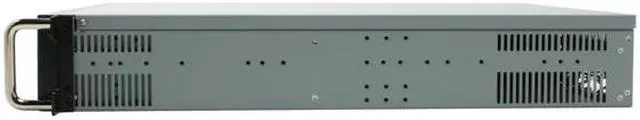

Alt view image 2 of 6 - hec RA251C00F 1.2 mm Thickness 2U Rackmount Server Case 2 External 5.25" Drive Bays

Alt view image 3 of 6 - hec RA251C00F 1.2 mm Thickness 2U Rackmount Server Case 2 External 5.25" Drive Bays

Alt view image 4 of 6 - hec RA251C00F 1.2 mm Thickness 2U Rackmount Server Case 2 External 5.25" Drive Bays

Alt view image 5 of 6 - hec RA251C00F 1.2 mm Thickness 2U Rackmount Server Case 2 External 5.25" Drive Bays

Alt view image 6 of 6 - hec RA251C00F 1.2 mm Thickness 2U Rackmount Server Case 2 External 5.25" Drive Bays

Shop All Compucase Products

hec RA251C00F 1.2 mm Thickness 2U Rackmount Server Case 2 External 5.25" Drive Bays

(4) Write a Review

2 External 5.25" Drive Bays
1 60mm Fans 2 80mm Fans

Specs

Reviews (4)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Compucase RA251C00F

Model
Brand	hec
Model	RA251C00F

Details
Chassis Type	Rackmount
Form Factor	2U
Case Material	1.2 mm Thickness
Motherboard Compatibility	12" x 10"

Expansion
External 5.25" Drive Bays	2
External 3.5" Drive Bays	2
Internal 3.5" Drive Bays	3
Expansion Slots	3

Cooling System
60mm Fans	1
80mm Fans	2

Dimensions & Weight
Dimensions (H x W x D)	21.1" x 19.0" x 3.5"

Additional Information
First Listed on Newegg	September 04, 2007
