Anyone else using this server chassis RA448A00 with SSI EEB (12"x13") board and dual CPU with heatsink/fans? I plan to do so using 2x Noctual nh-u9dxi4 on ASROCK EP2C612 WS motherboard. Based on one review here, it seems the external drive bays once populated might conflict with the heatsink/fan for 2nd cpu closest to the bays?

Question

Anyone else using this server chassis RA448A00 with SSI EEB (12"x13") board and dual CPU with heatsink/fans?  I plan to do so using 2x Noctual nh-u9dxi4 on ASROCK EP2C612 WS motherboard.  Based on one review here, it seems the external drive bays once populated might conflict with the heatsink/fan for 2nd cpu closest to the bays?

Accepted Answer

I paired this with the ASUS Z10PE-D16 WS and the Noctua NH-D9L.  With my motherboard, there are 2 RAM slots that conflict with the bottom two 5.25" drive bays, and I had to grind part of the 5.25" chasis away (though it was very small) to get one of my 4 RAM sticks in. I still can't use the bottom 5.25" drive bay. If newegg allows, I'll post some pictures later.

Brand	hec
Model	RA448A00

Chassis Type	Rackmount
Form Factor	4U
Case Material	SECC 1.2 mm heavy duty steel
Motherboard Compatibility	12" x 13" e-ATX(SSI CEB, EEB, Nocona)

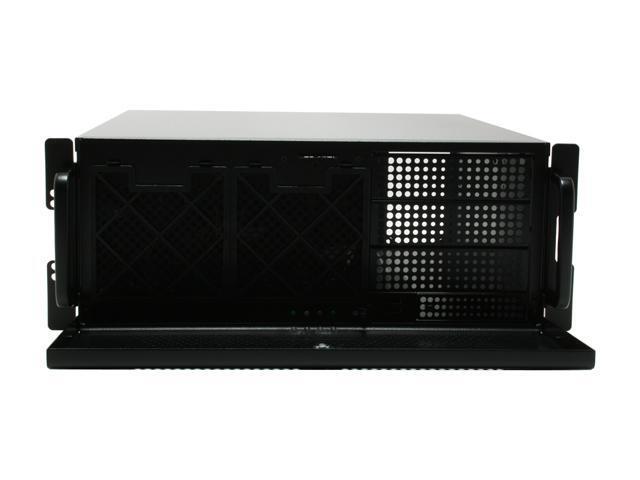

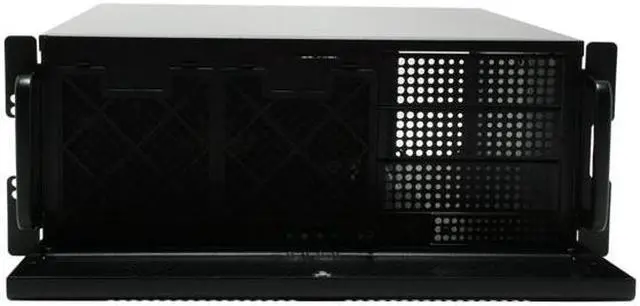

External 5.25" Drive Bays	3
External 3.5" Drive Bays	1
Internal 3.5" Drive Bays	2
Expansion Slots	7

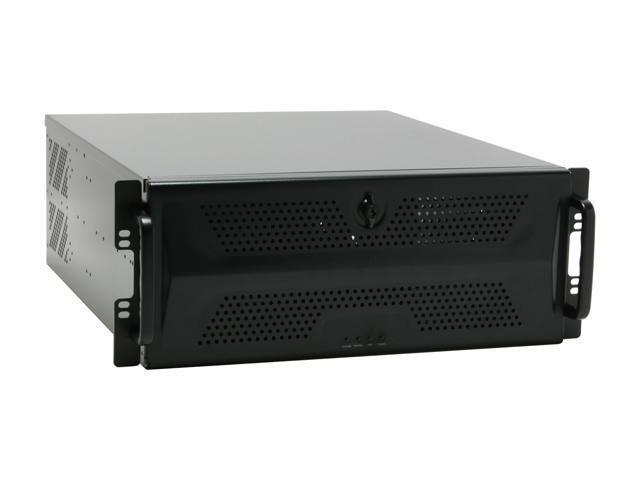

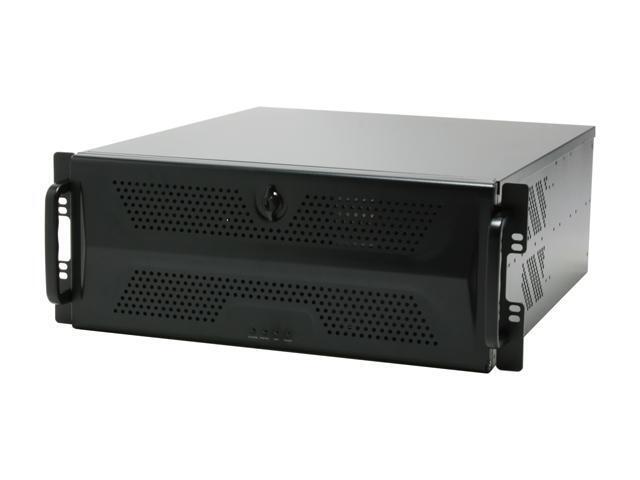

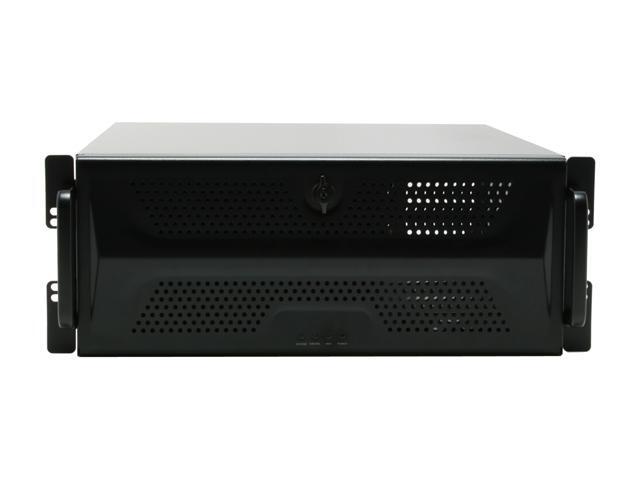

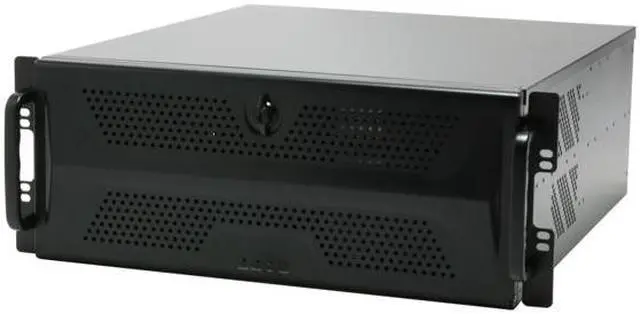

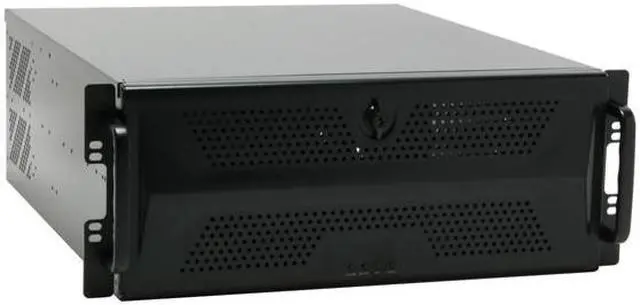

hec RA448A00 SECC 1.2 mm heavy duty steel 4U Rackmount Server Case 3 External 5.25" Drive Bays

Learn more about the Compucase RA448A00

Customer Reviews of the Compucase RA448A00

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies

Manufacturer Contact Info

Cooling System
80mm Fans	2
120mm Fans	2

Item#: N82E16811121008
