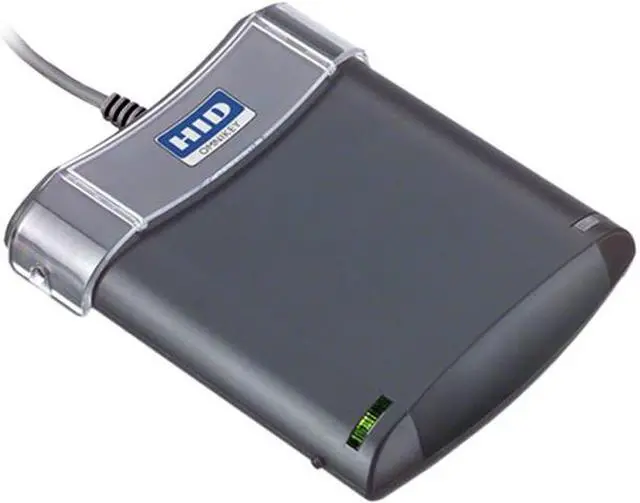

HID OMNIKEY 5325 CL USB Prox SMART Card Reader

Be the first to review this product...
  • HID Prox 125 kHz
  • USB Dongle
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

USB smart card reader

for desktop use that can be used with HID proximity card

OMNIKEY® 3121

The OMNIKEY® 5325 is a high-performance, USB smart card reader for desktop use that can be used with any HID proximity card. Complete with a convenient card retainer and a robust housing, the OMNIKEY 5325 is compliant with all industry standards. Designed to facilitate ease-of-use, this dual-interface (contact/contactless) reader works with your existing HID Prox cards enabling implementation of new logical access applications without re-badging.

Practical and affordable, the OMNIKEY 5325 reader is easy to install and has a transmission speed to the card of up to 420 Kbps, making it an ideal solution for a variety of contact smart card operations, including online banking and / or digital signature applications.

CONTACT AND CONTACTLESS PROX READER

  • Broad Use – Reads unique number from HID Prox cards, the industry standard for access control
  • Plug-and-Play – Designed to facilitate easy device installation and automatic configuration
  • Easy Development – Compliant with a variety of financial institution standards
  • Designed for User Convenience – Housing design is optimized for advanced contactless applications

FEATURES:

  • Robust housing and long USB cable for increased convenience and reliability
  • Supports a variety of PC/SC drivers for contact interface
  • Supports ISO 7816 and EMV (Europay®, MasterCard®, Visa®), Microsoft WHQL and HBCI (Home Banking Computer Interface) industry standards for contact cards
  • Meets EMV (Europay, MasterCard, Visa), Microsoft WHQL, and HBCI (Home Banking Computer Interface) industry standards for contact cards
  • RoHS/WEEE- compliant
  • Broad Use - Reads unique number from HID Proximity cards, the industry standard for access control (including all 26 - 40-bit and Corporate 1000 formats)
icon
SPECIFICATIONS
Base Model Number OMNIKEY® 5325
Dimensions 3.78" x 3.07" x .031" (115 x 96.5 x 25.5 mm)
Weight Approx. 5.01 oz (142 g)
Power Supply Bus powered
Operating Temperature 32–131 °F (0–55 °C)
Operating Humidity 10–90% rH
  HOST INTERFACE
Host Interface USB 2.0 CCID1 (also compliant with USB 1.1)
Transmission Speed 12 Mbps (USB 2.0 full speed)
  SMART CARD INTERFACE
Standards ISO 7816 & EMV2 2000 Level 1
Protocols T=0, T=1, 2-wire: SLE 4432/42 (S=10);
3-wire: SLE 4418/28 (S=9), I2C (S=8)
Card Size ID-1 (full size)
Smart Card Interface Speed 420 Kbps (when supported by card)
Smart Card Clock Frequency Up to 8 MHz
Supported Card Types 5V, 3V and 1.8V Smart Cards, ISO 7816 Class A, B and C
Power to Smart Card 60 mA
Smart Card Detection Movement detection with auto power-off / Automatic detection
of smart card type / Short circuit and thermal protection
8-Pin Handling C4 / C8 supported
Proximity Card
Interface Frequency		 HID Prox 125 kHz
Supported APIs PC / SC driver, CT-API (on top of PC / SC, for contact interface),
OCF (on top of PC / SC, for contact interface),
Synchronous API (on top of PC / SC, for contact interface)
PC / SC Driver Support Windows® XP / Vista / Windows 7 / Windows 8, 2003 / 2008 Server,
Windows® CE 5.0 / CE.NET / CE 6.0 (depending on hardware), Linux®
and Mac® OS X
Status Indicator Dual-color LED (green = ready, red = busy)
Color Dark gray
Options Customer-specific logo, label and colors: available upon request
Reader Board Available as PCB
Composition ABS
Connector Cable 70.9" (180 cm)
Durability 100,000 insertions
Meantime Between Failure (MTBF) 500,000 hours
Compliance / Certification Microsoft® WHQL3, EMV2 2000 Level 1, ISO 7816, HBCI4, USB 2.0
(USB 1.1 compatible), CCID1, GSA FIPS 201 approved product list
Safety / Environmental CE, FCC, UL, RoHS, WEEE
Warranty Two-year manufacturer's warranty.
(For drivers, see complete lifetime support policy.)

1 = Chip Card Interface Device, 2 = Europay® MasterCard® Visa®, 3 = Windows® Hardware Quality Lab, 4 = Home Banking Computer Interface
