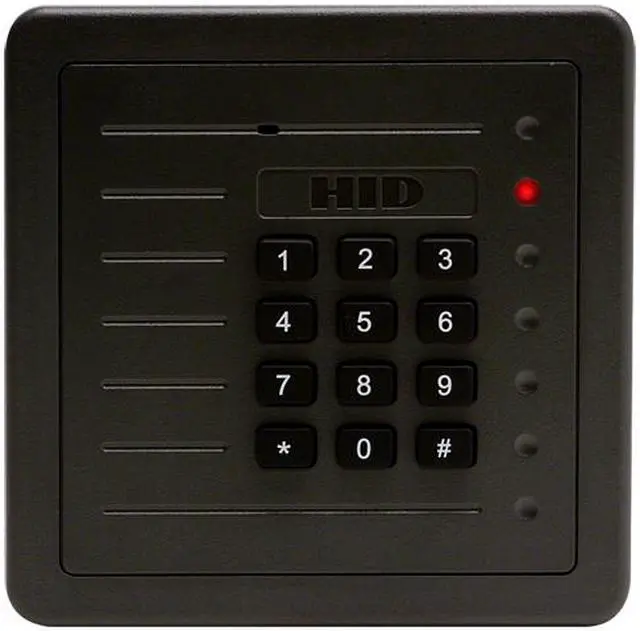

HID 5355AGK00 Proxpro Prox Reader Wiegand Gray/Keypad W/ Terminal Strip
- ProxPro with Keypad 125 kHz Wall Switch Keypad Proximity Reader Wiegand with Terminal Strip
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

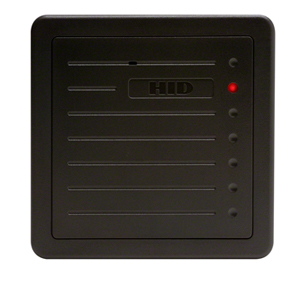

125 KHZ VERSATILE PROXIMITY CARD READER
The ProxPro proximity card reader's weatherproof design and architecturally attractive enclosure allows easy mounting indoors or out. The ProxPro Reader is ideal for applications requiring a larger read range.
- Ideal for medium-range applications.
- Available with Wiegand, Serial (RS-232/RS-422) or Clock-and-Data interface.
- Sealed for indoor or outdoor use.
- Optional glass mount kit available for mounting the reader behind glass.
- Available in gray or beige.
Key Features
- Affords high reliability, consistent read range characteristics, and low power consumption in a single, easy-to-install package.
- Features multicolor LED, internal or host control of the LED, and/or beeper and a beeper "off" switch for silent operation.
- Provides Wiegand protocol interface compatibility with all standard access control systems.
- Offers an optional, fully integrated personal identification number keypad for heightened security. Can be mounted to glass (using the optional glass mounting kit).
Features
- Security – Includes a tamper switch to provide notification of reader tampering. Recognizes card formats up to 84 bits, with over 137 billion unique codes. *Except Model 5352 which supports up to 37-bit formats.
- Audiovisual Indication – When a proximity card is presented to the reader, the red LED flashes green and the beeper sounds. The multicolor LED and beeper can also be controlled individually by the host system.
- Diagnostics – On reader power-up, an internal self-test routine checks and verifies the setup configuration, determines the internal or external control of the LED and beeper, and initializes reader operation. An additional external loop-back test allows for the reader outputs and inputs to be verified without the use of additional test equipment.
- Indoor/outdoor Design – Sealed in a rugged, weatherized polycarbonate enclosure designed to withstand harsh environments, providing reliable performance and a high degree of vandal resistance. Easily installed in any location, even with the optional keypad.
- Easily Interfaced - Interfaces with all existing Wiegand protocol access control systems. Output data in Wiegand or Clock-and-Data format, plus optional RS232 and RS422 serial interfaces.
- Options – Keypad operation, Custom label, Glass Mount Kit: 5455AGM00
ProxPro with Keypad 5355 125 kHz Wall Switch Keypad Proximity Reader (Wiegand with Terminal Strip) -
Color: Gray
Color: Gray
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 2 years
- Limited Warranty period (labor): 2 years
- Read full details
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-866-607-7339
- Support Website
- View other products from HID Global Corporation
LOADING...
LOADING...
The HID 5355AGK00 ProxPro is a fixed 125 kHz proximity reader with a keypad, Wiegand output, and terminal-strip connection, suited to access-control installations that need both credential reading and keypad entry.
Recommended For
- Facilities teams replacing a compatible HID Prox reader can use the 5355AGK00 where an existing access-control panel accepts Wiegand input and users need both proximity-card and keypad access.
- Sites with outdoor or indoor entry points can consider it for fixed wall installation; HID describes the reader as sealed for indoor or outdoor use.
- Facilities where people need to present a card or fob without precisely touching the reader may suit its medium-range proximity use; HID lists typical maximum reads of up to 8 inches for a ProxCard II.
- Organizations adding keypad entry to an established HID 125 kHz proximity setup may find the integrated keypad useful, with keypad data configurable to go through the reader or directly to the host.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Fixed RFID-reader installations |
| Reader Type And Form Factor | Fixed RFID reader |
| Power | 10–28.5 VDC; linear power supplies recommended, with reverse-voltage protection |
| Physical Specifications | 5.0 × 5.0 × 1.0 in; 0.75 lb; gray |
| Environmental Specifications | Operating temperature: −30 to 65 °C; humidity: 0–95% relative humidity, non-condensing |
| Model Identifiers | HID ProxPro Series, model 5355; part number 5355AGK00 |
| Manufacturer | HID Global Corporation |
