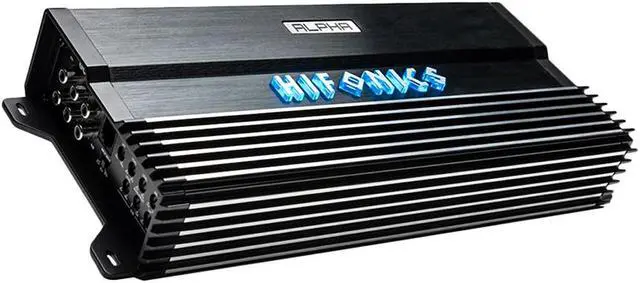

Hifonics A2500.5D ALPHA 2500 Watts Full Range Super D-Class 5 Channel Amplifier
- Maximum low voltage signal from the source unit comes into the amplifier through a low voltage circuit which delivers minimal distortion through the amplification process
- Nickel plated RCA connectors for audiophile signal quality and maximum signal throughput with minimum distortion and maximum external noise rejection
- Flexible installation allows this amplifier to run in four channel or mono mode simultaneously
- Accu-Cross crossovers allow for complete control of the signal directing to all speakers. See specifications section for specific frequencies
- Control of amplifier output with on board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier
- The Ultra-Fi™ MOSFET is designed for music production vs just electronics output power. It produces very musical high power with high efficiency for cooling and minimal distortion
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The Hifonics ALPHA A-2500.5D amplifier is a 5 channel amplifier with a hybrid of Full Range Super D-Class® and Super D-Class® Technologies with electronic crossovers. Bass remote included.
The Hifonics ALPHA A-2500.5D amplifier is a 5 channel amplifier with a hybrid of Full Range Super D-Class® and Super D-Class® Technologies. Engineered and manufactured with voltage matched, tight tolerance and hand selected proprietary components on the double sided glass epoxy PC board, ALPHA delivers Hifonics best ever sound quality and power output. The innovative use of SMT (Surface Mount) and through-hole components are designed to fit into a much smaller package than other amplifiers available from Hifonics.
Specifications
CLASS
Full Range Super D-Class®
Super D-Class®
TOTAL CHANNELS
5
POWER @ 1 OHM
1 x 750 Watts
Subwoofer
CH5 Only
POWER @ 2 OHMS
4 x 100 Watts + 1 x 450 Watts CH5
POWER @ 4 OHMS
4 x 60 Watts + 1 x 250 Watts CH5
CROSSOVER
Electronic
VARIABLE HIGH PASS CROSSOVER 12DB PER OCTAVE
CH 1 & 2
10Hz - 250Hz
CH3 & 4
10Hz - 250Hz
VARIABLE LOW PASS CROSSOVER 12DB PER OCTAVE
CH 5 Only
50Hz - 250Hz
TONE CONTROL/PARAMETRIC EQ
Bass EQ
BASS BOOST
0~12dB@45Hz
VARIABLE VOLTAGE
200mV - 10V
SIGNAL TO NOISE
>85dB
FREQUENCY RESPONSE
CH1-4
10Hz-250Hz
CH5
50Hz-250kHz
TOTAL HARMONIC DISTORTION (THD)
<0.05%
SPEAKER LEVEL AUDIO INPUTS
Yes
POWER TERMINAL 12V/GND
12 AWG
SPEAKER TERMINAL WIRE GAUGE
CH1 - 4
18 AWG
CH5
16 AWG
FUSING
Use External Fuse
TURN ON CIRCUIT
Switched
Remote Turn-On / Signal Sense On
CH1-4 only
HEATSINK SIZE
Length: 13in x Depth: 5.75in x Height: 2.37in
The Hifonics ALPHA A-2500.5D amplifier is a 5 channel amplifier with a hybrid of Full Range Super D-Class® and Super D-Class® Technologies. Engineered and manufactured with voltage matched, tight tolerance and hand selected proprietary components on the double sided glass epoxy PC board, ALPHA delivers Hifonics best ever sound quality and power output. The innovative use of SMT (Surface Mount) and through-hole components are designed to fit into a much smaller package than other amplifiers available from Hifonics.
Specifications
CLASS
Full Range Super D-Class®
Super D-Class®
TOTAL CHANNELS
5
POWER @ 1 OHM
1 x 750 Watts
Subwoofer
CH5 Only
POWER @ 2 OHMS
4 x 100 Watts + 1 x 450 Watts CH5
POWER @ 4 OHMS
4 x 60 Watts + 1 x 250 Watts CH5
CROSSOVER
Electronic
VARIABLE HIGH PASS CROSSOVER 12DB PER OCTAVE
CH 1 & 2
10Hz - 250Hz
CH3 & 4
10Hz - 250Hz
VARIABLE LOW PASS CROSSOVER 12DB PER OCTAVE
CH 5 Only
50Hz - 250Hz
TONE CONTROL/PARAMETRIC EQ
Bass EQ
BASS BOOST
0~12dB@45Hz
VARIABLE VOLTAGE
200mV - 10V
SIGNAL TO NOISE
>85dB
FREQUENCY RESPONSE
CH1-4
10Hz-250Hz
CH5
50Hz-250kHz
TOTAL HARMONIC DISTORTION (THD)
<0.05%
SPEAKER LEVEL AUDIO INPUTS
Yes
POWER TERMINAL 12V/GND
12 AWG
SPEAKER TERMINAL WIRE GAUGE
CH1 - 4
18 AWG
CH5
16 AWG
FUSING
Use External Fuse
TURN ON CIRCUIT
Switched
Remote Turn-On / Signal Sense On
CH1-4 only
HEATSINK SIZE
Length: 13in x Depth: 5.75in x Height: 2.37in
