Desktop Wireless Network M.2 WiFi Card to PCIe 1X Adapter Converter with Bluetooth-compatible Cable

Note: the WiFi card itself is sold separately!

Specifications & Compatibility Requirements:

• System: Intel-based, motherboard must have available internal USB Pin connector


• Operating System: Windows 10, Windows 11, Linux


• Desktop Connection: PCIe x1, x4, x8, x16

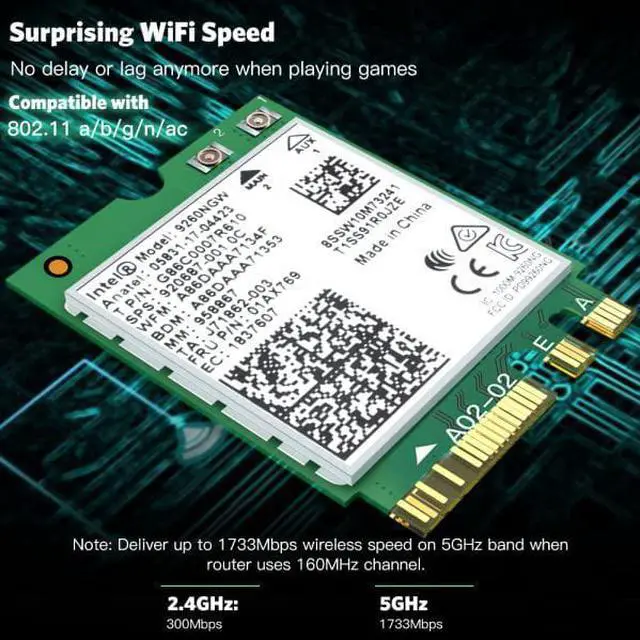

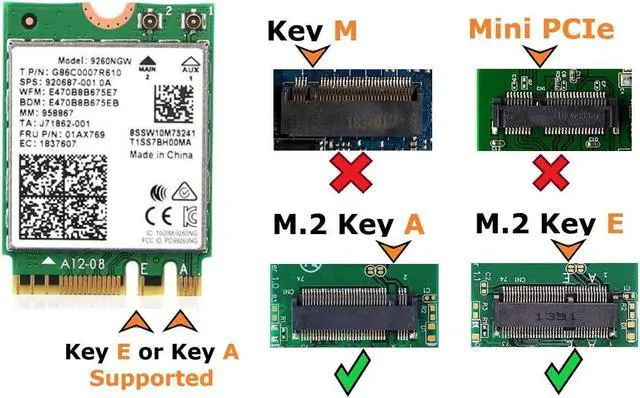

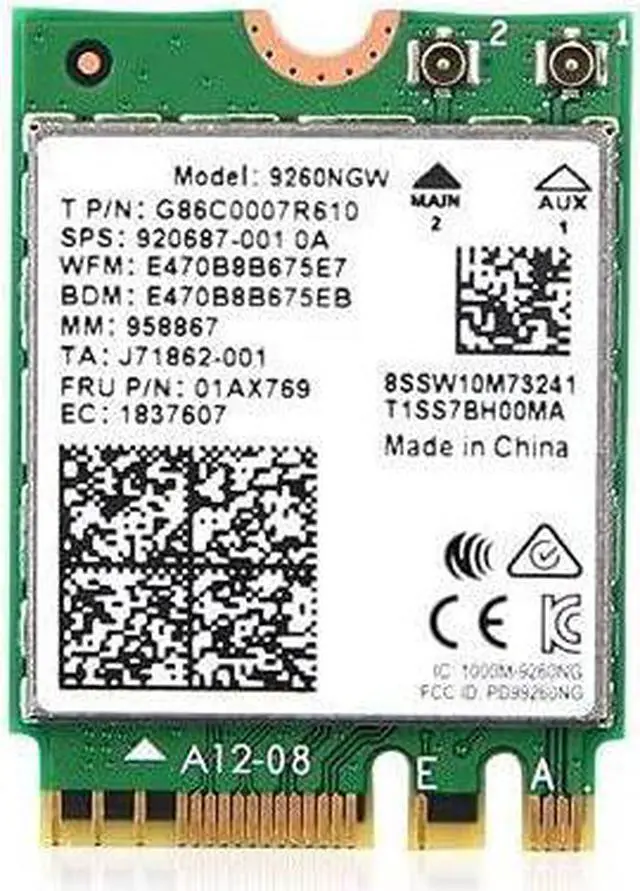

• Supports NGFF M.2 WiFi Cards Key A+E or Key E

Installation:

1. Gently insert your WiFi card into the provided Adapter. Secure with the provided screw.


2. Gently attach the provided antenna connectors to your network card---be gentle! The connectors generally pop right on! ***Network Card sold separately***


3. Turn off your system's power, open the back cover, and locate an available PCIe x1, x4, x8, or x16 slot


4. Install into an available PCIe x1, x4, x8, or x16 slot



   1. If the bracket is not the right size, swap with the other provided bracket






5. Screw the provided antennas to the exterior of the card (they should be outside your PC)


6. ***Test your new Wifi Card by powering on your system***


7. Then, reattach your systems back cover and enjoy your upgraded WiFi!

NOTE: the Wireless Network Card is sold separately. This is a WiFi card connector-converter for Desktop PCs

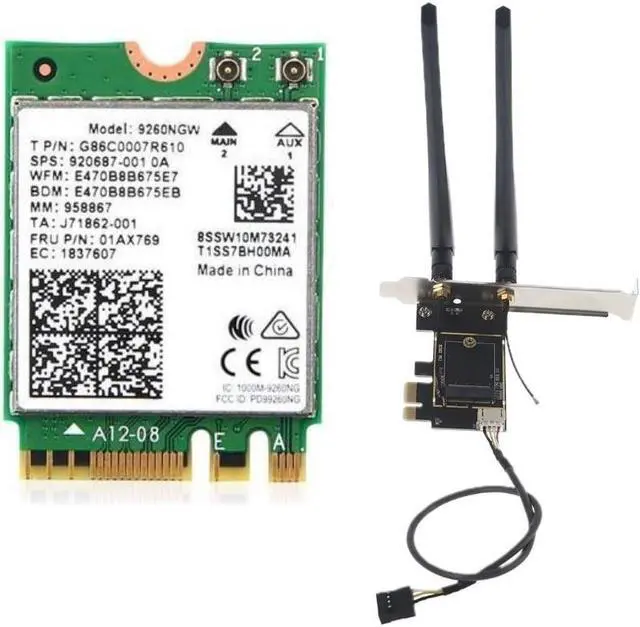

Package Contents:

(1) Set of antennas & wires

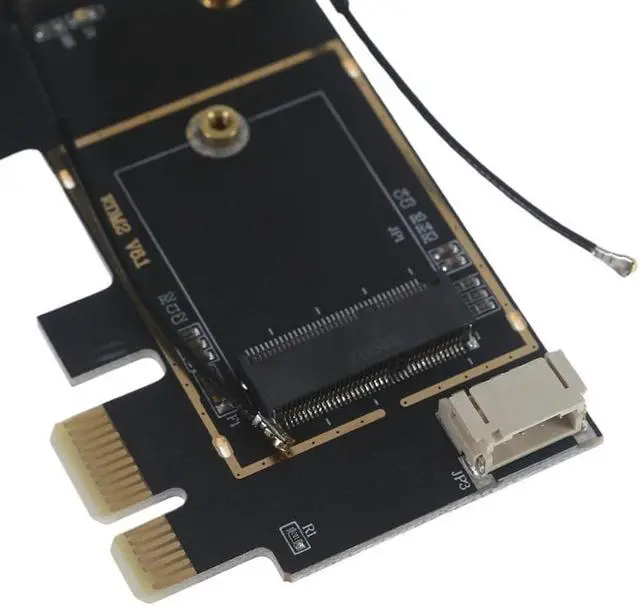

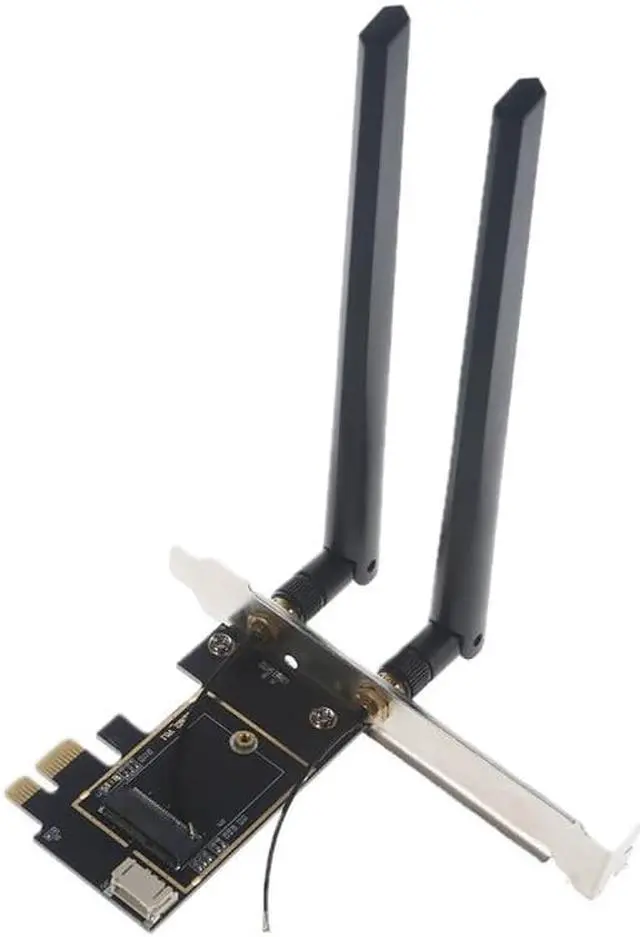

(1) PCIe Adapter Card

(1) Set of Low Profile & Standard Desktop Brackets

(1) Bluetooth cable (requires open USB pin set on motherboard)

Need assistance on compatibility? Check out our website's support articles for additional information!
