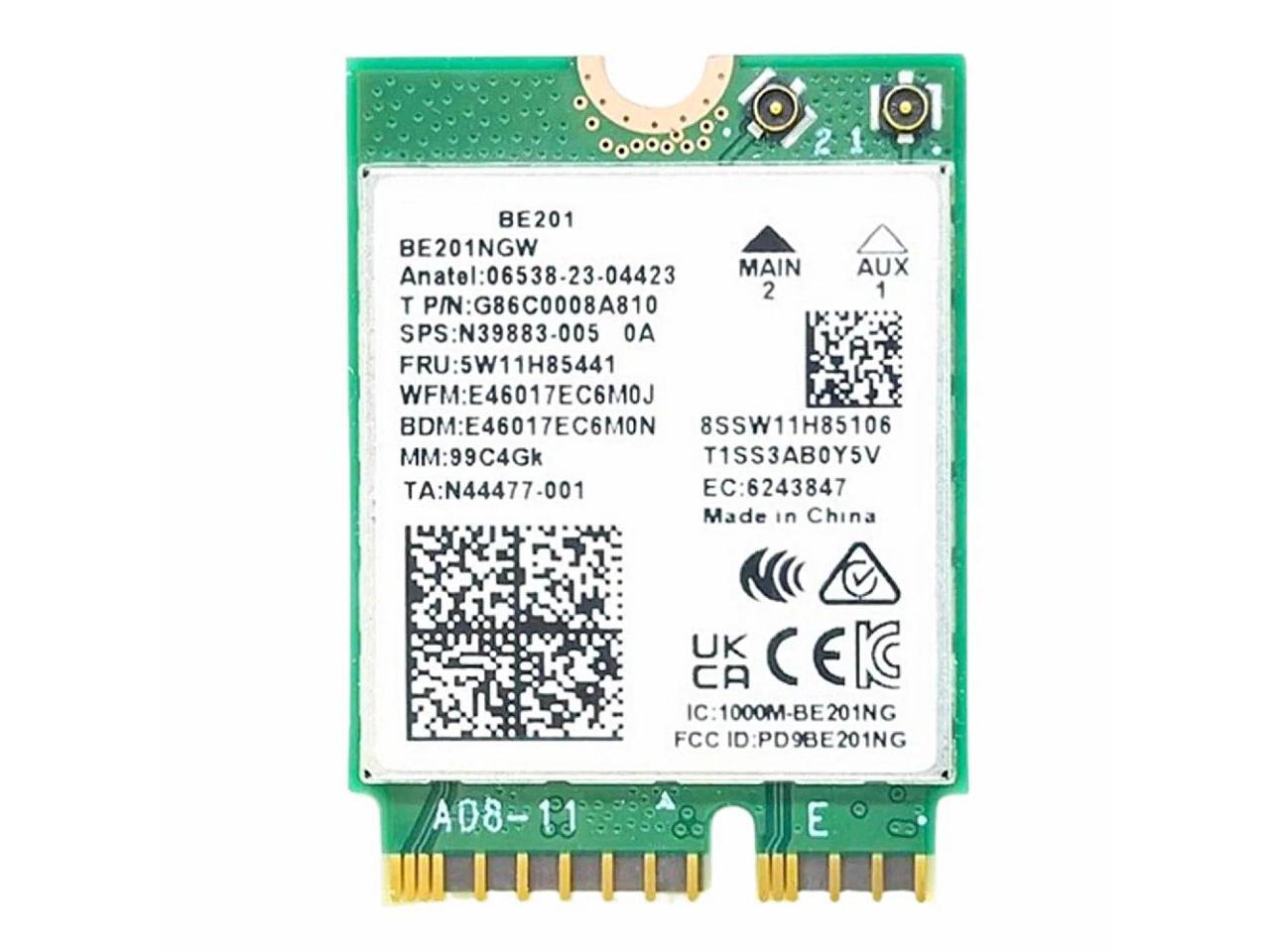

BE201 Wi-Fi 7 Module | CNVio3 M.2 2230 Key E | Up to 5.8 Gbps | No vPro

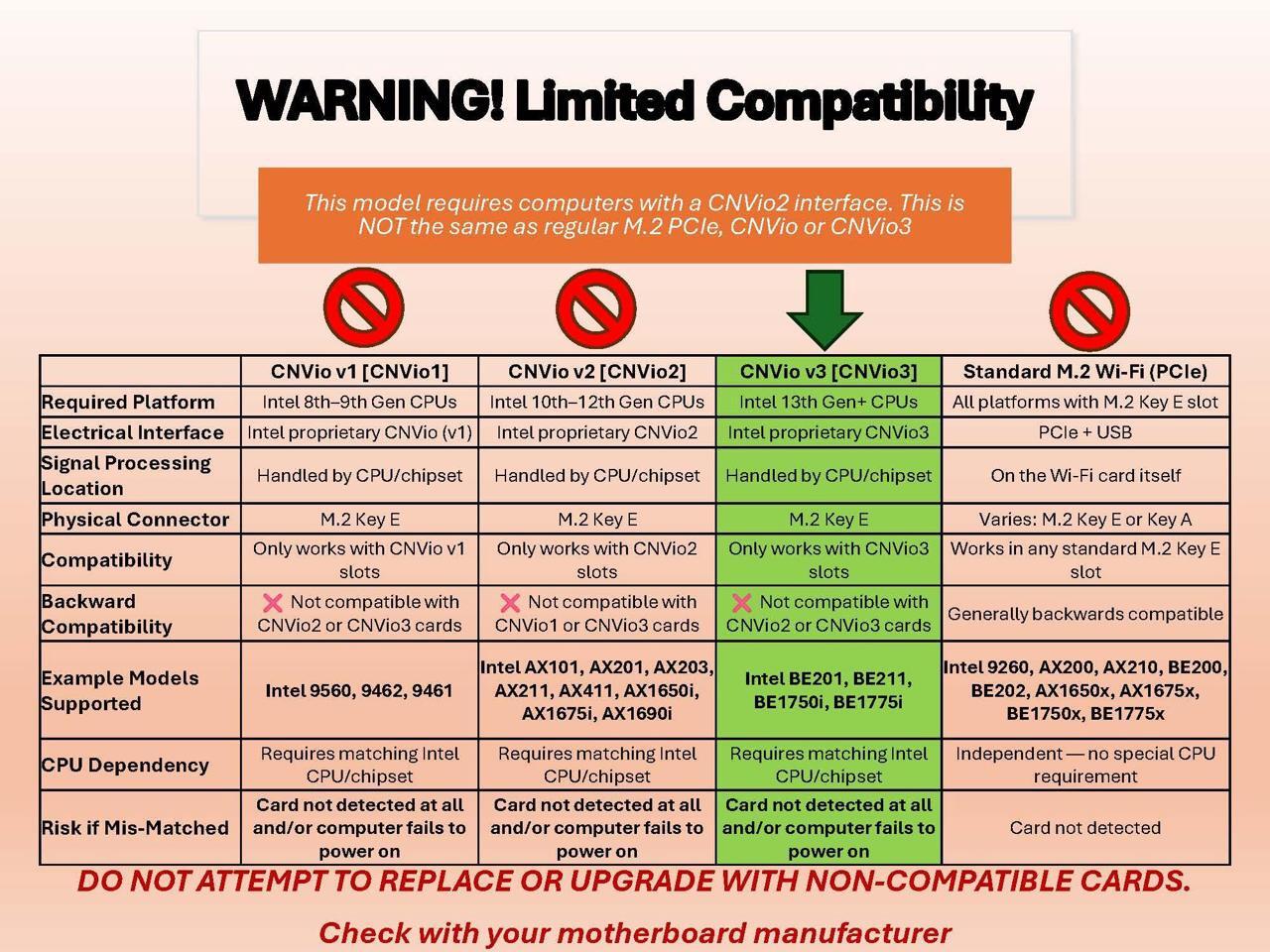

  • NOT A UNIVERSAL WI-FI CARD: BE201 requires CNVio3 for Intel laptops with OEM-approved BIOS/module support. Core Ultra Series 2 is a reference, not a guarantee. WILL NOT WORK with AMD or PCIe/USB-only slots

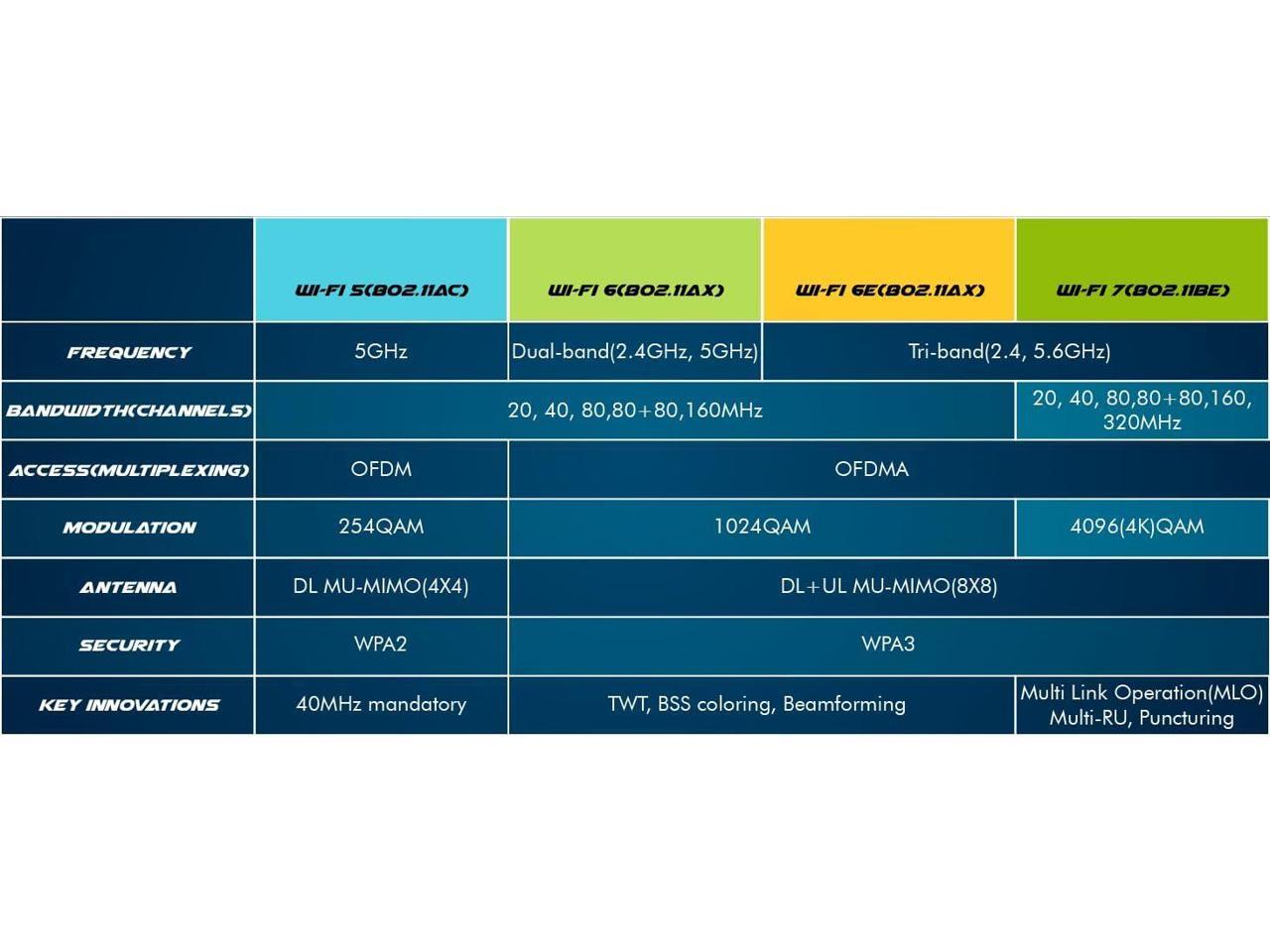

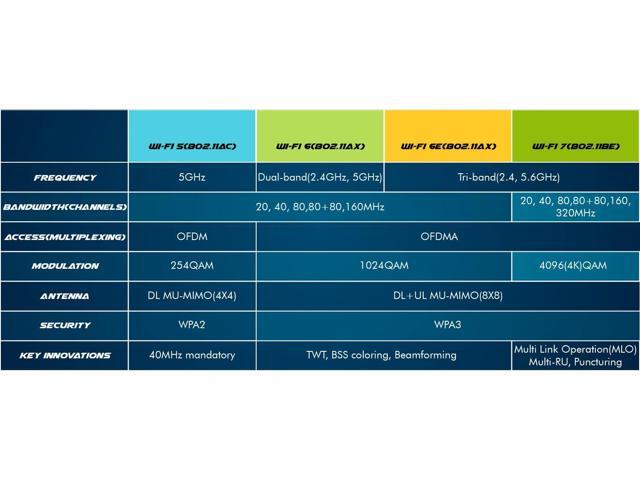

  • TRI-BAND NETWORKING: 2x2 Wi-Fi 7 supports 2.4, 5 and 6 GHz, 320 MHz channels and up to 5.8 Gbps theoretical link rate. Router, antennas, software, local spectrum rules and signal conditions determine available features and speed
  • SOFTWARE REQUIREMENTS: Use Windows 11 24H2 or newer for Wi-Fi 7 features and Windows 11 for 6 GHz. Linux requires kernel 6.11 or newer and matching firmware; Bluetooth 5.4 features also depend on the OS, drivers and peripherals

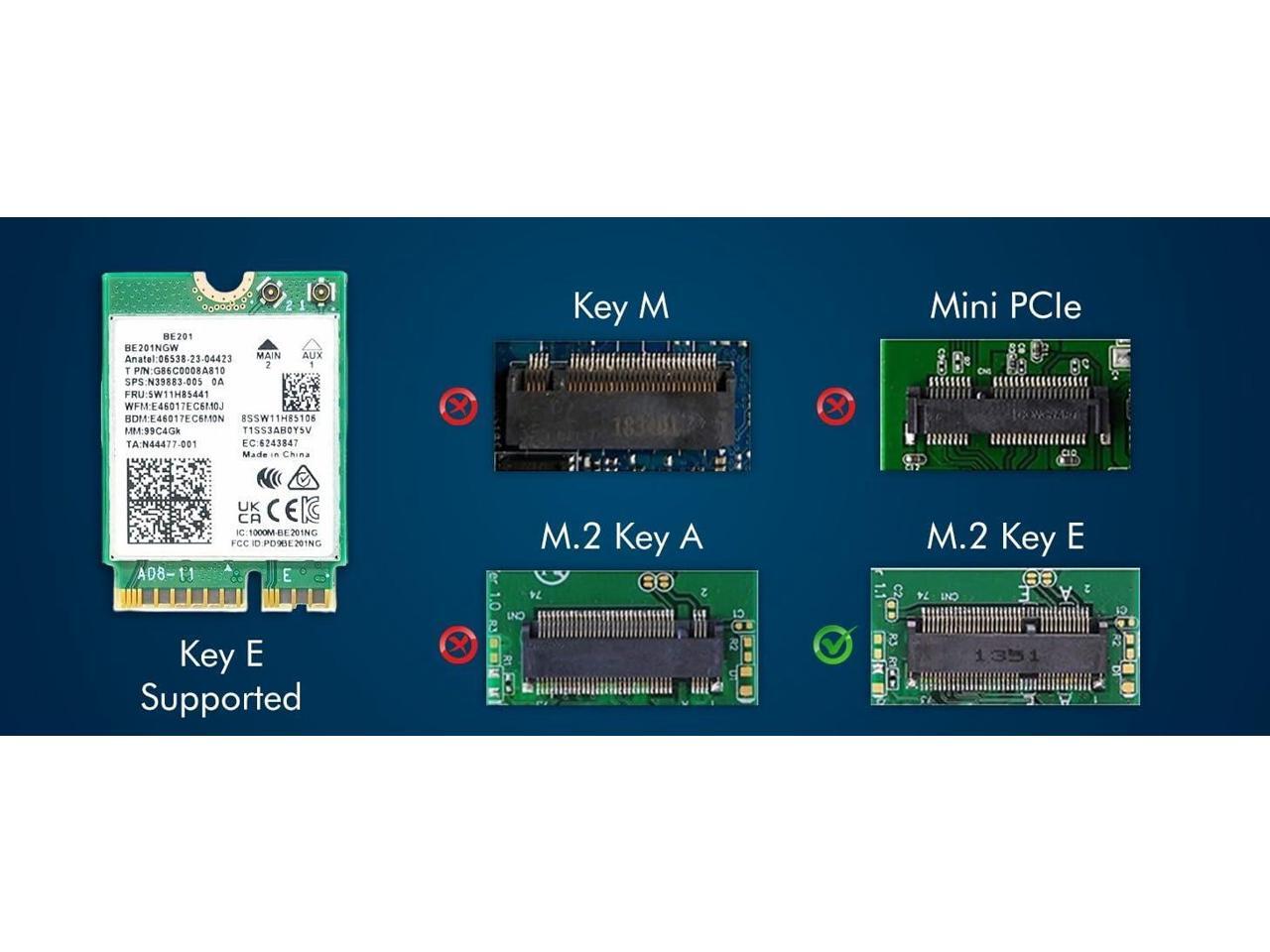

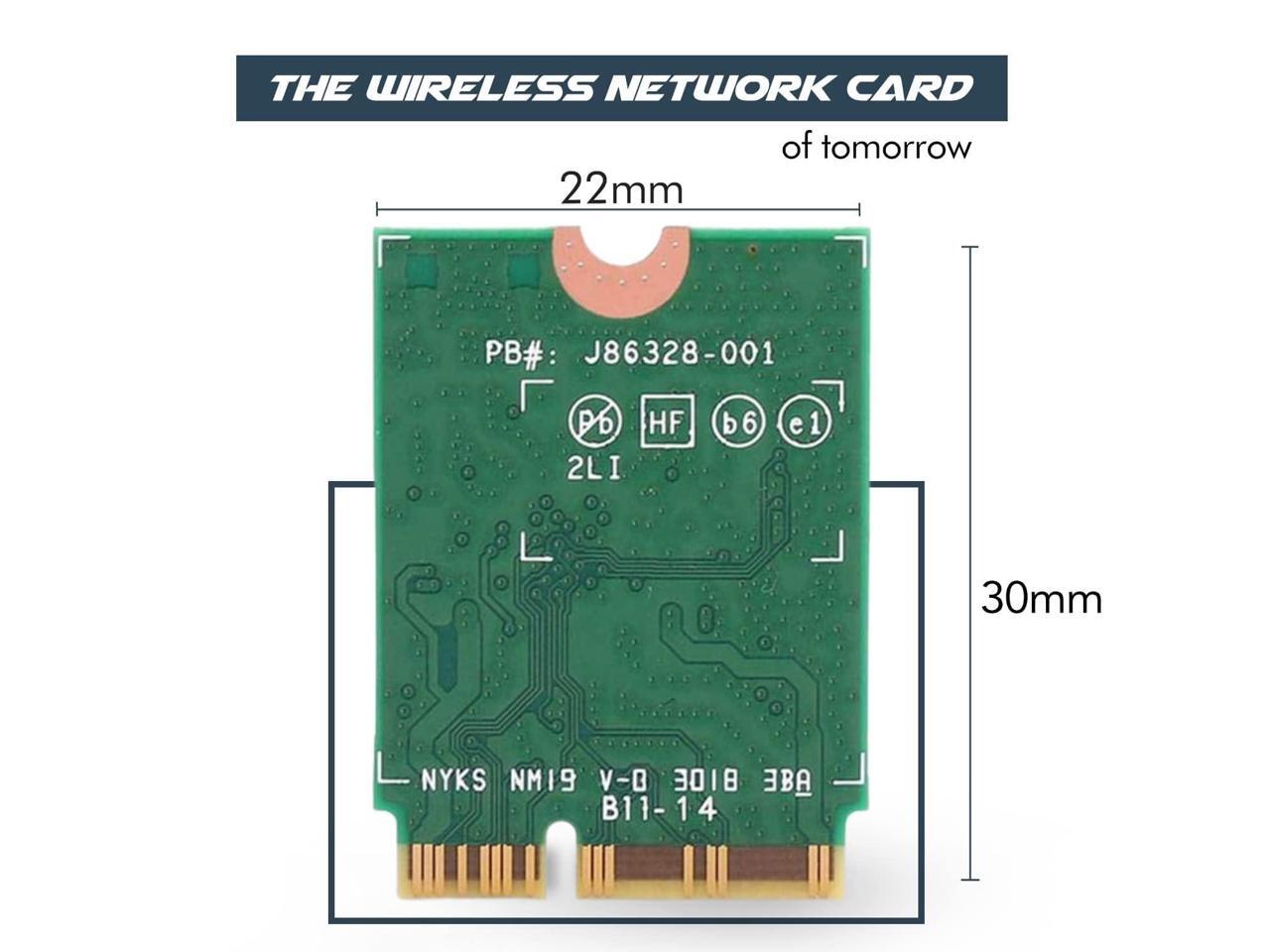

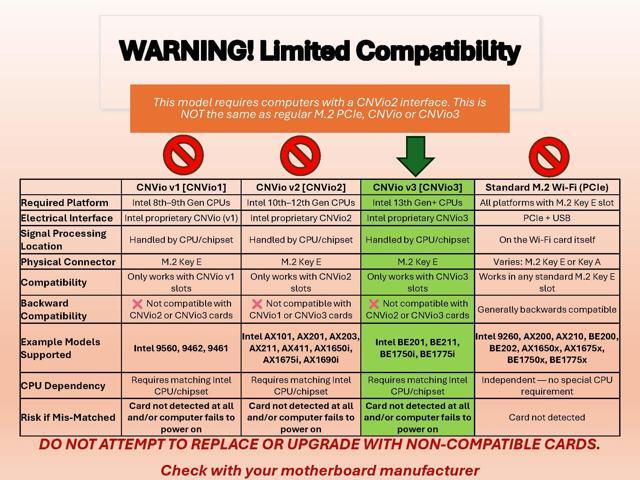

  • CHECK BEFORE ORDERING: Match the existing module, CPU/platform and OEM-approved replacement list. M.2 2230 Key E fit alone is insufficient; CNVio or CNVio2 alone does not qualify, and a generic PCIe desktop adapter cannot supply CNVio3
  • PACKAGE: One BE201 No vPro card in non-retail packaging; fits MHF4-compatible antenna leads. ANTENNAS AND SCREWS NOT INCLUDED. Generally not compatible with desktop PCs; generic PCIe adapters do not provide CNVio3
  • $45.10 –
