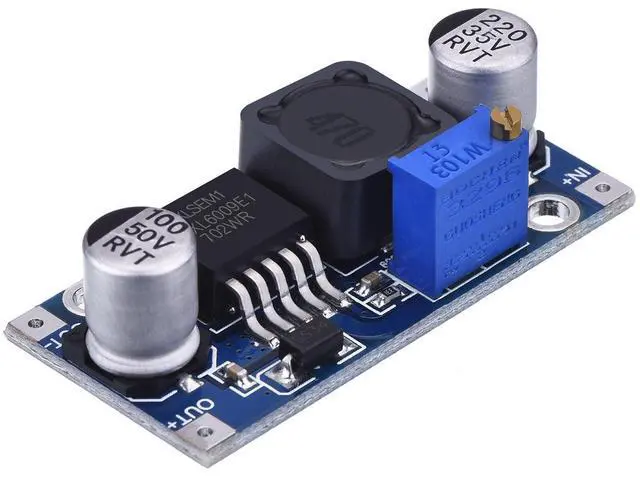

BUCIER 5pcs XL6009 Boost Module DC-DC Adjustable Module DC3.0-30V to DC5-35V Output Voltage Power Converter Circuit Board Module 400KHz
- XL6009 is a high-performance 400KHz 4A switch currency step-up (BOOST) module. This module is coming with the 3rd generation high-frequency switch technology as the core chip, The performance is much higher than LM2577
- Wide input voltage: 3V~32V;Optimum operating voltage range: 5~32V;Wide output voltage: 5V~35V
- With 4A high efficiency MOSFET switches, the efficiency of XL6009 can be up to 94%(LM2577current is 3A
- With ultra high switch frequency 400KHz , even if small capacity filtering capacitors can achieve very good results, ripple is smaller (Compared to LM2577,its frequency is 50KHz)
- With 0.1uF high-frequency bypass capacitor, effectively filter out high-frequency noise
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Input 3V Output 12V 0.4A 4.8W
Input 5V Output 12V 0.8A 9.6W
Input 7.4V Output 12V 1.5A 18W
Input 12V Output 15V 2A 30W
Input 12V Output 16V 2A 32W
Input 12V Output 18V 1.6A 28.8W
Input 12V Output 19V 1.5A 28.5W
Input 12V Output 24V 1 A 24W
Vin * Iin * Efficiency = Vout * Iout
Vin: Input Voltage
Iin: input current
Vout: Output Voltage
Iout: output current

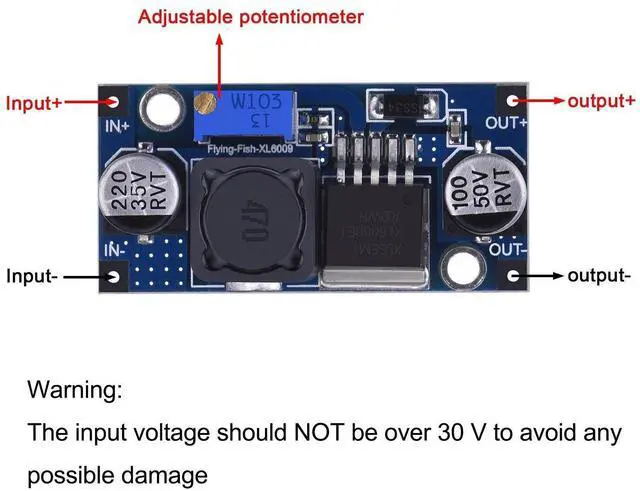

Features :
Modules nature: Non-isolated step-up (Boost)
Rectification: Non-synchronous rectification
Input voltage: 3V-32V
Output voltage: 5V-35V
Input current: 4A (max), No-load current 18mA
Conversion efficiency: 94% (highest)
Switchig frequency: 400KHz
Output ripple: 50mV (max)
Load regulation: ± 0.5%
Voltage regulation: ± 0.5%
Operating Temperature: -40 ° C to +85 ° C

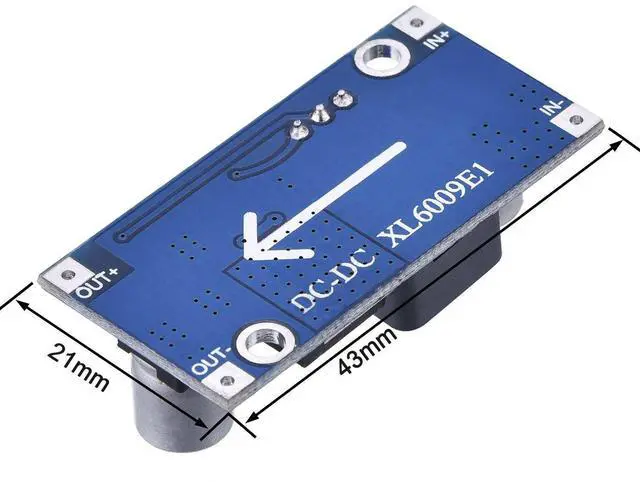

Dimension: 47 x 22 x 13 mm
Short Circuit Protection: NONE
Applications:
DIY a mobile power supply
Boost charger
Power supply for electronic equipment
Package Included:

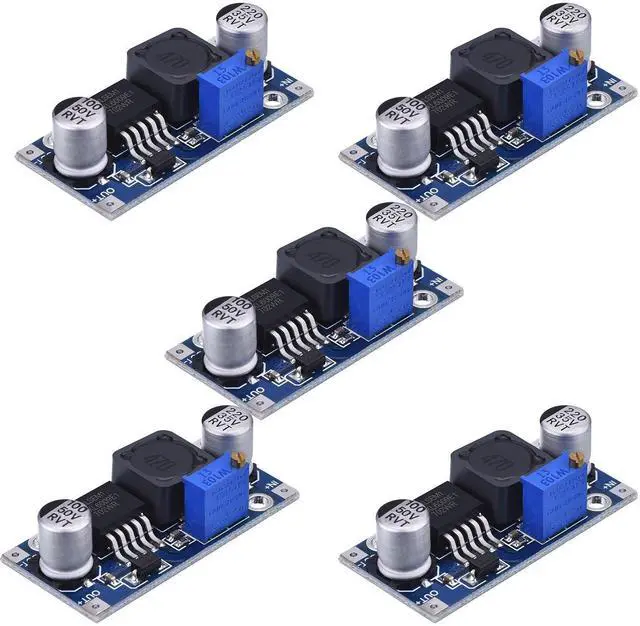

5* XL6009 Adjustable DC-DC Boost Module
