What are adapter plug (inside & outside) dimensions? Thanks

Question

Accepted Answer

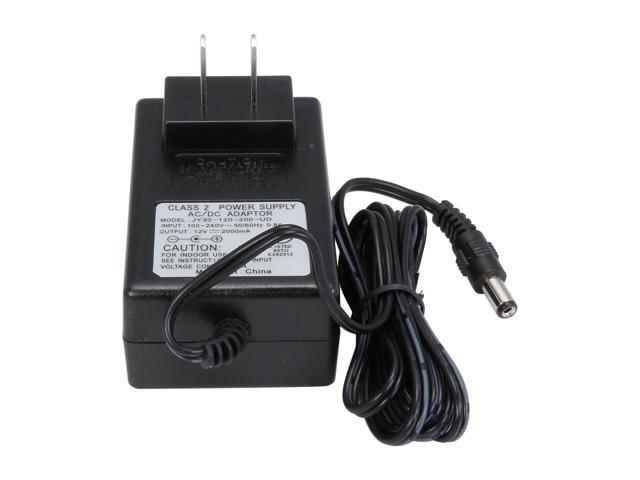

the main block is 85 mm long x 50 mm wide x 30 mm thick.  However, the prongs of the plug are set into a raised section that adds another ~9 mm in thickness.  That raised section is 33 mm x 22 mm, with the 33 mm axis oriented in the same axis as the 50 mm width of the main block.  It is centered in this axis, but is offset to one side of the 85 mm axis, such that the raised section is ~4 mm inside the edge of the length axis of the main block and has ~9 mm margin on each side in the width axis.  The prongs of the plug are ~12 mm from the length axis edge and are centered in the width axis with ~17 mm to each side.  The power lead comes out the opposite end of the length axis.
