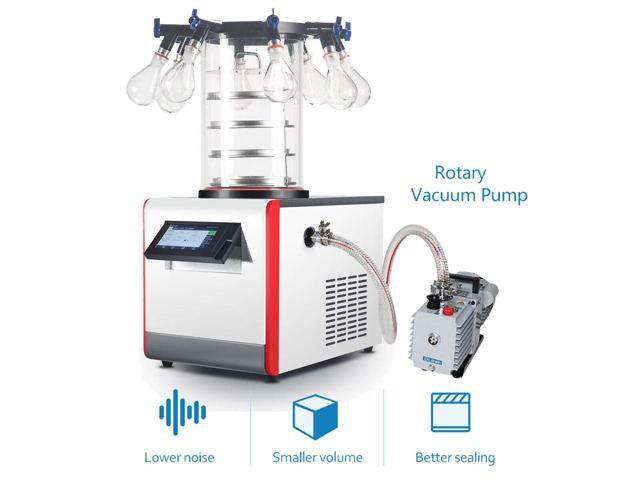

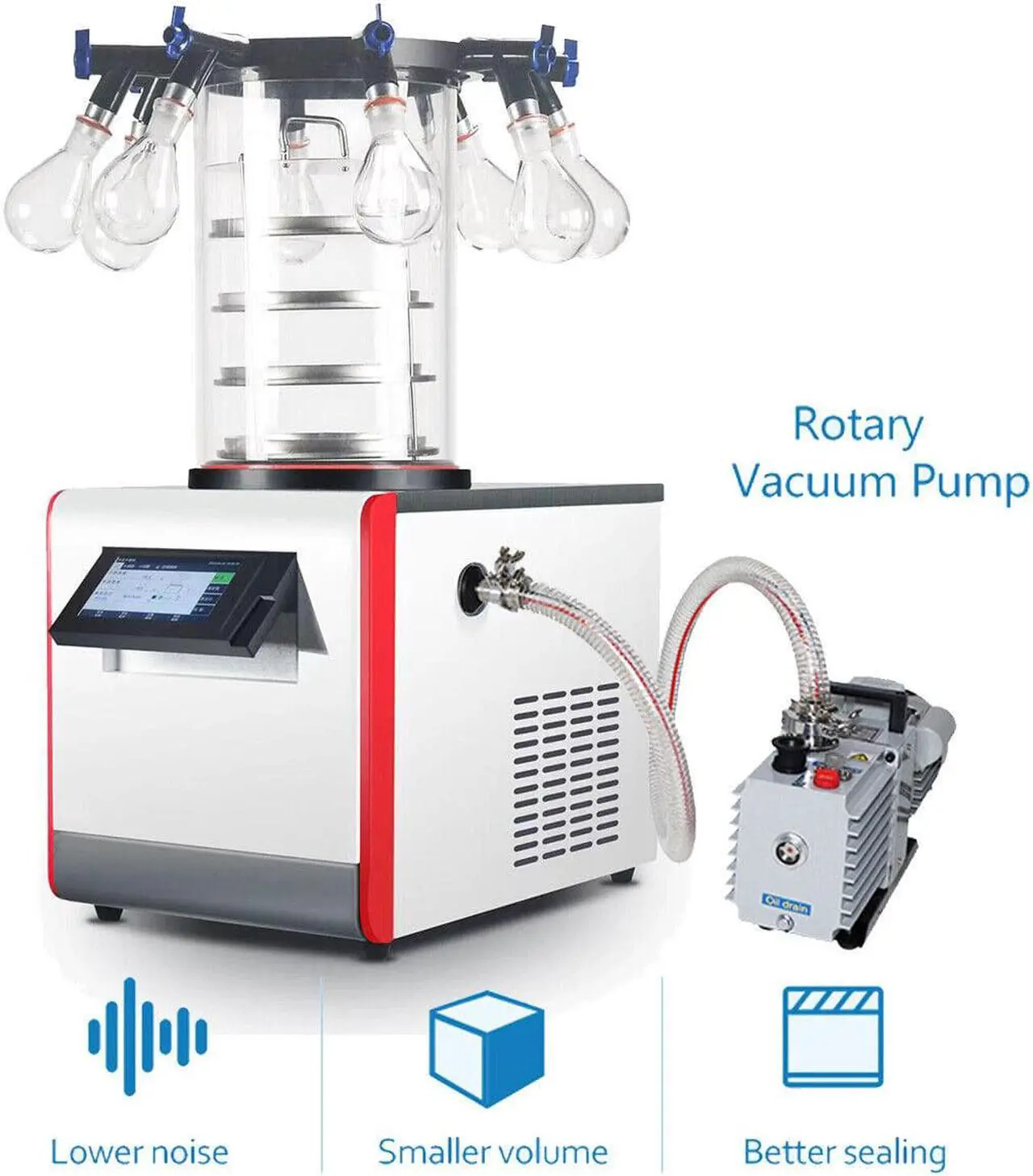

Mini Desktop Vacuum Freeze Dryer Multifunctional Food Dehydrator Vegetables Fruit Freeze Drying Mahine Laboratory 110V/60Hz
- Main Feature
- 1. 7-inch color LCD touch screen display.
- 2. Liquid crystal display drying curve.

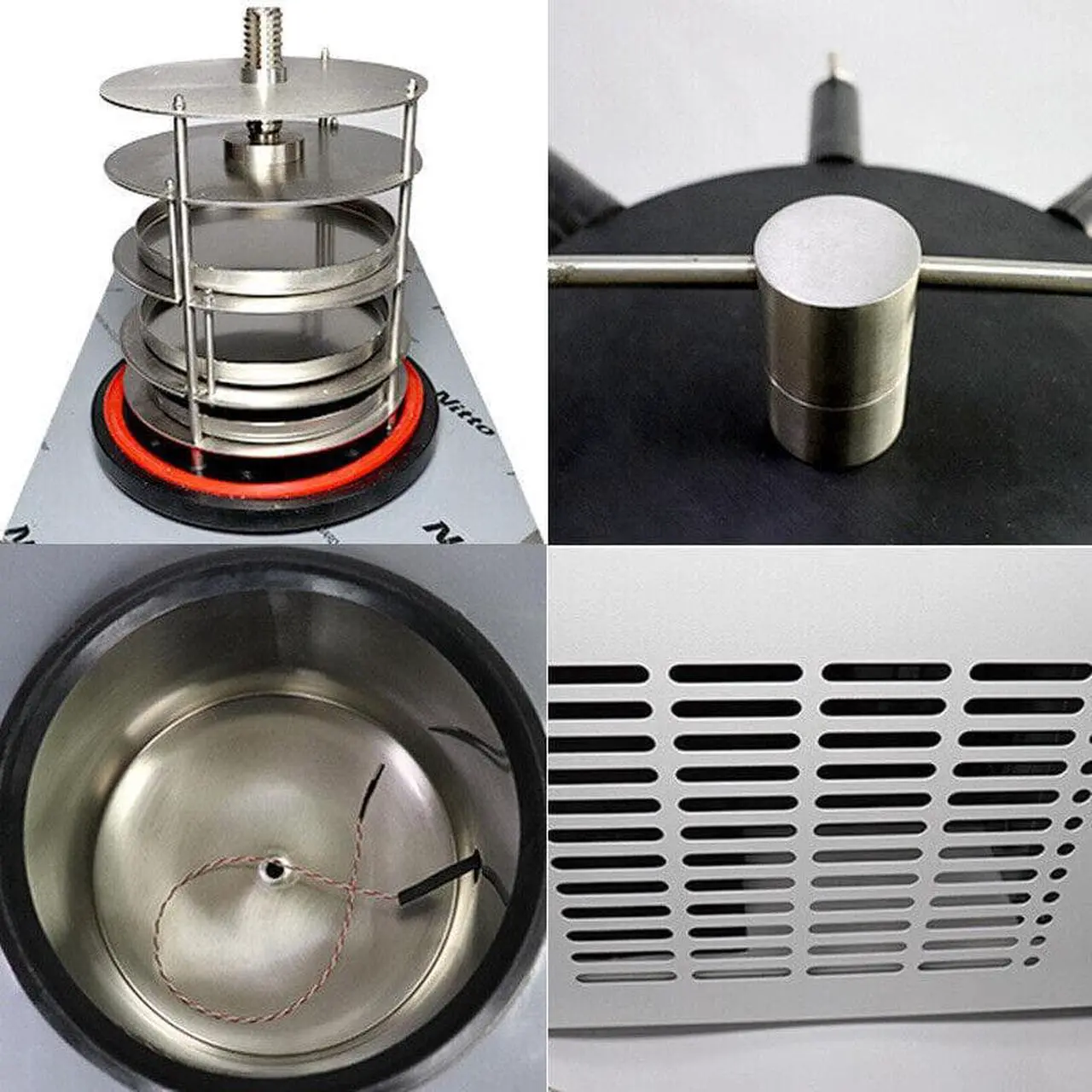

- 3. Transparent bell-type drying room, safe and intuitive.
- 4. Anti-return oil vacuum pump and place the pollution of materials.
- 5. High cost-effective laboratory vacuum freeze dryer.
- 6. Mixed environment-friendly refrigerant, green environment-friendly refrigeration capacity is large.
- 7. The drying chamber is integrally formed. No bonding, high strength, no leakage.

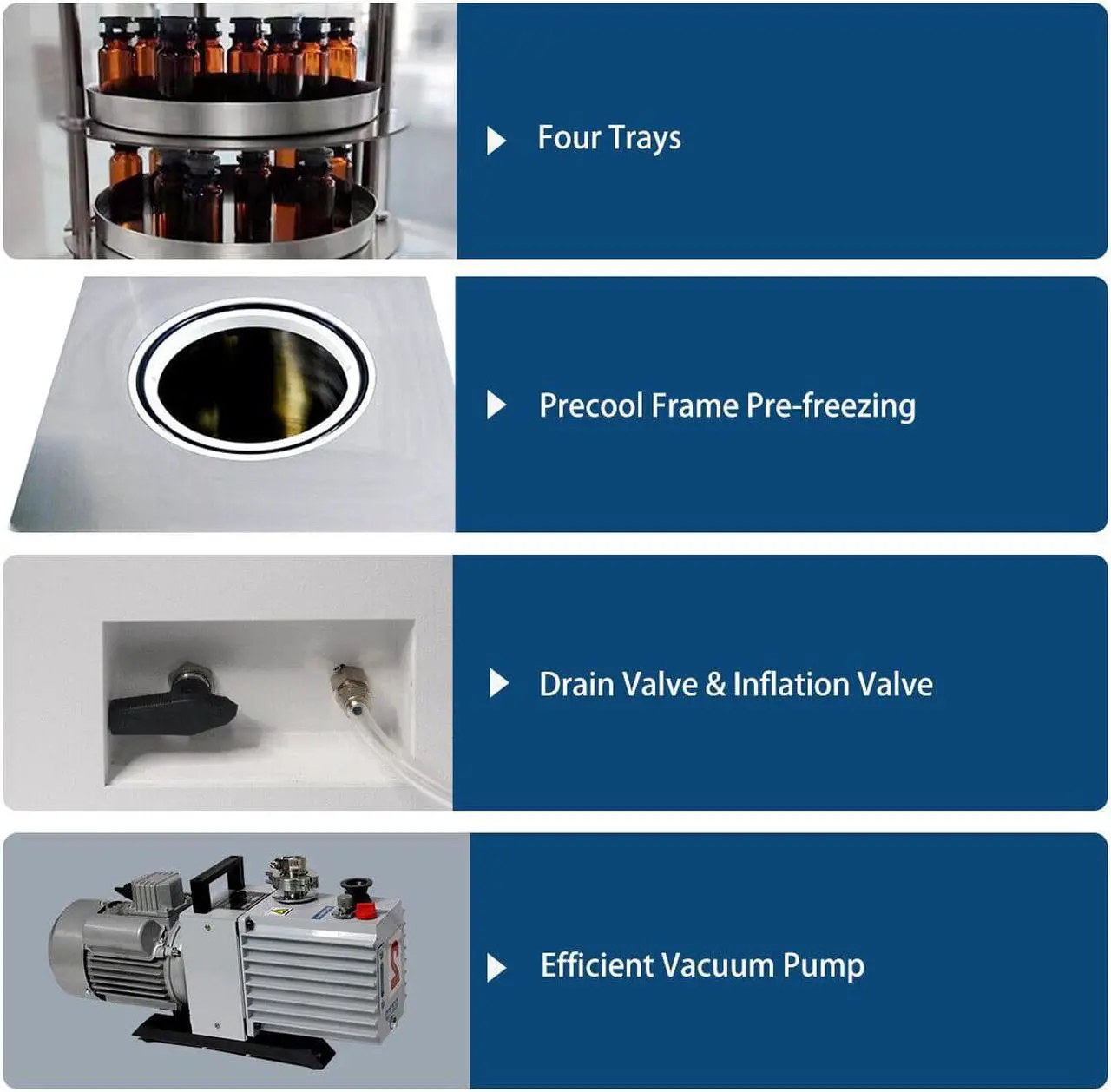

- 8. The cold trap has a pre-freezing function, which saves the cost of a low-temperature refrigerator.
- 9. The internal heat exchanger effectively reduces the temperature of the cold trap and has a strong water catching capacity
- 10. SECOP Scop compressor. Low noise, high power and long life.
+
+
Overview
Specs
Reviews
Introduce
Vacuum freeze-drying technology, called freeze-drying for short, is also called sublimation drying. It is a method of pre-freezing water-containing materials and then sublimating them under vacuum. Freeze-dried items have basically the same original biological and chemical properties, and are easy to store for a long time. After adding water, they can return to the form before freeze-drying and can maintain their original biochemical properties. Therefore, freeze drying technology is widely used in the chemical industry, lab, food freeze dryers and other fields.

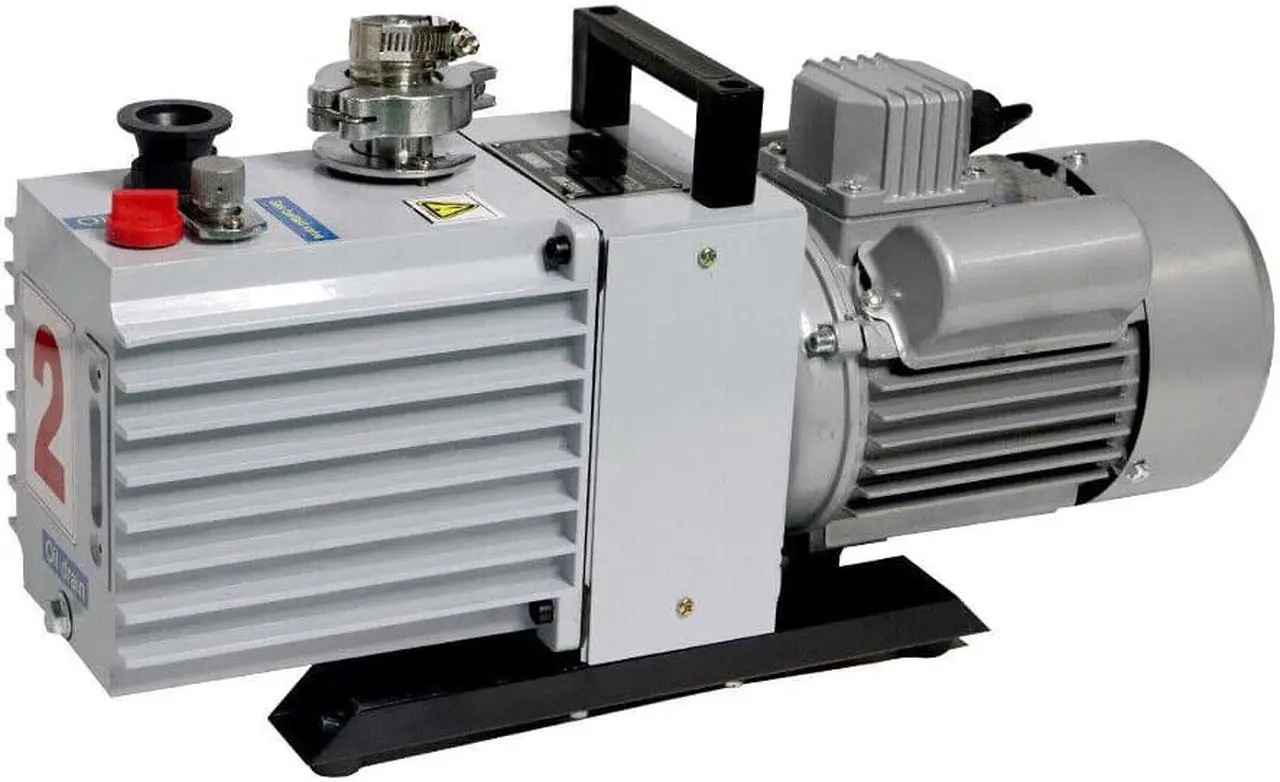

2XZ-2 Efficient Vacuum Pump
A rotary vane vacuum pump is an oil- sealed rotary displacement pump. The pumping system consists of a housing, an eccentrically installed rotor, vanes that move radially under centrifugal and resilient forces and the inlet and outlet. The inlet valve, if available, is designed as a vacuum safety valve that is always open during operation.
Rotary Vane Vacuum Pump
Model: 2XZ-2
Exhausting Speed(L/S): 2
Without Cas Ballast: 6*10-2
Rotary Speed(r/min): 1400
Working Voltage (V): 110V/60HZ
Motor power (kW): 0.37

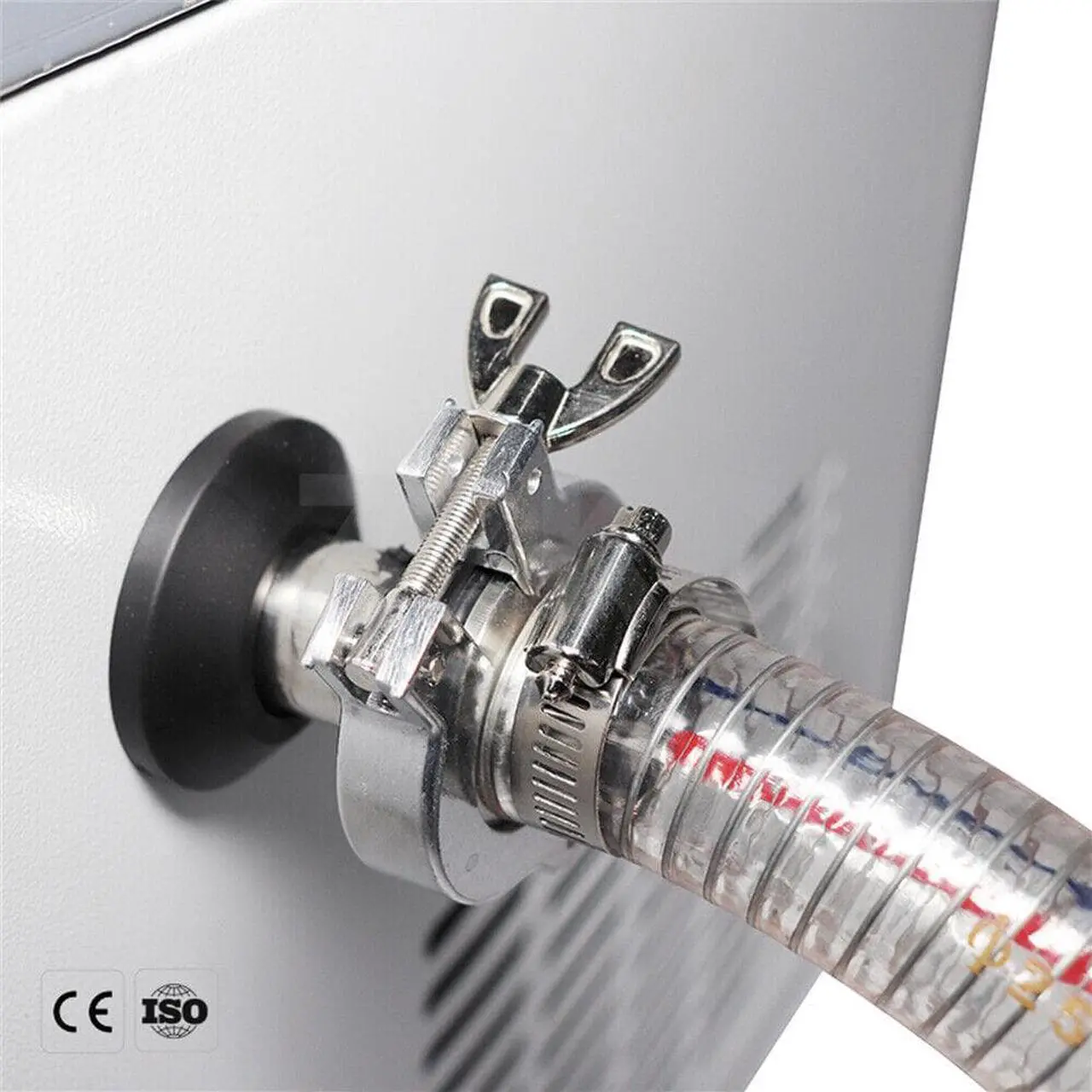

Inlet diameter (mm): 25(KF-25)
Oil Capacity (L): 0.65
Temp. Rise of
Pump Oil(): 40
Noise (Db): 70
10N-60C Vacuum Freeze Dryer
Condenser Temperature: 60
Condenser Ice Capacity: 3kg/batch

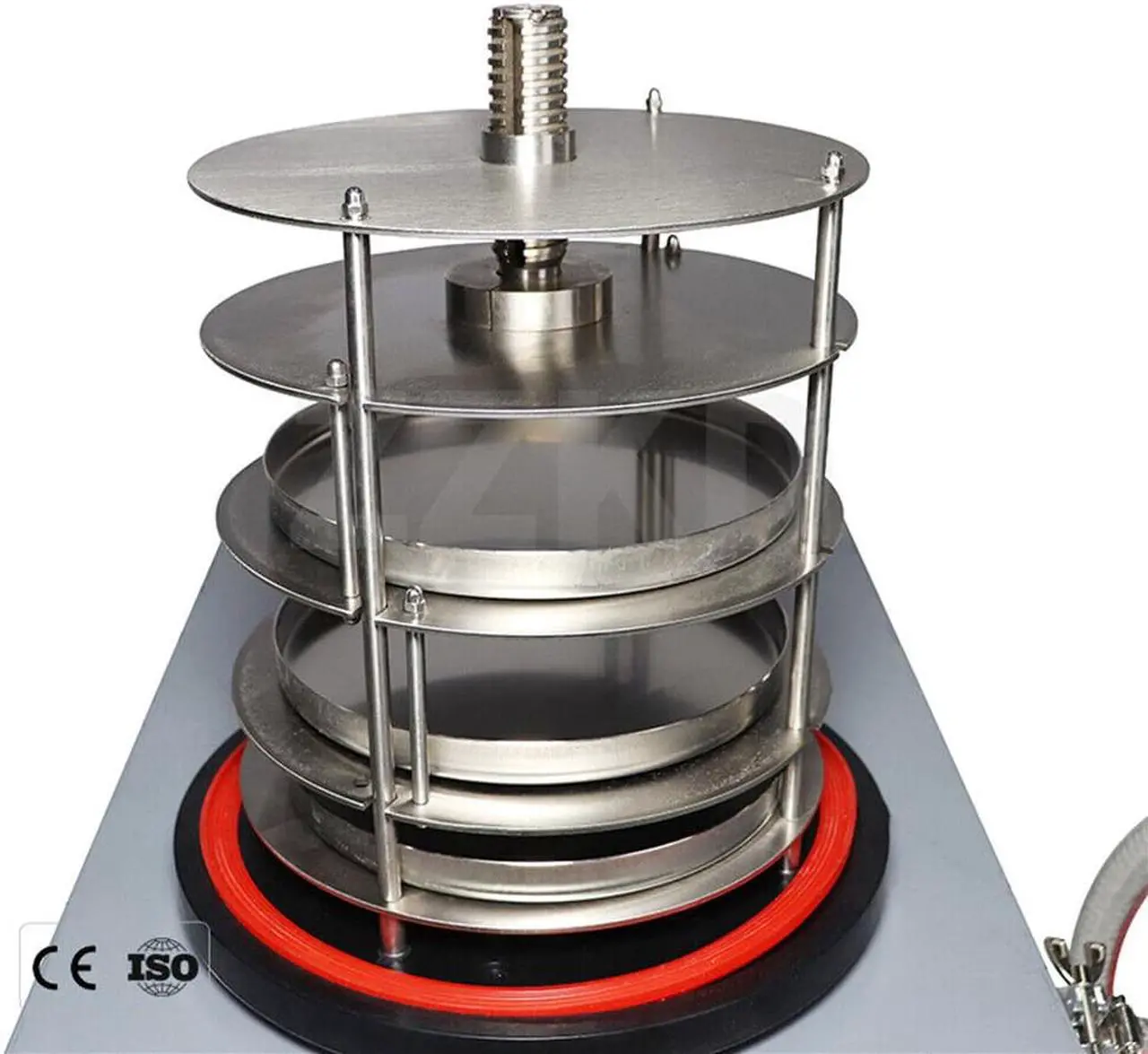

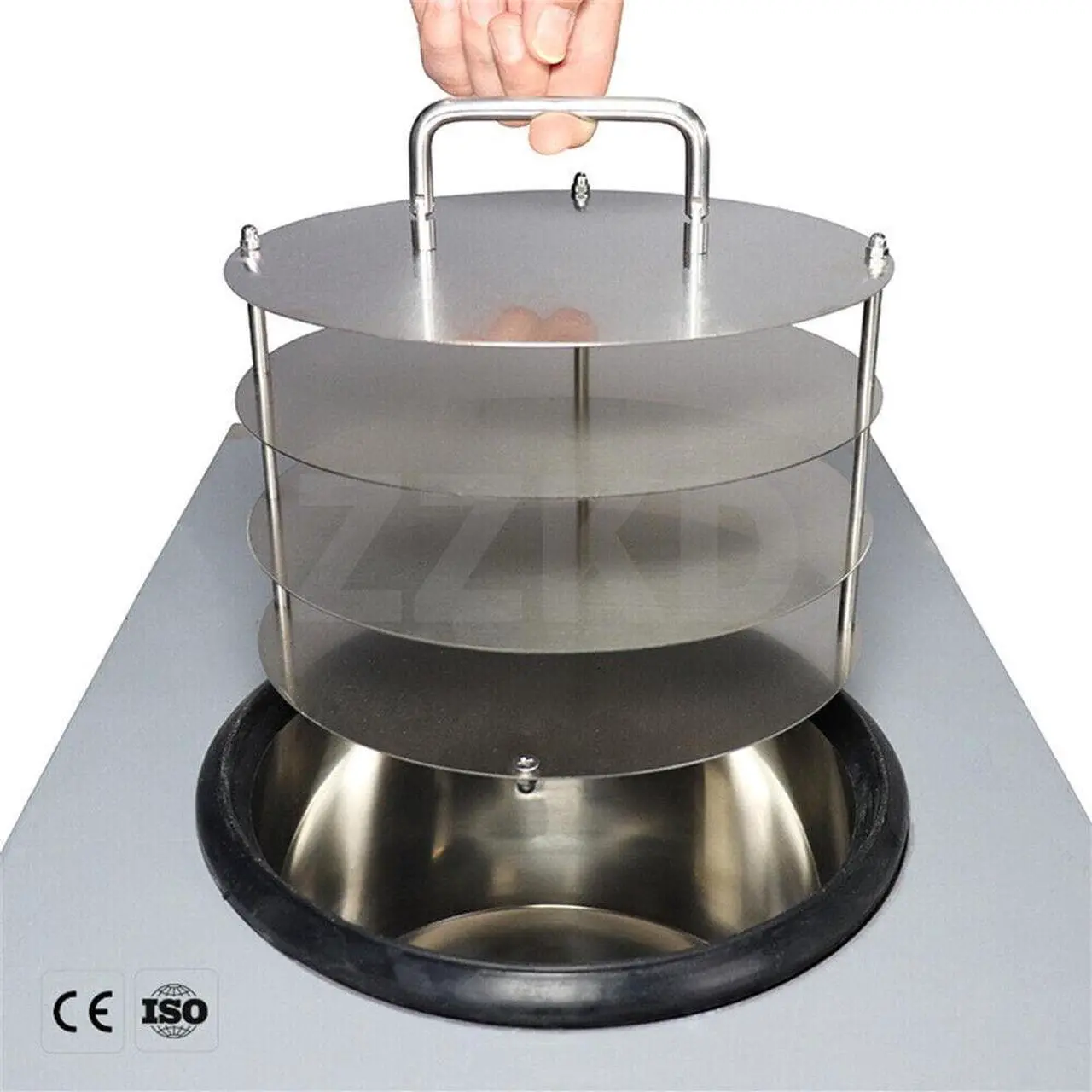

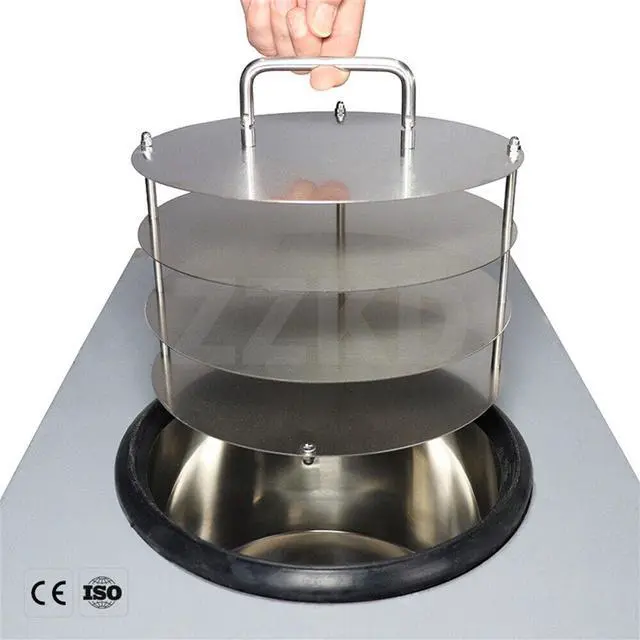

Tray size: Ø200mm x4
Drying area: 0.12 m²
vacuum pressure: 5Pa
Rated power: 850w
Power supply: 110V/60Hz
Package Contents
1 x 10N-60C Vacuum Freeze Dryer (110V/60HZ)
1 x 2XZ-2 Efficient Vacuum Pump (110V/60HZ)
Vacuum freeze-drying technology, called freeze-drying for short, is also called sublimation drying. It is a method of pre-freezing water-containing materials and then sublimating them under vacuum. Freeze-dried items have basically the same original biological and chemical properties, and are easy to store for a long time. After adding water, they can return to the form before freeze-drying and can maintain their original biochemical properties. Therefore, freeze drying technology is widely used in the chemical industry, lab, food freeze dryers and other fields.
2XZ-2 Efficient Vacuum Pump
A rotary vane vacuum pump is an oil- sealed rotary displacement pump. The pumping system consists of a housing, an eccentrically installed rotor, vanes that move radially under centrifugal and resilient forces and the inlet and outlet. The inlet valve, if available, is designed as a vacuum safety valve that is always open during operation.
Rotary Vane Vacuum Pump
Model: 2XZ-2
Exhausting Speed(L/S): 2
Without Cas Ballast: 6*10-2
Rotary Speed(r/min): 1400
Working Voltage (V): 110V/60HZ
Motor power (kW): 0.37
Inlet diameter (mm): 25(KF-25)
Oil Capacity (L): 0.65
Temp. Rise of
Pump Oil(): 40
Noise (Db): 70
10N-60C Vacuum Freeze Dryer
Condenser Temperature: 60
Condenser Ice Capacity: 3kg/batch
Tray size: Ø200mm x4
Drying area: 0.12 m²
vacuum pressure: 5Pa
Rated power: 850w
Power supply: 110V/60Hz
Package Contents
1 x 10N-60C Vacuum Freeze Dryer (110V/60HZ)
1 x 2XZ-2 Efficient Vacuum Pump (110V/60HZ)
