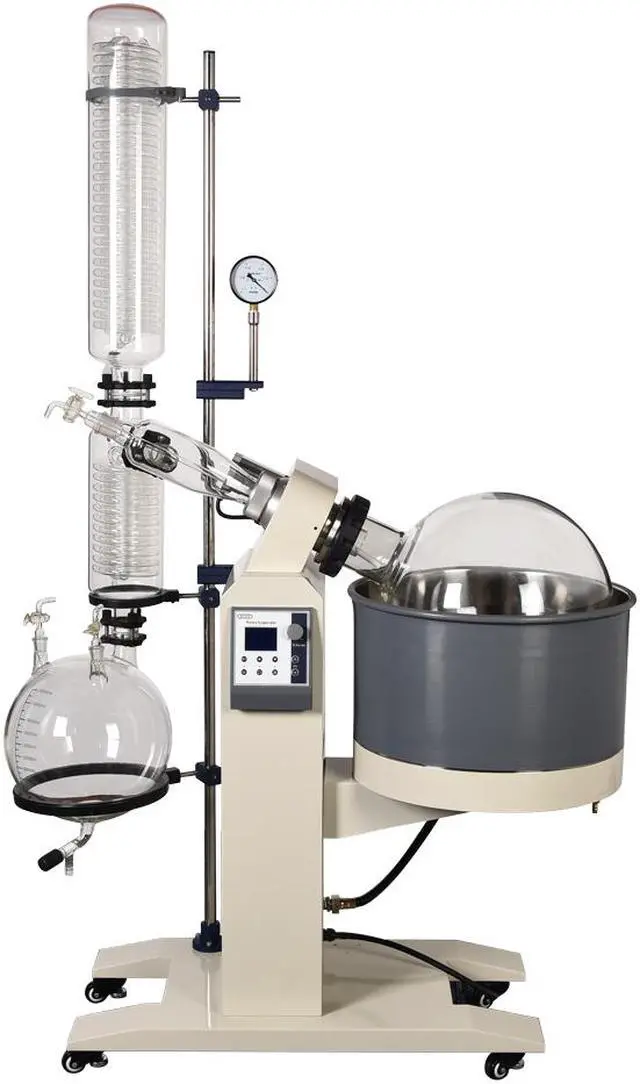

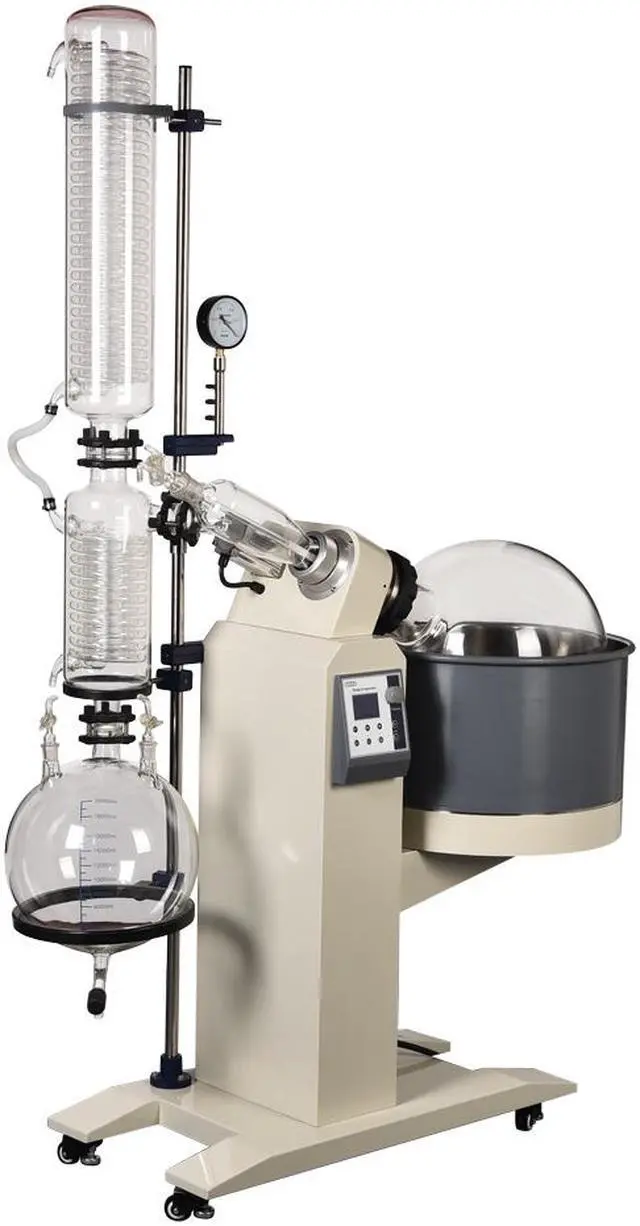

HNZXIB Lab 50L Rotary Evaporator Large Volume Rotavap R1050 Water Bath Automatic Lifting Laboratory Supplies

================ INTRODUCTION ================ Rotary evaporators are distillation units that incorporate an efficient condenser with a rotary flask system. As the flask containing the solvent is rotated it continually transfers a thin layer of liquid over the entire inner surface. This gives a very large surface area for evaporation that is effected by heating from the accessory water or oil bath. The solvent steam is cooled by a high efficiency glass condenser and recovered in the collection bottle, which greatly improves the evaporation efficiency, especially for the concentration and purification of the biologic which are easily decomposed at high temperature.

================ PARAMETERS ================ 50L
Rotary Evaporator Model: R1050
Rotating bottle capacity: 50L

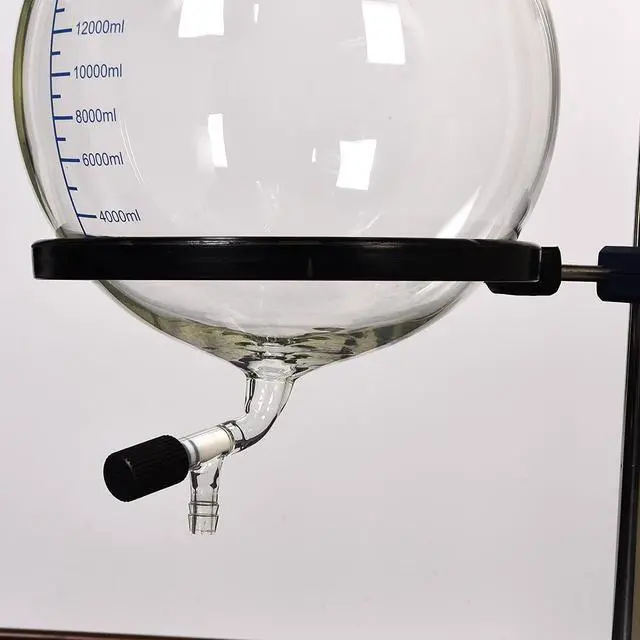

Receiving bottle capacity: 20L
Working power supply: Three phase 220-240V/380V/60Hz

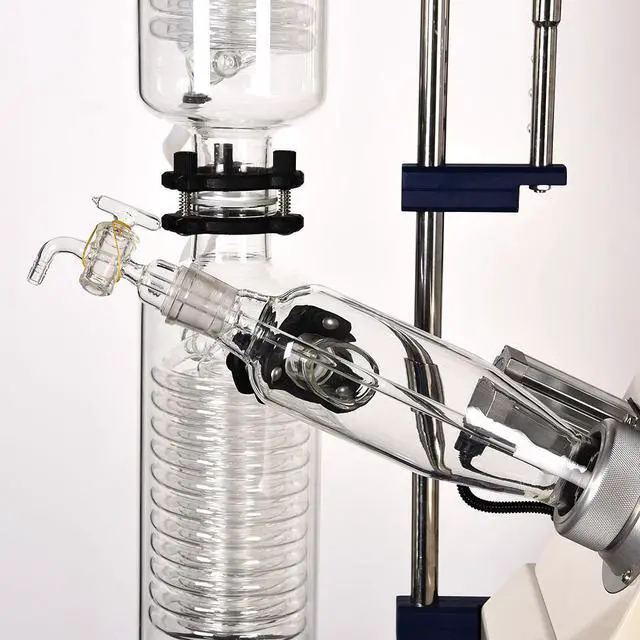

Condenser tube: Vertical double coil, Main-condenser +
Sub-condenser Evaporation capacity: Water = 9L/h, Alcohol = 19L/h
Water bath pot material: Stainless steel
Water bath pot size: f550×320 (mm)
Lifting mode: Electric + hand lift
Optimum ambient temperature: 5°C~35°C
Lift stroke: 0~180mm
Whole power: 4KW(220-240V)
Outline dimension: 1320×770×2340 (mm)
Main engine speed: 20~110 (RPM)
Rotary electric machine: Brushless 250W

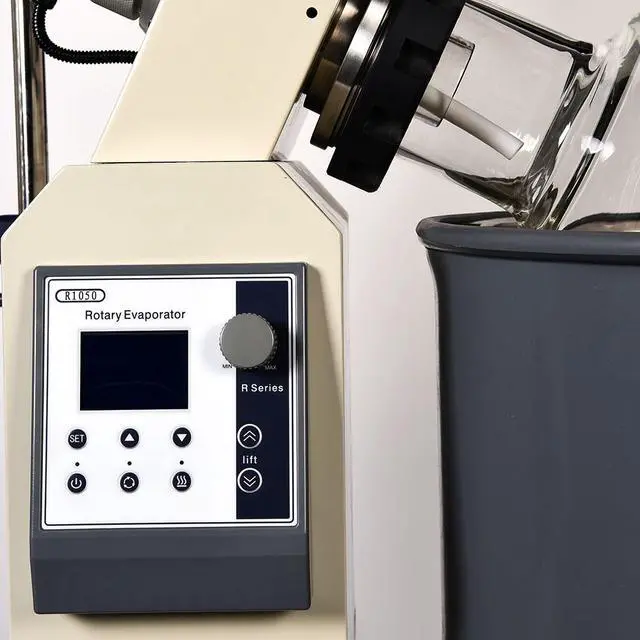

Main engine speed control: Digital frequency conversion stepless speed regulation ————————Related
Supporting Products———————— Refrigerator circulator: for condensation and reducing waste of materials
Circulating water vacuum pump: for vacuuming for negative pressure reaction
